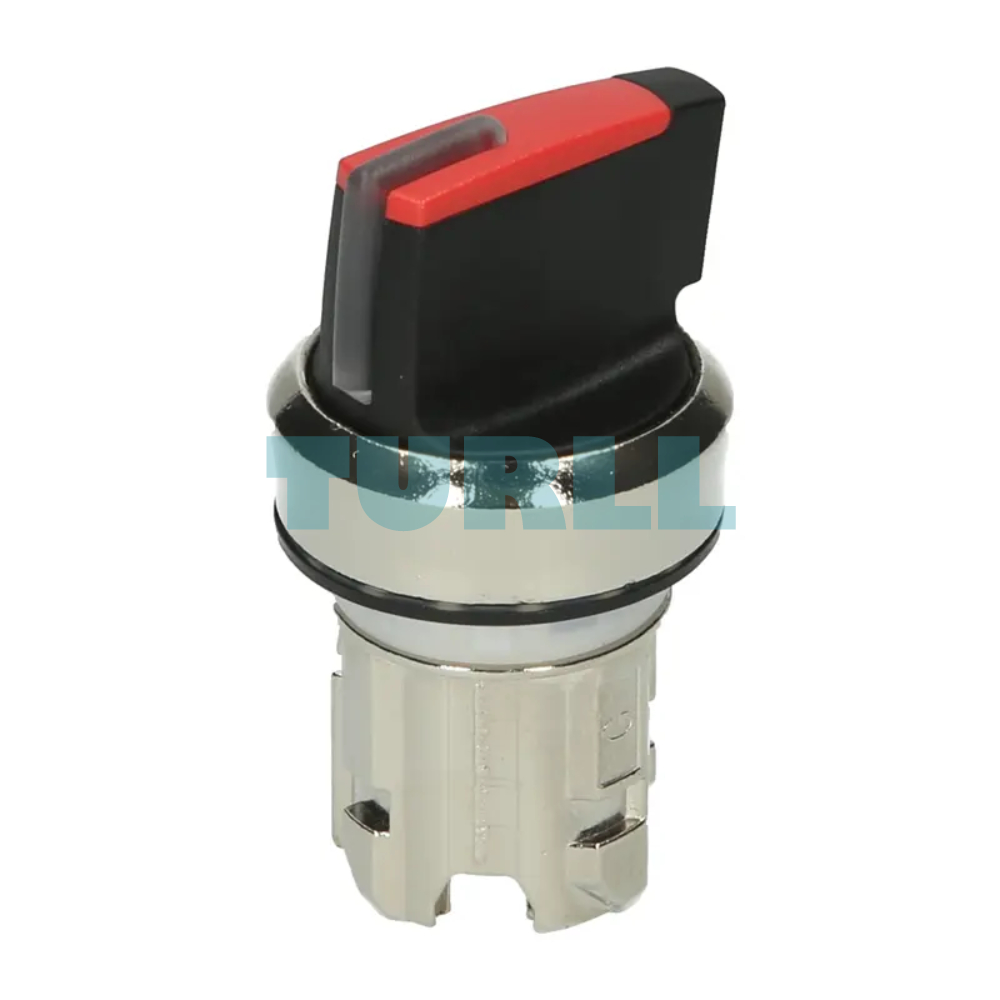

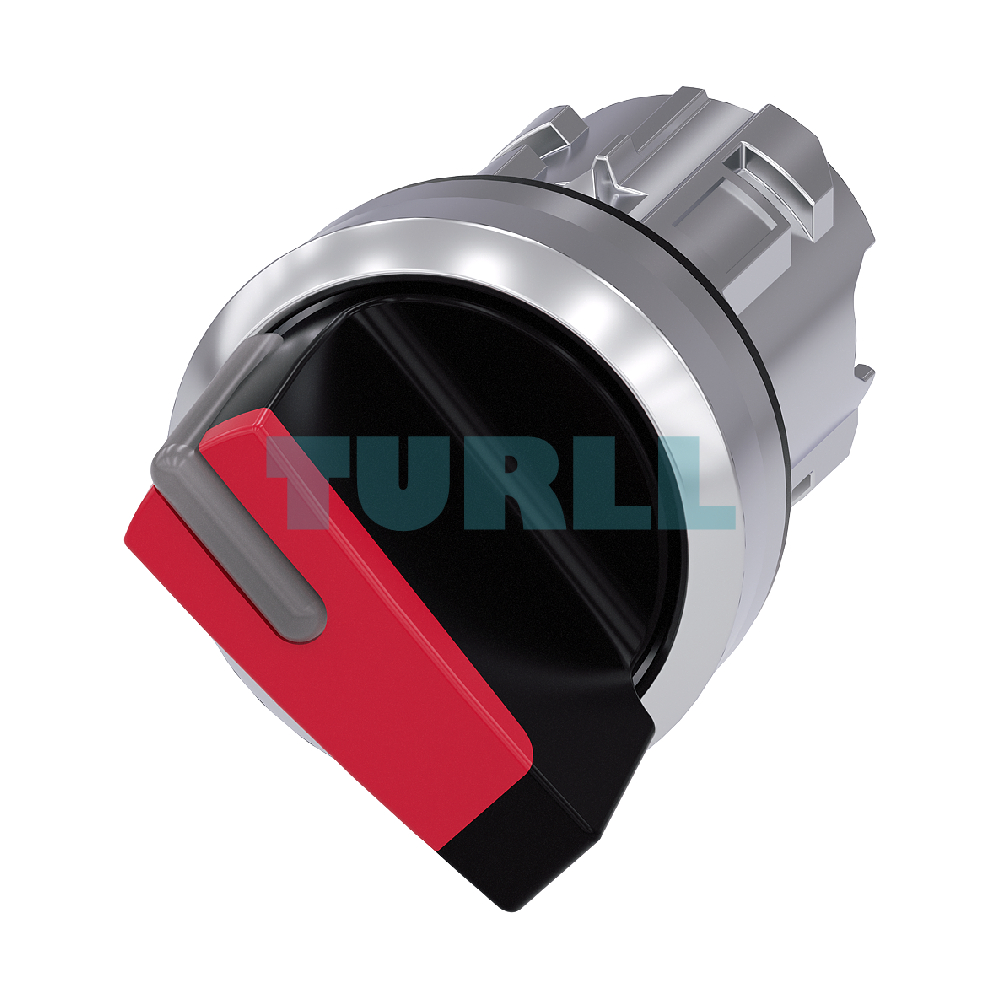

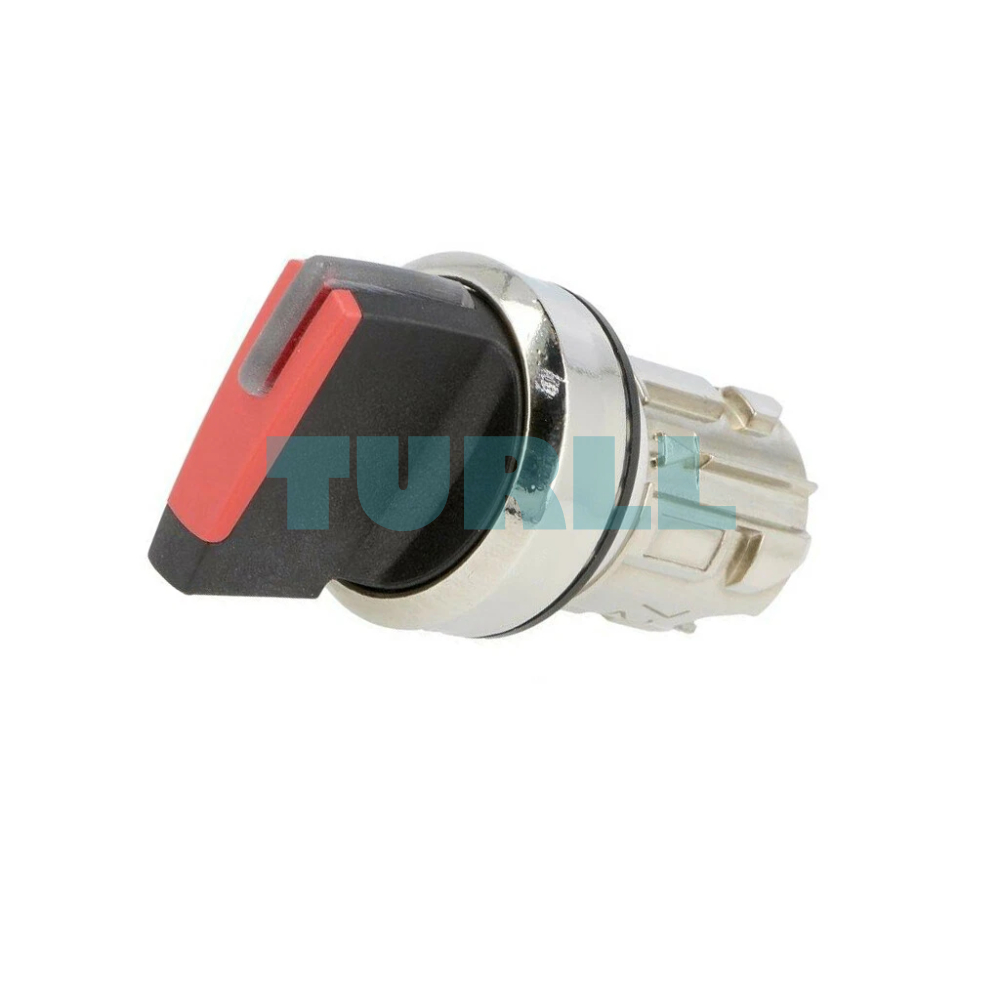

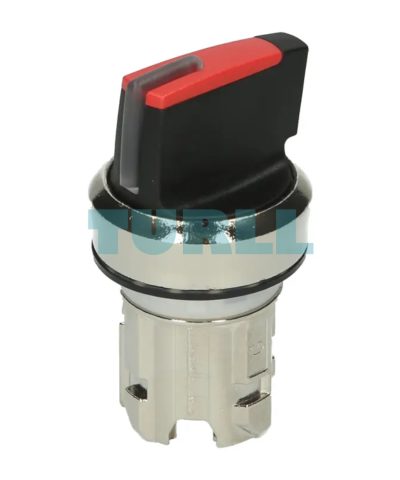

Siemens 3SU1052-2BC20-0AA0 Illuminable Selector Switch, 22mm, Red, Metal, Round Original Brand New
$9.68
SIRIUS ACT illuminated selector switch head, 22 mm round, shiny metal, with a red short handle. It features 2 momentary positions (O<I) with a 45 actuating angle. Perfect for demanding industrial control applications requiring momentary activation and high IP protection (IP66/67/69K).
Availability: In stock
Overview
The Siemens 3SU1052-2BC20-0AA0 is a high-performance, illuminated selector switch actuator head from the SIRIUS ACT commanding and signaling devices series. Designed for demanding industrial environments, this component features a 22 mm round metal, shiny front ring for a premium and robust finish. It is a 2-position switch (O<I) with a momentary contact type function, meaning it returns to the center (or rest) position when released, making it ideal for jogging or temporary activation functions. The red color ensures high visibility and is often used for specific control or safety-related functions.
Key Benefit
-
Enhanced Visibility: Illuminable red switch ensures easy identification in low-light environments.
-
Durable Construction: Made from premium metal, resistant to wear and tear.
-
Precision Control: 2 switch positions with 45° actuating angle for accurate operation.
-
Versatile Applications: Ideal for industrial machinery, automation panels, and control systems.
-
Ergonomic Design: Round, compact, and easy-to-use selector switch.
Features
-
Selector switch type: Illuminable, short
-
Mounting size: 22 mm
-
Material: Shiny metal
-
Color: Red
-
Switch positions: 2 (O<I)
-
Contact type: Momentary
-
Actuating angle: 45°
-
Clock positions: 10:30h/12h
Function and Application
The 3SU1052-2BC20-0AA0 functions as the front-of-panel operating element for a 2-position switch. Its momentary action from the center position to the ‘I’ position (and spring return) is commonly used in control panels, machine interfaces, and electrical enclosures for tasks like:
-
Jogging/Inching: Temporary activation of a motor or conveyor system.
-
Test Functions: Activating a sequence or component momentarily for diagnostic checks.
-
Override Control: Providing a brief manual input signal.
Note: This is the actuator head only. A suitable holder (e.g., 3SU1550-0AA10-0AA0), LED module, and contact blocks (e.g., 3SU1400-1AA10-1BA0) are required to form a complete, functional control unit.
Visit 3SU1052-2BC20-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 103.00 × 156.00 × 30.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Number of command points | 1 |
| Design of the operating mechanism | Toggle switch |
| Manner of function of the actuating element | momentary contact, 45° (10:30 h/12 h), return from center to left |
| Product extension optional Light source | Yes |
| Color of the actuating element | red |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 32.3 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 2 |
| Actuating angle | – |
| ● clockwise | 45° |
| Product component front ring | Yes |
| Design of the front ring | standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 1 000 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | – |
| Proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

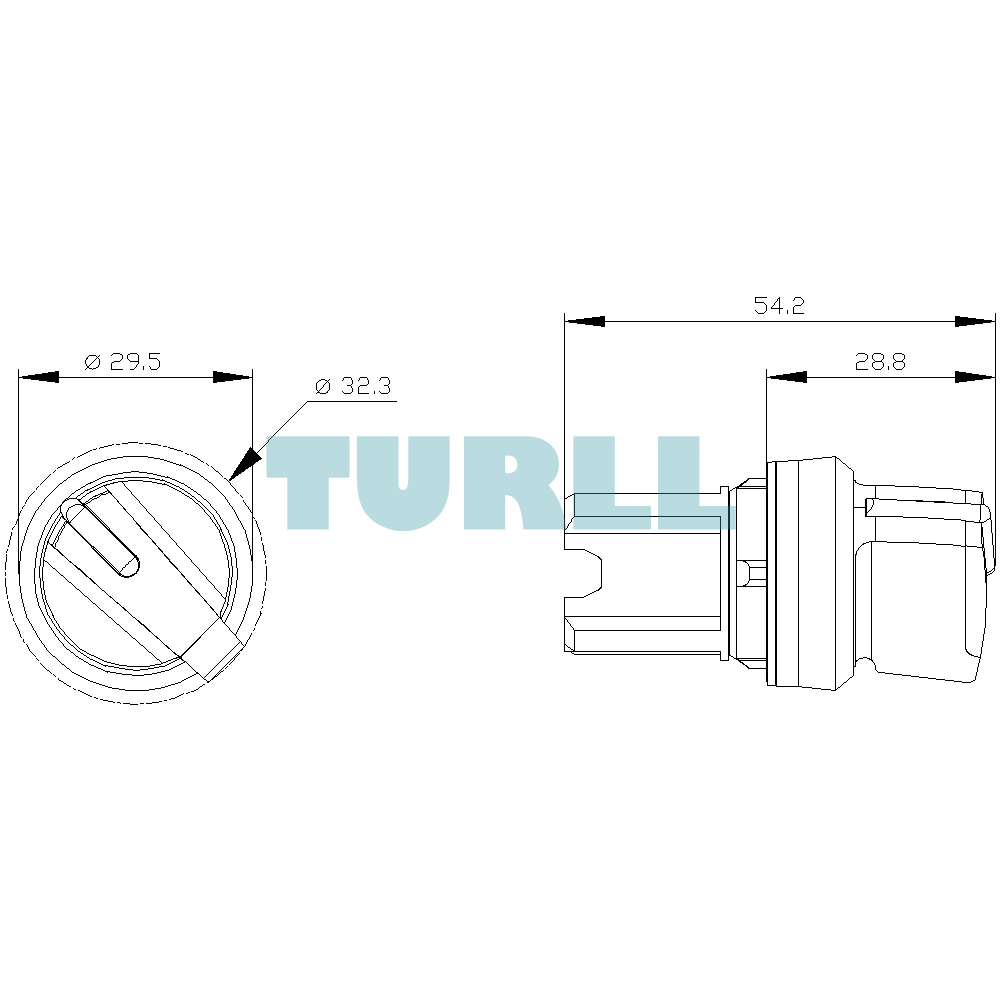

| Height | 32.3 mm |
| Width | 32.3 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 28.8 mm |
| Installation width | 32.3 mm |
| Installation depth | 25.4 mm |
| last modified: | 10/30/2019 |
