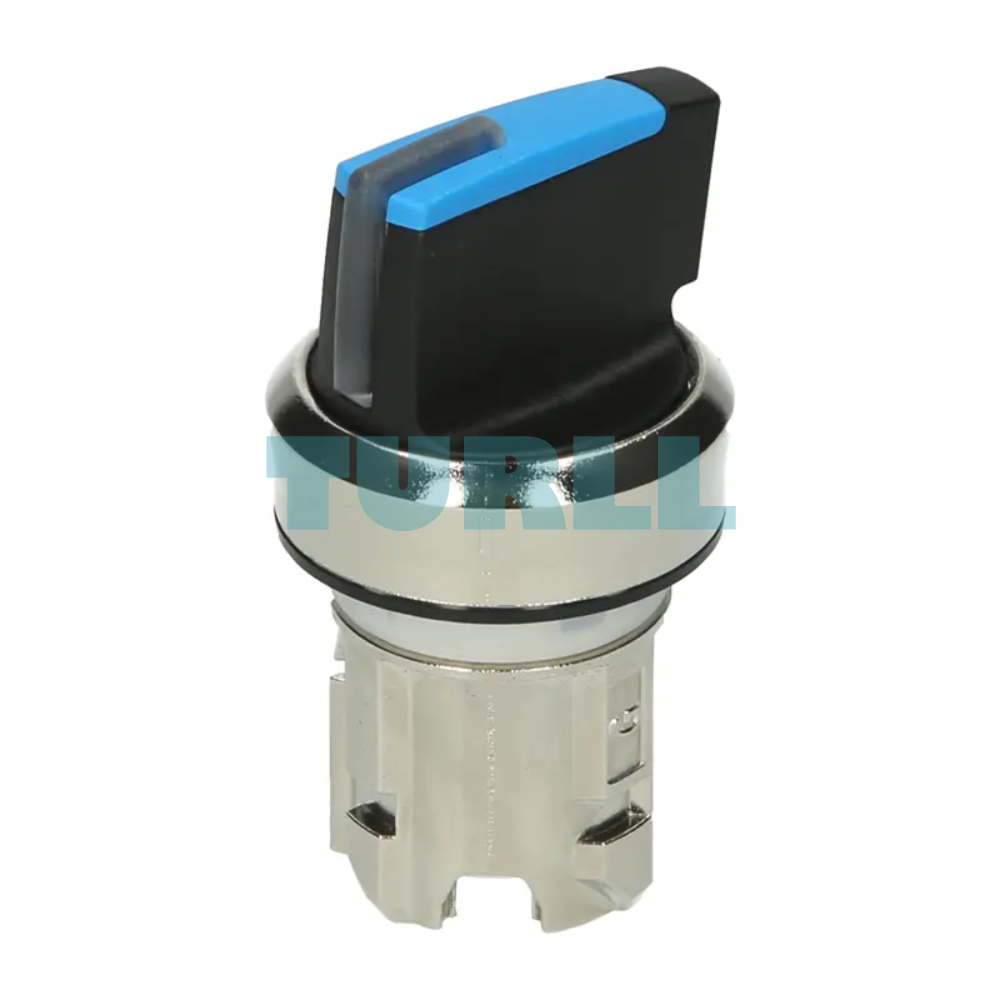

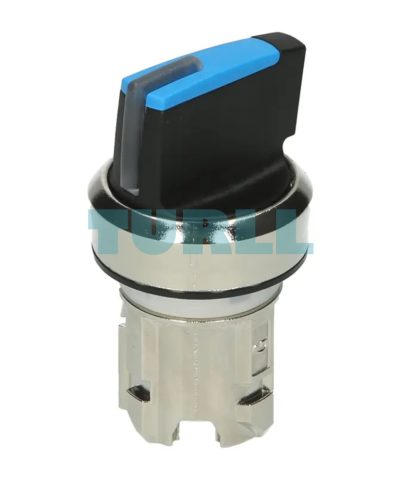

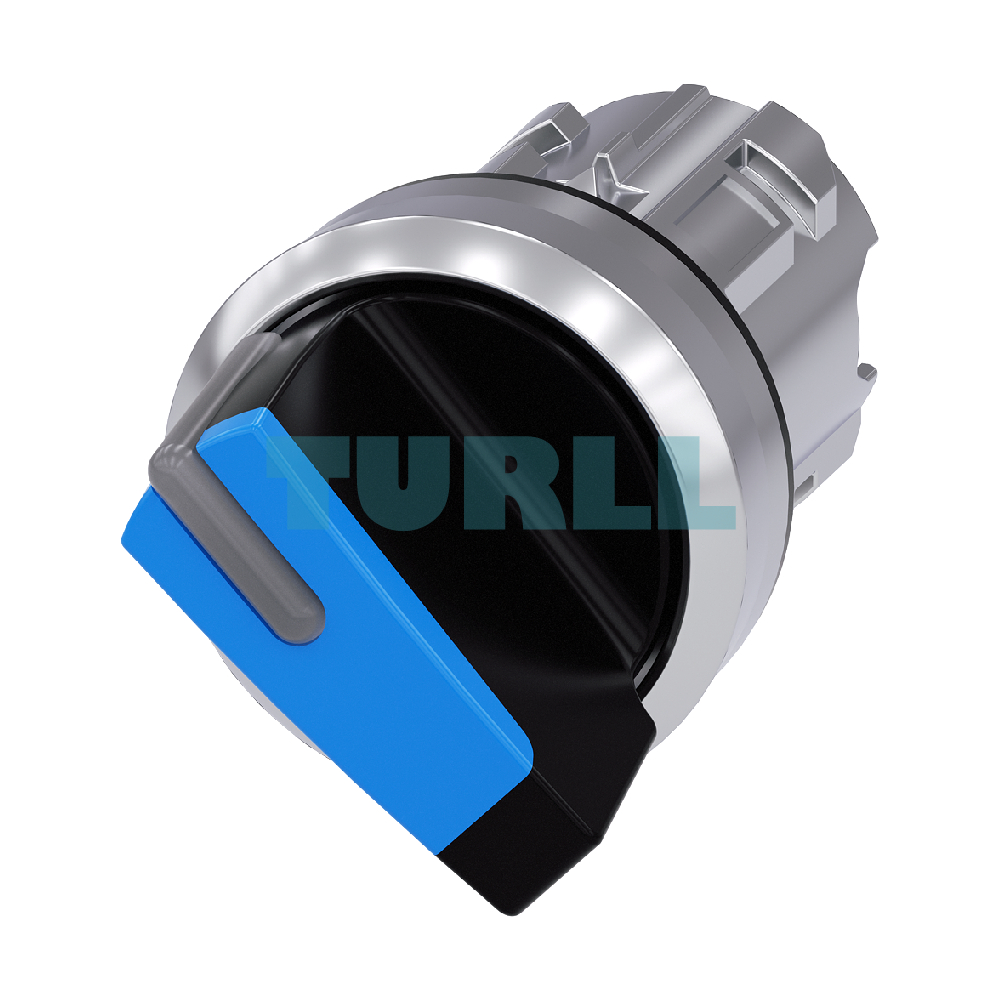

Siemens 3SU1052-2BF50-0AA0 Illuminable Selector Switch, 22mm, Blue Metal, Latching Original Brand New
$9.68
Illuminable blue selector switch, 22 mm round metal design, with 2 switch positions (O-I), latching operation, 90° actuating angle, ideal for industrial control applications.
Availability: In stock
Overview
The Siemens 3SU1052-2BF50-0AA0 is a premium, illuminable selector switch from the highly reliable SIRIUS ACT command and signaling device series. Designed for demanding industrial environments, this component ensures precise and unambiguous control over machinery and processes. Its robust, 22mm round metal housing features a stylish shiny metal finish and a distinct blue color coding for high visibility and instant identification.
This specific model is a short selector switch with two positions, marked O (Off) and I (On), and operates with a latching/maintained function. Once switched, the position is held until manually released, making it ideal for continuous operations.
Key Benefits
-
Enhanced Visibility: Blue illumination ensures clear status indication in low-light or high-noise industrial settings.
-
Durable Metal Construction: Built with robust shiny metal for long service life and consistent performance.
-
Ergonomic Control: 22 mm round design provides comfortable and accurate manual operation.
-
Reliable Switching: Latching mechanism maintains selected state until manually changed.
-
Siemens Quality Assurance: Engineered to meet global industrial control standards.
Functions & Features
-
Model: Siemens 3SU1052-2BF50-0AA0
-
Type: Illuminable selector switch
-
Design: Round, metal, shiny
-
Diameter: 22 mm
-
Color: Blue
-
Switch Type: Short selector switch
-
Positions: 2 switch positions (O-I)
-
Operation: Latching
-
Actuating Angle: 90°
-
Orientation: 10:30h / 13:30h
-
Application: Industrial control panels, automation systems, machinery operation stations
Download
Visit 3SU1052-2BF50-0AA0 for more detail info
For more our products visit turll
| Weight | 0.049 kg |
|---|---|
| Dimensions | 40.00 × 60.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 32.3 mm |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |

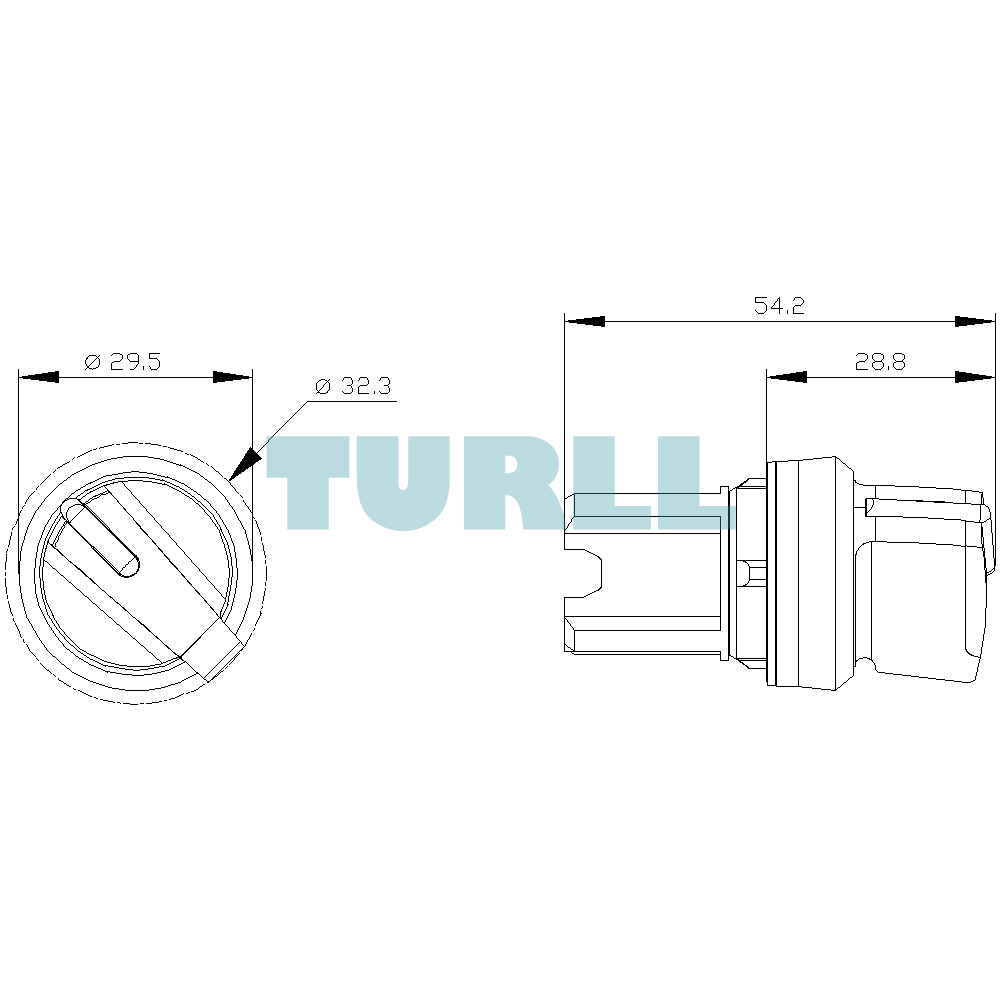

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
