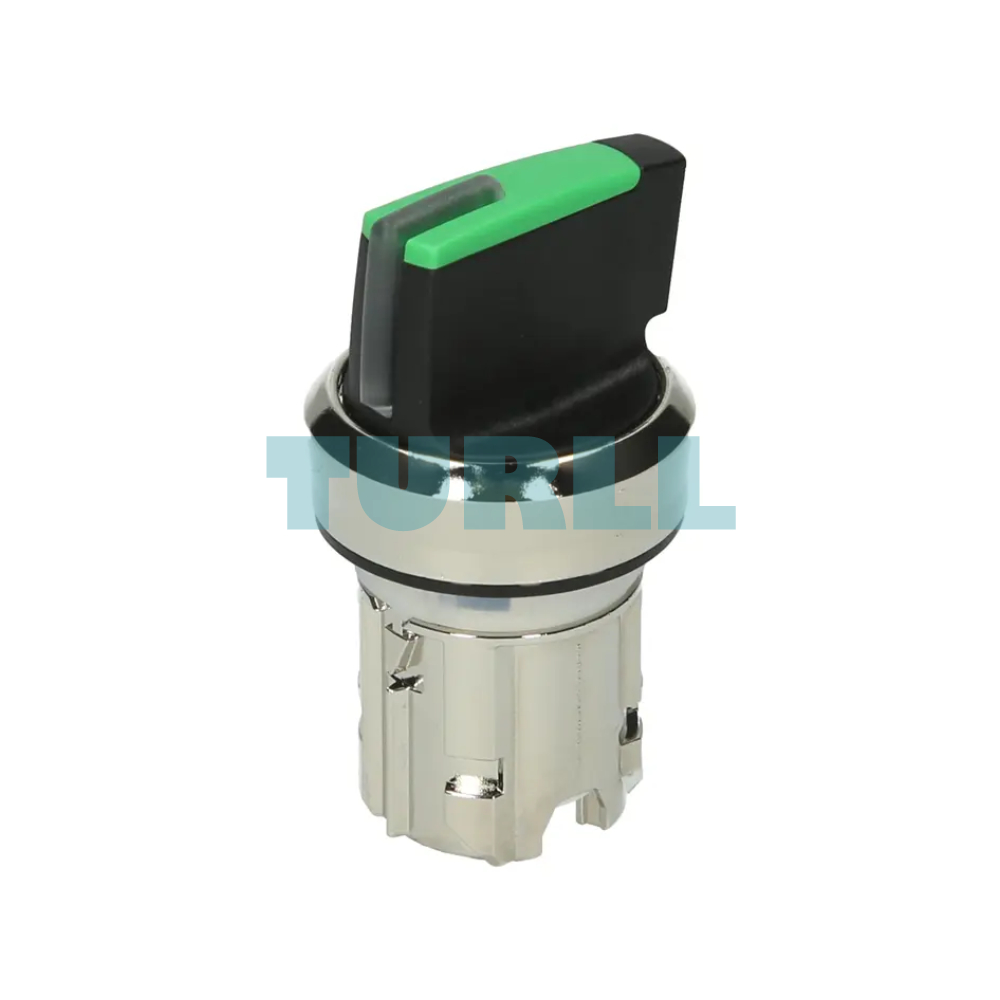

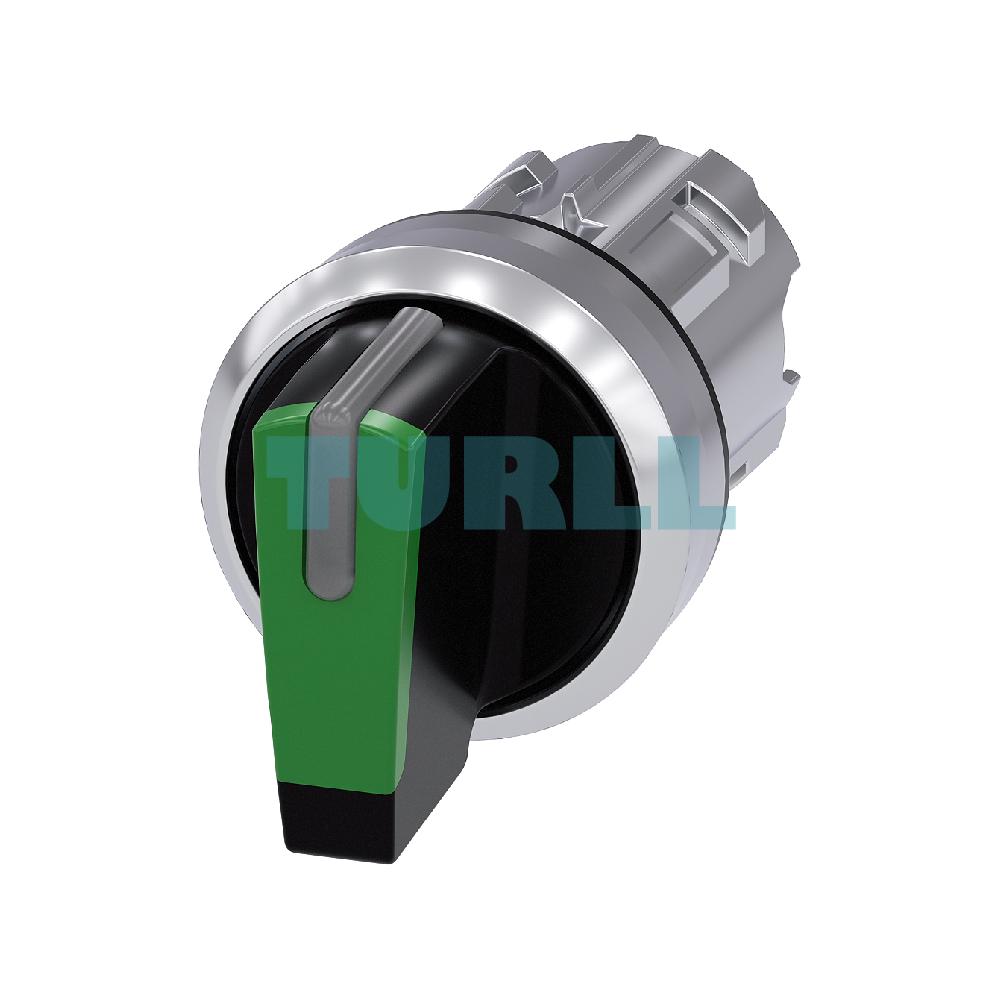

Siemens 3SU1052-2BL40-0AA0 Illuminable Selector Switch, 22mm, Green, Metal, 3 Positions Original Brand New
$9.68
High-quality Siemens 3SU1052-2BL40-0AA0 illuminable selector switch, 22 mm, round, shiny metal, green color, with 3 switch positions I-O-II and latching functionality. Ideal for industrial control panels.
Availability: In stock
Overview
The Siemens 3SU1052-2BL40-0AA0 is a premium component from the SIRIUS ACT portfolio, specifically engineered for demanding industrial environments. This 22 mm panel-mount selector switch features a durable metal, shiny, high-gloss bezel and an eye-catching green color, ensuring both longevity and visibility. It is an illuminable type, which is crucial for operational feedback on complex machinery. The mechanism is a short, 3-position, latching (maintained) switch with clear I-O-II markings, making it ideal for selecting between three operating states (e.g., Manual-Off-Automatic, Low-Off-High).
Benefit
-
Exceptional Durability: Robust metal construction provides maximum resistance against mechanical stress in harsh industrial settings.
-
High Visibility: The green, illuminable design ensures the switch position is clearly visible, improving operator safety and reducing errors.
-
Reliable Operation: Latching (maintained) function ensures the selected position remains stable, preventing unintended switching and simplifying control logic.
-
Aesthetically Pleasing: The shiny, round metal bezel gives control panels a modern, high-quality professional look.
-
Industry Standard: Part of the widely adopted Siemens SIRIUS ACT series, guaranteeing compatibility and ease of integration.
Functions & Features
-
Selector switch, illuminable
-
22 mm diameter, round design
-
Metal, shiny construction
-
Green color illumination
-
Short selector switch
-
3 switch positions: I-O-II
-
Latching mechanism
-
Actuating angle: 2×45° (10:30h / 12h / 13:30h)
Visit 3SU1052-2BL40-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 35.00 × 55.00 × 28.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Selector switches |
| Design of the product | Actuating/signaling element |
| Product type designation | 3SU1 |
| Number of command points | 1 |
| Design of the operating mechanism | Toggle switch |
| Manner of function of the actuating element | latching, 2×45° (10:30 h/12 h/13:30 h) |
| Product extension optional Light source | Yes |
| Color of the actuating element | green |
| Material of the actuating element | plastic |
| Shape of the actuating element | Handle |
| Outer diameter of the actuating element | 32.3 mm |
| Marking of the actuating element | Customized labeling, graphical symbols acc. to ISO7000 and IEC60417 |
| Number of switching positions | 3 |
| Actuating angle | – |
| ● clockwise | 45° |
| ● anticlockwise | 45° |
| Product component front ring | Yes |
| Design of the front ring | standard |
| Material of the front ring | Metal, high gloss |
| Color of the front ring | silver |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Operating frequency maximum | 1 800 1/h |
| Mechanical service life (switching cycles) | – |
| ● typical | 1 000 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |
| B10 value | – |
| Proportion of dangerous failures | – |
| ● with high demand rate acc. to SN 31920 | 20 % |
| Failure rate [FIT] | – |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

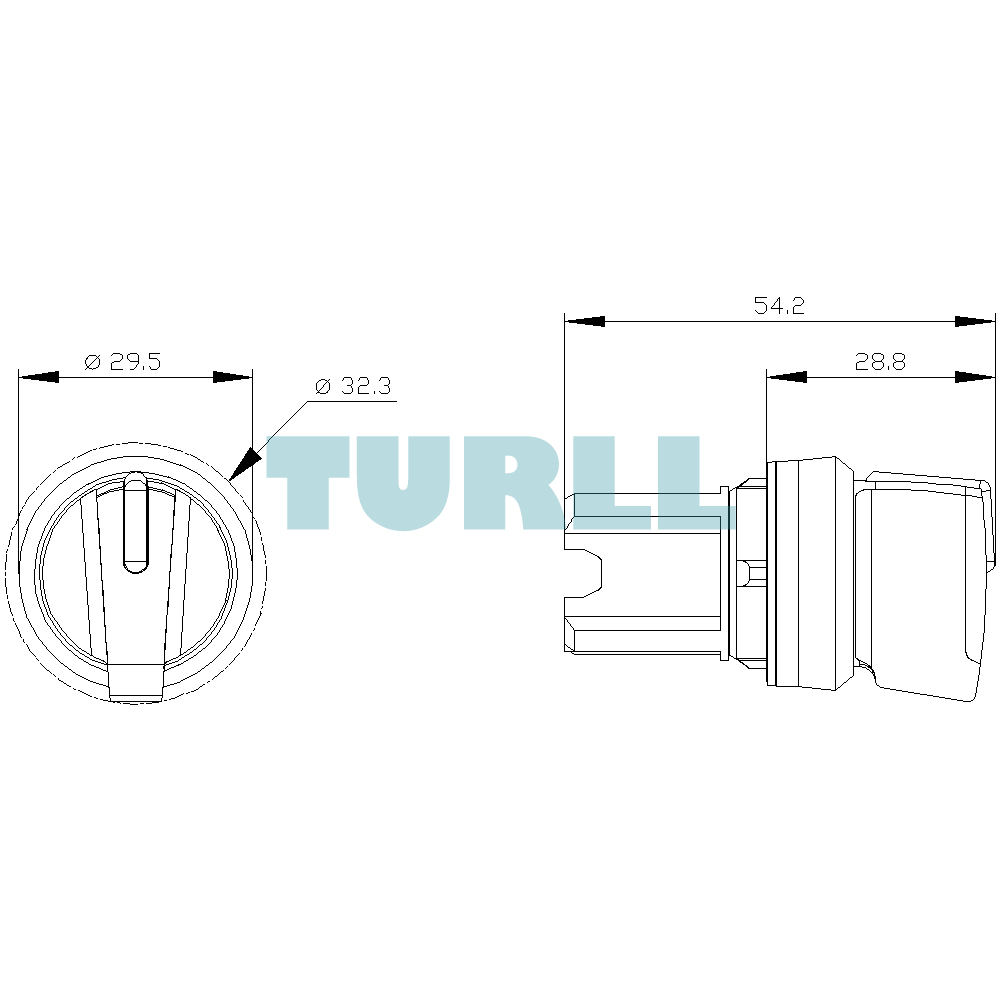

| Height | 32.3 mm |
| Width | 32.3 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 28.8 mm |
| Installation width | 32.3 mm |
| Installation depth | 25.4 mm |
| last modified: | 10/30/2019 |
