3SU1060-0JB20-0AA0

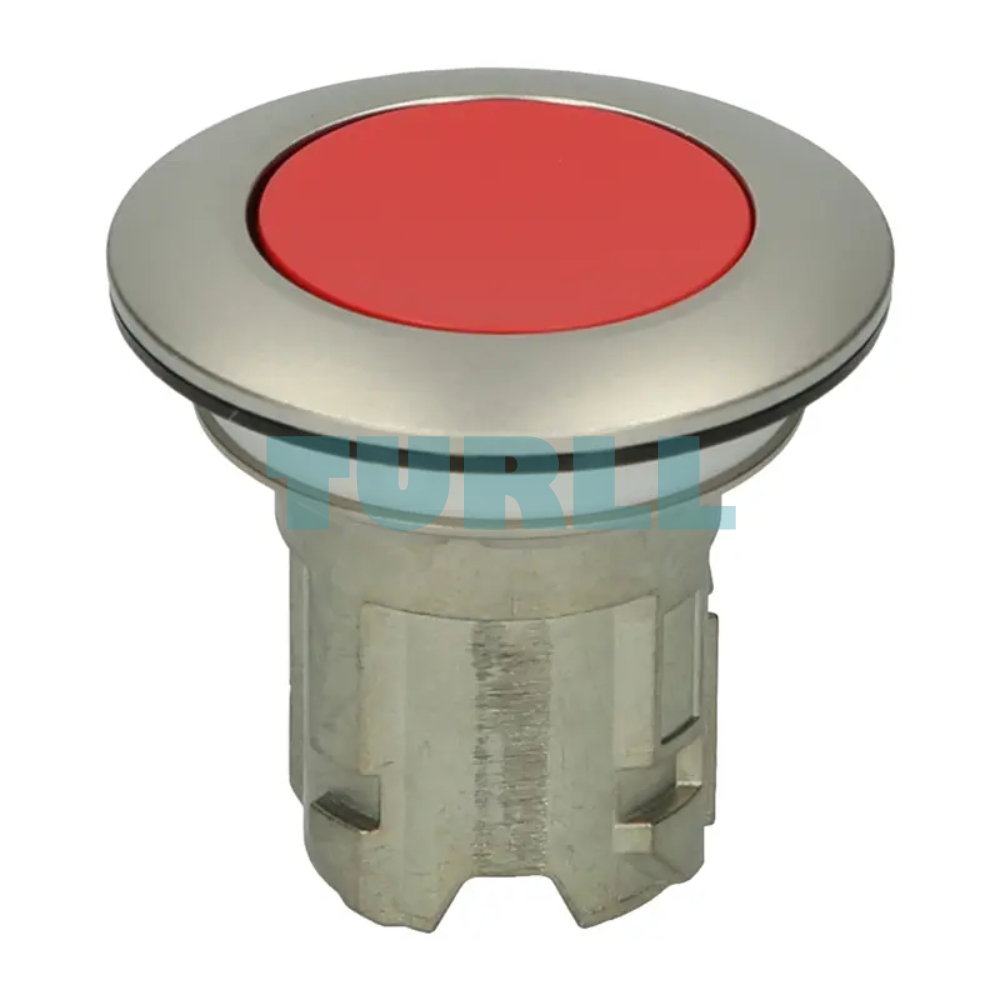

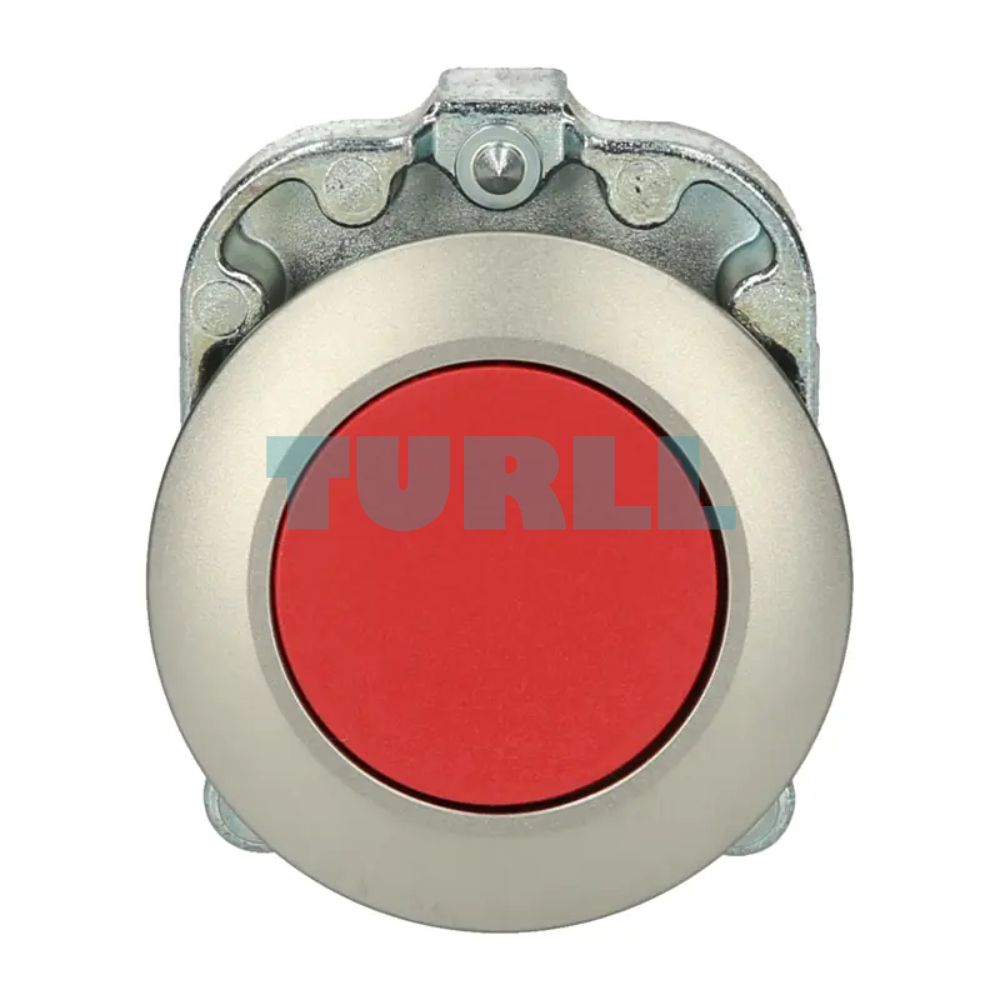

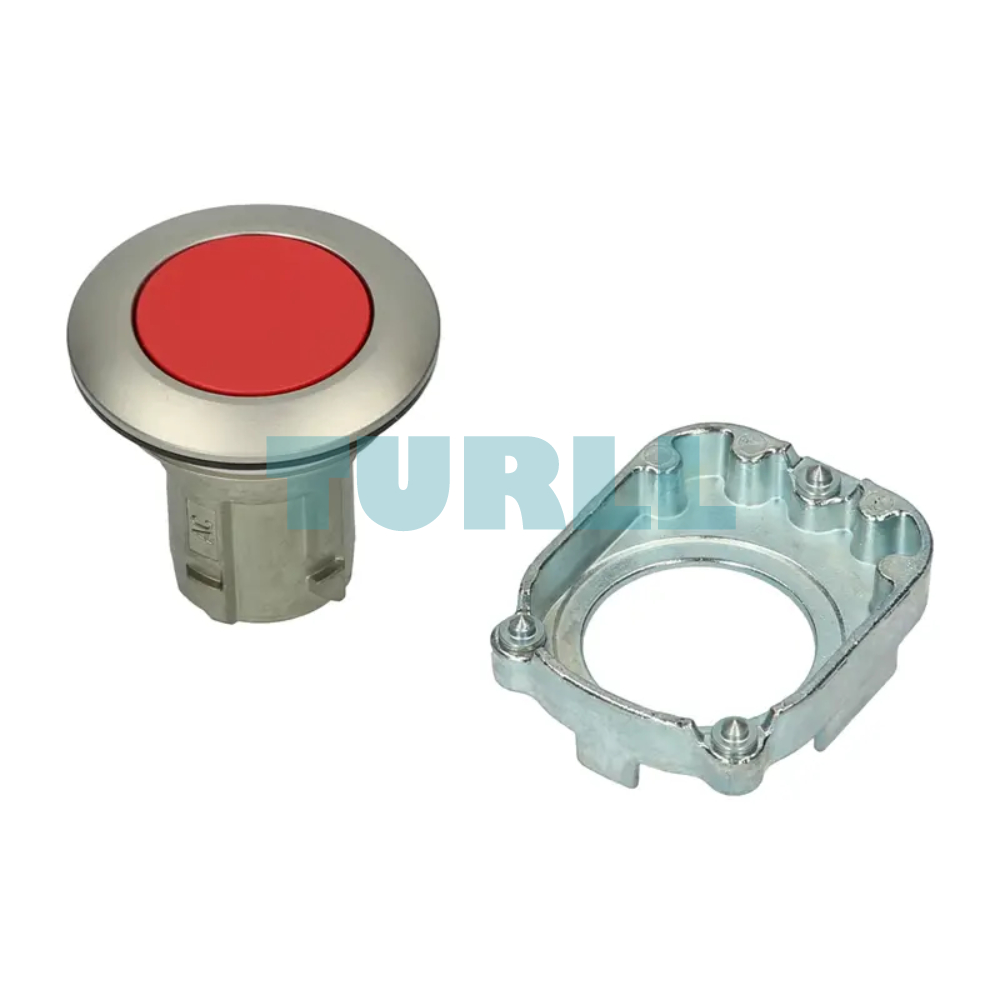

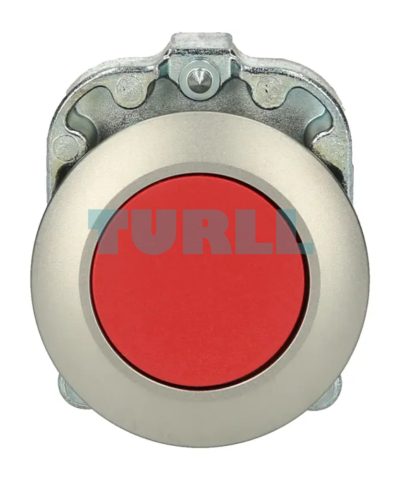

Siemens 3SU1060-0JB20-0AA0 Red 30mm Metal Pushbutton, Momentary Contact, Flush Mount Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Save 2% on merchandise with bank transfer
Request price & availabilityReview shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1060-0JB20-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
| Net weight | 0.074 kg |
| Package dimensions (L × W × H) | 40.00 × 60.00 × 40.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens SIRIUS ACT 3SU1060-0JB20-0AA0 is a high-quality, durable pushbutton designed for reliable operation in industrial control panels. Part of the SIRIUS ACT command and signaling devices range, this component features a robust metal construction with a sleek matte finish and a striking red color. Its 30 mm diameter and flush installation front ring ensure a modern, integrated aesthetic and easy cleaning. It is designed as a momentary contact type, meaning the circuit is closed only while the button is actively pressed. This makes it ideal for essential machine functions like start, stop, or reset.
Key Features & Benefit
-
High Durability: Made from robust metal with a matte finish for long-lasting performance.
-
30 mm Round Design: Standard size suitable for most industrial control panels.
-
Flush Installation: Front ring design allows seamless integration into panels for a clean and professional look.
-
Momentary Contact Function: Provides instant on/off control for accurate operations.
-
Vivid Red Color: Clear visual indication for emergency or stop functions.
-
Reliable Siemens Quality: Engineered to meet industrial standards for safety and longevity.
Functionality / Application
This pushbutton acts as a simple, reliable Human-Machine Interface (HMI) component. When depressed, it temporarily sends a signal to a control system (like a PLC) to initiate a programmed action. Typical applications include:
-
Machine Start/Stop control (when used in a specific circuit configuration).
-
Cycle or process initiation.
-
Error acknowledgement or reset functions.
-
Temporary engagement of auxiliary equipment.
