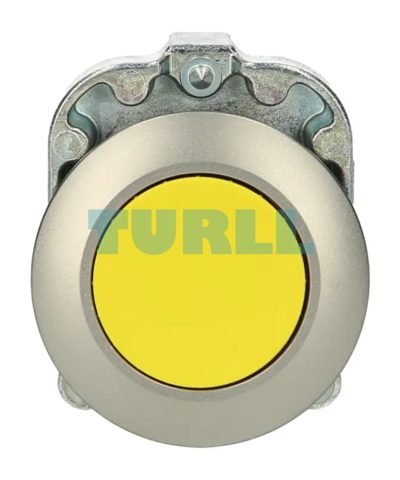

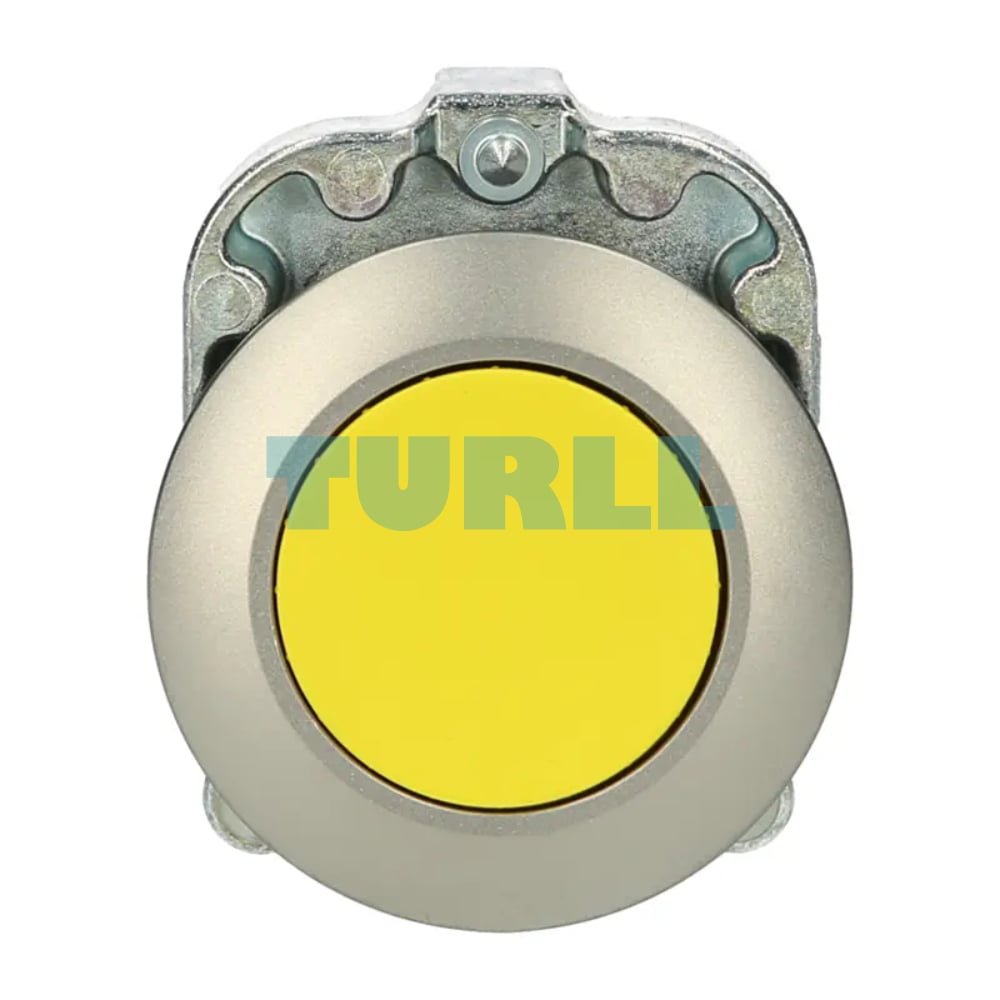

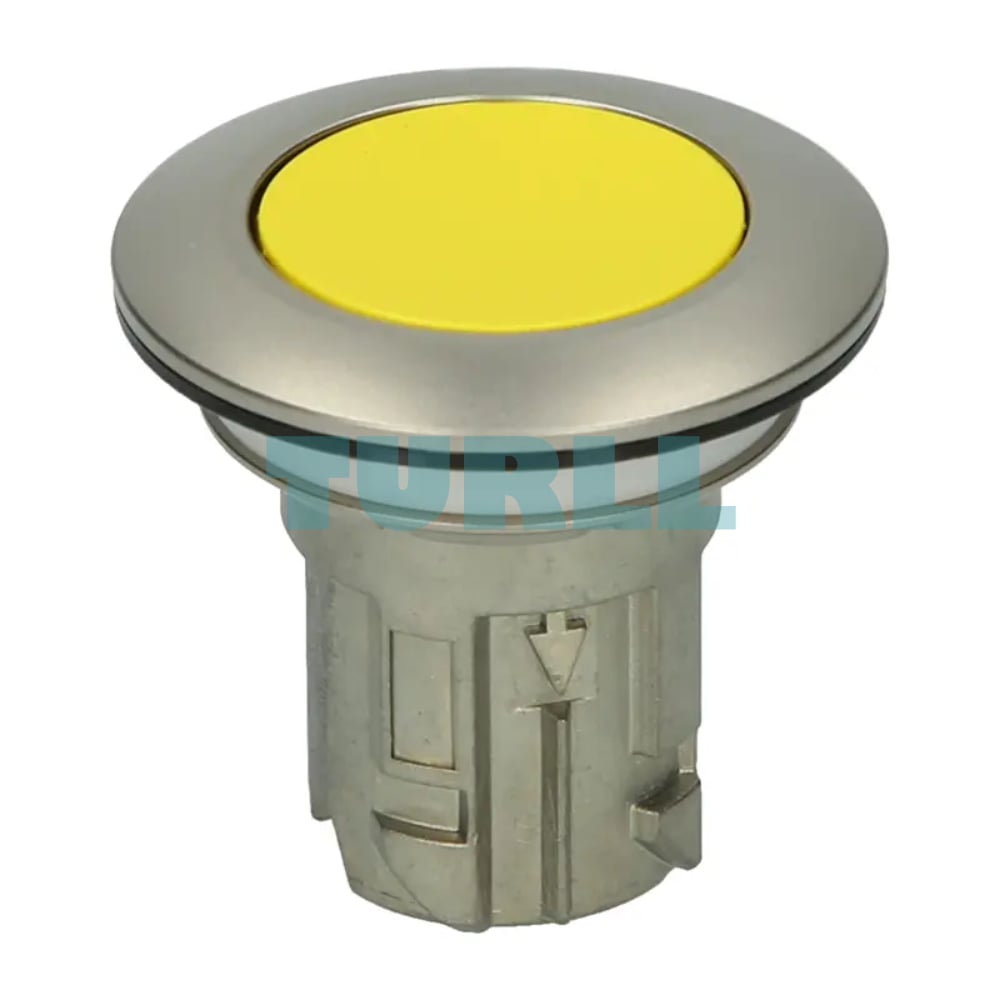

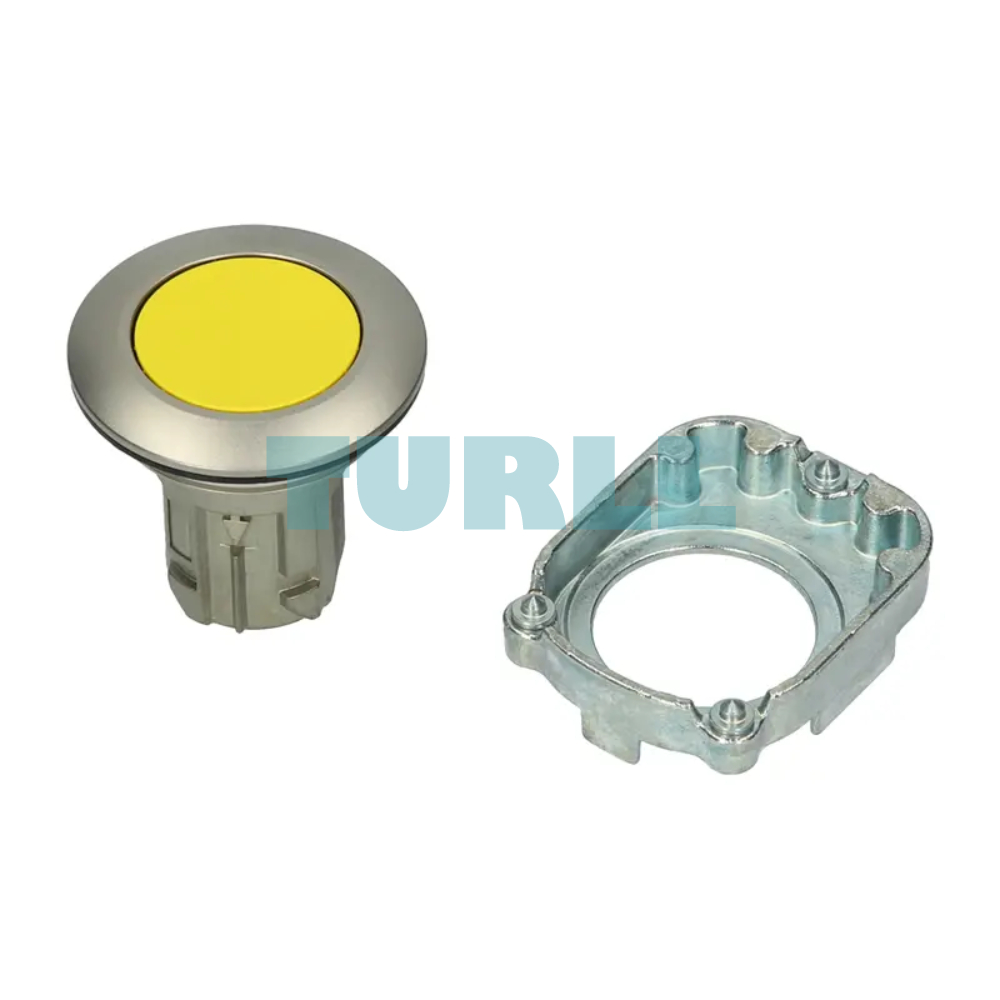

Siemens 3SU1060-0JB30-0AA0 Yellow Metal Pushbutton, 30 mm, Flush Mount Momentary Contact Original Brand New
$12.65
High-durability 30mm yellow pushbutton from the Sirius Act series. Featuring a sleek matte metal finish and a front ring designed for flush installation, this momentary contact switch is built for demanding industrial environments requiring precision and aesthetic appeal.
Availability: In stock
Overview
The Siemens 3SU1060-0JB30-0AA0 is a premium 30 mm industrial pushbutton designed for robust control panel installations. Built with a durable metal housing and smooth matte yellow finish, it provides reliable performance in demanding environments. The flush‑mount front ring ensures a sleek, secure fit, while the momentary contact switch enables precise operator control for start/stop and signaling applications.
This pushbutton is engineered to meet rigorous industrial standards, offering long lifespan, high responsiveness, and simple integration into Siemens and other automation systems.
Key Features
-
Standard Size: 30 mm diameter for universal compatibility
-
Durable Build: High‑quality metal construction with matte finish
-
Color: Yellow for clear visual indication of function
-
Installation Type: Front ring for flush mount applications
-
Switch Type: Momentary contact (push and release)
-
Compatibility: Ideal for industrial control panels, HMIs, and automation systems
-
Brand: Siemens — global leader in industrial components
Benefit
- High Visibility: Yellow pushbutton enhances operator awareness and safety.
- Reliable Operation: Momentary contact ensures precise control when needed.
- Robust Design: Metal body withstands industrial use and mechanical stress.
- Easy Integration: Fits standard 30 mm panel cut‑outs with flush installation.
- Long‑Lasting Performance: Corrosion‑resistant finish and premium components for extended lifecycle.
Function
This pushbutton is perfect for:
-
Start/Stop control in machinery panels
-
Operator signaling in automated systems
-
Emergency or caution signaling (yellow indicates caution)
-
Human‑Machine Interface (HMI) control stations
-
Retrofit and new build industrial panels
Visit 3SU1060-0JB30-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.065 kg |
|---|---|
| Dimensions | 50.00 × 80.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case / capital letters, all lines start with capital letter |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
