Siemens 3SU1152-0AB70-1BA0 Illuminated Pushbutton, 22 mm, Clear Flat Momentary Pushbutton, 24V AC/DC Original Brand New

Model / SKU3SU1152-0AB70-1BA0

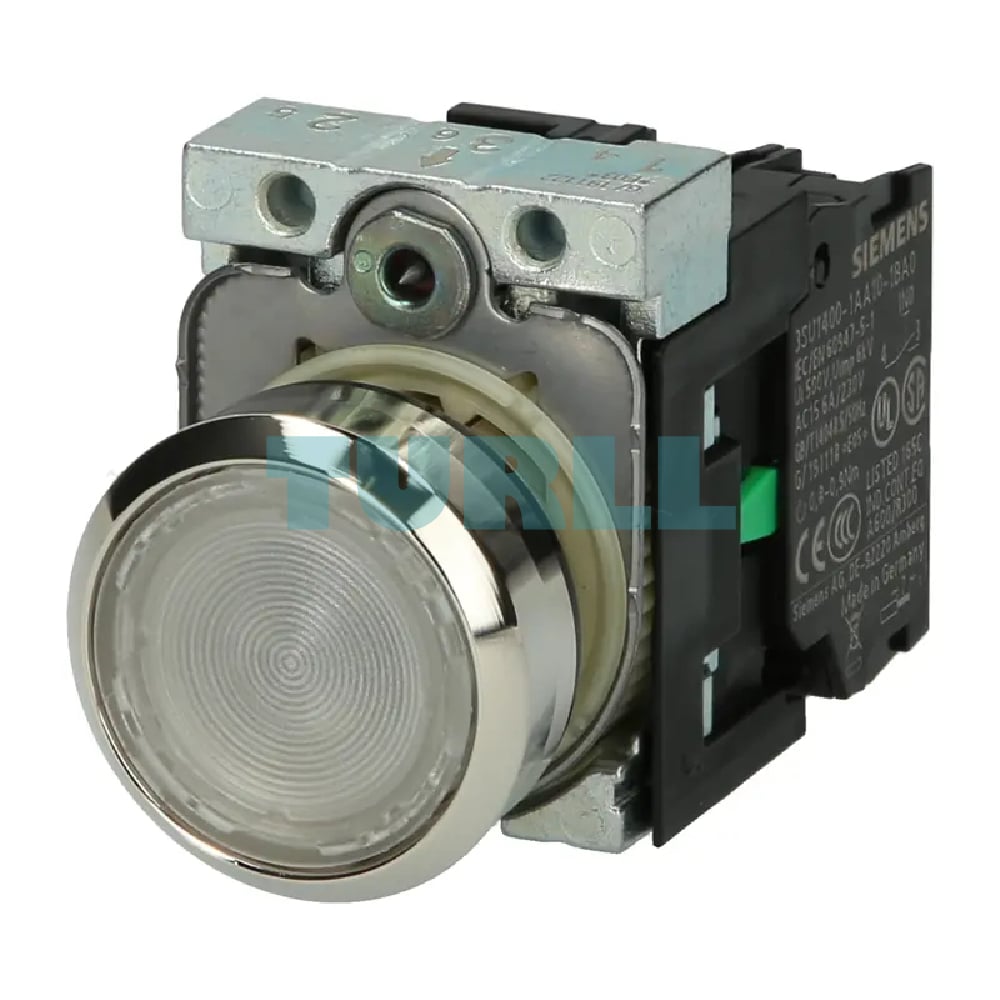

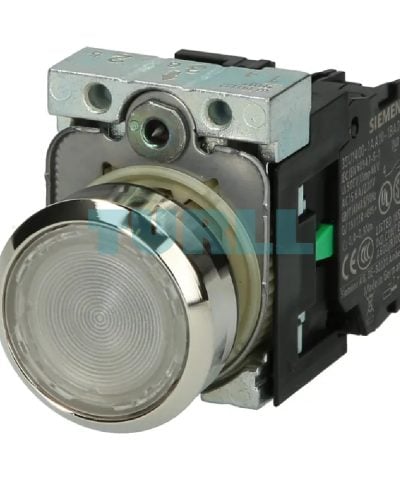

Illuminated 22 mm round metal pushbutton with shiny clear flat actuator, momentary operation, 1 NO contact, integrated 24 V AC/DC LED module, screw terminal, and holder.

Original price was: $27.36.Current price is: $12.52.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1152-0AB70-1BA0 is a premium-quality illuminated pushbutton designed for demanding industrial control applications. Featuring a 22 mm round metal body with a shiny clear actuator, this flat-style momentary pushbutton ensures reliable switching performance, excellent durability, and high visibility in any environment. Equipped with a 1 NO contact, an integrated 24V AC/DC LED module, and a screw terminal connection, it offers seamless installation and long-term operational reliability.

Engineered as part of Siemens' modern SIRIUS ACT range, this pushbutton provides exceptional tactile response, rugged construction, and compatibility with a wide variety of control systems.

Benefits

  • Highly visible illumination with integrated 24V AC/DC LED module

  • Durable metal construction ensures long service life in industrial settings

  • Easy installation with universal screw terminals

  • Sleek flat design suitable for modern panel layouts

  • Reliable operation with momentary pushbutton action

  • Clear actuator enhances light output and visibility

  • Part of the Siemens SIRIUS ACT family for consistent quality and compatibility

Features & Function

  • Actuator Type: Illuminated pushbutton, flat

  • Diameter: 22 mm

  • Material: Metal, shiny finish

  • Color/Optic: Clear

  • Switching Function: Momentary contact (spring return)

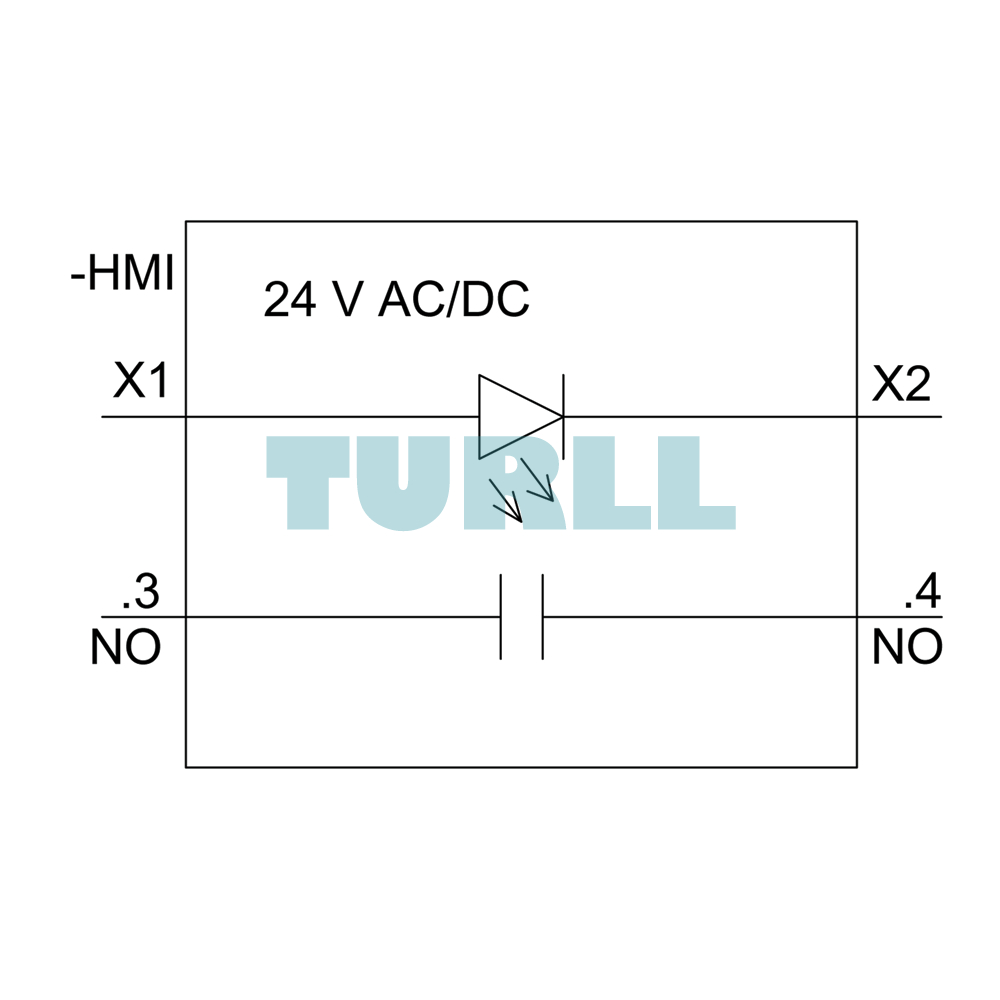

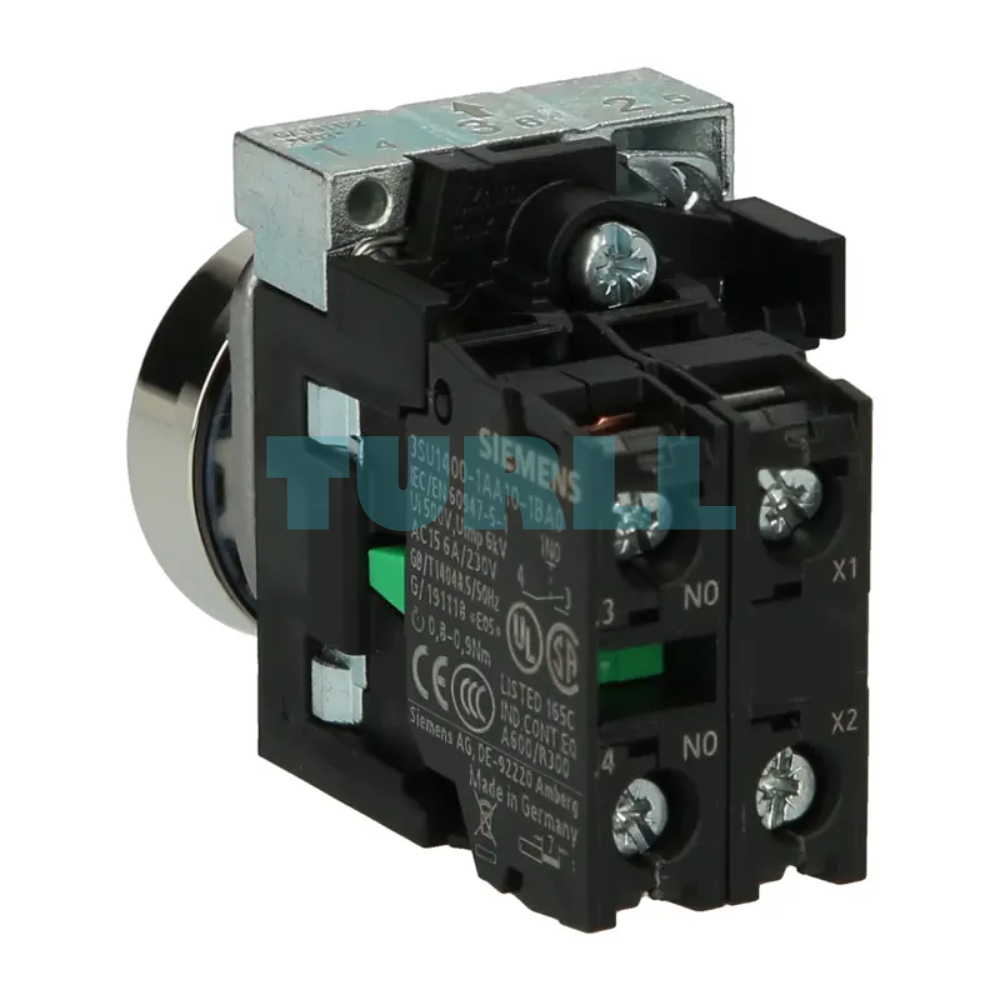

  • Contacts: 1 Normally Open (1 NO)

  • LED Module: Integrated, 24 V AC/DC

  • Mounting: With holder

  • Electrical Connection: Screw terminals

  • Application: Industrial control panels, automation equipment, operator stations, machinery interfaces

Visit 3SU1152-0AB70-1BA0 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3SU1152-0AB70-1BA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationIlluminated pushbuttons
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
manufacturer's article number-

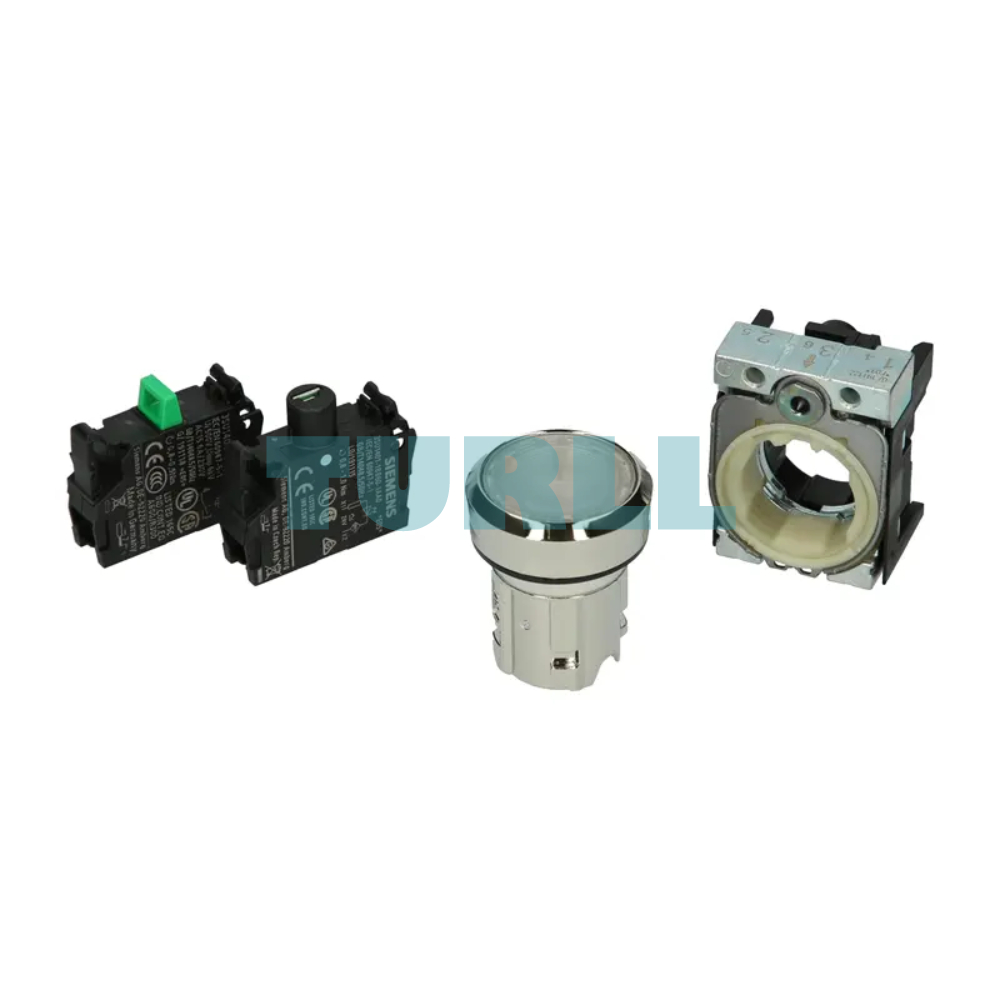

● of supplied contact module at position 13SU1400-1AA10-1BA0
● of supplied LED module3SU1401-1BB60-1AA0
● of the supplied holder3SU1550-0AA10-0AA0
● of the supplied actuator3SU1051-0AB70-0AA0
number of command points1
design of the actuating elementButton, flat
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceYes
color of the actuating elementclear
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29.45 mm
marking of the actuating elementCustomized labeling, text in lower case letters
number of contact modules1
product component front ringYes
design of the front ringStandard
material of the front ringMetal, high gloss
color of the front ringsilver
material of the holderPlastic
number of LED modules1
product function positive openingNo
product component light sourceYes
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
operating frequency maximum3 600 1/h
mechanical service life (switching cycles) typical3 000 000
electrical endurance (switching cycles) typical10 000 000
thermal current10 A
reference code acc. to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
operating voltage-
● at AC-
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
type of voltage of the supply voltage of the light sourceAC/DC
supply voltage of the light source at AC-
● at 50 Hz rated value24 V
● at 60 Hz rated value24 V
supply voltage 1 of the light source at DC rated value24 V
inrush current of LED module maximum2 A
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque with screw-type terminals0.8 ... 0.9 N·m
type of light sourceLED
color of the light sourcewhite
light intensity900 ... 1 400 mcd
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
fastening methodfront panel mounting
● of modules and accessoriesFront plate mounting
shape of the installation openinground

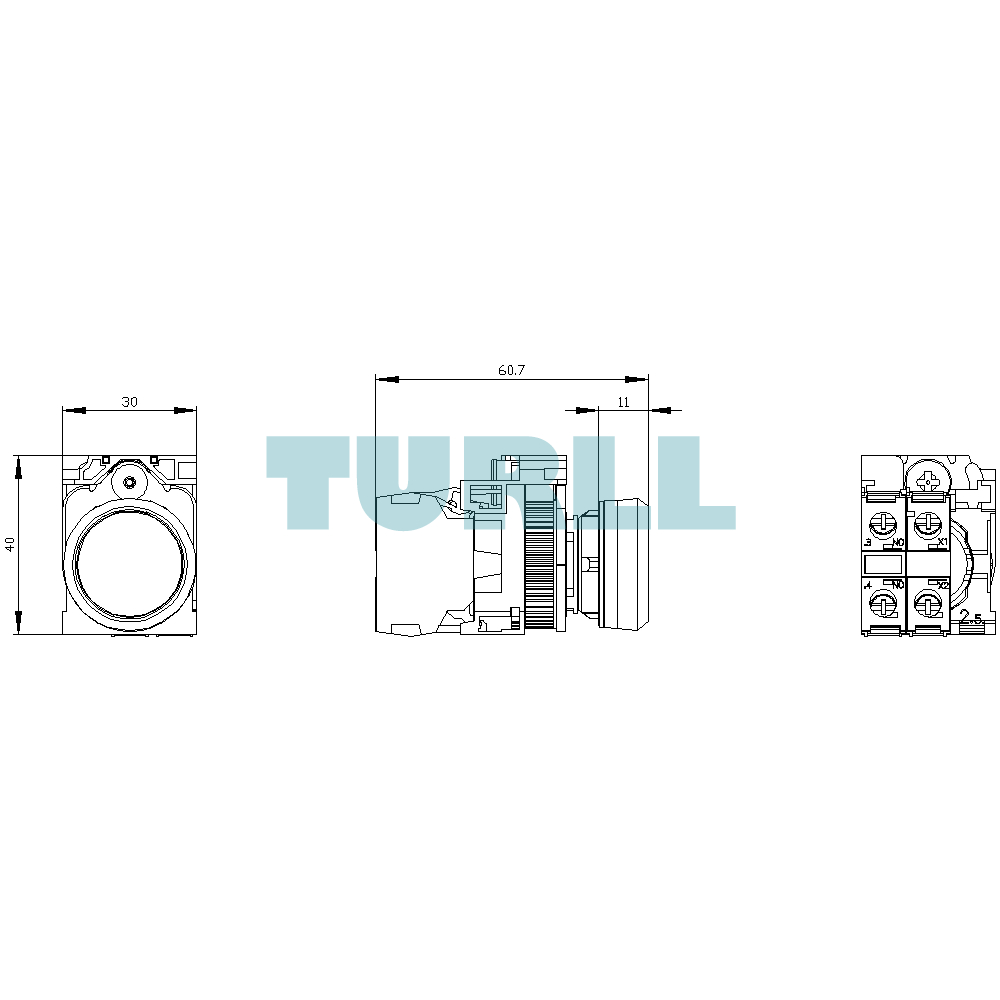

mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height11 mm
installation width29.5 mm
installation depth49.7 mm
last modified:10/1/2021
Weight0.098 kg
Dimensions150 × 60 × 37 mm
