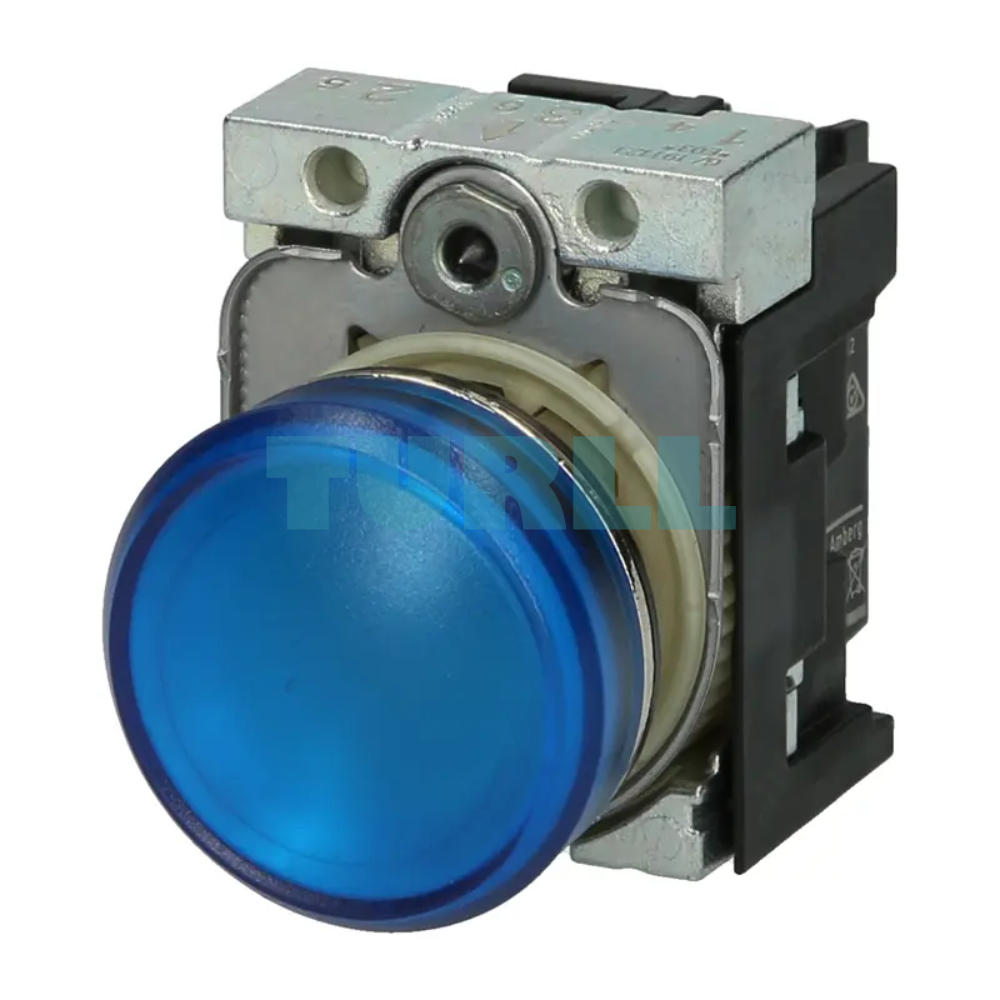

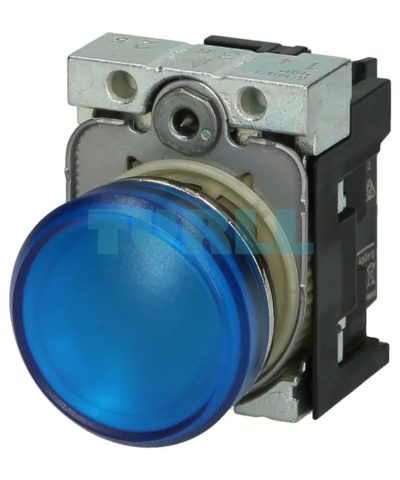

Siemens 3SU1152-6AA50-1AA0 Indicator Light, 22mm Blue LED, Metal, Round, Smooth Lens, 24V AC/DC Original Brand New
$12.54
Indicator light, 22 mm, round, shiny metal housing, smooth blue lens, with holder, LED module with integrated 24 V AC/DC LED, screw terminal.
Availability: In stock
Overview
The Siemens 3SU1152-6AA50-1AA0 is a robust and visually appealing signaling device from the SIRIUS ACT portfolio. This 22 mm round indicator light features a high-gloss, shiny metal design for demanding industrial environments. It provides clear, consistent signaling with its vibrant blue LED illumination, ensuring operational status is immediately visible. The unit is complete, including a holder and an integrated 24 V AC/DC LED module with reliable screw terminal connection.
Benefit
-
Exceptional Durability: Robust metal construction provides longevity and resistance to wear in industrial settings.
-
Clear Visibility: The bright blue LED and smooth lens deliver unmistakable visual status indication.
-
Ease of Installation: Comes as a complete unit (with holder and integrated LED) for quick and simple mounting in a standard 22 mm panel cutout.
-
Reliable Connection: Utilizes secure screw terminals for a long-lasting and vibration-proof electrical connection.
-
Versatile Power: Compatible with both 24 V AC and 24 V DC power supplies, offering flexible use across different systems.
Function
The Siemens 3SU1152-6AA50-1AA0 indicator light provides visual status indication for machines, processes, and electrical control systems. Its integrated LED ensures dependable signal output for ON/OFF states, warnings, readiness signals, and machine conditions.
Application
The Siemens 3SU1152-6AA50-1AA0 is ideal for signaling and status indication in:
-
Control panels and cabinets.
-
Machinery and plant construction.
-
Industrial automation and control systems.
-
Emergency stop circuits and safety applications (when used as a status indicator).
Visit 3SU1152-6AA50-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.083 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |

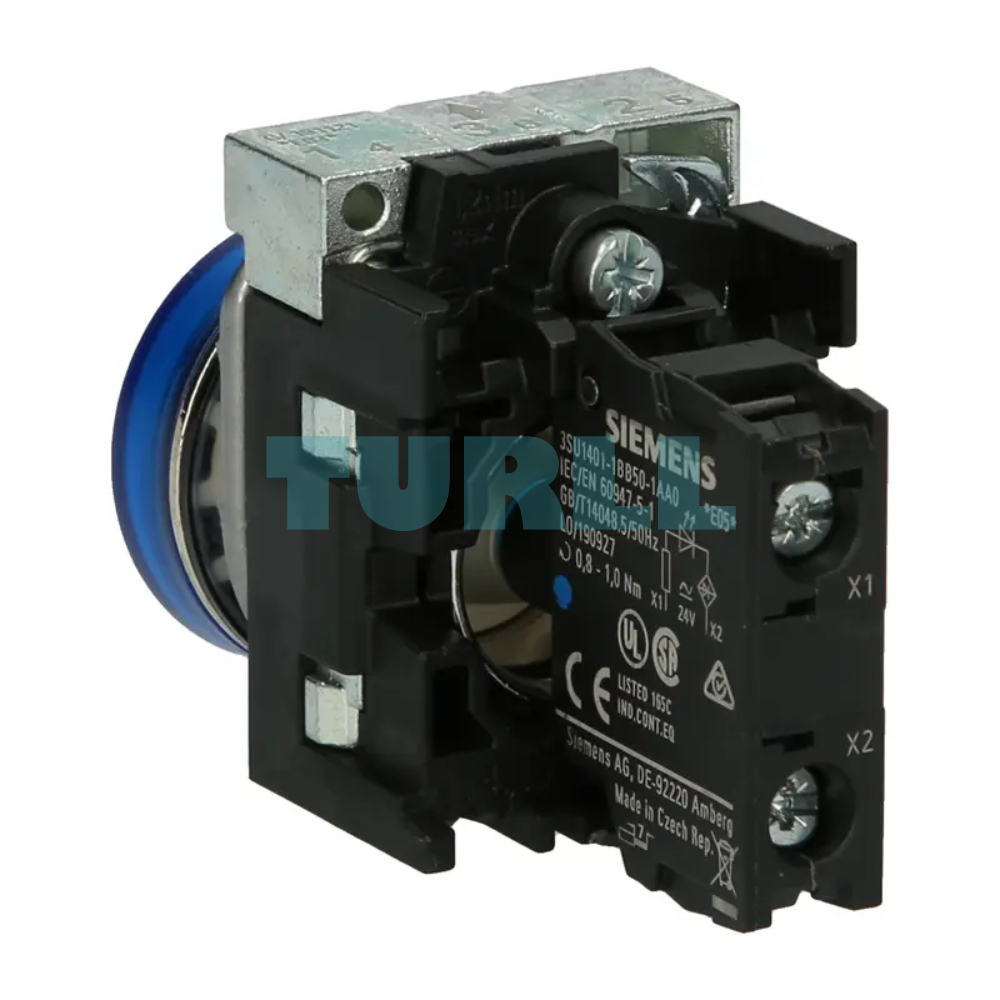

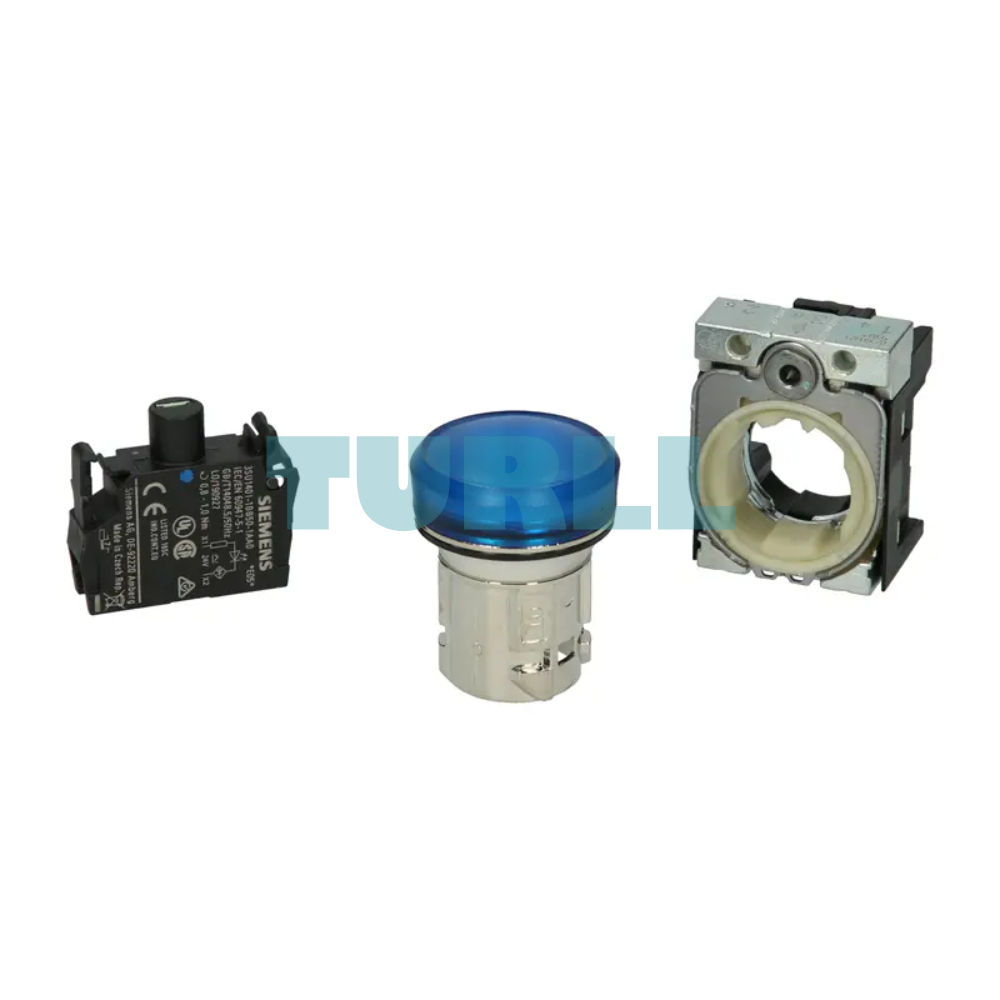

| ● of supplied LED module | 3SU1401-1BB50-1AA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of supplied repeater | 3SU1051-6AA50-0AA0 |
| number of command points | 1 |
| product extension optional light source | Yes |
| color | – |
| ● of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| marking of the actuating element | Any inscription, text in upper case |
| product component front ring | No |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |

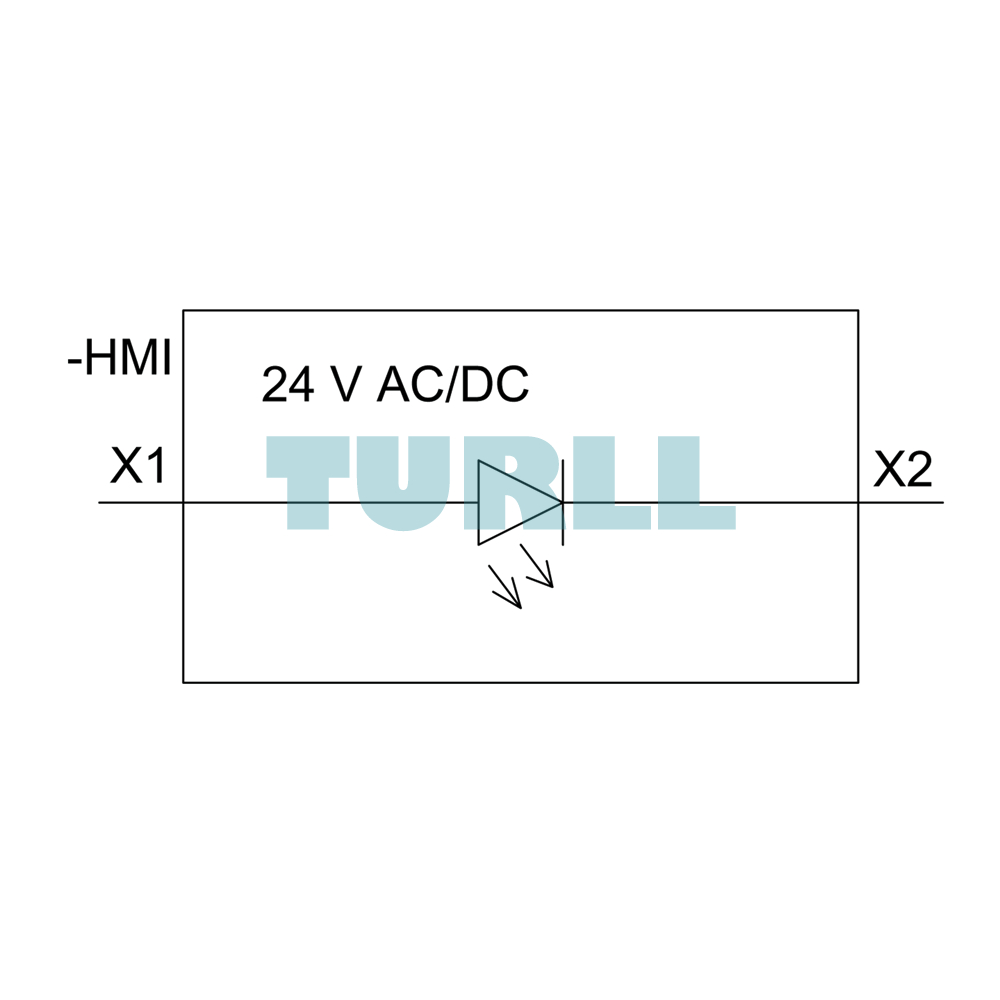

| type of voltage of the supply voltage of the light source | AC/DC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 … 24 V |
| supply voltage of the light source at DC | – |
| ● rated value | 24 … 24 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | other |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | blue |
| light intensity | 280 … 710 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

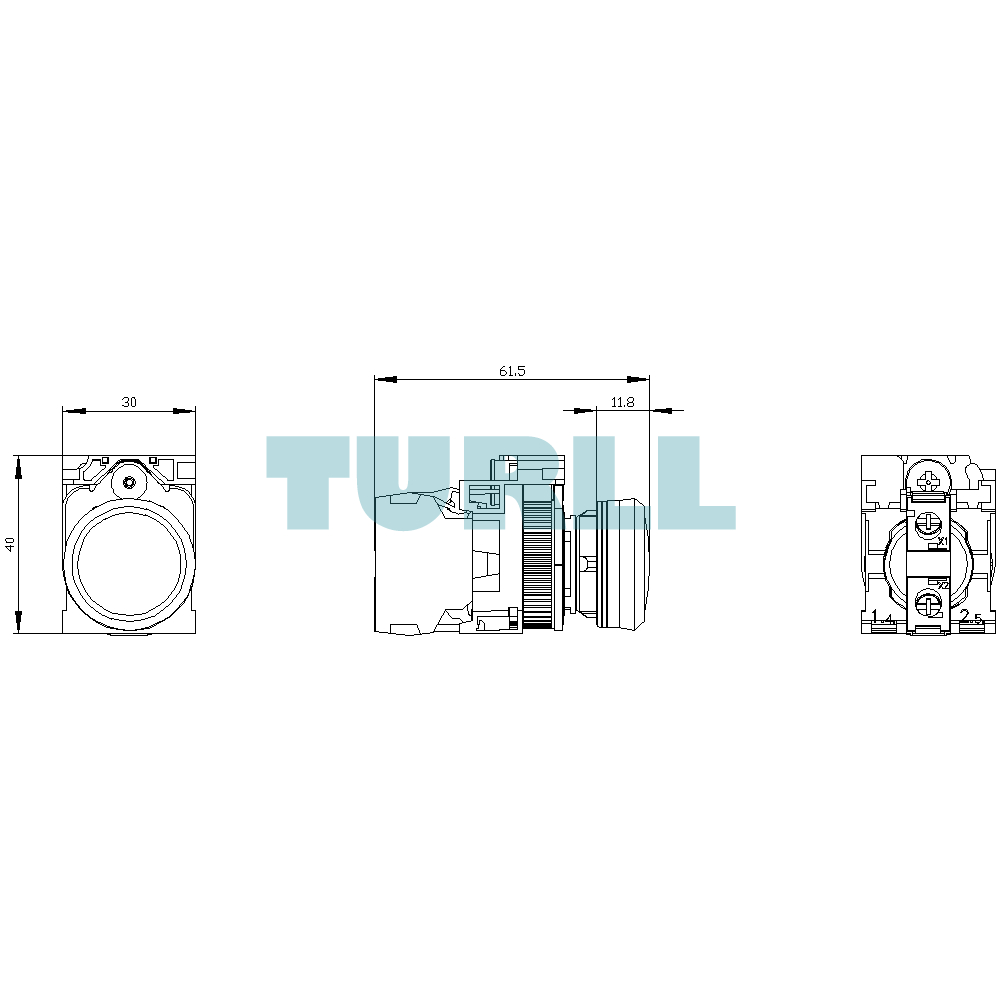

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| last modified: | 10/27/2021 |
