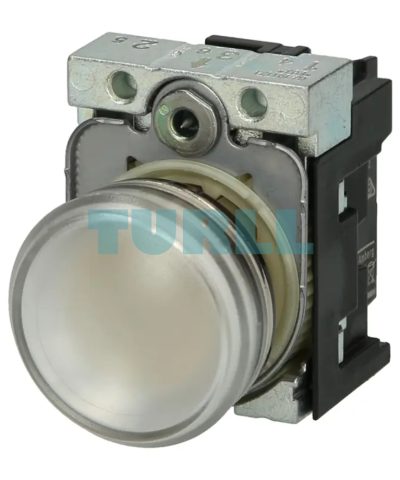

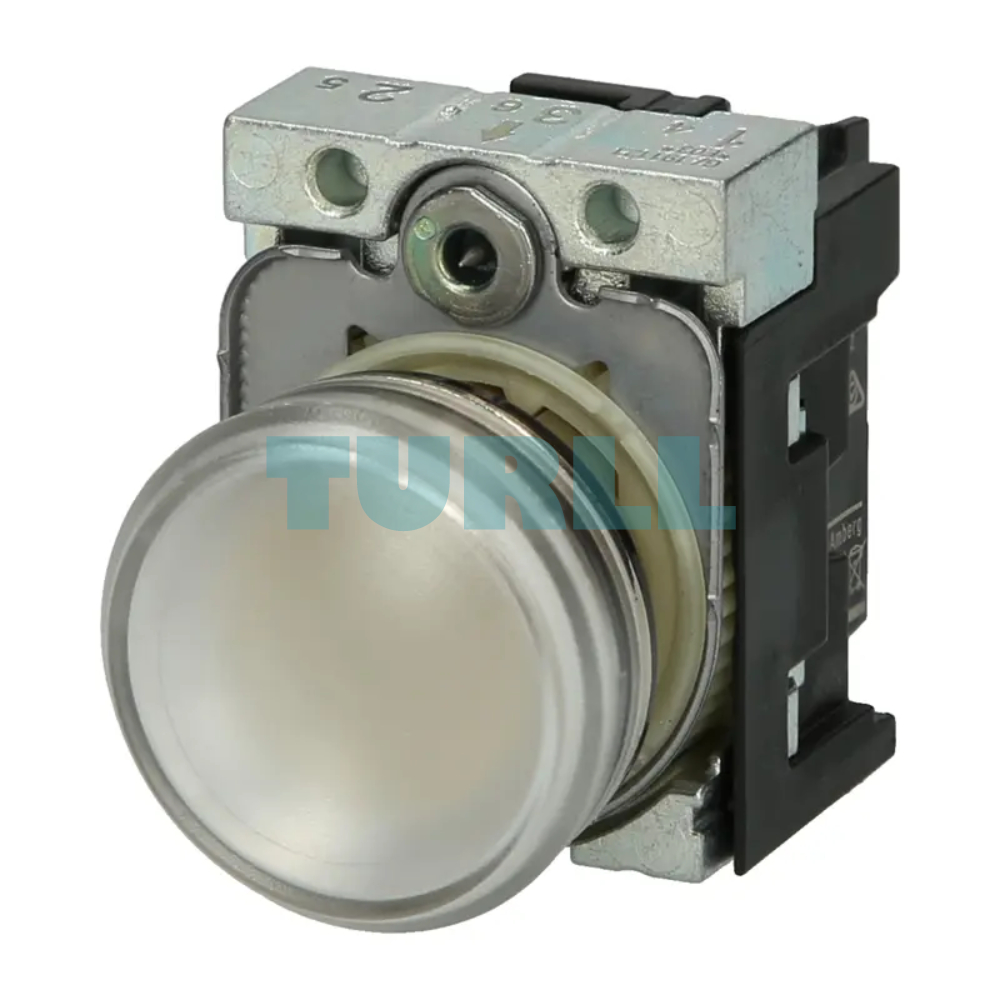

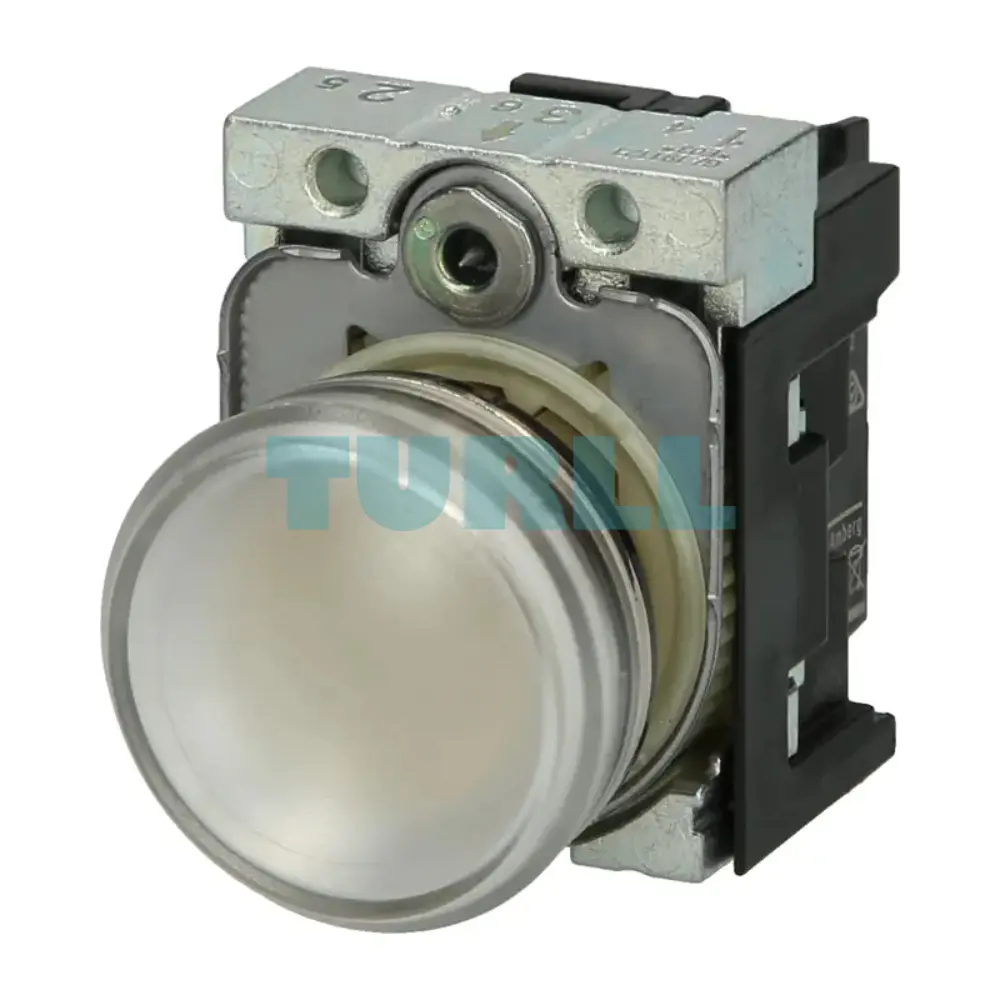

Siemens 3SU1152-6AA70-1AA0 LED Indicator Light, 22mm, Round Metal, 24V AC/DC Original Brand New
$12.54
Siemens SIRIUS ACT is a high-quality, durable 22 mm round indicator light. Featuring a shiny metal finish, a clear, smooth lens, and an integrated 24 V AC/DC LED module, this component is designed for reliable status signaling in industrial control panels. Installation is simple with the included holder and secure screw terminal connection.
Availability: In stock
Overview
The Siemens 3SU1152-6AA70-1AA0 is a key component of the SIRIUS ACT command and signaling device series. This robust indicator light offers a premium, modern aesthetic with its shiny metal enclosure and standard 22 mm mounting diameter. It is engineered for universal signaling applications, providing clear visual status feedback in machinery, control systems, and switchgear. Its clear lens makes it versatile for use in various applications where panel aesthetics and durability are essential.
Benefit
-
Exceptional Durability: Robust metal construction ensures long service life, even in harsh industrial environments.
-
Universal Compatibility: Integrated 24 V AC/DC LED module allows flexible use across most standard control voltages.
-
Clear, High-Visibility Signaling: The clear lens and bright, integrated LED ensure status is easily identifiable.
-
Simplified Wiring: Equipped with reliable screw terminals for fast, secure, and hassle-free electrical connection.
-
Professional Appearance: Part of the high-end SIRIUS ACT series, providing a modern, professional look for any control panel.
Function
-
Visual indication of system status
-
Signal display for machinery or control panels
-
Enhances operational safety by providing clear visual alerts
Technical Features
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Housing: Metal, shiny finish
-
Lens: Clear and smooth
-

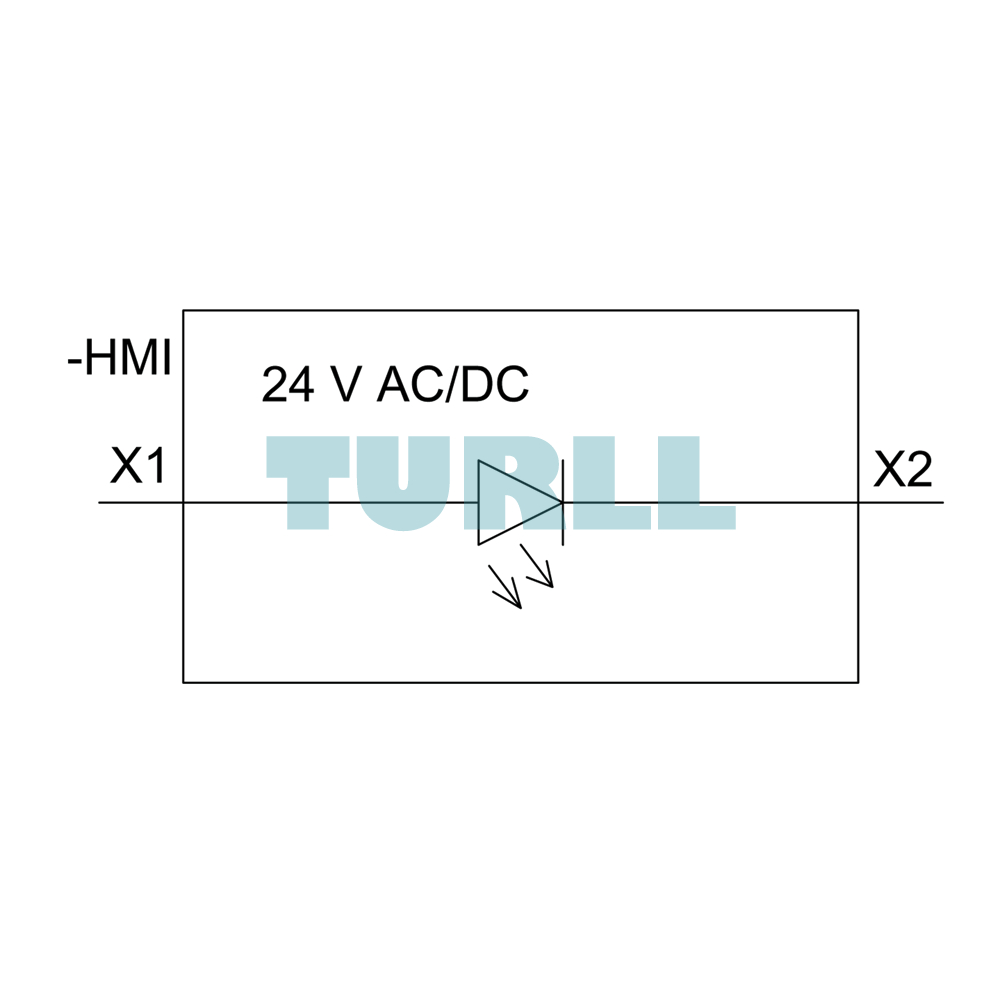

LED Module: Integrated, 24V AC/DC
-
Connection: Screw terminal
-
Holder Included: Yes
Visit 3SU1152-6AA70-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.081 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |

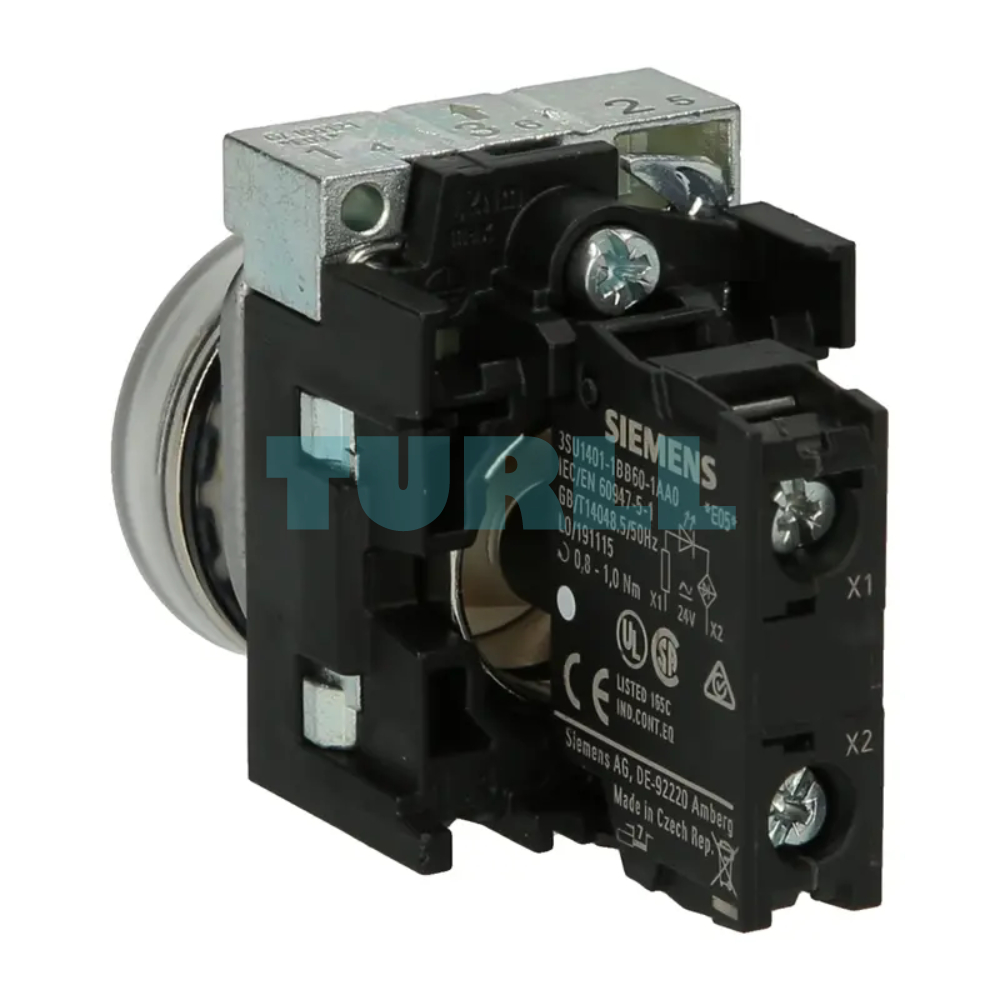

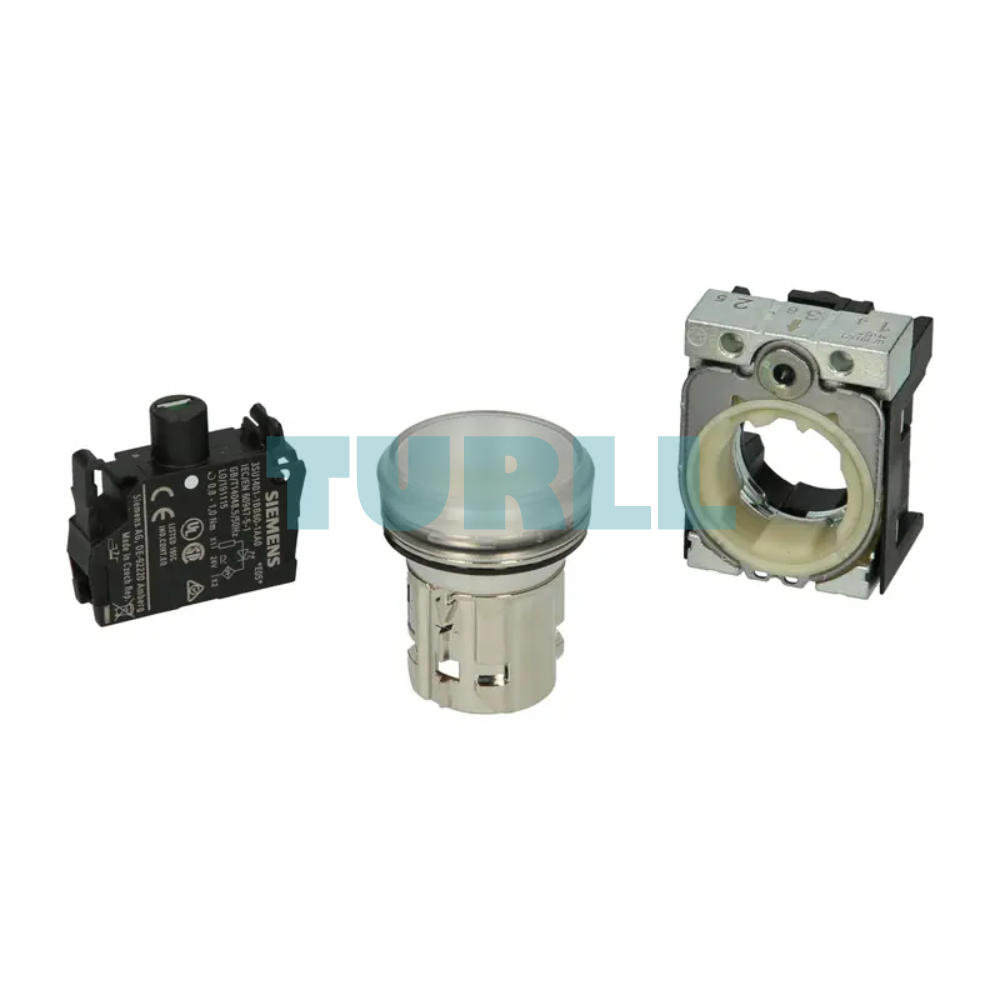

| ● of supplied LED module | 3SU1401-1BB60-1AA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of supplied repeater | 3SU1051-6AA70-0AA0 |
| number of command points | 1 |
| product extension optional light source | Yes |
| color | – |
| ● of the actuating element | clear |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| product component front ring | No |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC/DC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 … 24 V |
| supply voltage of the light source at DC | – |
| ● rated value | 24 … 24 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | other |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | white |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

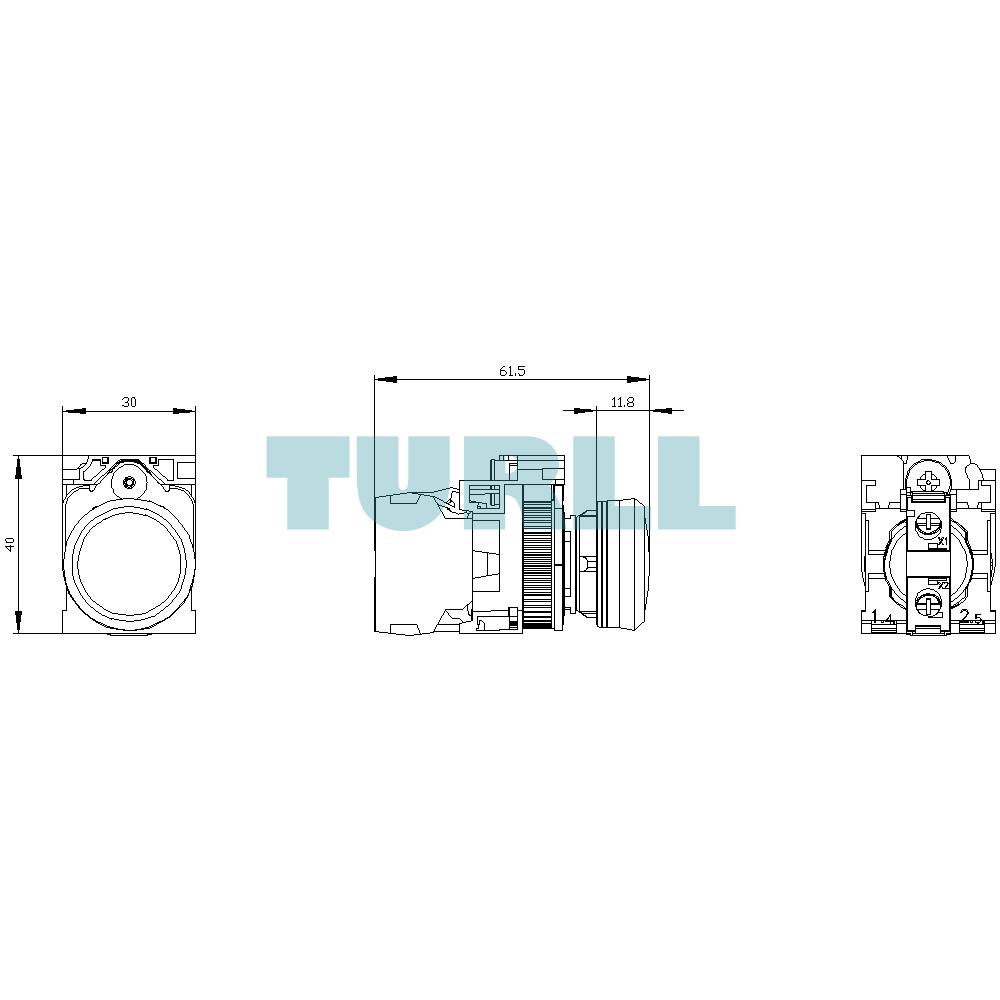

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| last modified: | 10/27/2021 |
