3SU1400-1AA10-3DA0

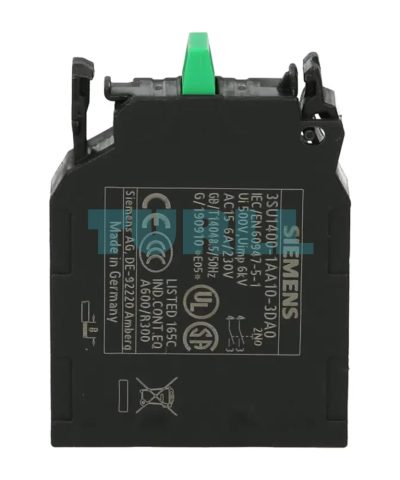

Siemens 3SU1400-1AA10-3DA0 SIRIUS ACT Contact Module 2 NO, Spring Terminal Original Brand New
Original price was: $12.77.$5.17Current price is: $5.17.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Save 2% on merchandise with bank transfer
Need volume pricing? Request a quoteReview shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1400-1AA10-3DA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
| socket design | other |
| product function positive opening | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage | - |
| ● of the operating voltage | AC/DC |
| ● of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | - |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| operating voltage | - |
| ● at AC | - |
| — at 50 Hz rated value | 5 ... 500 V |
| — at 60 Hz rated value | 5 ... 500 V |
| ● at DC rated value | 5 ... 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 2 |
| ● leading contact | 0 |
| operational current at AC-12 | - |
| operational current at AC-15 | - |
| operational current at DC-12 | - |
| operational current at DC-13 | - |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| ● at 110 V rated value | 0.7 A |
| ● at 230 V rated value | 0.3 A |
| ● at 400 V rated value | 0.1 A |
| ● at 500 V rated value | 0.1 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● at AWG cables | 2x (24 ... 16) |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/27/2021 |
| Net weight | 0.018 kg |
| Package dimensions (L × W × H) | 35.00 × 50.00 × 8.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1400-1AA10-3DA0 belongs to the renowned SIRIUS ACT series, a modular system of pushbuttons and signaling devices. This specific contact module is engineered for users who require a fast, maintenance-free installation. With its dual contact elements, it provides redundant or multi-circuit control in a compact form factor.
Key Benefit
-
Time-Saving Installation: The spring-type terminal technology allows for quick wiring without the need for specialized tools, reducing labor costs.
-
Vibration Proof: Unlike screw terminals, spring terminals maintain a constant pressure, making them ideal for high-vibration machinery.
-
Modular Flexibility: Easily snaps into the SIRIUS ACT holder for front-plate mounting, allowing for custom control configurations.
-
Long Service Life: Built with Siemens’ industrial-grade materials to ensure high electrical and mechanical endurance.
Function & Application
This contact module functions as the electrical switching heart of a pushbutton or selector switch. When the actuator is pressed, the 2 NO contacts close to complete the circuits.
-
Emergency Stop Stations: For signaling and control logic.
-
Control Panels: Integrated into industrial dashboards for motor starting or process control.
-
Machine Building: Used in CNC machines, conveyors, and assembly lines.
Technical Specification
-
Product Brand: Siemens SIRIUS ACT
-

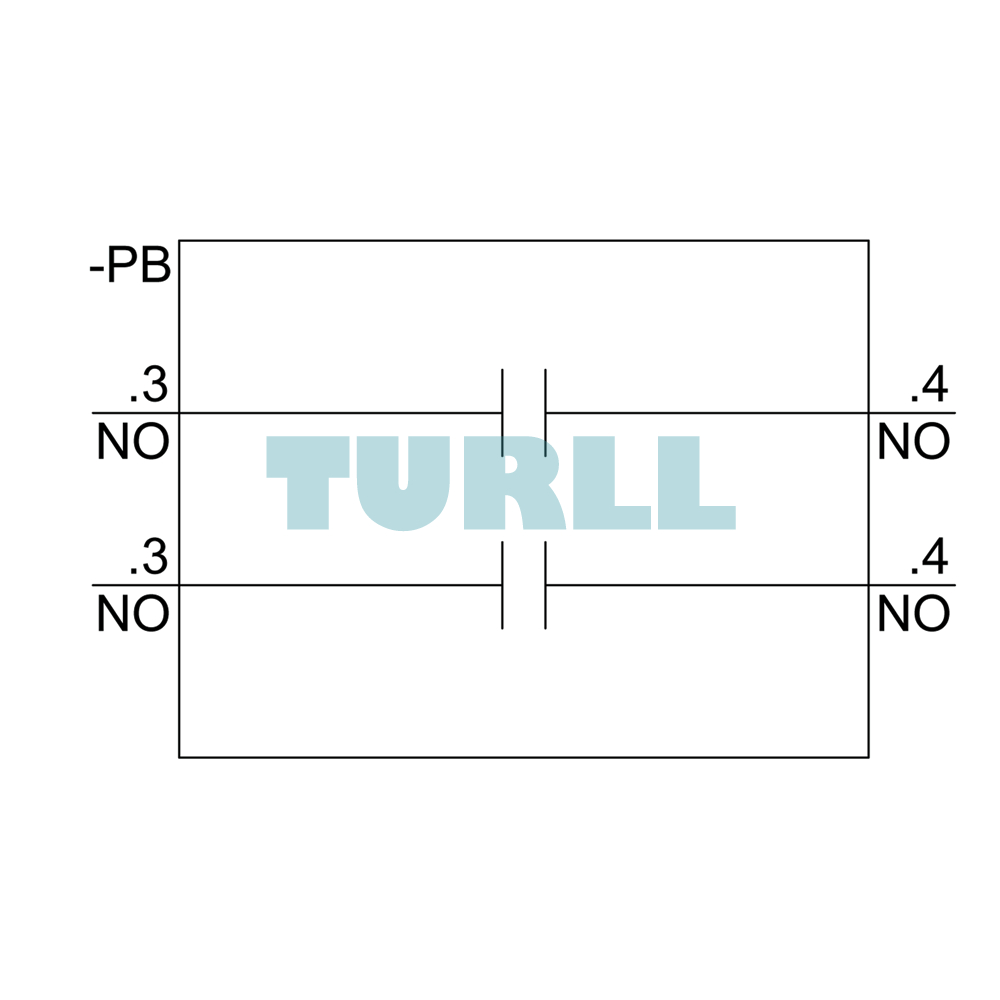

Contact Configuration: 2 NO (Normally Open)
-
Terminal Type: Spring-type terminal (Push-in)
-
Mounting Type: Front plate mounting
-
Protection Class: IP20
-
Operating Voltage: Up to 500V AC/DC
Visit 3SU1400-1AA10-3DA0 for more detail info
