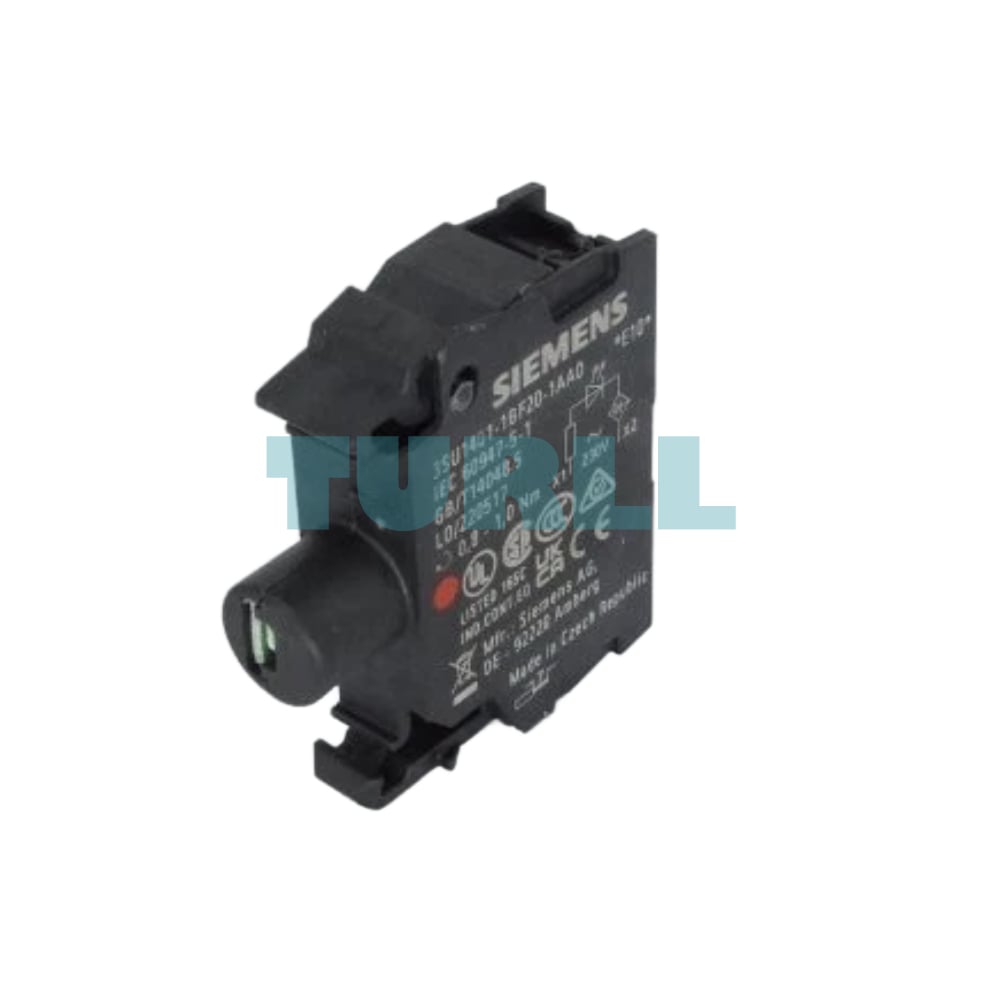

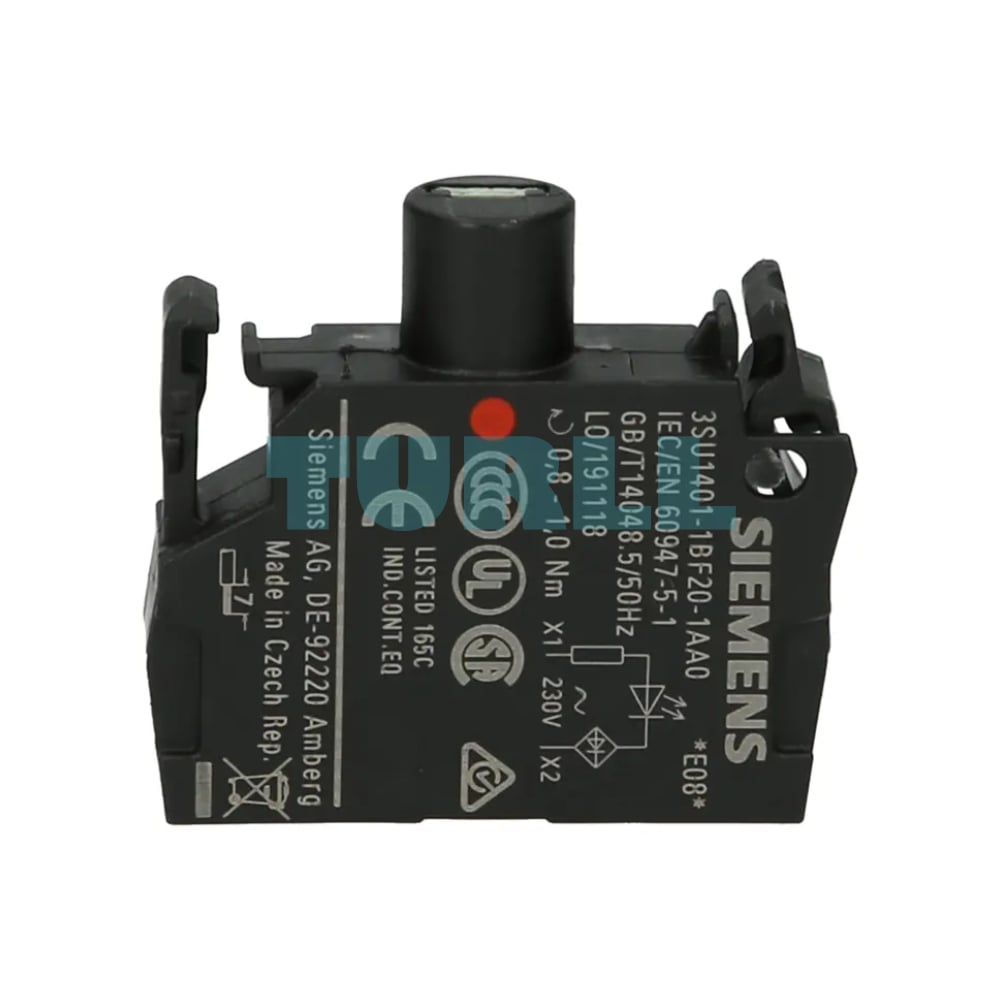

Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal
Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal
Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal
Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal
Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal

SIEMENS

Siemens 3SU1401-1BF20-1AA0 Red LED Module, 230V AC, Front Plate Mounting, Screw Terminal Original Brand New

Model / SKU3SU1401-1BF20-1AA0

LED module with integrated 230 V AC red LED, screw terminal connection, designed for front plate mounting. Ideal for industrial signaling and control panels.

Original price was: $12.97.Current price is: $5.93.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens SIRIUS ACT 3SU1401-1BF20-1AA0 is a high-quality LED module designed for modern industrial control panels. It features an integrated red LED and operates efficiently on a 230 V AC supply voltage, making it ideal for worldwide use in standard mains power applications. This module utilizes reliable screw terminals for secure and straightforward electrical connection, and it is specifically engineered for front plate mounting within the SIRIUS ACT line of command and signaling devices. It serves as a vital component for clear visual feedback on the operational status of machinery and systems.

Benefit

  • Enhanced Safety: Clear visual signaling (red) helps operators quickly identify critical system states, improving response time and operational safety.

  • Long-Lasting Reliability: LED technology ensures a significantly longer service life compared to incandescent bulbs, reducing maintenance costs and downtime.

  • Simplified Installation: Screw terminals facilitate quick and secure installation and maintenance procedures.

  • Global Standard: The 230V AC rating is compatible with common power standards across Europe and other regions.

  • System Integration: Guarantees perfect compatibility and aesthetic consistency with other Siemens SIRIUS ACT control components.

Functions & Features

  • Integrated Red LED: Provides a bright, clear, and durable signal light for status indication (e.g., fault, stop, or alarm).

  • Operating Voltage: Rated for 230 V AC, suitable for common industrial and commercial power grids.

  • Connection Type: Equipped with screw terminals for robust, vibration-resistant, and easy wiring.

  • Mounting: Designed for seamless front plate mounting in conjunction with SIRIUS ACT holders/actuators.

  • Compatibility: Part of the modular and flexible Siemens SIRIUS ACT system.

Download

Datasheet in PDF

Visit 3SU1401-1BF20-1AA0 for more detail info

For more our products visit turll



Specifications

SKU / Model3SU1401-1BF20-1AA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
product component-
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC
● for actuationAC
surge voltage resistance rated value4 kV
consumed current maximum20 mA
protection class IP-
● of the enclosureIP40
● of the terminalIP20
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications acc. to DIN EN 61373Category 1, Class B
operating period typical100 000 h
reference code acc. to IEC 81346-2P
operating voltage 1-
● at AC-
— at 50 Hz rated value230 V
— at 60 Hz rated value230 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
inrush current maximum3 A
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque with screw-type terminals0.8 ... 0.9 N·m
type of light sourceLED
color of the light sourcered
light intensity450 ... 1 120 mcd
certificate of suitability-
● ATEXNo
● IECExNo
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted)
fastening method-
● of modules and accessoriesFront plate mounting
last modified:10/6/2021
Weight0.010 kg
Dimensions80.00 × 113.00 × 17.00 mm
