3SU1401-2BF20-3AA0

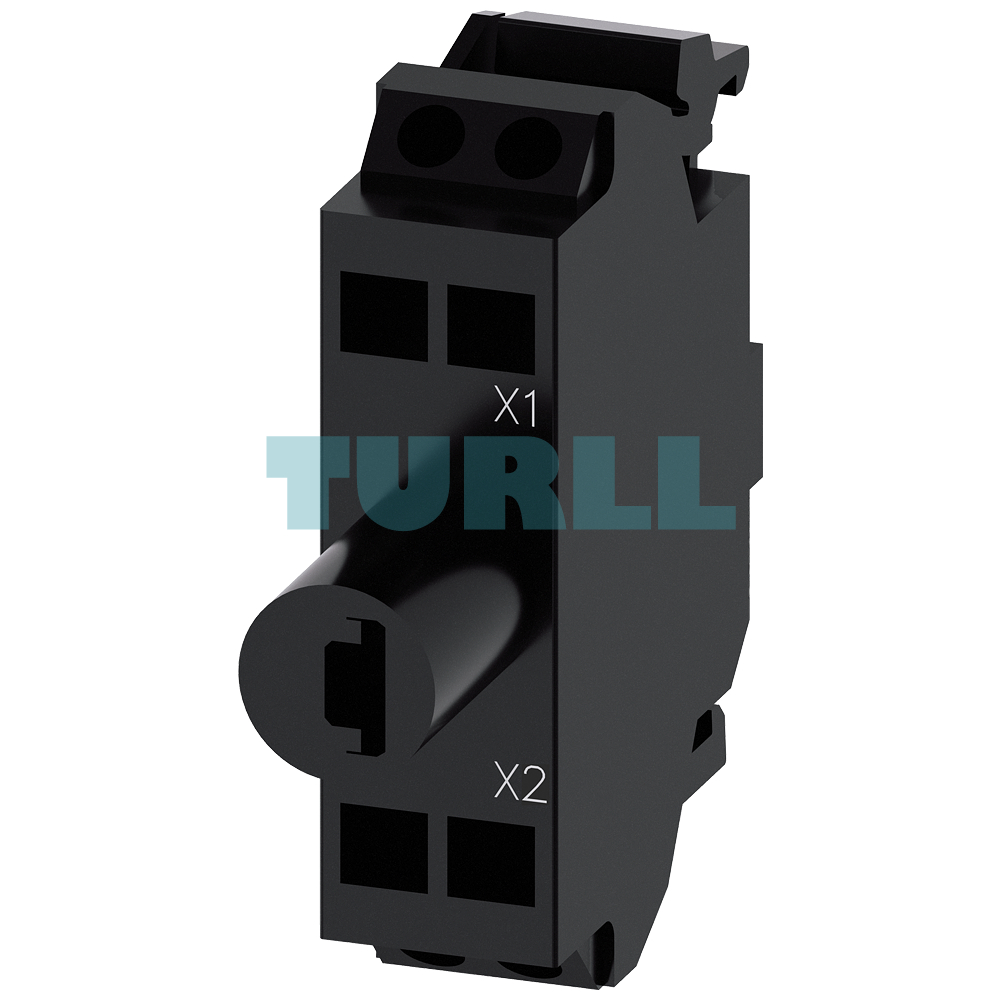

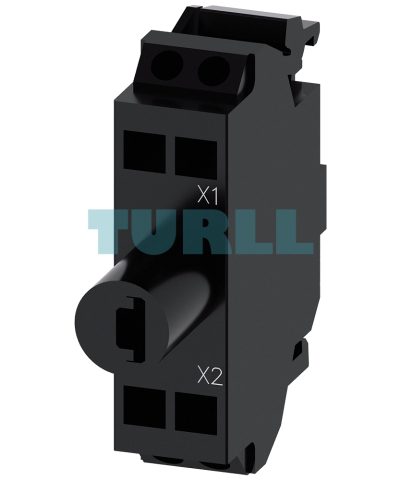

Siemens 3SU1401-2BF20-3AA0 LED Module Red, 230V AC, Spring Terminal, Floor Mount Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Save 2% on merchandise with bank transfer
Request price & availabilityReview shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1401-2BF20-3AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | - |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | - |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | - |
| ● at AC | - |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● at AWG cables | 2x (24 ... 16) |
| type of light source | LED |
| color of the light source | red |
| light intensity | 450 ... 1 120 mcd |
| certificate of suitability | - |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted) |
| fastening method | - |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
| Net weight | 0.019 kg |
| Package dimensions (L × W × H) | 20.00 × 30.00 × 10.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens SIRIUS ACT 3SU1401-2BF20-3AA0 is a crucial LED module designed for reliable and clear status indication within industrial control panels and machines. As part of the globally recognized SIRIUS ACT system, this component guarantees compatibility, ease of installation, and superior longevity. It comes equipped with a highly visible red integrated LED and operates directly on 230V AC, making it suitable for standard European main voltages in control circuits. The simple floor mounting design and robust spring-type terminal connections ensure a fast, secure, and maintenance-free installation.
Key Benefit
-
Fast Wiring (Spring-Type Terminal): The innovative spring-type connection drastically reduces wiring time and provides a highly vibration-resistant connection, ensuring reliable operation in harsh industrial environments.
-
Exceptional Visibility: The bright, integrated red LED ensures the status is clearly visible, even in brightly lit areas, enhancing operator safety and efficiency.
-
Maximum Longevity: Utilizing energy-efficient LED technology, this module offers a significantly longer operational life than traditional incandescent bulbs, minimizing maintenance costs and downtime.
-
Simplified Installation: Designed for straightforward floor mounting and integration into the modular SIRIUS ACT system.
Functions & Features
-
Integrated LED: 230 V AC red LED ensures reliable visual signaling.
-
Spring-Type Terminal: Provides secure and tool-free connection.
-
Floor Mounting: Allows for stable placement in panel systems.
-
Industrial Grade: Suitable for harsh environments and continuous operation.
