Siemens 3SU1803-3NB00-1AE1 Two-Hand Operation Console, 22mm, Plastic Enclosure Original Brand New
$242.44

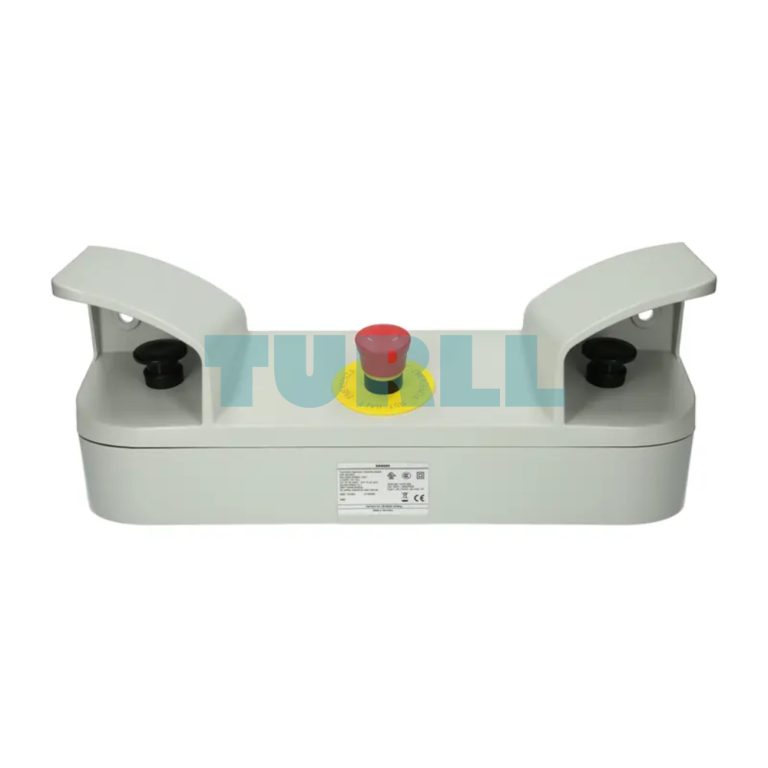

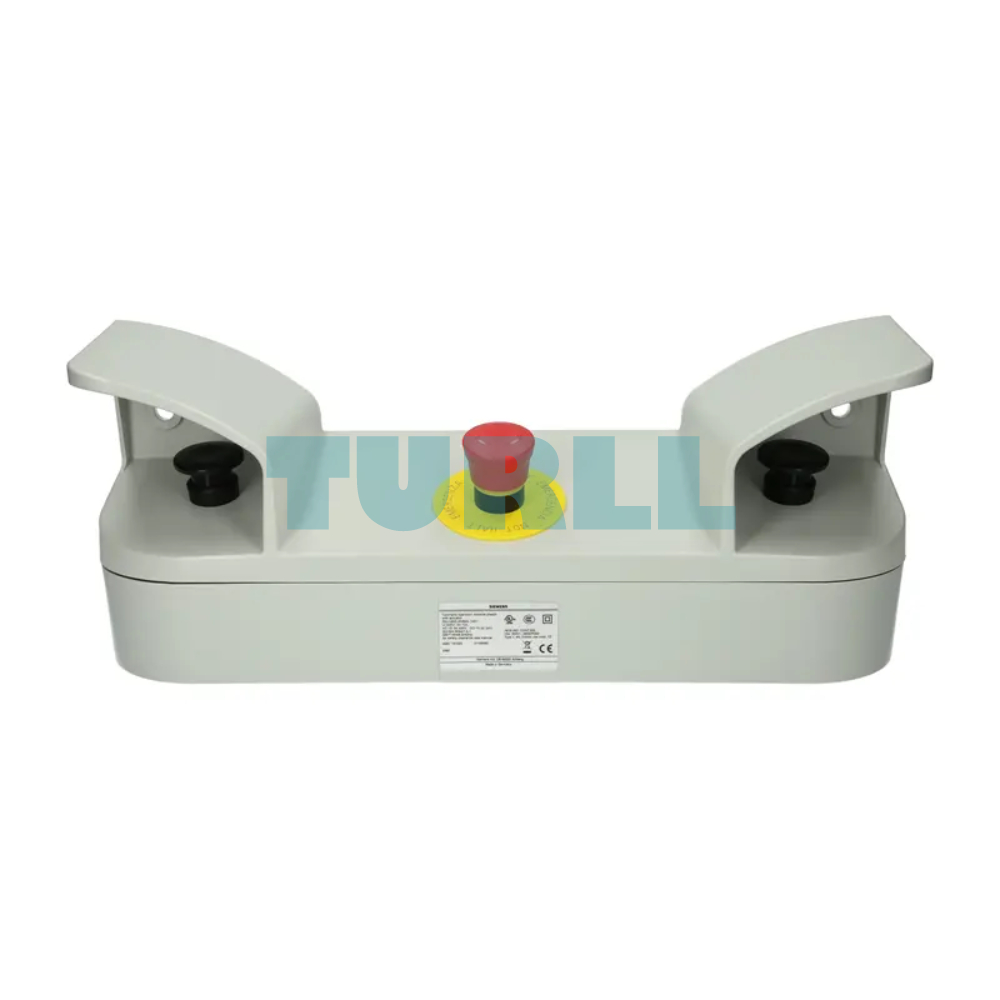

Two-hand operation console for 22 mm command devices with black mushroom pushbuttons and red emergency stop. Front mounting with plastic enclosure and cable cut-outs for metric cable glands.
Availability: In stock

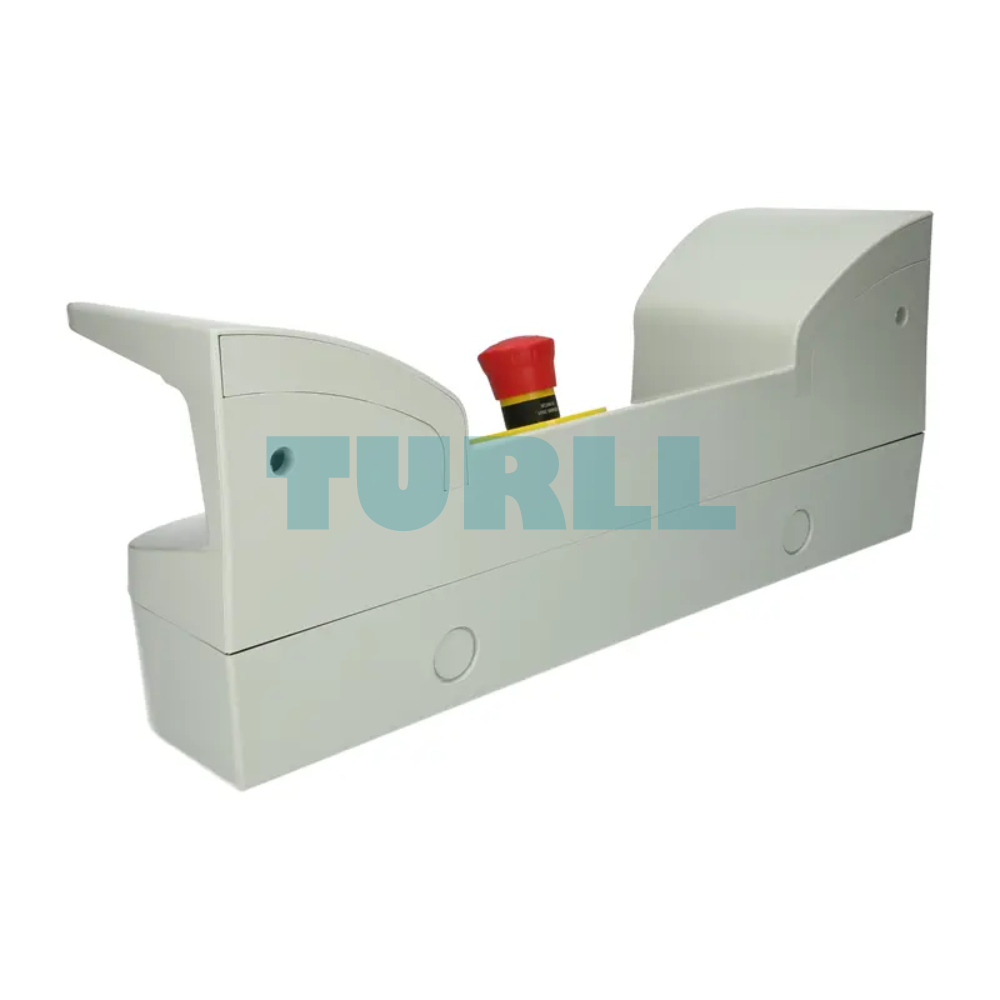

Overview
The Siemens 3SU1803-3NB00-1AE1 is a pre-configured, durable two-hand operation console designed for robust industrial environments. Part of the SIRIUS ACT 22mm command device line, this unit ensures operator safety by requiring both hands to be engaged simultaneously to initiate a machine function, complying with relevant safety standards. The console features a high-grade plastic enclosure with a gray top part, making it lightweight yet highly resistant to damage and chemical exposure.
Features & Function
-
Enclosure: Durable plastic material with gray top part.
-
Command Points: 3 pre-drilled holes for 22 mm command devices, plus 8 additional preset breaking points.
-

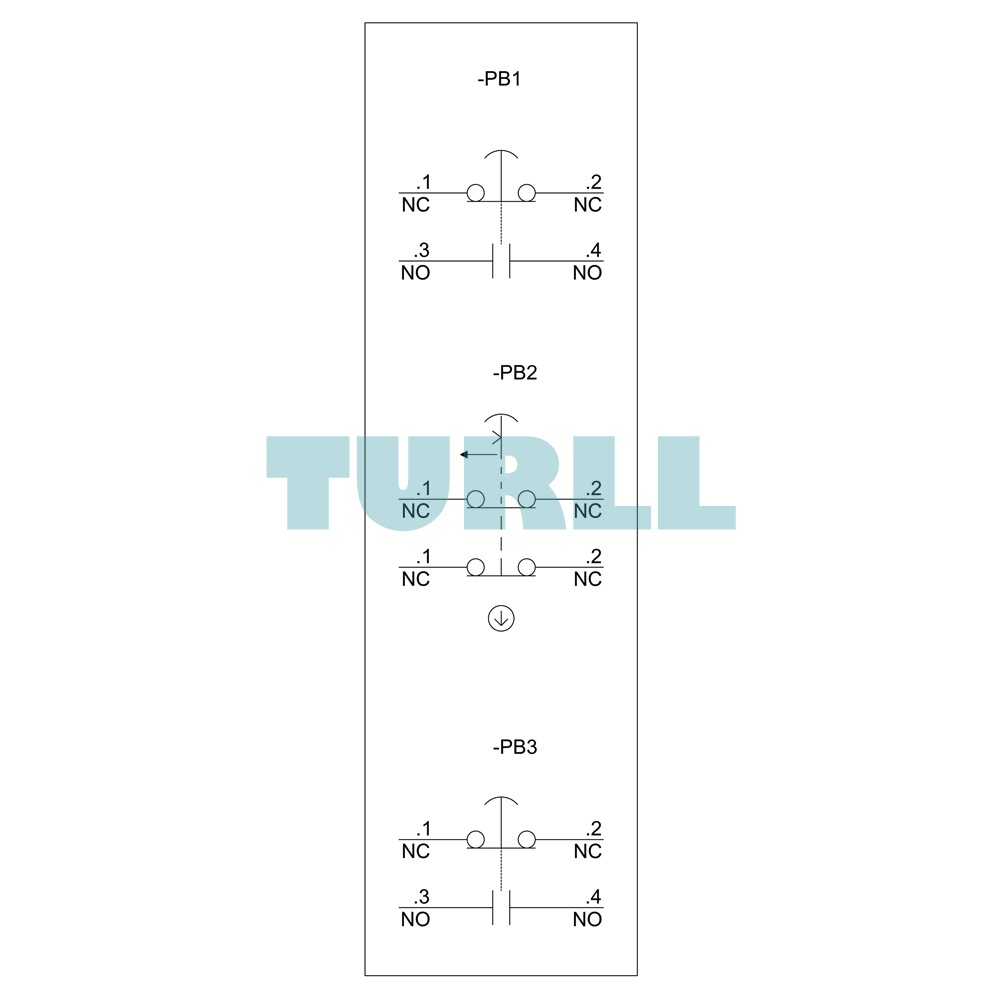

Pushbuttons: 2 black mushroom pushbuttons (40 mm), each with 1 NO + 1 NC contact, screw terminals.
-
Emergency Stop: 1 red mushroom pushbutton (40 mm), 2 NC contacts, screw terminal.
-
Mounting: Front mounting design, compatible with metric cable glands.
-
Safety Compliance: Ensures reliable two-hand operation to enhance operator safety.
Benefit
-
Enhanced Safety: Two-hand operation minimizes risk of accidental machine start.
-
Durability: Robust plastic enclosure withstands industrial environments.
-
Flexibility: Multiple preset holes allow easy integration of additional command devices.
-
Ease of Installation: Front mounting and screw terminals simplify wiring.
-
Emergency Response: Built-in red emergency stop ensures immediate shutdown capability.
Visit 3SU1803-3NB00-1AE1 for more detail info
For more our products visit turll
Download

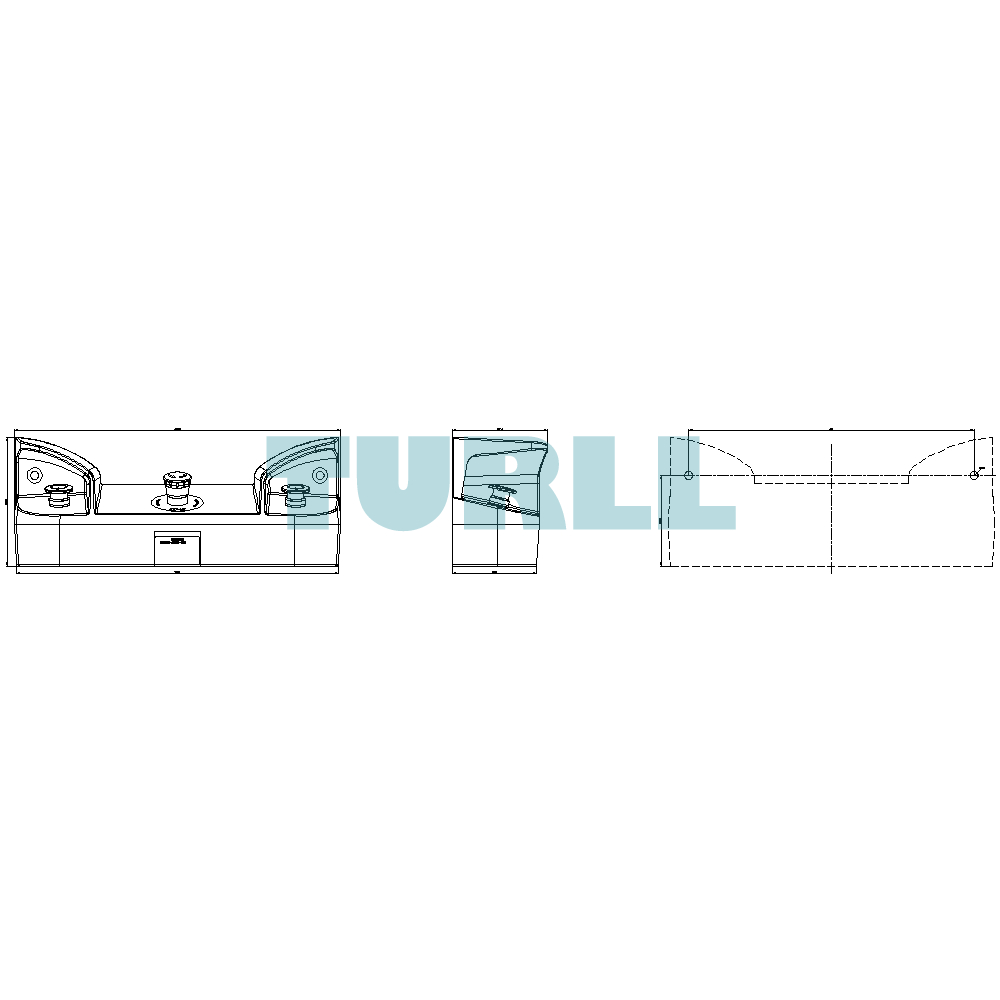

| Weight | 2.420 kg |
|---|---|
| Dimensions | 188.00 × 816.00 × 227.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Two-hand operation console |
| product type designation | 3SU1 |
| manufacturer's article number | – |
| ● of supplied contact module | R2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400-1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0 |
| ● of supplied contact module at the command point A 1 | 3SU1400-1AA10-1CA0 |
| ● of supplied contact module at the command point A 3 | 3SU1400-1AA10-1BA0 |
| ● of supplied contact module at the command point B 1 | 3SU1400-1AA10-1CA0 |
| ● of supplied contact module at the command point B 3 | 3SU1400-1AA10-1CA0 |
| ● of supplied contact module at the command point C 1 | 3SU1400-1AA10-1CA0 |
| ● of supplied contact module at the command point C 3 | 3SU1400-1AA10-1BA0 |
| ● of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point B | 3SU1550-0AA10-0AA0 |
| ● of the supplied holder at the command point C | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator at the command point A | 3SU1000-1BD10-0AA0 |
| ● of the supplied actuator at the command point B | 3SU1000-1HB20-0AA0 |
| ● of the supplied actuator at the command point C | 3SU1000-1BD10-0AA0 |
| ● of supplied empty enclosure | 3SU1803-3AA00-0AA1 |
| ● of the supplied accessories at the command point B | 3SU1900-0BB31-0AT0 |
| design of the housing | Two-hand operating console with standard components |
| material of the enclosure | plastic |
| number of command points | 3 |
| color of the enclosure top part | grey |
| delivery state | – |
| ● as a kit | No |
| ● pre-wired on strip terminal | No |
| fastening method of the enclosure | Horizontal |
| design of the actuating element | A = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton |
| principle of operation of the actuating element | A = momentary contact / B = latching / C = momentary contact |
| product feature | – |
| ● lockout | No |
| ● staggered switching | No |
| color of the actuating element | A = black / B = red / C = black |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 6 |
| type of unlocking device | A = none / B = rotate to unlock / C = none |
| product component front ring | Yes |
| material of the front ring | plastic |
| color of the front ring | black |
| material of the holder | Plastic |
| product function | – |
| ● positive opening | Yes |
| ● EMERGENCY OFF function | Yes |
| ● EMERGENCY STOP function | Yes |
| product component stand/pedestal | No |
| protection class IP | IP66 |
| degree of protection NEMA rating | 1, 4X, 12K, indoor use only, 13 |
| shock resistance acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 4 |
| number of NO contacts for auxiliary contacts | 2 |
| type of electrical connection on enclosure | Cable routing at the rear 2 x M25 |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Front plate mounting |
| number of backing plates | 1 |
| marking of backing plate | EMERGENCY-STOP |
| color of backing plate | Yellow |
| Test Certificates | Marine / Shipping |
| last modified: | 10/5/2021 |
