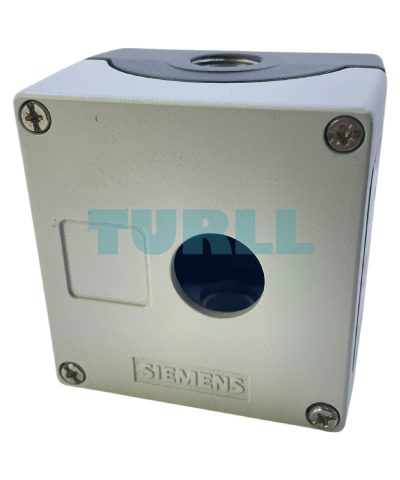

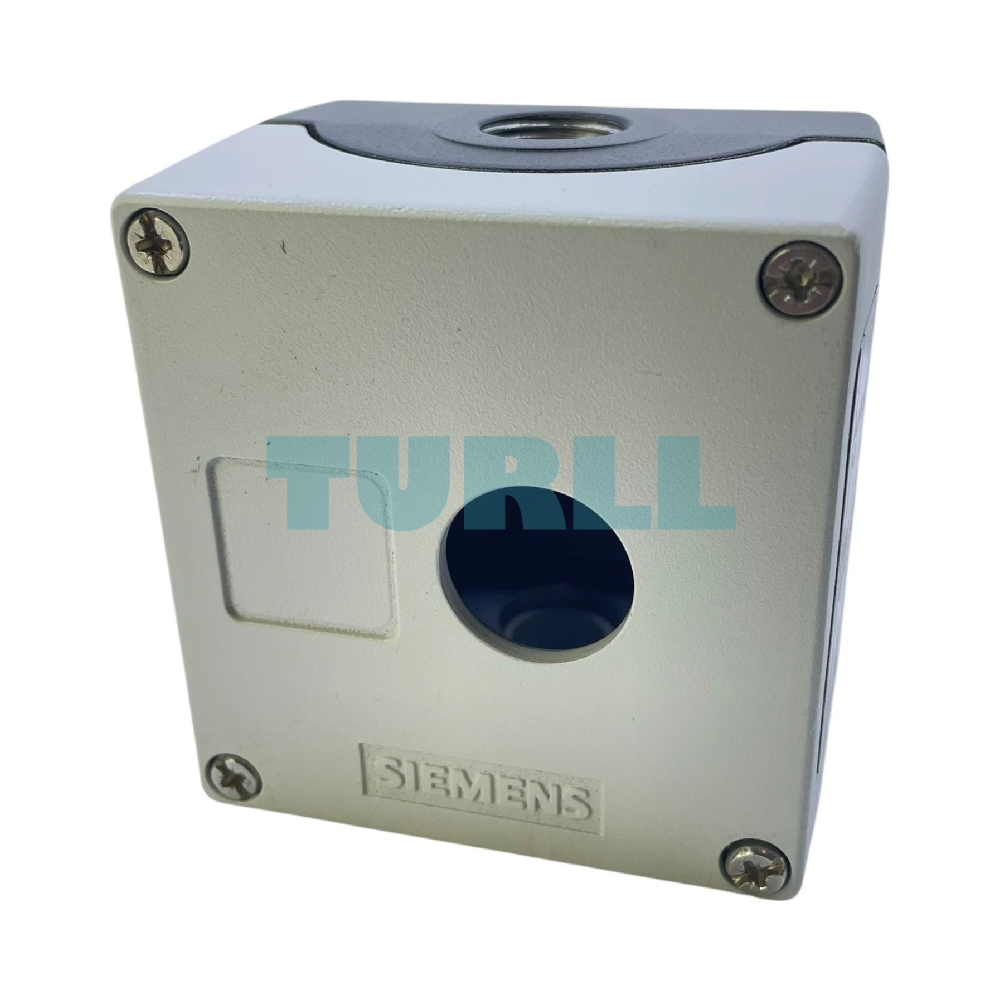

Siemens 3SU1851-0AA00-0AB1 Metal Enclosure for Command Devices, 22mm, 1 Control Point, Gray Original Brand New
$28.60
Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 1 control point, without equipment, Recess for labels, floor mounting, 1xM20 each on top and bottom.
Availability: In stock
Overview
The Siemens 3SU1851-0AA00-0AB1 is a high-quality metal enclosure designed for 22 mm command and control devices. Engineered for industrial applications, this enclosure provides robust protection, durability, and flexible installation options. It features a single control point, a recess for labeling, and M20 cable entries on both top and bottom, ensuring easy wiring and professional system integration.
Benefit
-
Superior Durability: The full metal construction ensures maximum protection against mechanical stress, impact, and wear, leading to a longer service life in harsh industrial settings.
-
Simplified Installation: Designed for floor mounting, offering a stable and reliable base for controls. The enclosure is supplied without equipment, giving you full flexibility to configure the perfect SIRIUS ACT command setup.
-
Optimized Cable Management: Equipped with one M20 cable entry on both the top and the bottom, allowing for flexible and clean routing of power and control wiring.
-
Professional Labeling: Includes a recess for labels, enabling clear and permanent identification of the control function, improving operational safety and efficiency.
Function
-
Protects command and control devices from external damage
-
Supports industrial automation and control panel applications
-
Provides organized housing for push buttons and signaling units
-
Enables clean and professional installation with labeling support
Technical Specification
-
Brand: Siemens
-
Model: 3SU1851-0AA00-0AB1
-
Mounting Type: Floor mounting
-
Control Points: 1
-
Device Size Compatibility: 22 mm
-
Material: Metal
-
Color: Gray (enclosure top part)
-
Equipment Included: No
-
Label Recess: Yes
-
Cable Entry: 1 × M20 (top), 1 × M20 (bottom)
-
Shape: Round
Visit 3SU1851-0AA00-0AB1 for more detail info
For more our products visit turll
Download
| Weight | 0.505 kg |
|---|---|

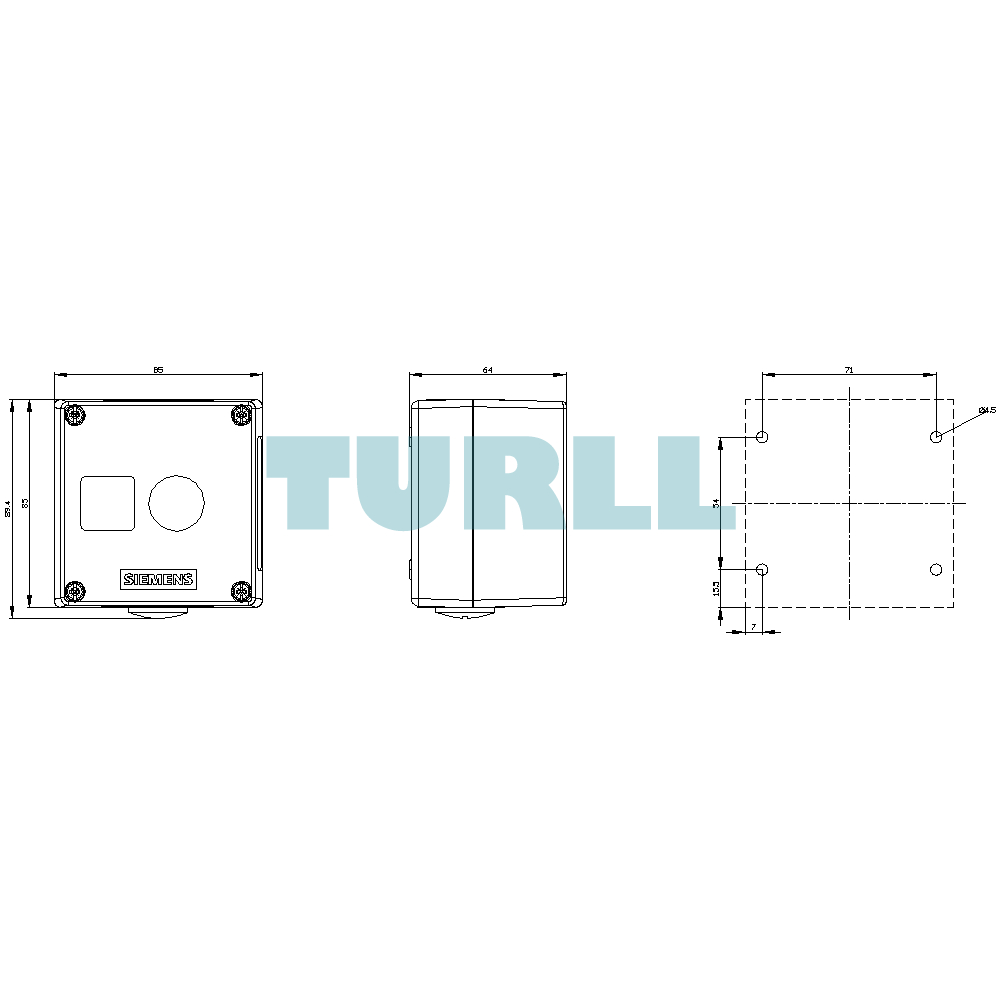

| Dimensions | 94.00 × 101.00 × 82.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| design of the housing | with recess for label |
| shape of the enclosure front | Square |
| material of the enclosure | metal |
| number of command points | 1 |
| product component protective collar | No |
| color of the enclosure top part | grey |
| fastening method of the enclosure | Vertical / horizontal |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| vibration resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| cable entry type | Without |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of fixing screws in the enclosure cover | 1.5 … 1.7 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| last modified: | 12/21/2020 |
