Siemens 3SU1853-0AA00-0AB1 Metal Enclosure for 22 mm Command Devices, 3 Control Points Original Brand New
$45.54
Robust Siemens 3SU1853-0AA00-0AB1 metal enclosure for 3 control points (22 mm). Gray top part, floor mounting, and 1xM20 cable entry top and bottom.
Availability: In stock
Overview

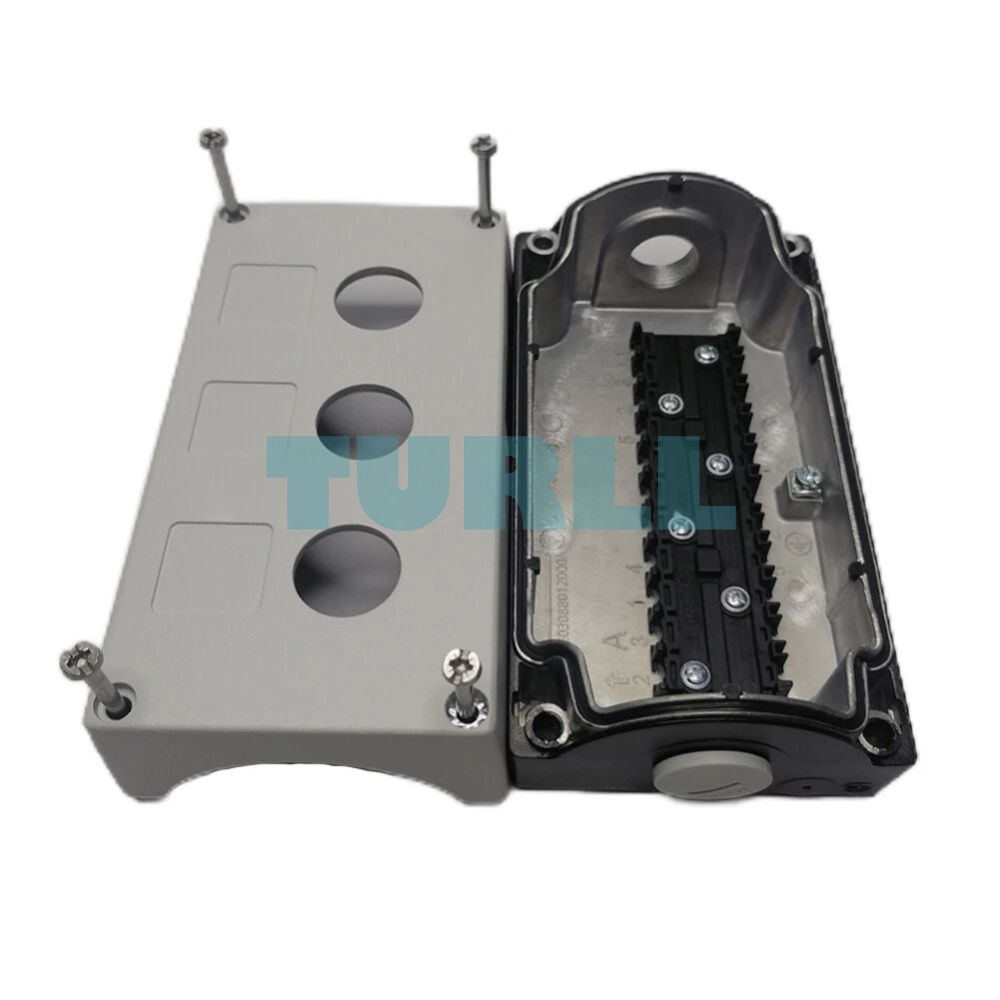

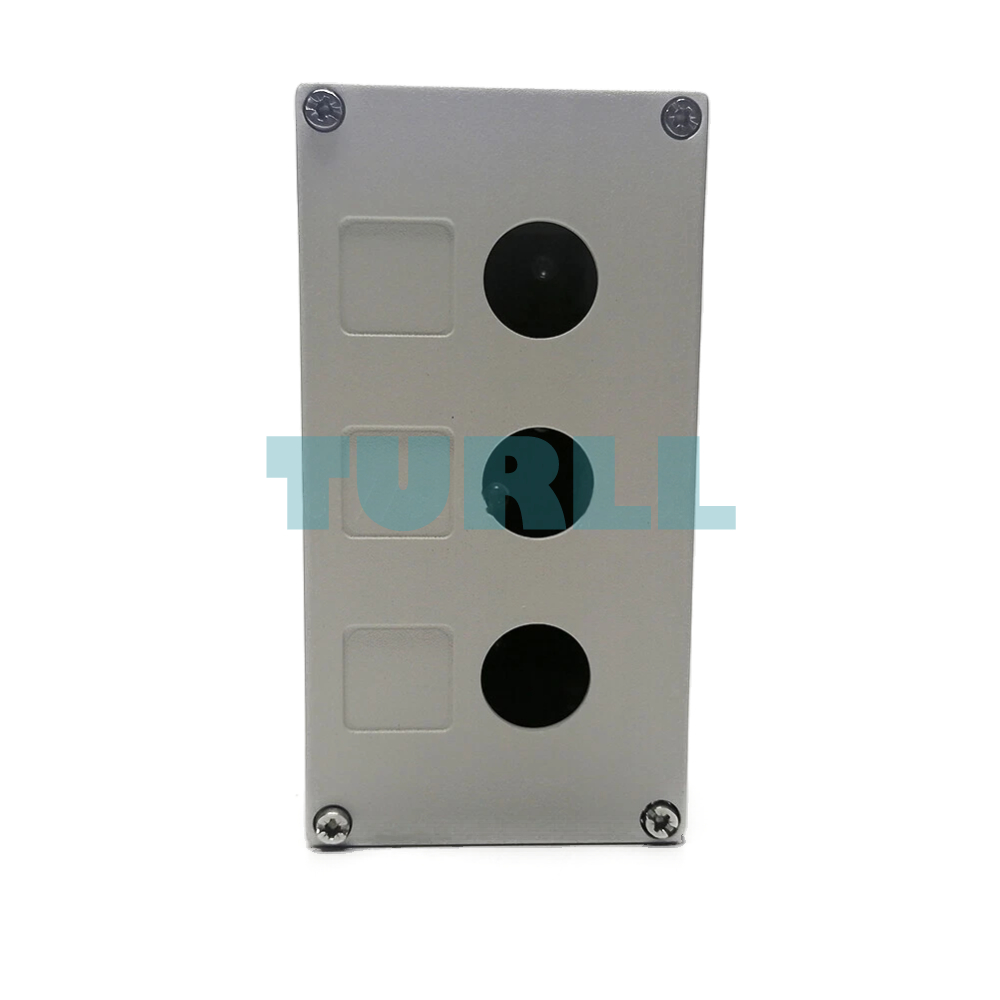

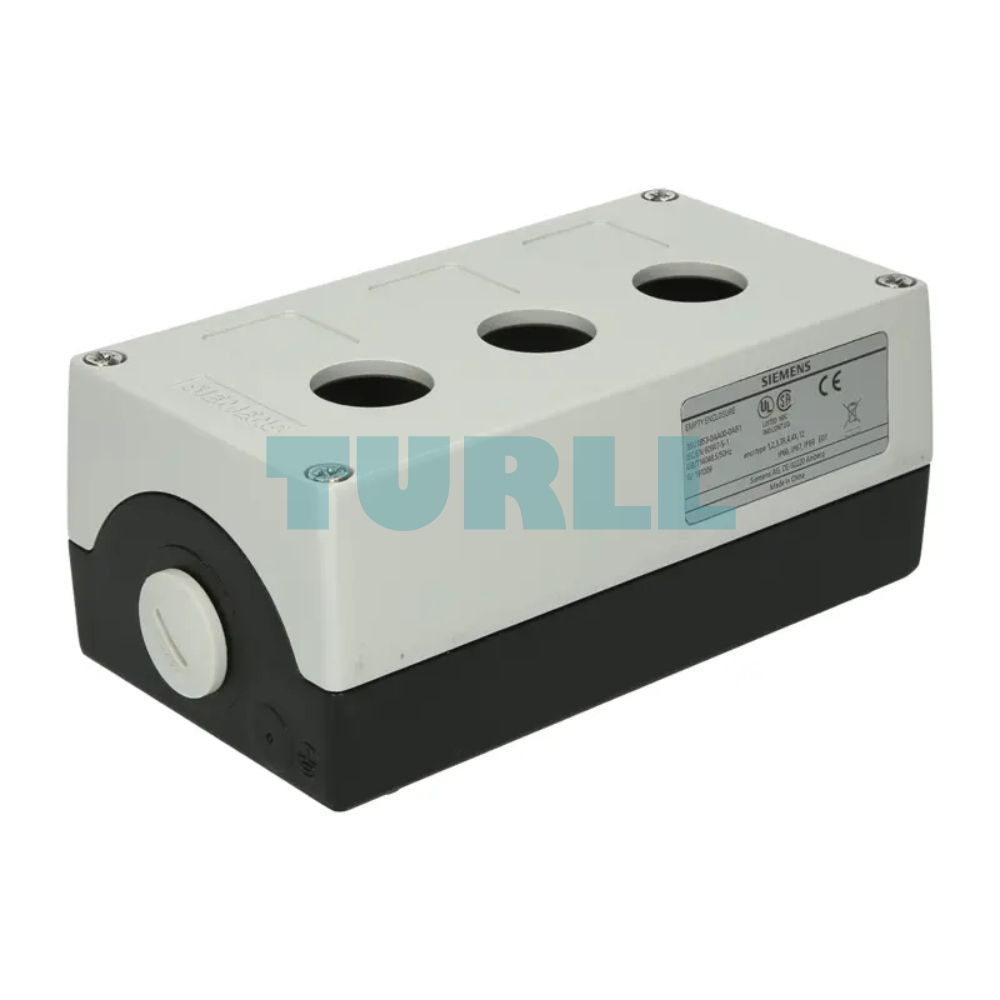

The Siemens 3SU1853‑0AA00‑0AB1 is a durable, high‑quality metal enclosure designed to house 22 mm command devices such as pushbuttons and pilot lights. Ideal for industrial control panels, this round enclosure features three pre‑configured control points and a recessed area for customizable labeling. Equipped for easy floor mounting, it includes one M20 cable entry point at the top and one at the bottom.
Features & Function
-
Capacity: Accommodates 3 control points for 22mm round command devices.
-
Construction: Highly durable metal enclosure material for maximum robustness and longevity.
-
Design: Enclosure top part is colored gray for standard industrial visibility.
-
Mounting: Designed for secure floor mounting, making it suitable for central control stations or remote operation points.
-
Cable Management: Equipped with two M20 cable entries (one on the top and one on the bottom) for flexible and secure cable routing.
-
Labeling: Includes a recess for labels to allow for clear identification and function marking of the installed devices.
-
Flexibility: Supplied without equipment, allowing for complete customization with your choice of SIRIUS ACT 22mm components.
Benefit
-
Increased Component Lifespan: The robust metal construction offers superior mechanical protection against impact, dust, and moisture, ensuring your command devices operate reliably for longer.
-
Simplified Installation: Pre-drilled holes for 22mm components and dedicated M20 cable entries streamline the assembly process.
-
Professional, Clear Control: The recess for labels allows for easy and professional identification, minimizing operator confusion and speeding up tasks.
-
Industrial Standard Compliance: Part of the SIRIUS ACT portfolio, ensuring compatibility with a wide range of Siemens industrial control products.
Visit 3SU1853-0AA00-0AB1 for more detail info
For more our products visit turll
Download
| Weight | 0.700 kg |
|---|---|

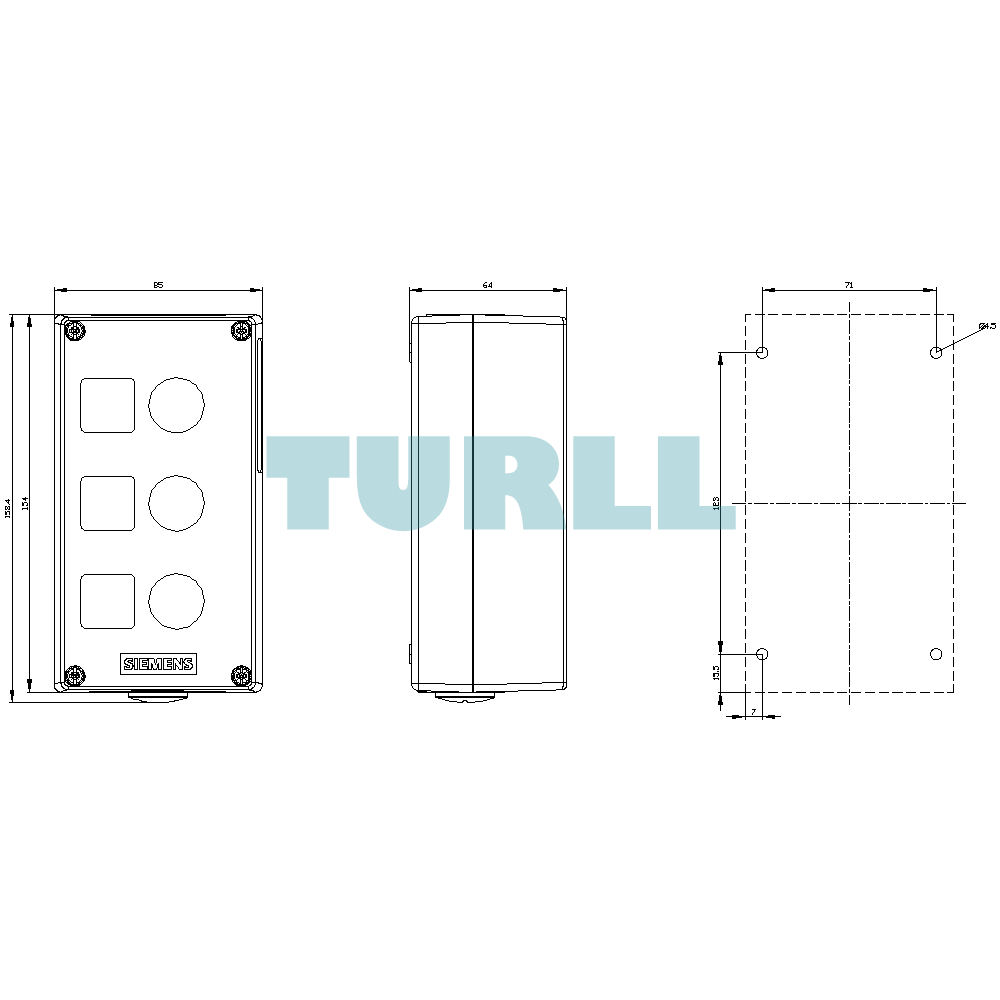

| Dimensions | 98.00 × 165.00 × 81.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| design of the housing | with recess for label |
| shape of the enclosure front | rectangular |
| material of the enclosure | metal |
| number of command points | 3 |
| product component protective collar | No |
| color of the enclosure top part | grey |
| fastening method of the enclosure | Vertical / horizontal |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| vibration resistance for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| cable entry type | Without |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of fixing screws in the enclosure cover | 1.5 … 1.7 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method of modules and accessories | Floor mounting |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| last modified: | 12/21/2020 |
