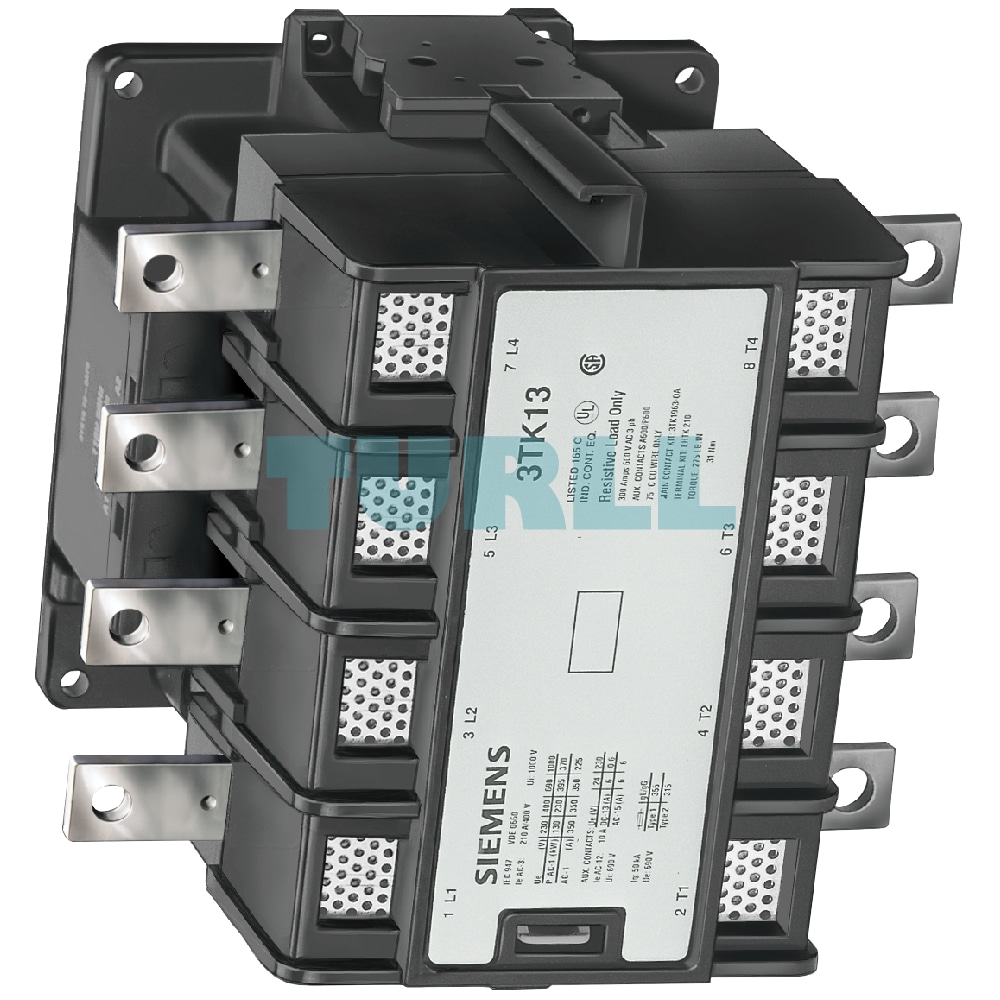

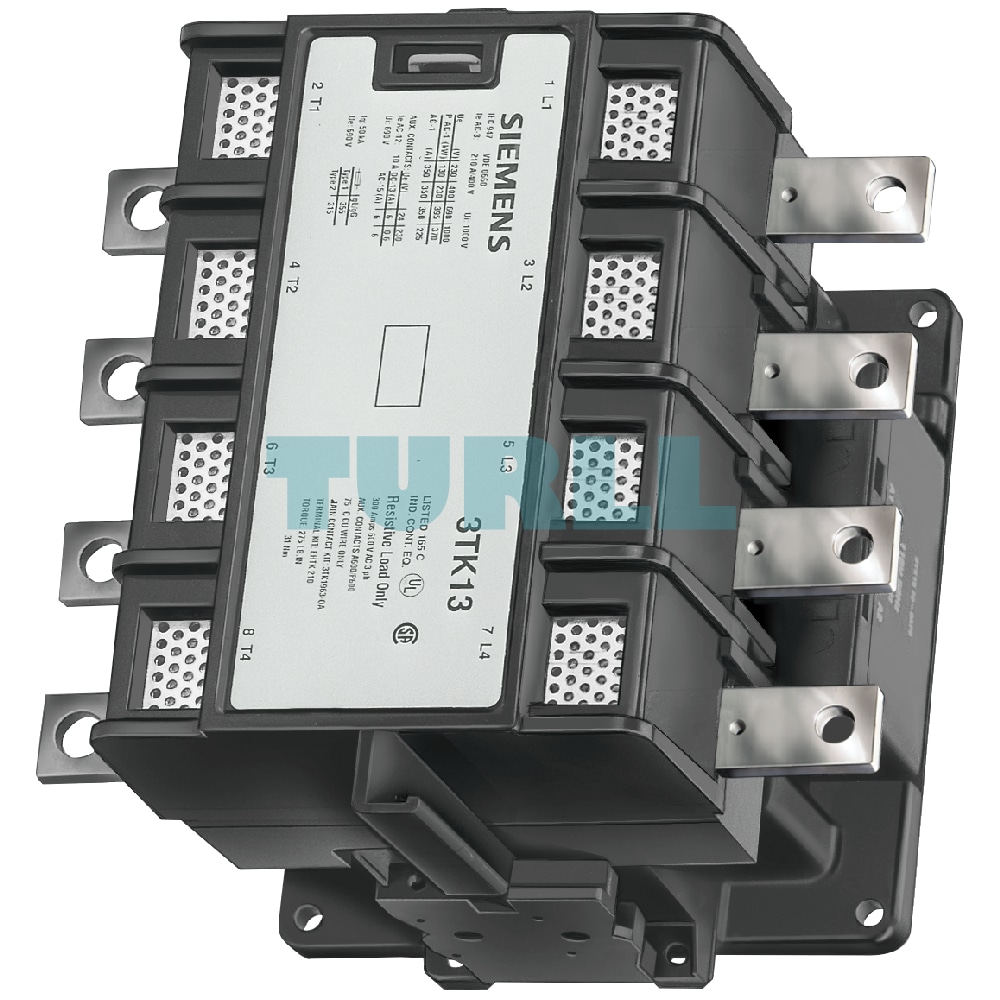

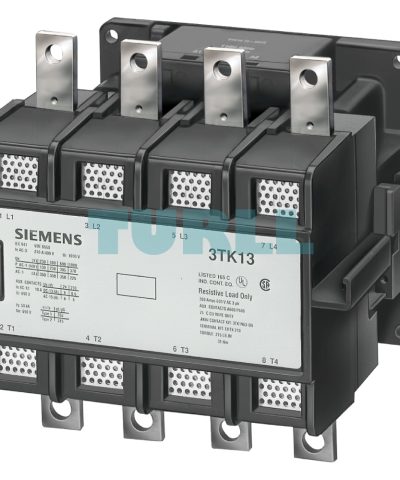

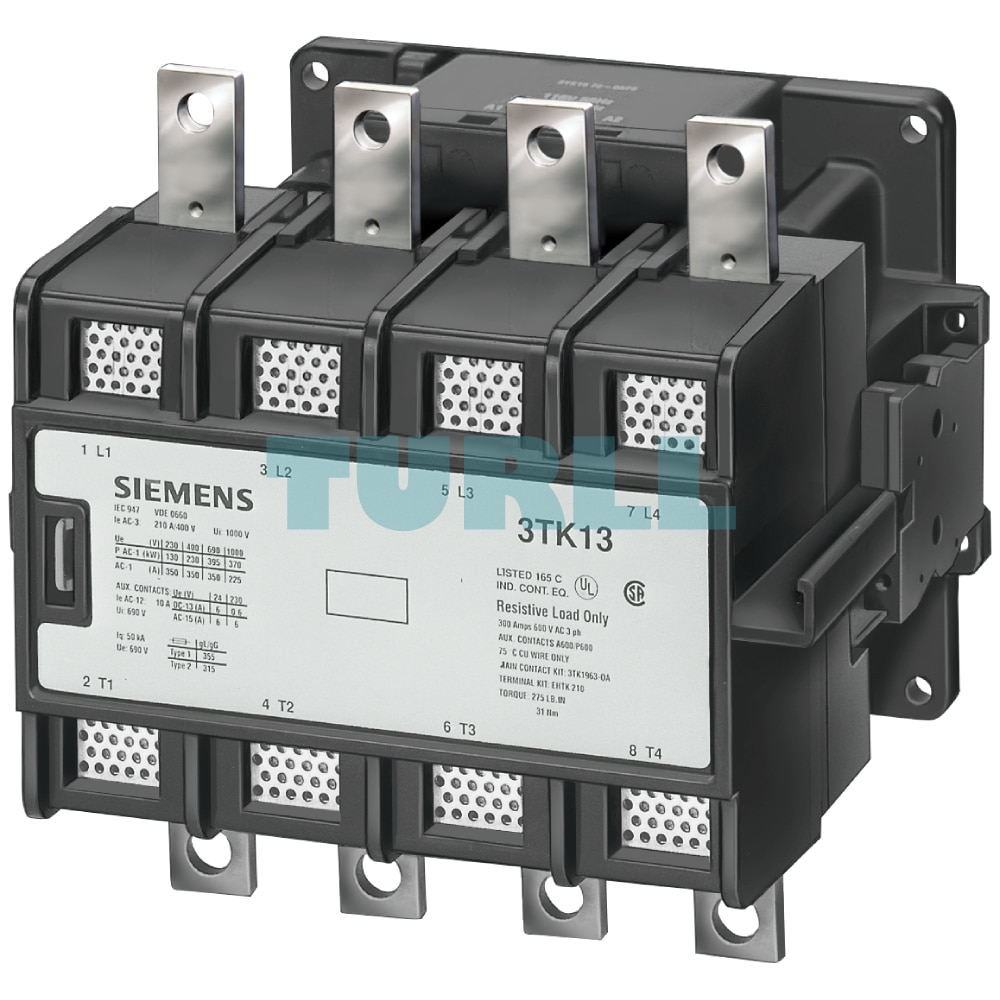

Siemens 3TK1742-0AF0 AC-1 Contactor 4-Pole, 1000A, 110/120V AC Coil, 4 NO + 2 NO/2 NC Auxiliary Contact Original Brand New

Overview

The Siemens 3TK1742-0AF0 is a robust and reliable 4-pole contactor designed for switching AC-1 resistive loads in a wide range of industrial applications. Featuring a substantial 1000 A current rating, 4 normally open (NO) main contacts, and a versatile auxiliary contact configuration of 2 normally open (NO) and 2 normally closed (NC), this contactor provides dependable performance for demanding power control requirements. Its AC operation is compatible with both 110 V AC 50 Hz and 120 V AC 60 Hz power supplies.

Key Features & Benefit

• High Current Capacity: Rated for 1000 A (AC-1), making it suitable for heavy-duty resistive loads.
• 4-Pole Design: Offers robust control for multi-phase or multiple circuit applications.
• Versatile Contact Configuration: Includes 4 Main NO contacts for power switching and 2 NO + 2 NC auxiliary contacts for signaling, interlocking, and control circuit integration.
• Dual Voltage AC Coil: Operates reliably on both 110 V AC 50 Hz and 120 V AC 60 Hz, providing flexibility for various electrical systems.
• Reliable Operation: Built to Siemens’ high engineering standards, ensuring long-term durability and consistent performance.
• Standard Compliance: Conforms to international standards including IEC 60947‑1, IEC 60947‑4‑1, and IEC 60947‑5‑1 (for auxiliary switches), ensuring compatibility and safety.
• Resistive Load Optimization: Primarily designed for efficient and safe switching of AC-1 resistive loads.
• Surge Suppression Capability: Solenoid coils can be easily fitted with RC elements for surge suppression (accessories sold separately, see ‘Accessories and spare parts for 3TK1 contactors’).

Function

The Siemens 3TK1742-0AF0 contactor serves as an essential component in industrial control systems for:

• Switching Resistive Loads: Effectively controls the ON/OFF state of resistive loads such as heating elements, lighting, and furnaces.
• Circuit Isolation: Provides a means to safely isolate power to specific sections of a circuit.
• Motor Control (AC-1 applications): While primarily for resistive loads, it can be used for certain AC-1 motor applications where motor starting currents are not a significant factor.
• Automation Integration: Auxiliary contacts enable seamless integration into automated control sequences and interlocking circuits.

Application

The Siemens 3TK1742-0AF0 contactor is ideal for various industrial and commercial applications requiring reliable switching of high-current resistive loads, including:

• Industrial ovens and heating systems
• Large lighting installations
• Capacitor banks (for power factor correction)
• Resistive load banks
• General power distribution in industrial environments
