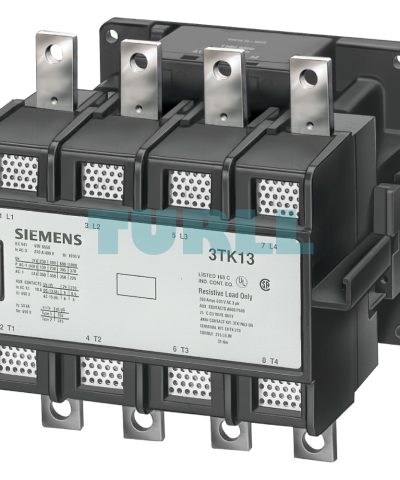

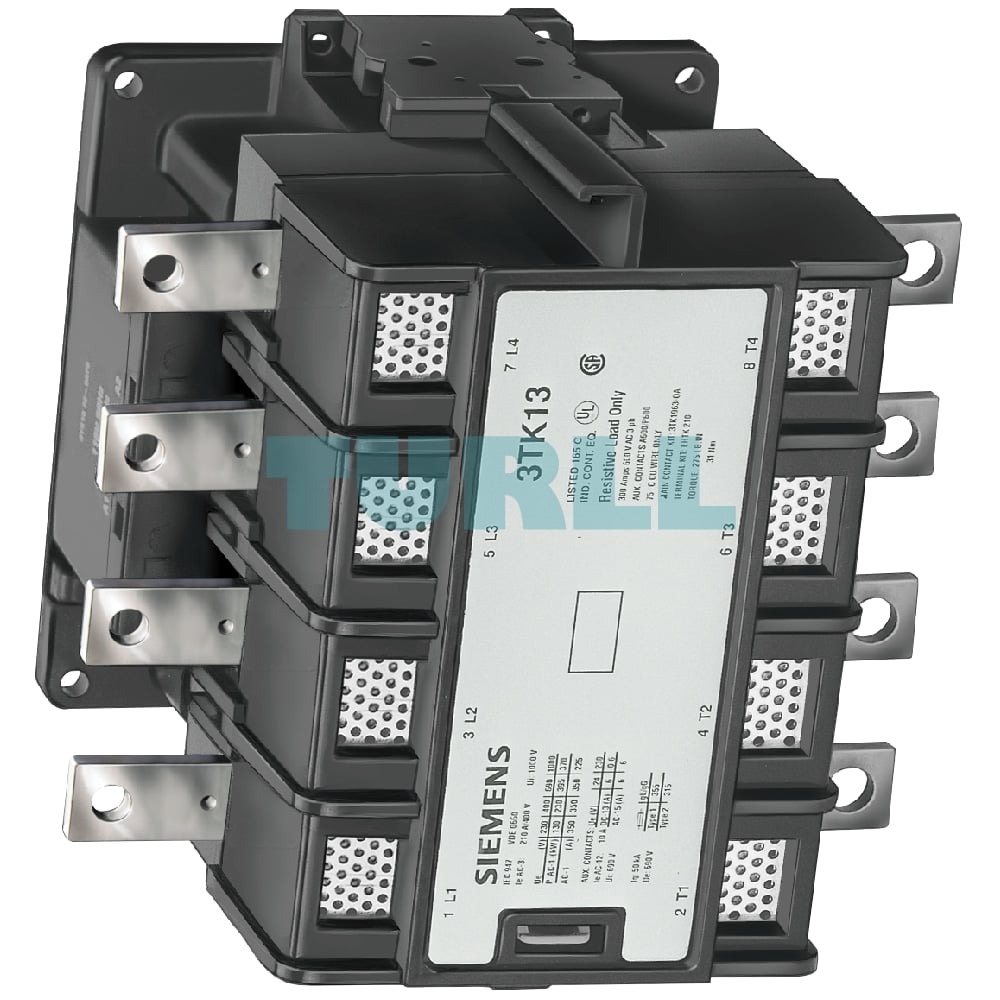

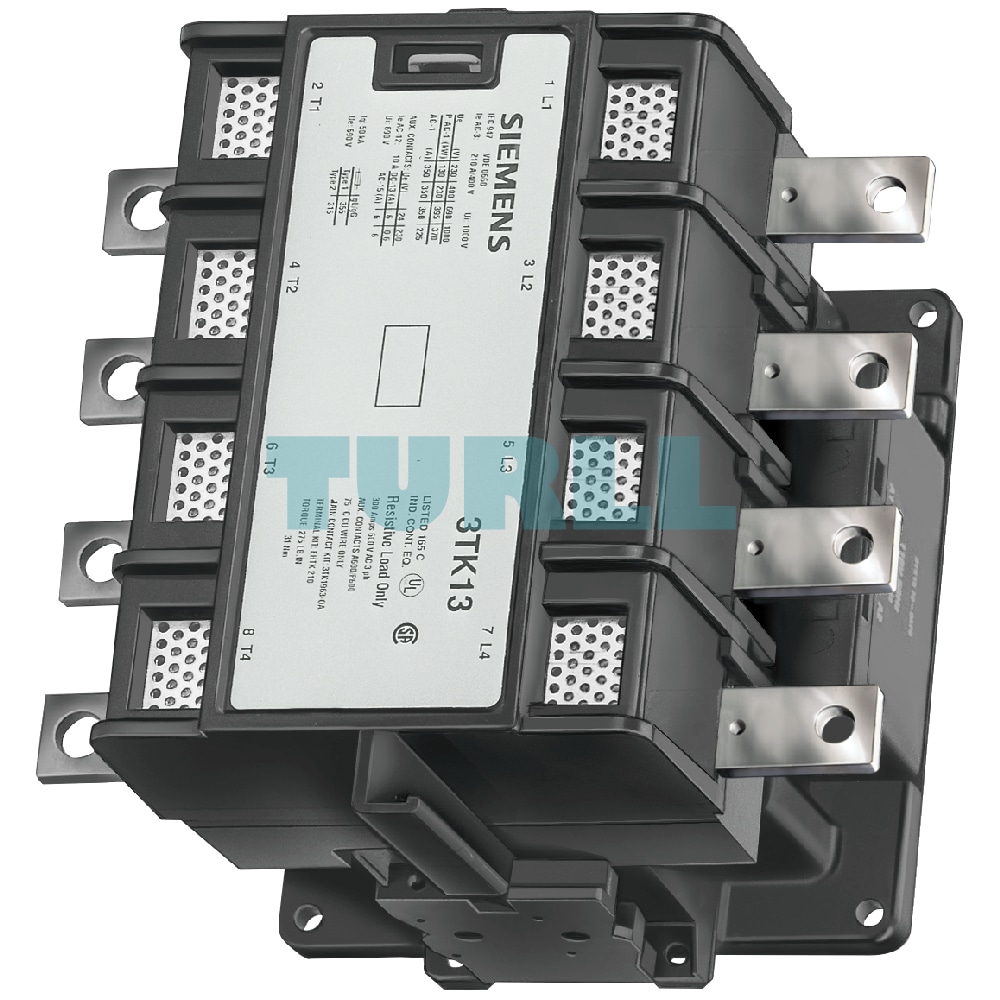

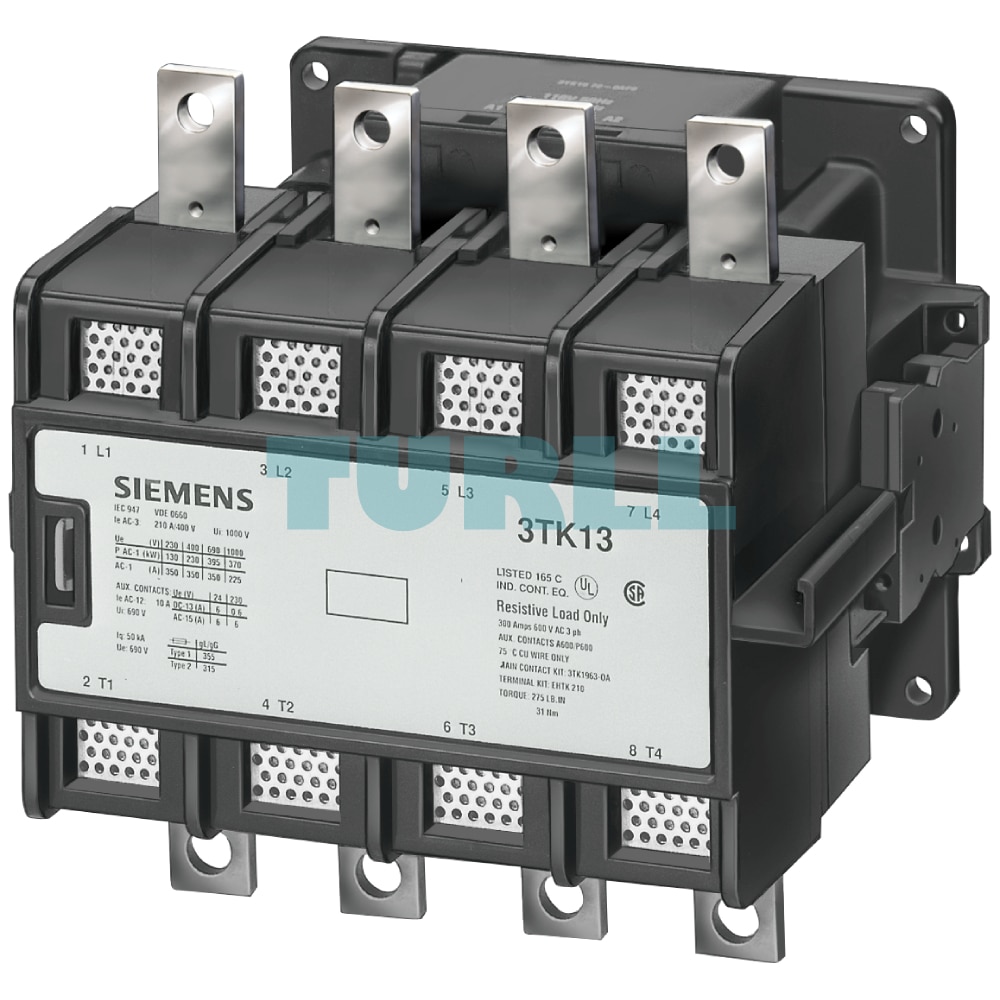

Siemens 3TK1742-0AL2 Contactor, AC-1, 4-Pole, 1000A, 230V AC Original Brand New

Overview

The Siemens 3TK1742-0AL2 is a robust and high-performance AC-1 contactor designed for reliable switching of resistive loads in demanding industrial applications. As part of Siemens’ trusted 3TK1 series, this 4-pole contactor is engineered for exceptional durability and efficiency, making it an ideal choice for heavy-duty power control systems. With its impressive 1000 Ampere current rating and versatile auxiliary contacts, the 3TK1742-0AL2 ensures precise and safe operation of critical machinery and electrical circuits.

Key Features

• High Current Capacity: Rated for 1000 A (AC-1), capable of handling significant resistive loads.
• 4-Pole Design: Offers versatile switching capabilities for various electrical configurations.
• Comprehensive Contact Configuration: Equipped with 4 Normally Open (NO) main contacts for power switching and 2 Normally Open (NO) + 2 Normally Closed (NC) auxiliary contacts for control and signaling.
• AC Operation: Designed for seamless integration into 230V AC, 50/60 Hz control circuits.
• Robust Siemens Quality: Manufactured by Siemens, a global leader in industrial automation, ensuring high standards of reliability and longevity.

Benefit

• Enhanced Safety: Provides reliable isolation and switching of high current loads, minimizing operational risks.
• Optimized Performance: Engineered for consistent and efficient operation, reducing energy consumption and operational costs in AC-1 applications.
• Increased Productivity: Ensures continuous and smooth control of industrial processes, contributing to higher uptime and productivity.
• Versatile Application: Suitable for a wide range of industrial power control scenarios due to its high current rating and flexible contact arrangement.
• Long Service Life: Built with durable materials and precision engineering, offering extended operational life even in harsh industrial environments.
• Easy Integration: Standardized design allows for straightforward installation and integration into existing electrical panels and systems.

Function

The Siemens 3TK1742-0AL2 contactor primarily functions as an electromechanical switching device. It is used to:

• Switch Resistive Loads (AC-1): Efficiently connects and disconnects high-power resistive loads such as heating elements, lighting systems, and furnaces.
• Control Power Circuits: Acts as a master switch to enable or disable the flow of high current to designated equipment.
• Provide Auxiliary Signaling: The auxiliary contacts (2 NO + 2 NC) can be used for feedback, interlocking, control circuit signaling, or to activate other devices based on the main contactor’s status.
• Ensure Overload Protection Integration: Designed to work in conjunction with overload relays for comprehensive motor and circuit protection (overload relay not included).

Application

This Siemens 3TK1742-0AL2 contactor is ideal for a variety of industrial applications requiring robust and reliable control of high-current resistive loads, including:

• Industrial Heating Systems
• Large Lighting Installations
• Capacitor Banks (for power factor correction)
• Transformer Switching (under no-load conditions)
• Resistive Furnaces and Ovens
• Industrial Automation Systems
• Building Automation Systems (for heavy-duty electrical loads)
