Overview

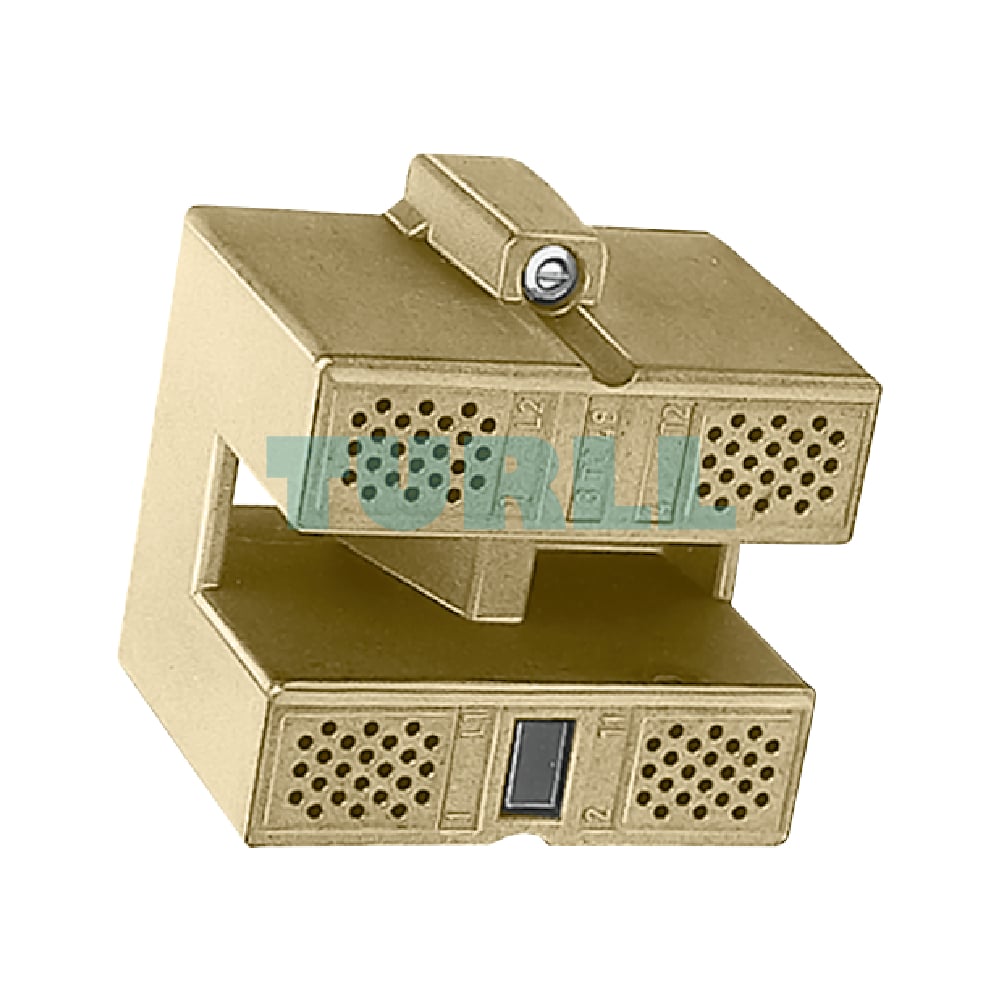

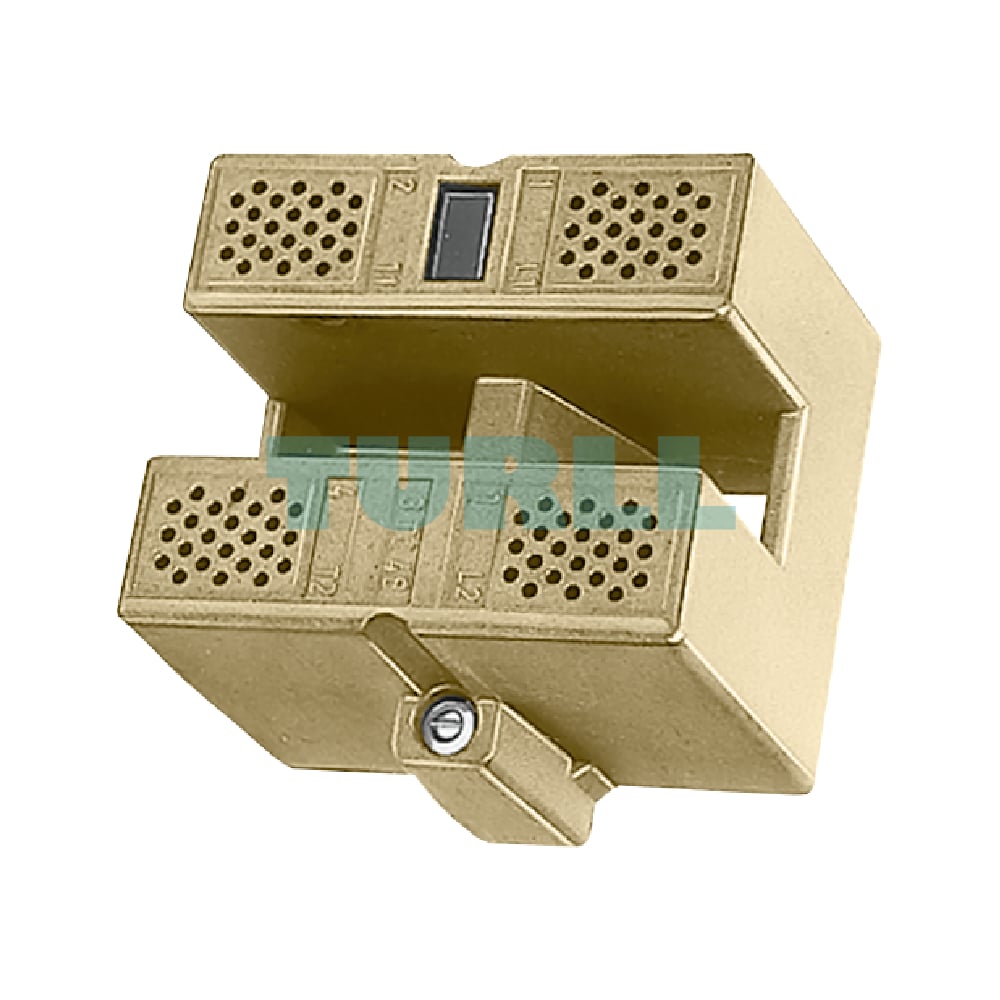

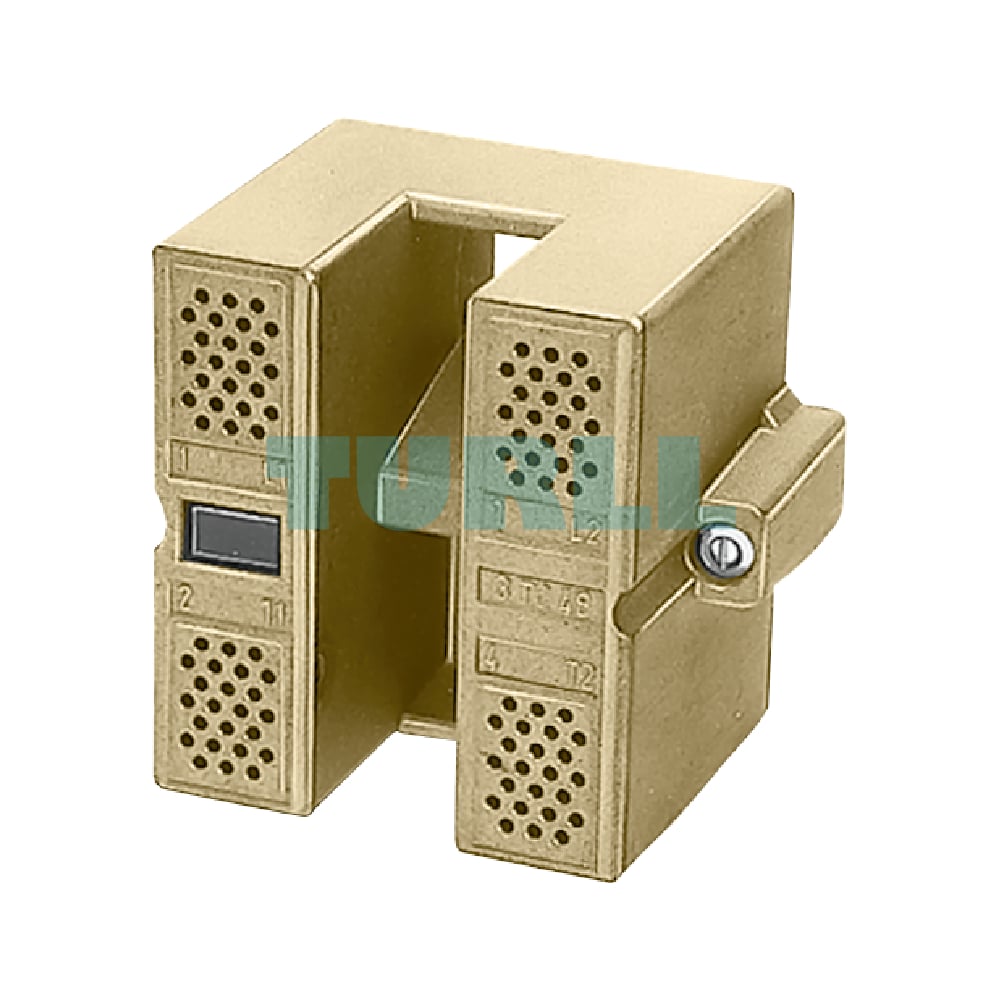

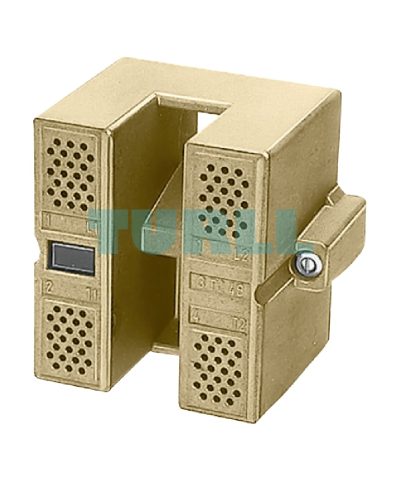

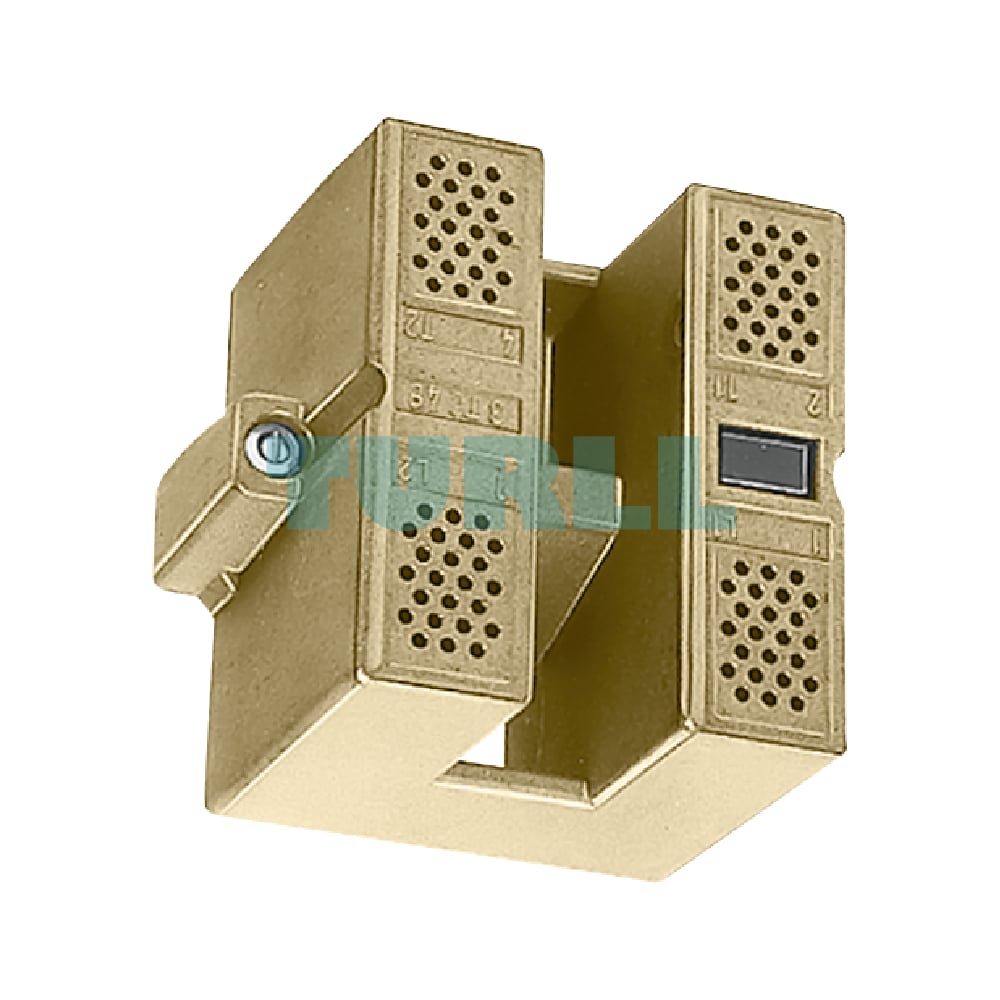

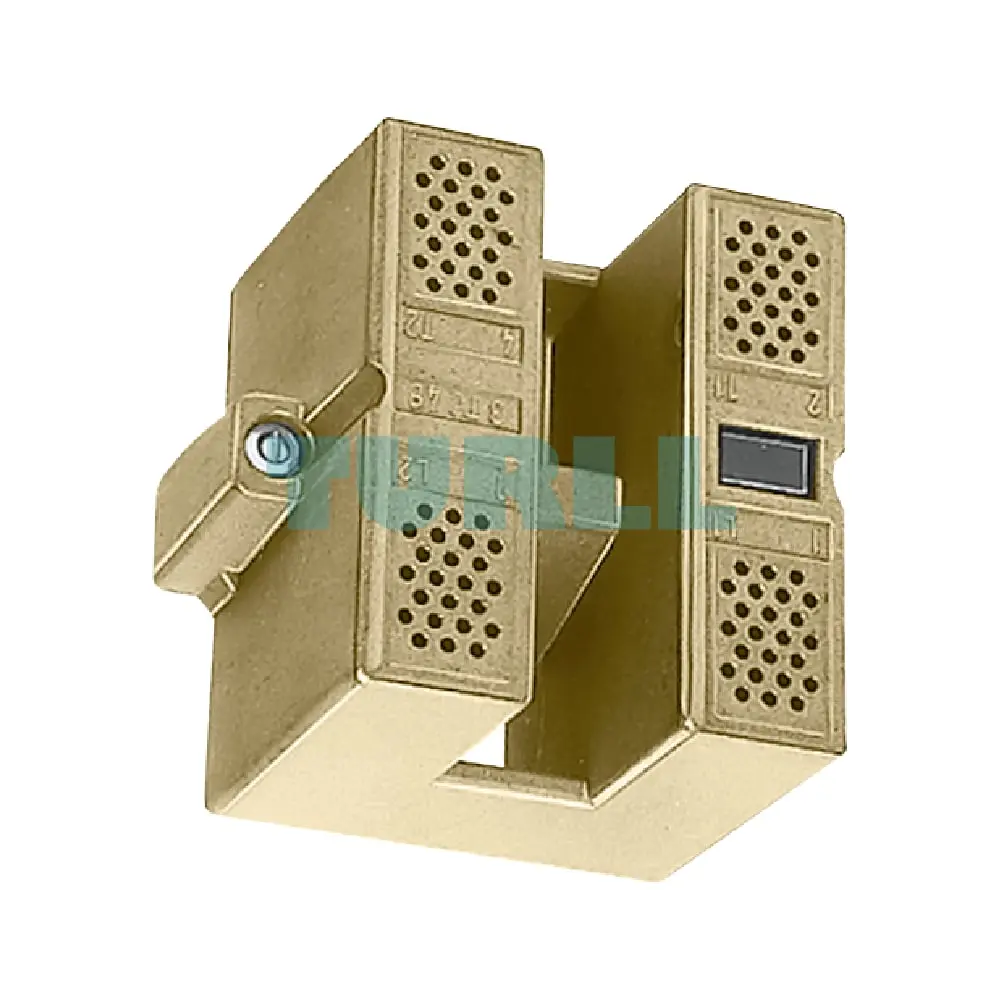

The Siemens 3TY2442-0B is a high-quality arc chute designed to enhance the performance and longevity of contactors with an extended operating range. This essential component effectively extinguishes the electric arc that forms when a contactor opens, preventing damage to the main contacts and ensuring reliable switching operations. The 3TY2442-0B is specifically engineered for optimal performance in demanding industrial applications, offering superior arc extinguishing capabilities and a robust design.
Benefit
- Enhanced Contactor Lifespan: By efficiently suppressing the electric arc, the 3TY2442-0B protects the main contacts from erosion and welding, significantly extending the service life of your contactors.
- Improved Reliability: Ensures consistent and reliable switching performance, reducing the risk of equipment failure and costly downtime.
- Superior Arc Extinguishing: Its advanced design provides rapid and effective arc quenching, even under high-current conditions and frequent switching cycles.
- Easy Installation: Designed for a seamless fit with compatible Siemens contactors, allowing for quick and hassle-free replacement or integration.
- Cost-Effective Solution: A small investment in this component can prevent major repair costs and replacement of entire contactor units.
Function
The primary function of the Siemens 3TY2442-0B arc chute is to contain, cool, and extinguish the electrical arc that is generated as the contactor's main contacts separate. It achieves this by:
- Splitting the Arc: The arc is drawn into the arc chute, which is made of insulating material. It is then broken into smaller, less powerful segments by a series of metal plates.
- Cooling the Arc: The metal plates and the surrounding air absorb the heat from the arc, causing it to cool and de-ionize.
- Extinguishing the Arc: As the arc cools and loses its conductivity, it is quickly and safely extinguished, preventing it from damaging the contactor or causing a short circuit.
Technical Specification
- Product Number: Siemens 3TY2442-0B
- Type: Arc Chute
- Compatibility: Designed for specific Siemens contactors (please refer to the product manual or contact us for compatibility details).
- Application: For contactors with extended operating range.
- Material: High-grade, arc-resistant insulating material and metal alloy plates.
- Brand: Siemens
