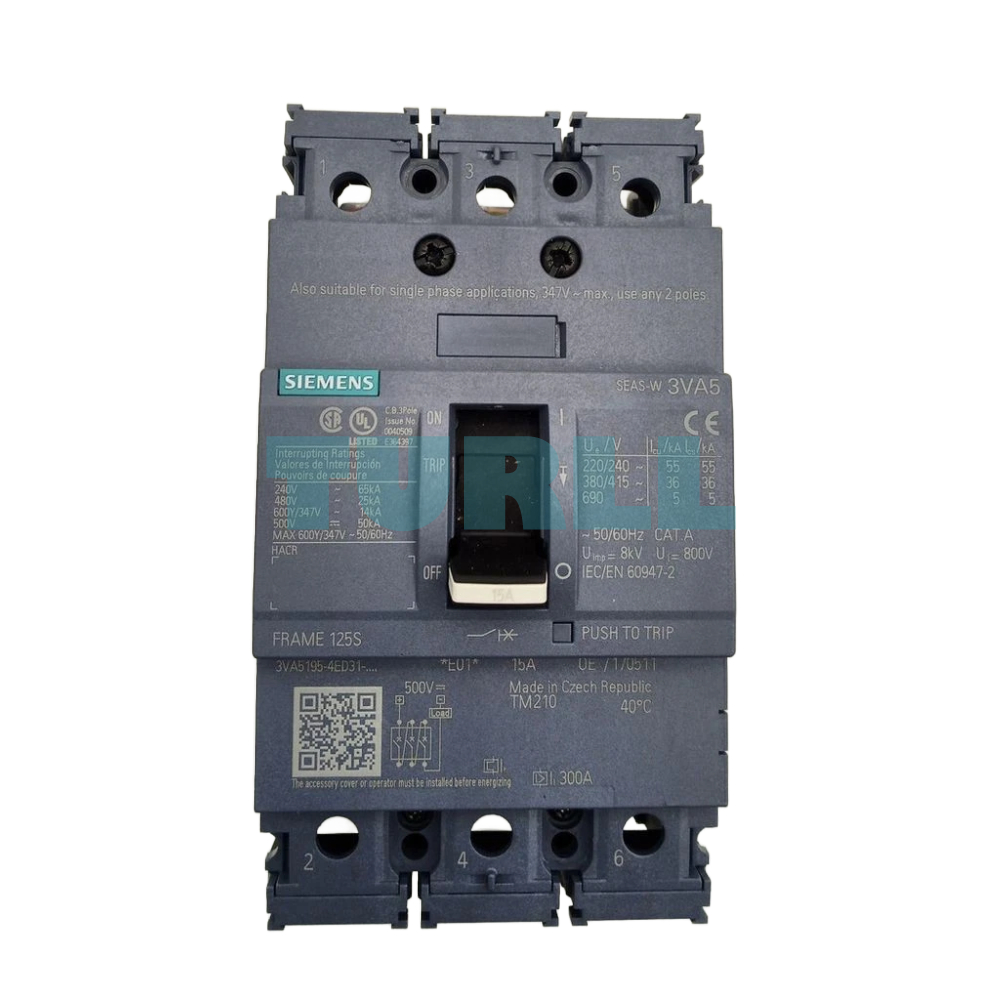

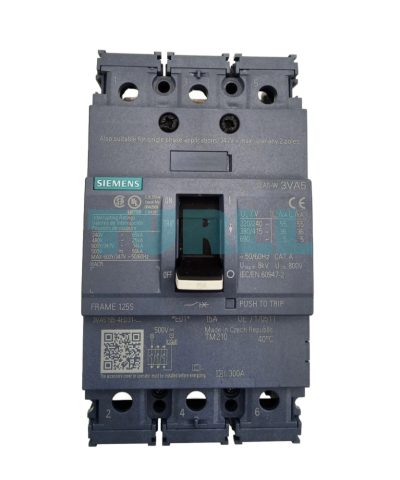

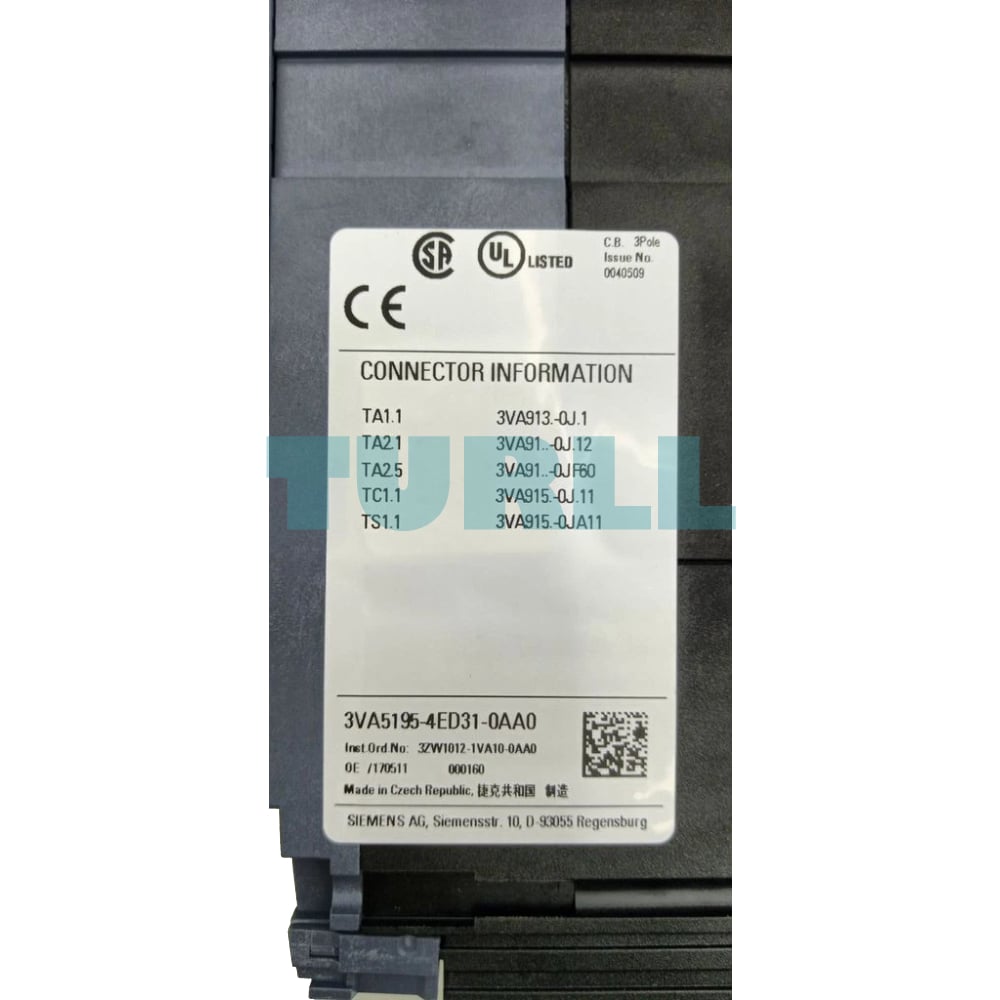

Siemens 3VA5195-4ED31-0AA0 Molded Case Circuit Breaker 3VA5 UL Frame 125, 3-Pole, 15A Original Brand New
$442.96
High-performance Molded Case Circuit Breaker (MCCB) from the SENTRON series. Designed for UL Frame 125 applications, this 3-pole breaker offers 15A continuous current and a 25kA breaking capacity at 480V, ensuring robust line protection with a thermal-magnetic TM210 trip unit.
Availability: In stock
Overview
The Siemens 3VA5195-4ED31-0AA0 is a high-performance 3VA5 molded case circuit breaker (MCCB) designed for reliable line protection in industrial and commercial electrical systems. Built on a UL Frame 125, this circuit breaker delivers a breaking capacity of 25 kA at 480 V, ensuring safe interruption of fault currents.
Equipped with TM210 thermal-magnetic trip unit and FTFM technology, it provides dependable overload and short-circuit protection with permanently set parameters for consistent system safety.
Key Benefit
-
High breaking capacity of 25 kA @ 480 V for enhanced fault protection
-
UL Frame 125 compliant with international safety standards
-
Thermal-magnetic protection (TM210) for accurate overload and short-circuit response
-
Fixed trip settings for stable and maintenance-free operation
-
Compact and durable design suitable for industrial and commercial panels
-
Reliable Siemens quality ensuring long service life and system reliability
Function
-
Protects electrical lines from overload and short-circuit faults
-
Interrupts fault currents quickly to prevent equipment damage
-
Ensures system continuity and operational safety
-
Ideal for power distribution, control panels, and industrial automation systems

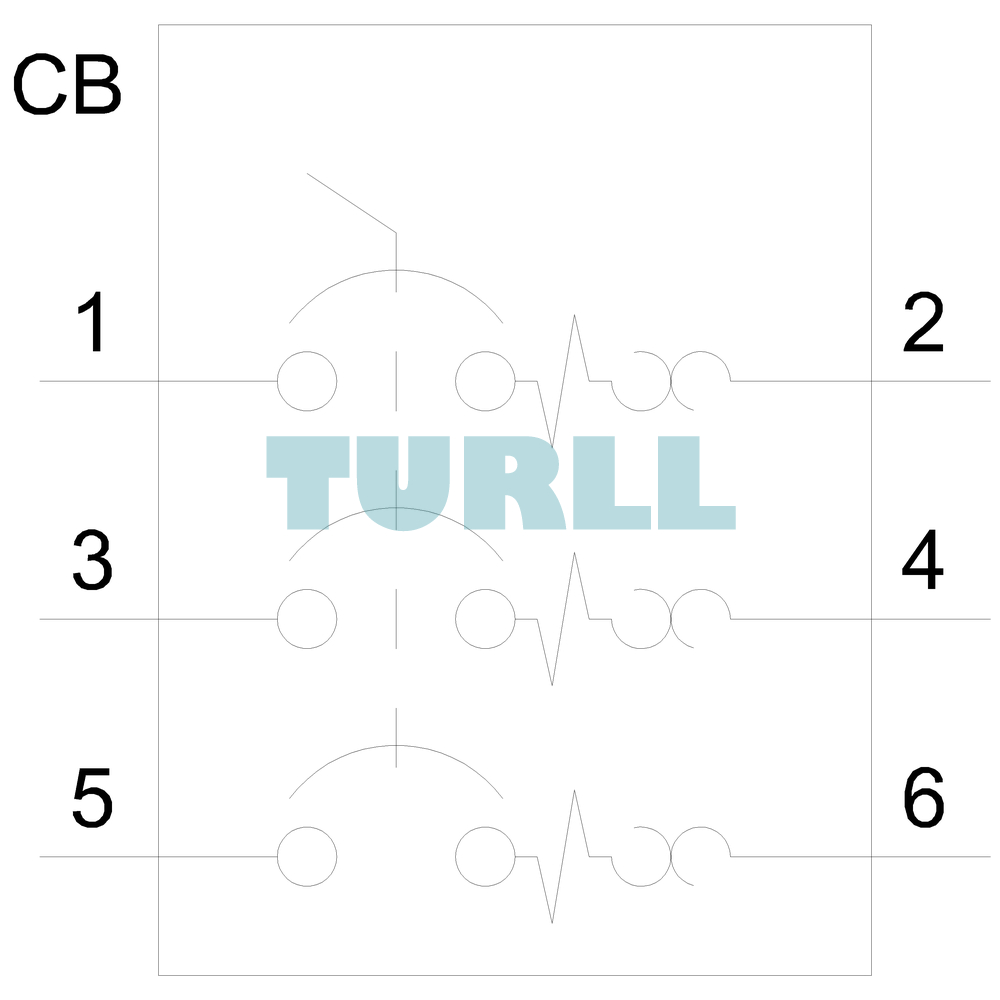

Technical Specification
-
Manufacturer: Siemens
-
Product Number: 3VA5195-4ED31-0AA0
-
Series: 3VA5
-
Frame Size: UL Frame 125
-
Number of Poles: 3-Pole
-
Rated Current (In): 15 A
-
Overload Protection (Ir): 15 A (permanently set)
-
Short-Circuit Protection (Ii): 20 × In (fixed)
-
Breaking Capacity: 25 kA @ 480 V
-
Protection Type: Line protection
-
Trip Unit: TM210, FTFM
-
Connection: Without connection
Visit 3VA5195-4ED31-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.963 kg |
|---|---|
| Dimensions | 35125254803-210.1515 × -20 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | SEAS |
| Product version | System protection |
| design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the load switch / acc. to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | Yes |
| design of the load switch / acc. to UL 489 / Switching Duty circuit breaker (SWD Type) | Yes |
| design of the overcurrent release | TM210 |
| protection function of the overcurrent release | LI |
| number of poles | 3 |
| rated insulation voltage Ui | 800 V |
| Max. rated operational voltage Ue with DC | 500 V |
| power loss [W] / maximum | 10.6 W |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 3.53 W |
| mechanical service life (switching cycles) / typical | 20 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 8 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 4 000 |
| electrical endurance (switching cycles) / at 480 V | 8 000 |
| electrical endurance (switching cycles) / at 600 V | 4 000 |
| Neutral conductors / upgradeable/retrofittable | No |
| product function | – |
| ● communication function | No |
| ● other measurement function | No |
| marking / acc. to UL 489 / 100%-rated breaker | No |
| operational current | – |
| ● at 40 °C | 15 A |
| ● at 45 °C | 15 A |
| ● at 50 °C | 14 A |
| ● at 55 °C | 14 A |
| ● at 60 °C | 14 A |
| ● at 65 °C | 14 A |
| ● at 70 °C | 14 A |
| switching capacity class of the circuit breaker | S |
| breaking capacity maximum short-circuit current (Icu) | – |
| breaking capacity operating short-circuit current (Ics) | – |
| short-circuit current making capacity (Icm) | – |
| ● at 415 V | 75.6 kA |
| ● at 690 V | 7.5 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| breaking capacity current | – |
| ● at 240 V | 65 kA |
| ● at 480 V | 25 kA |
| ● at 600 Y/347 V | 14 kA |
| Adjustable response value current / lg min. | 15 A |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |

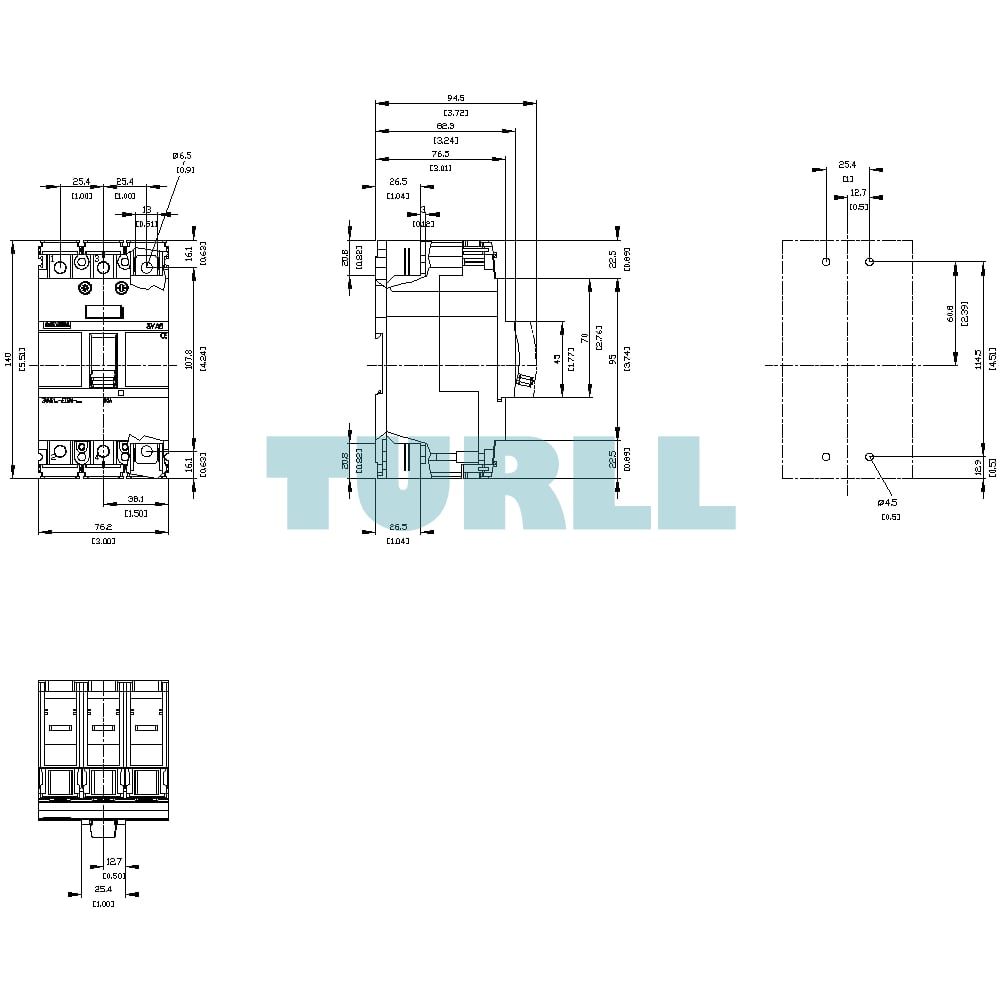

| height [in] | 5.51 in |
| Height | 140 mm |
| width [in] | 3 in |
| Width | 76.2 mm |
| depth [in] | 3.01 in |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| product component | – |
| ● undervoltage release | No |
| ● voltage trigger | No |
| ● trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| product extension / optional / motor drive | Yes |
| protection class IP / on the front | IP40 |
| ambient temperature | – |
| ● during operation / minimum | -25 °C |
| ● during operation / maximum | 70 °C |
| ● during storage / minimum | -40 °C |
| ● during storage / maximum | 80 °C |
| reference code / acc. to IEC 81346-2 | Q |
| certificate of suitability / as approval for NAVAL (no combat vessels) / supplement SB | No |
| last modified: | 10/11/2021 |
