Siemens 5SE2316 NEOZED Fuse-Link, Size D01, 16A, gG, 400V AC / 250V DC Original Brand New
$2.11
High-performance NEOZED fuse-link designed for space-saving circuit protection. Featuring a 16A current rating and gG operating class, this D01 size fuse includes tin-coated contact caps for superior conductivity and corrosion resistance.
Availability: In stock
Overview
The Siemens 5SE2316 belongs to the renowned NEOZED fuse system, which is significantly more compact than older DIAZED systems. This fuse-link is engineered for general-purpose applications (gG), providing reliable protection against short circuits and overloads in power distribution and industrial control systems. Its small footprint makes it an ideal choice for modern, high-density distribution boards.
Key Benefit & Features
-
Compact Design: Size D01 dimensions allow for more efficient use of space in switchgear and distribution panels.
-
Enhanced Durability: Equipped with tin-coated contact caps to prevent oxidation and ensure a long-lasting, low-resistance connection.
-
Versatile Operation: Rated for both AC (400V) and DC (250V) applications, offering flexibility across different electrical architectures.
-
High Breaking Capacity: Ensures safe interruption of high fault currents to protect sensitive downstream equipment.
-
Easy Identification: Color-coded for quick visual identification of the 16A current rating.
Function
-
Protects electrical circuits from excessive current
-
Ensures safe disconnection during fault conditions
-
Maintains system reliability in low-voltage distribution systems
-
Supports general-purpose gG applications
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 5SE2316
-
Fuse Type: NEOZED Fuse-Link
-
Size: D01
-
Rated Current: 16 A
-
Utilization Category: gG
-
Rated Voltage (AC): 400 V
-
Rated Voltage (DC): 250 V
-
Contact Caps: Tin-coated
Visit 5SE2316 for more detail info
For more our products visit turll
Download
| Weight | 0.007 kg |
|---|---|

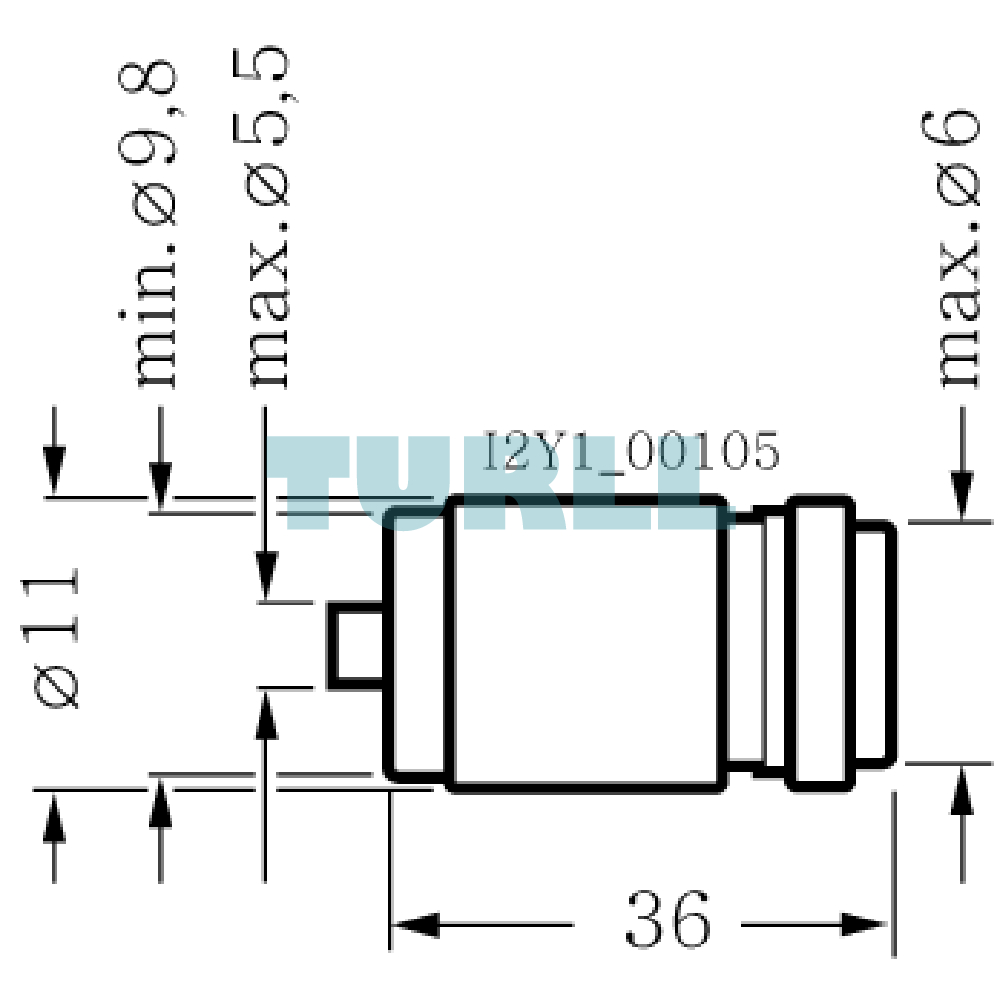

| Dimensions | 23.00 × 57.00 × 39.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | NEOZED fuse link |
| design of the product | With tin-coated contact caps |

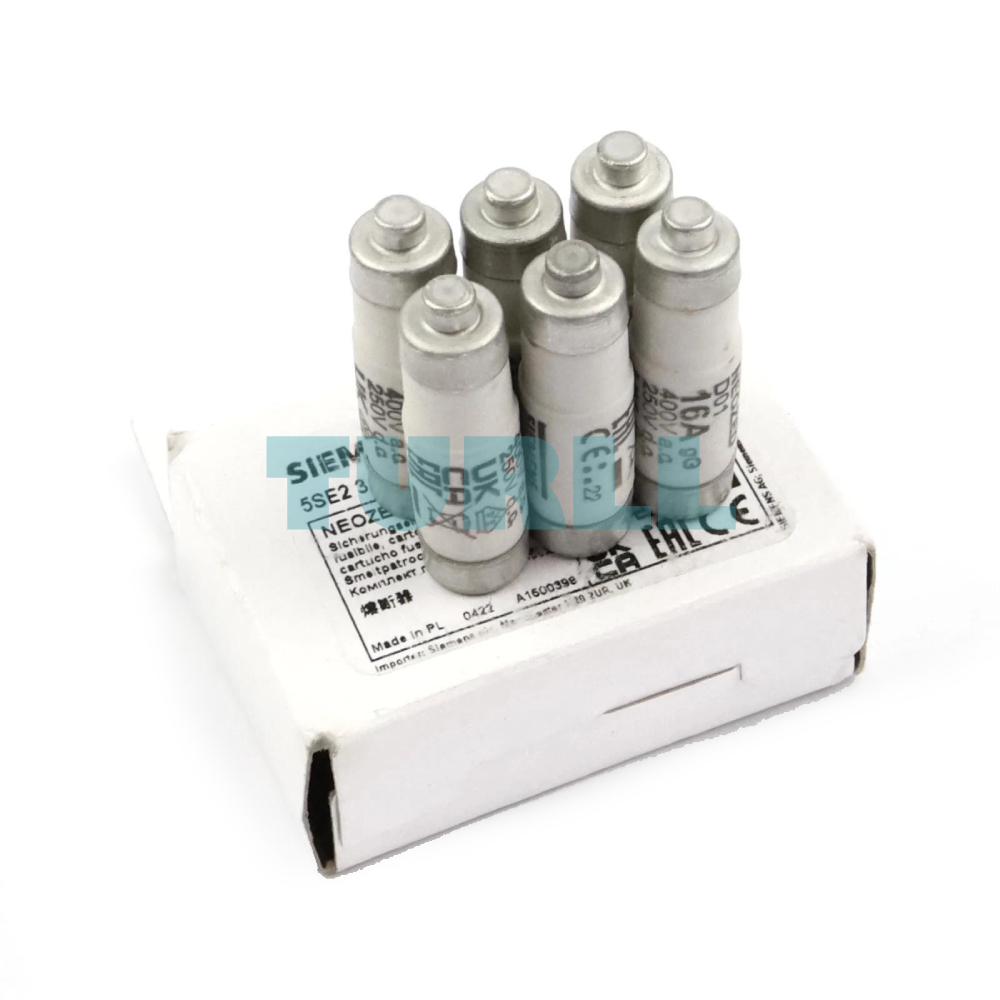

| product variations | Pack of 10 |
| design of the fuse link | NEOZED fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | D01 |
| operating class of the fuse link | gG |
| supply voltage | – |
| ● at DC | 250 V |
| operating voltage / rated value | 400 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current / acc. to IEC 60947-2 / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.6 W |
| operational current | – |
| ● at 30 °C / rated value | 15.68 A |
| ● at 40 °C / rated value | 15.2 A |
| ● at 45 °C / rated value | 14.72 A |
| ● at 50 °C / rated value | 14.4 A |
| ● at 55 °C / rated value | 14.08 A |
| ● at 60 °C / rated value | 13.76 A |
| ● at AC / rated value | 16 A |
| operational current / rated value | 16 A |
| color coding of the fuse link | Gray |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | 40 °C |
| ● maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
| Test Certificates | other |
