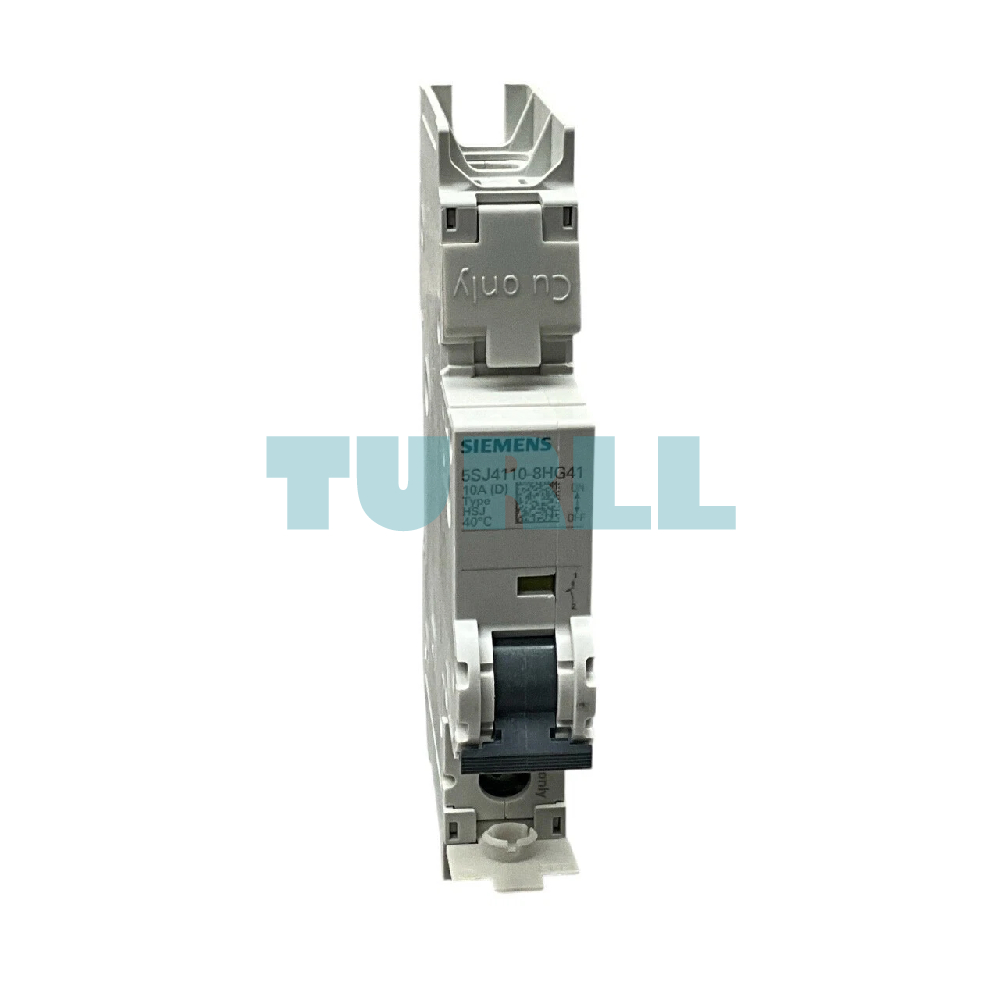

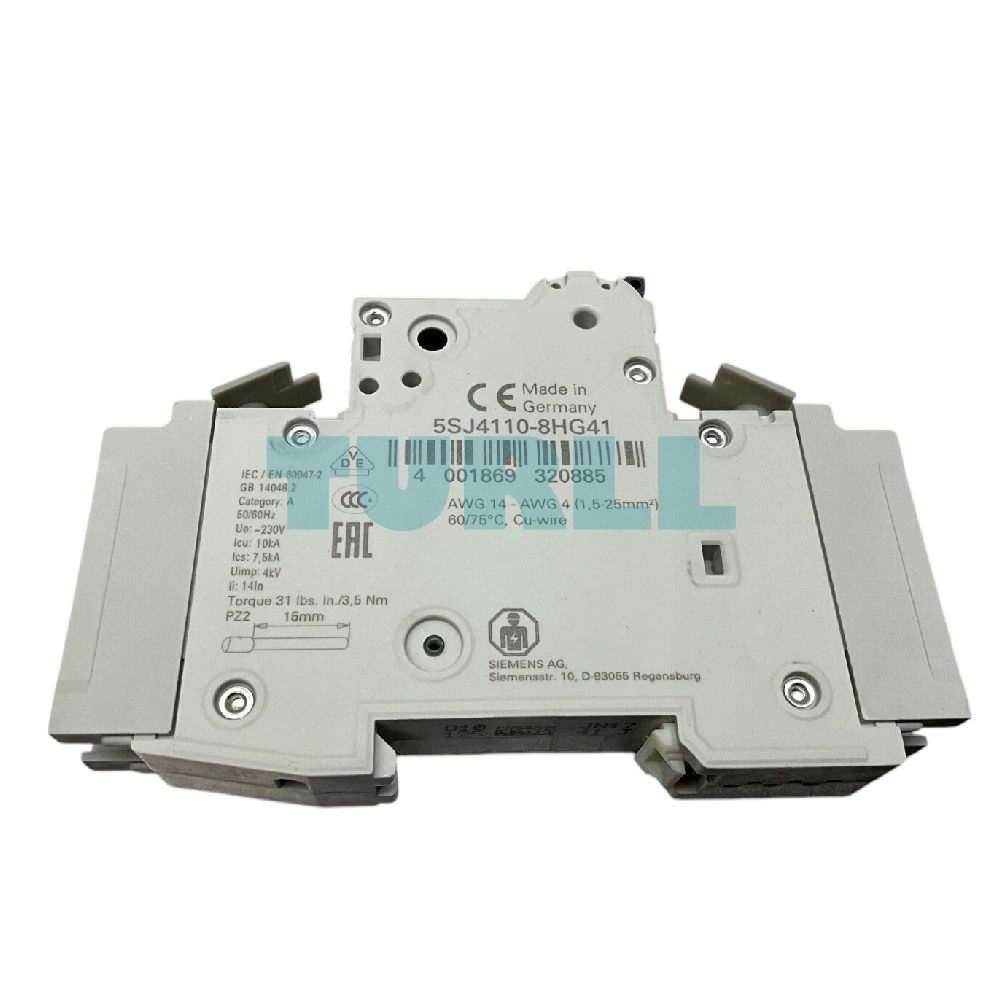

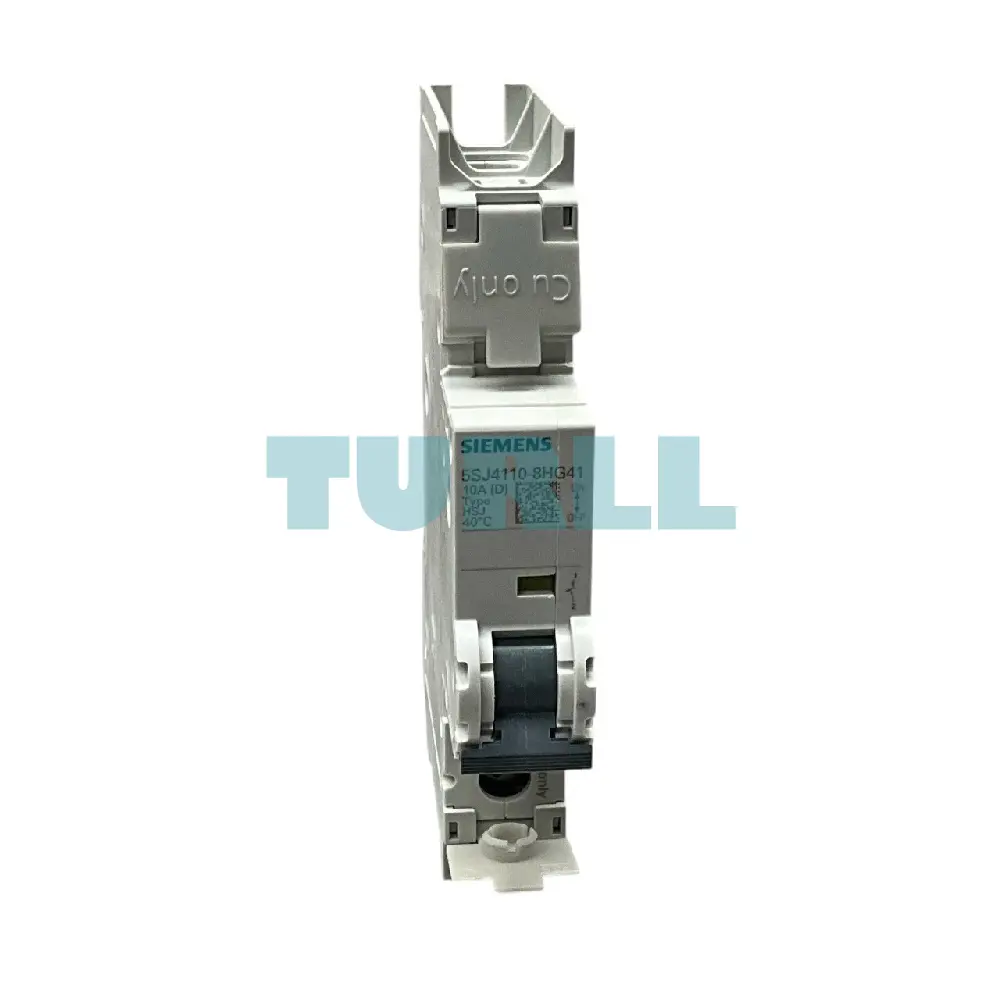

Siemens 5SJ4110-8HG41 Miniature Circuit Breaker, 1-Pole, 10A, 240V, 14kA, Class D Trip Original Brand New
$45.85
High-performance, 1-pole Miniature Circuit Breaker designed for UL 489 branch circuit protection. Featuring a 10A current rating and a Class D magnetic trip characteristic, this 70mm deep MCB provides robust protection for circuits with high inrush currents in industrial and commercial environments.
Availability: In stock
Overview
The Siemens 5SJ4 series is engineered specifically for the North American market, meeting the stringent UL 489 standards for branch protection. The 5SJ4110-8HG41 model ensures reliable switching and protection against short circuits and overloads. Its compact design (70mm mounting depth) allows for seamless integration into standard control cabinets and distribution boards.
Key Benefit
-

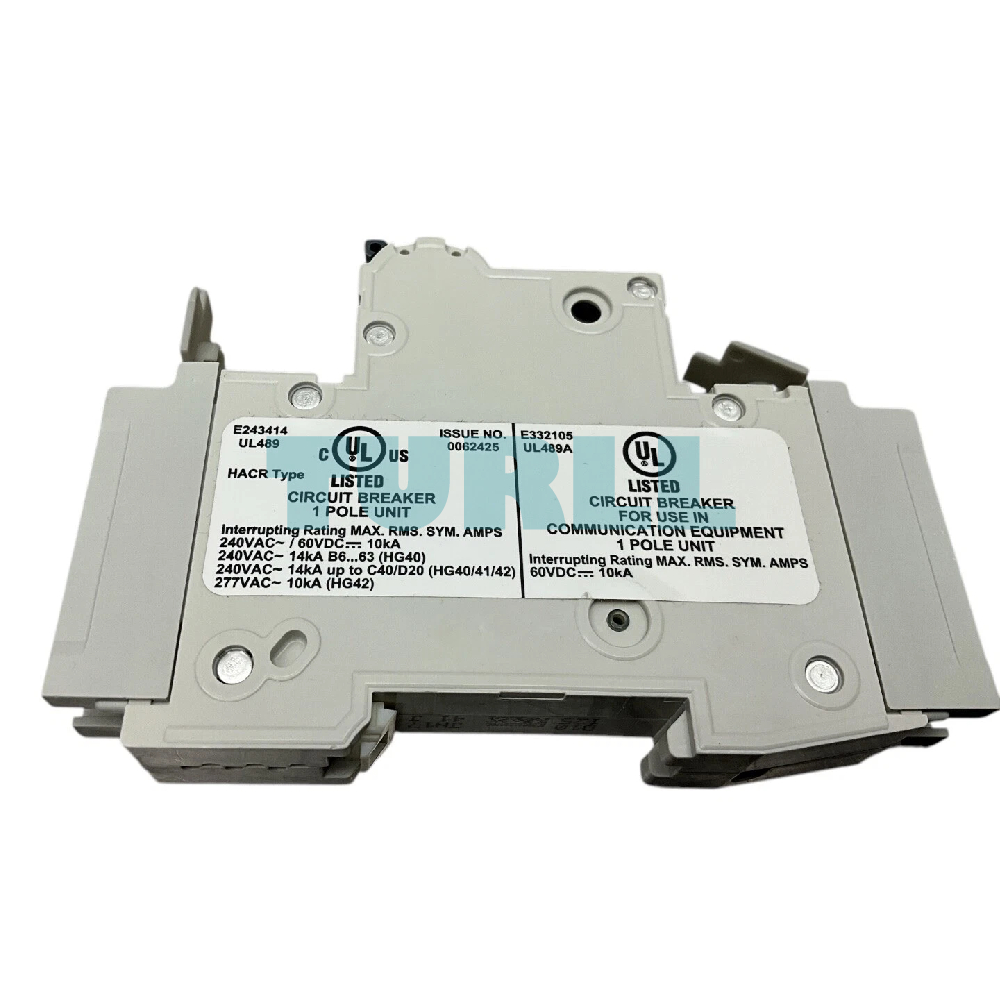

Global Compliance: Fully certified according to UL 489 and CSA C22.2, making it suitable for export-oriented machine builders.
-
High Breaking Capacity: Rated for 14kA at 240V, ensuring safety during significant electrical faults.
-

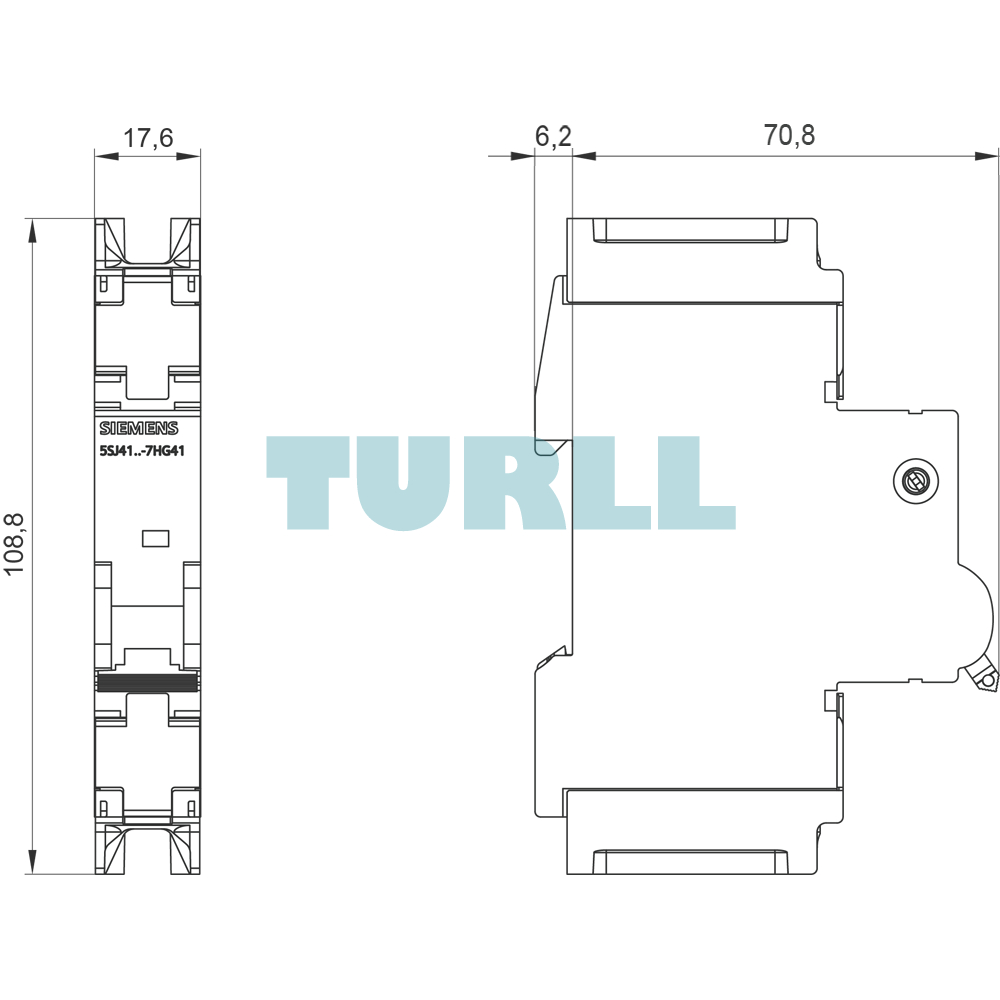

Versatile Mounting: Designed for easy DIN rail installation with a standard 70mm depth.
-
Class D Tripping: Optimized for circuits with high inductive loads, preventing nuisance tripping during motor startups or transformer energization.
Technical Function
-
Overload Protection: Thermal release for sustained overcurrent conditions.
-
Short-Circuit Protection: Instantaneous electromagnetic release (Class D).
-
Branch Circuit Safety: Approved for use as a primary protection device in electrical branches.
Application
-
Protects electrical circuits from overloads and short circuits.
-
Suitable for industrial, commercial, and residential distribution boards.
-
Ideal for motor circuits, lighting circuits, and other inductive loads.
Visit 5SJ4110-8HG41 for more detail info
For more our products visit turll
Download
| Weight | 0.171 kg |
|---|---|
| Dimensions | 23.00 × 114.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | D |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 240 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.3 W |
| operational current | – |
| ● at 30 °C / rated value | 10 A |
| ● at 40 °C / rated value | 10 A |
| ● at 45 °C / rated value | 9.7 A |
| ● at 50 °C / rated value | 9.4 A |
| ● at 55 °C / rated value | 9.1 A |
| ● at 60 °C / rated value | 0.88 A |
| ● at AC / rated value | 10 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 240 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 14 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Test Certificates | other |
| Special Test Certificate | Miscellaneous |
