Siemens 5SJ4218-8HG42 Circuit Breaker 2-Pole, 15A, Type D Curve, 10kA, UL 489 Rated Original Brand New

Model / SKU5SJ4218-8HG42

Siemens 5SJ4218-8HG42: 2-Pole Miniature Circuit Breaker, 15 Amp, Type D Curve. UL 489 rated for 480Y/277V applications with a 10kA interrupting capacity. Ideal for industrial branch circuit protection.

Original price was: $328.27.Current price is: $176.57.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SJ4218-8HG42 is a high-performance miniature circuit breaker (MCB) designed for superior protection in industrial and commercial electrical systems. Engineered to meet the stringent UL 489 standards, this 2-pole device is specifically built for branch circuit protection in applications requiring a Type D tripping characteristic.

With a high breaking capacity of 10kA, it provides reliable safety against overloads and short circuits in demanding environments with high-voltage requirements up to 480Y/277V.

Key Benefit

  • Compliance & Safety: Fully compliant with UL 489 standards, ensuring it meets North American safety requirements for branch circuit protection.

  • Precision Performance: The Type D tripping curve is ideal for circuits with high inductive loads, preventing nuisance tripping during initial power surges.

  • Space-Saving Design: Miniature footprint allows for efficient use of space within electrical panels and control cabinets.

  • Global Reliability: Siemens engineering guarantees long-term mechanical and electrical endurance even in harsh industrial conditions.

Function

  • Short-Circuit Protection: Features a 10kA interrupting rating to safely clear high-current faults.

  • Overload Protection: Protects 15A electrical circuits from thermal damage caused by prolonged excessive current.

  • System Isolation: Provides a secure manual disconnect point for maintenance and troubleshooting.

Visit 5SJ4218-8HG42 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SJ4218-8HG42
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4
number of poles2
tripping characteristic classD
mechanical service life (switching cycles) / typical10 000
installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)
reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750F
overvoltage category3
degree of pollution3
type of voltage / of the operating voltageAC/DC
insulation voltage (Ui) / at AC / rated value440 V
supply voltage / at AC / rated value400 V
operating voltage-
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum277 V
● at DC / rated value / maximum60 V
● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum60 V
● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum125 V
protection class IPIP20, with connected conductors, IP 40 in the handle range
switching capacity current-
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value15 kA
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.8 W
operational current-
● at 30 °C / rated value15 A
● at 40 °C / rated value15 A
● at 45 °C / rated value14.6 A
● at 50 °C / rated value14.1 A
● at 55 °C / rated value13.6 A
● at 60 °C / rated value13.2 A
● at AC / rated value15 A
type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02480/277
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● tunnel terminals topNo
● tunnel terminals bottomNo
● combined terminal topYes
● combined terminal bottomYes
product feature-
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
product function / noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.23510 kA
connectable conductor cross-section / finely stranded / with core end processing-
tightening torque / with screw-type terminals / maximum3.5 N·m
position / of power supply cordAny
installation depth70 mm
number of modular width units2
fastening methodon standard mounting rail
mounting positionany
vibration resistance50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Miscellaneous-
Weight0.337 kg

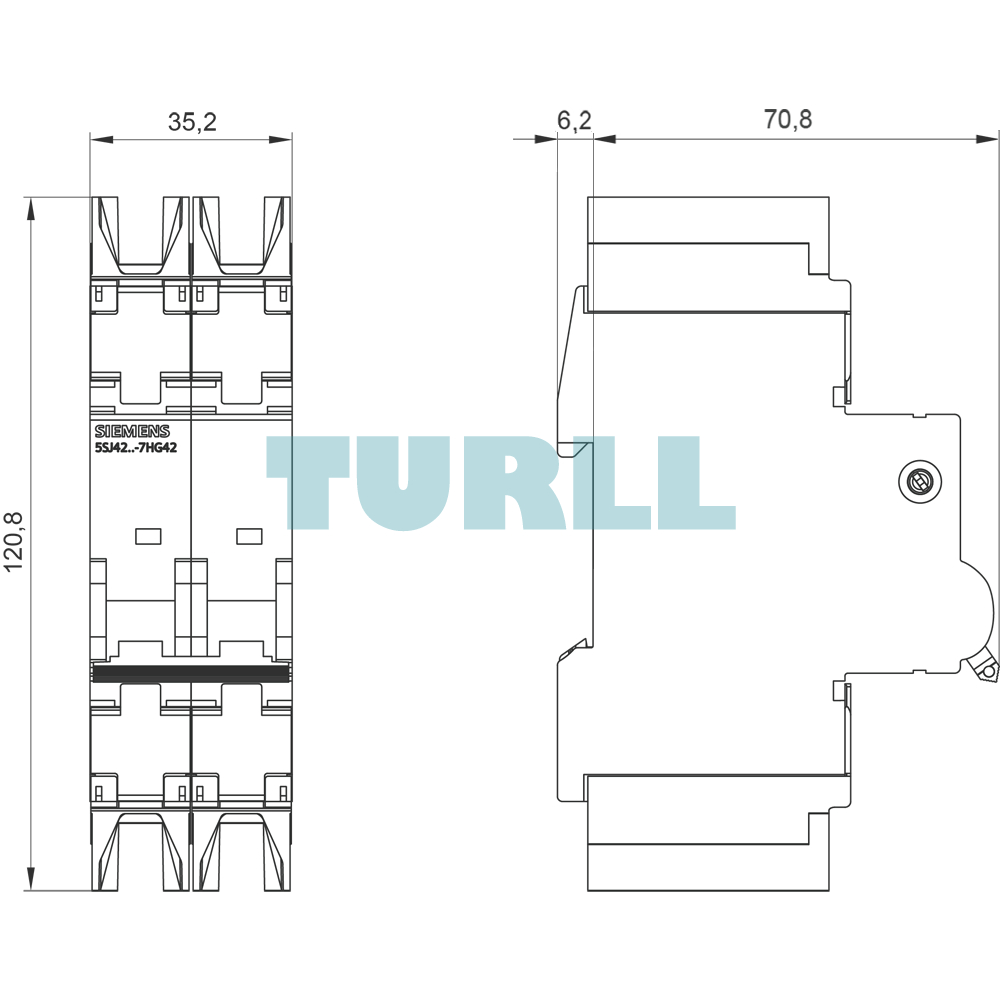

Dimensions40.00 × 125.00 × 84.00 mm
