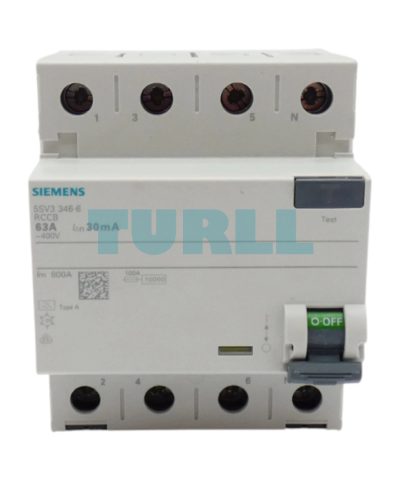

Siemens 5SV3346-6 Residual Current Circuit Breaker, 4-Pole, Type A, 63A, 30mA, 400V AC Original Brand New
$74.36
Siemens SENTRON residual current operated circuit breaker (RCCB) is a reliable 4-pole protection device. Featuring a Type A rating, it offers high-performance protection against sinusoidal AC residual currents and pulsating DC residual currents.
Availability: In stock
Overview
The Siemens 5SV3346-6 is a high-performance residual current operated circuit breaker (RCCB) designed for reliable electrical protection. This 4-pole Type A breaker ensures safety against earth faults, overloads, and electrical leakage in residential, commercial, and industrial installations. With a rated current of 63 A and a sensitive 30 mA trip threshold, it offers superior protection for both people and equipment. Operating at a nominal voltage of 400 V AC, it is an ideal solution for modern electrical networks requiring dependable and precise protection.
Key Benefit
-
Enhanced Personnel and Fire Protection: The sensitive 30 mA tripping current ensures rapid disconnection, effectively preventing life-threatening electric shocks and minimizing the risk of electrical fires.
-
Versatile Application (Type A): Suitable for applications with both pure sinusoidal AC residual currents and pulsating DC residual currents, covering most standard domestic and commercial installations.
-
High Reliability: Siemens’ quality engineering guarantees long-term stable operation and precise tripping characteristics, reducing false trips.
-
Space-Saving Design: Optimized dimensions for easy installation within distribution boards and compliance with industry standards.
-
Complete System Integration: Part of the comprehensive Siemens SENTRON modular protection devices, ensuring compatibility and ease of maintenance.
Functions / Features
-
Residual current protection for people and equipment.
-
Type A sensitivity for AC and pulsating DC faults.
-
Rated current: 63 A
-
Rated residual operating current: 30 mA
-
4-pole configuration for complete phase coverage.
-
Nominal voltage: 400 V AC.
-
Compact design for easy installation in standard distribution boards.
Visit 5SV3346-6 for more detail info
For more our products visit turll
Download
| Weight | 0.386 kg |
|---|---|
| Dimensions | 97.00 × 78.00 × 85.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCCB |
| design of the product | Instantaneous |
| number of poles | 4 |
| size of installation devices / acc. to DIN 43880 | 1 |
| mechanical service life (switching cycles) / typical | 10 000 |
| short-circuit current / of series fuse / maximum permissible | 100 A |
| short-circuit current rating | 10 kA |
| switching function / short-term delayed | No |
| overvoltage category | III |
| supply voltage | – |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 0.8 kA |
| ● according to IEC 61008-1 / rated value | 0.8 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 3.9 W |
| tripping fault current / rated value | 30 mA |
| operational current | – |
| ● at 40 °C / rated value | 63 A |
| ● at 45 °C / rated value | 63 A |
| ● at 50 °C / rated value | 63 A |
| ● at 55 °C / rated value | 63 A |
| ● at 60 °C / rated value | 63 A |
| ● at 65 °C / rated value | 57.35 A |
| ● at 70 °C / rated value | 48.8 A |
| ● at AC / rated value | 63 A |
| residual current type | A |
| let-through current / permissible | 7 100 kA |
| I2t value / permissible | 110 000 A²·s |
| surge current resistance / rated value | 1 kA |
| product feature / silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | top or bottom |
| installation depth | 70 mm |
| number of modular width units | 4 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ● minimum | -25 °C |
| ● maximum | 45 °C |
| ambient temperature / during storage | – |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Railway | Dangerous Good |
