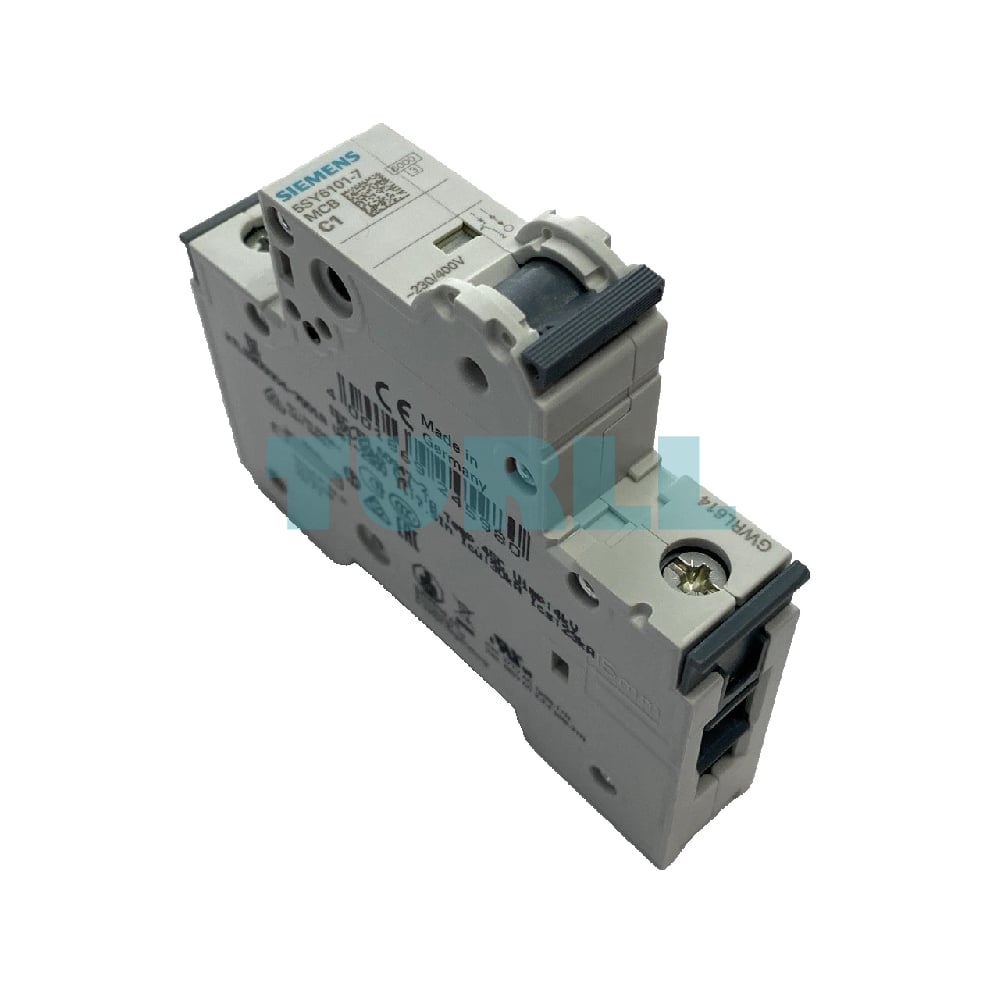

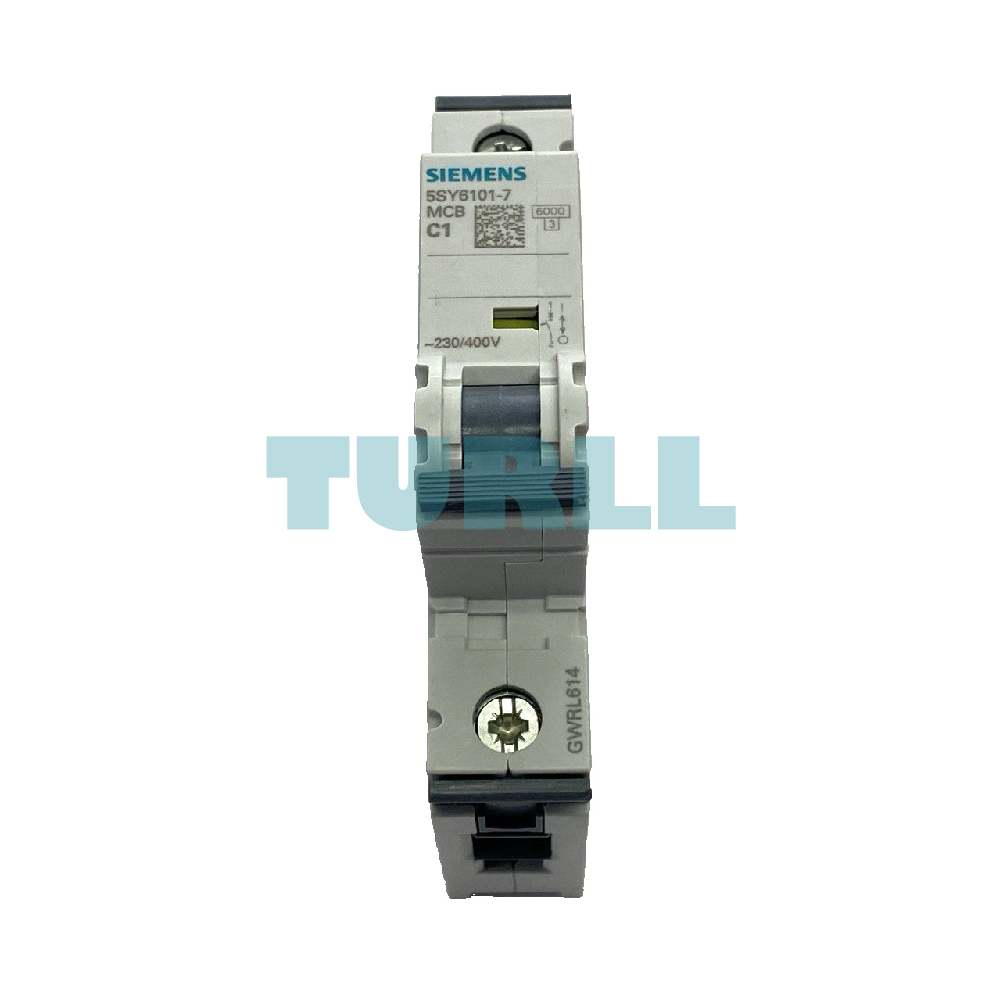

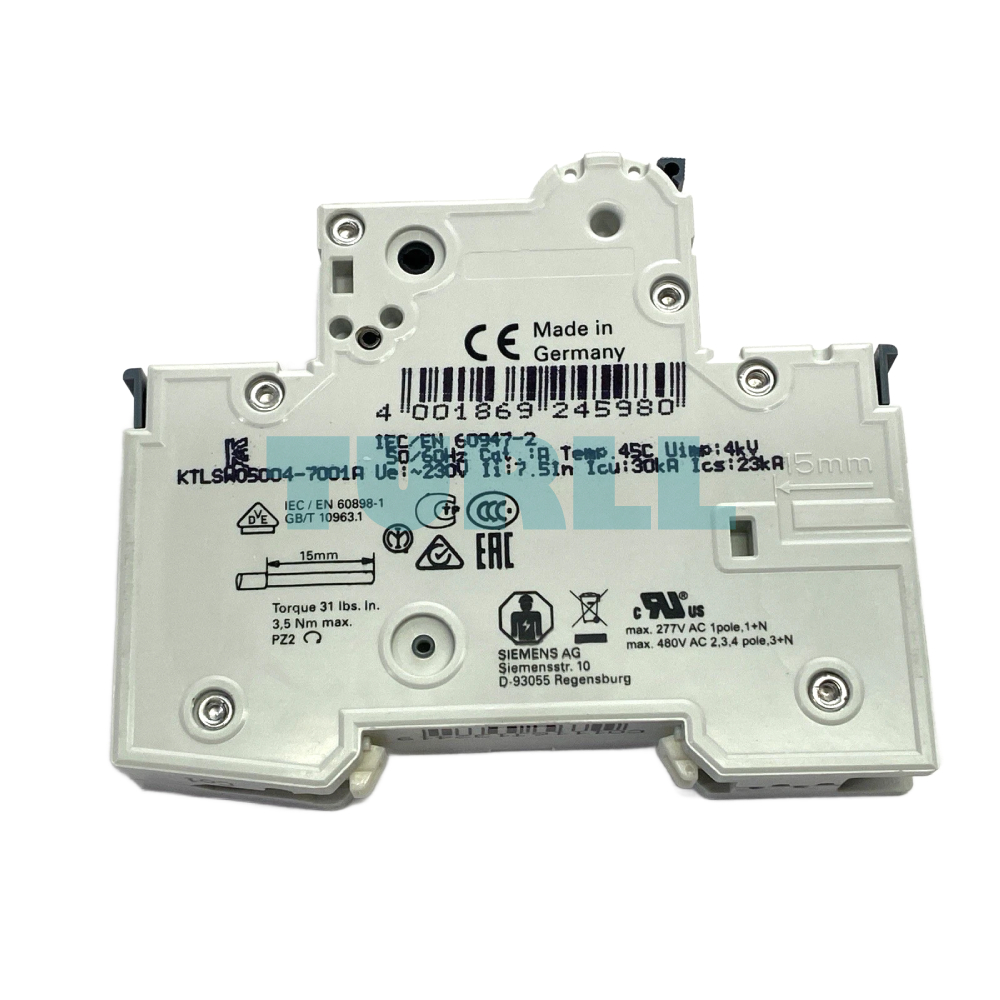

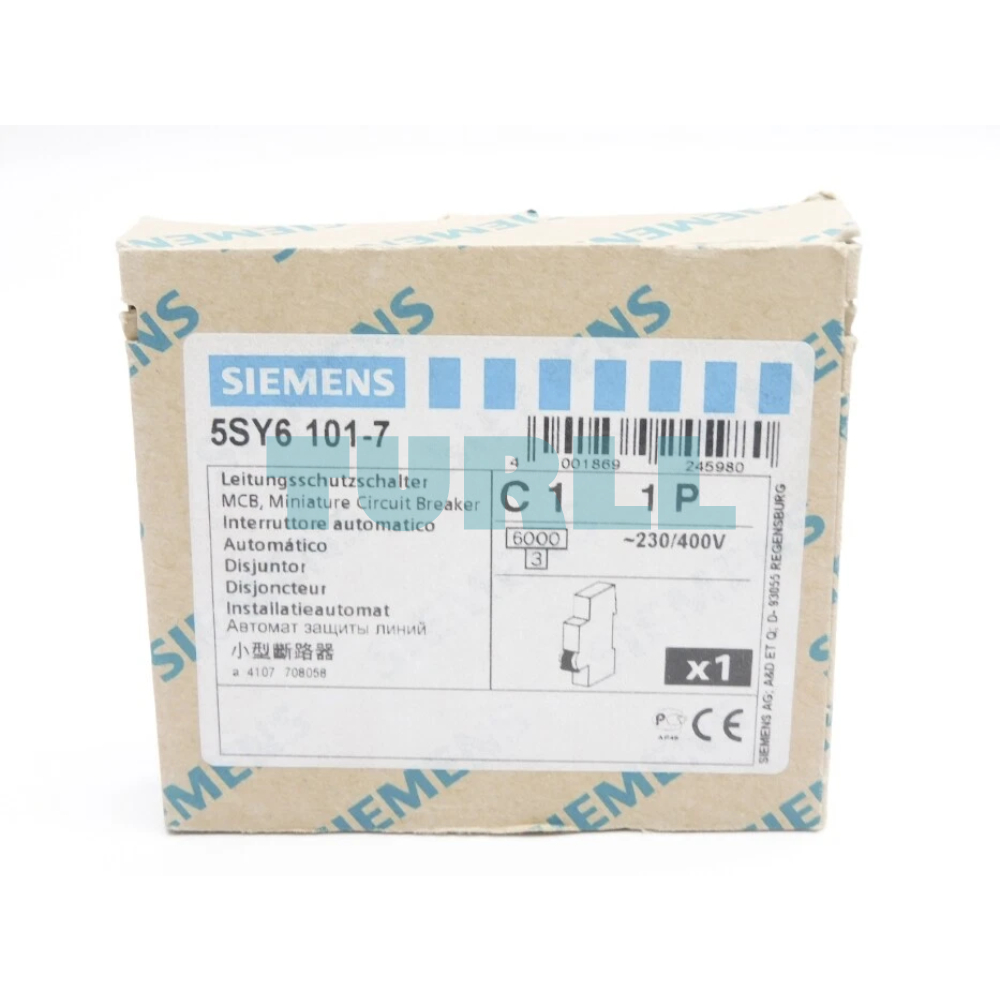

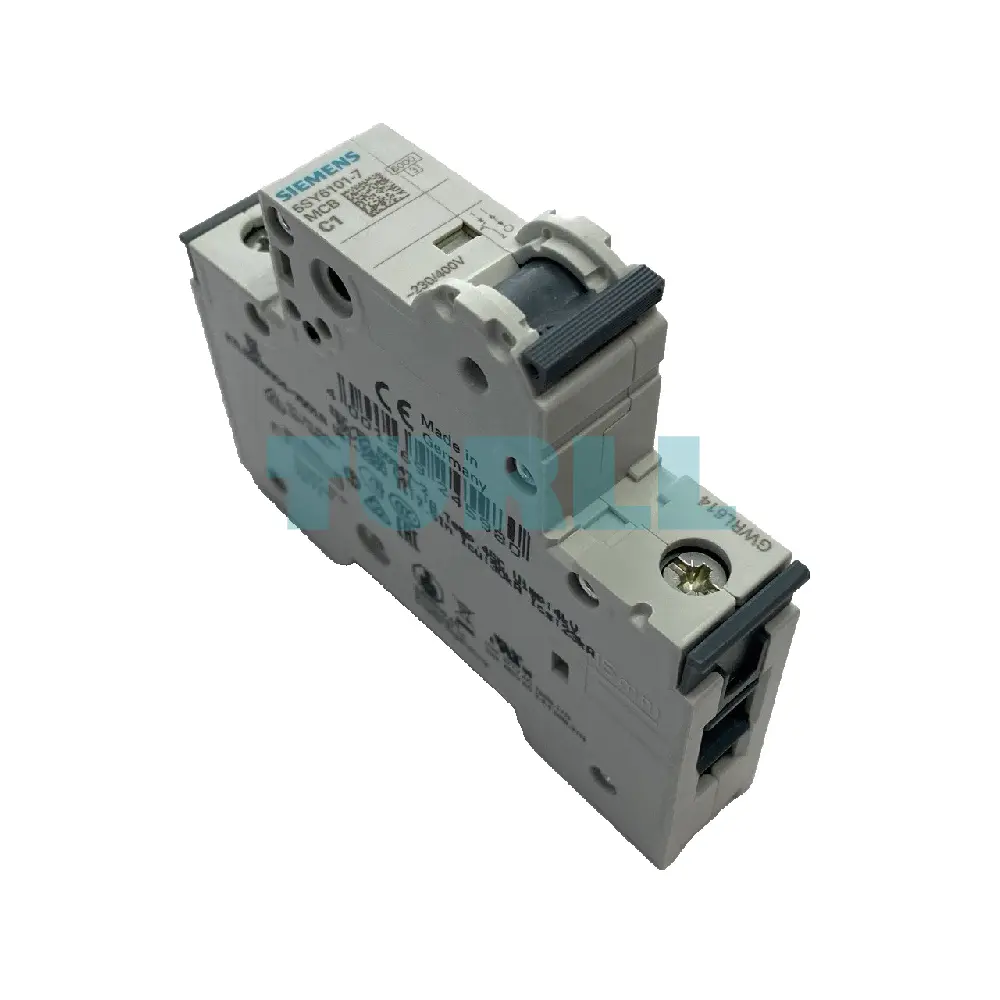

Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA
Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA
Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA
Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA
Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA
Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA

SIEMENS

Siemens 5SY6101-7 Miniature Circuit Breaker 1-Pole, 1A, C-Curve, 6kA Original Brand New

Model / SKU5SY6101-7

1-pole Miniature Circuit Breaker (MCB) rated at 1A with a C-tripping characteristic. Featuring a 6kA breaking capacity and a 70mm depth, it provides reliable protection for 230/400V electrical systems.

Original price was: $26.17.Current price is: $13.60.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SY6101-7 is a high-performance Miniature Circuit Breaker (MCB) from the Sentron series, designed for the protection of electrical circuits in residential, commercial, and industrial applications. This 1-pole device features a C-characteristic trip curve, making it ideal for circuits with moderate peak starting currents.

With a compact 70mm mounting depth and a breaking capacity of 6kA, this MCB ensures reliable protection against overloads and short circuits while maintaining a space-saving profile in your distribution board.

Key Benefit

  • Enhanced Safety: Provides rapid disconnection during electrical faults to protect equipment and personnel.

  • Compact Design: The 70mm depth allows for easy integration into standard electrical cabinets.

  • Global Standards: Manufactured by Siemens, ensuring compliance with international safety and quality regulations.

  • Ease of Installation: Features user-friendly terminals for secure and fast wiring.

Function & Features

  • Tripping Characteristic C: Optimized for general lighting and power circuits where slight surges occur.

  • Current Rating: 1 Ampere (1A) for precision protection of low-load devices.

  • Voltage Versatility: Rated for 230/400 V AC systems.

  • Durability: Built with high-quality thermal and magnetic tripping mechanisms for long service life.

Technical Specification

  • Model Number: 5SY6101-7

  • Number of Poles: 1-Pole

  • Tripping Curve: C-Characteristic

  • Rated Current: 1A

  • Breaking Capacity: 6kA

  • Rated Voltage: 230/400 V AC

  • Mounting Depth: 70 mm

  • Manufacturer: Siemens

Visit 5SY6101-7 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SY6101-7
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles1
design of pole1P
tripping characteristic classC
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltageAC
insulation voltage (Ui)-
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
supply voltage / with single-phase operation / at AC / rated value230 V
supply voltage-
operating voltage / at DC / rated value / maximum72 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value15 kA
● acc. to EN 60898 / rated value6 kA
● acc. to IEC 60947-2 / rated value30 kA
energy limitation class3
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.2 W
operational current-
● at 35 °C / rated value1 A
● at 40 °C / rated value0.95 A
● at 45 °C / rated value0.93 A
● at 50 °C / rated value0.9 A
● at 55 °C / rated value0.88 A
● at AC / rated value1 A
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● combined terminal topYes
● combined terminal bottomYes
product feature-
● properties for main switches in accordance with EN 60204-1Yes
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
breaking capacity short-circuit current (Icn)-
● at AC / acc. to UL 1077 and CSA C22.2 No.2355 kA
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
AWG number / as coded connectable conductor cross section-
tightening torque [lbf·in] / with screw-type terminals-
tightening torque / with screw-type terminals-
position / of power supply cordAny
installation depth70 mm
number of modular width units1
fastening methodQuick assembly system
mounting positionany
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
vibration resistance / acc. to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-306
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Weight0.155 kg
Dimensions21.00 × 93.00 × 83.00 mm
