Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9″ TFT, Key/Touch Operation Original Brand New
$604.32
Siemens SIMATIC HMI KTP900 Basic Panel is an intuitive, cost-effective operator interface featuring a vibrant 9-inch TFT display. It supports both key and touch operation and offers seamless integration via the PROFINET interface. Easily configure your visualization tasks using WinCC Basic V13 or STEP 7 Basic V13, making it the ideal choice for simple machine-level HMI applications.
Availability: In stock
Overview
The Siemens SIMATIC HMI KTP900 Basic Panel is a versatile and user-friendly Human Machine Interface (HMI) designed for efficient industrial automation control. Featuring a 9-inch TFT display with 65,536 colors, it supports both key and touch operations for seamless interaction. Its PROFINET interface ensures high-speed communication and reliable connectivity in automated systems.
Easily configurable using WinCC Basic V13 or STEP 7 Basic V13, the KTP900 Basic Panel empowers engineers to design and implement automation processes efficiently. The panel includes open-source software provided free of charge, enabling flexible customization and enhanced functionality. Ideal for manufacturing, process control, and industrial applications, this HMI delivers high performance and reliability in a compact design.
Key Benefit
-
User-Friendly Operation: Key/touch interface ensures intuitive control and ease of use.
-
High-Quality Display: 9″ TFT with 65,536 colors for clear visualization of process data.
-
Fast Communication: Integrated PROFINET interface for seamless system integration.
-
Flexible Configuration: Compatible with WinCC Basic V13 and STEP 7 Basic V13.
-
Open-Source Software Included: Free software CD enhances customization options.
-
Reliable Industrial Solution: Durable and compact design for industrial environments.
Functions / Features
-
9-inch TFT color display (65,536 colors)
-
Key and touch operation support
-
PROFINET communication interface
-
Configurable via WinCC Basic V13 / STEP 7 Basic V13
-
Free open-source software included
-
Robust design suitable for industrial automation
Visit 6AV2123-2JB03-0AX0 for more detail info
For more our products visit turll
Download
| Weight | 1.130 kg |
|---|---|

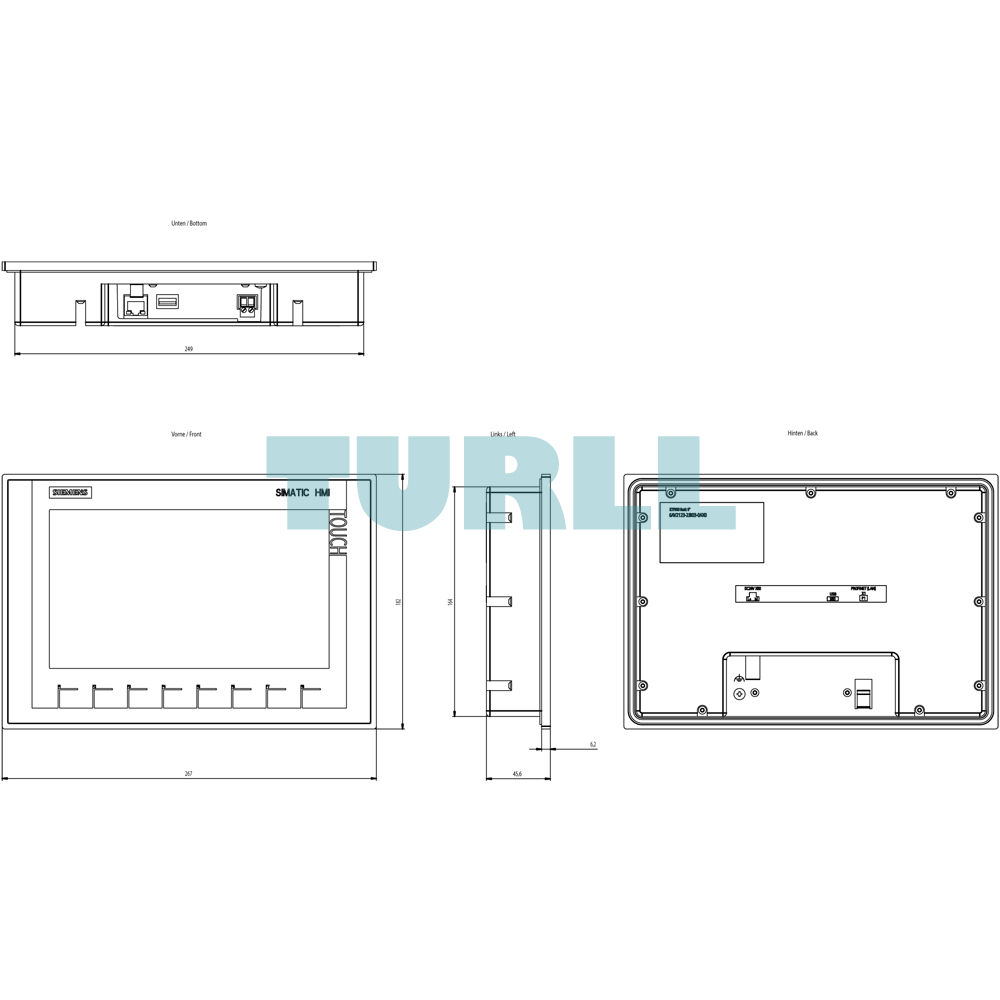

| Dimensions | 23.50 × 33.00 × 6.60 mm |
| Brand | SIEMENS |
| Product type designation | KTP900 Basic color PN |
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 9 in |
| Display width | 198 mm |
| Display height | 111.7 mm |
| Number of colors | 65 536 |
| ● Horizontal image resolution | 800 pixel |
| ● Vertical image resolution | 480 pixel |
| ● MTBF backlighting (at 25 °C) | 20 000 h |
| ● Backlight dimmable | Yes |
| ● Function keys | – |
| — Number of function keys | 8 |
| — Number of function keys with LEDs | 0 |
| ● Keys with LED | No |
| ● System keys | No |
| ● Numeric keyboard | Yes; Onscreen keyboard |
| ● alphanumeric keyboard | Yes; Onscreen keyboard |
| ● Design as touch screen | Yes; Analog-resistive |
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 230 mA |
| Starting current inrush I²t | 0.2 A²·s |
| Active power input, typ. | 5.5 W |
| Processor type | ARM |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 10 Mbyte |
| Acoustics | – |
| ● Buzzer | Yes |
| ● Speaker | No |
| ● Hardware clock (real-time) | Yes |
| ● Software clock | Yes |
| ● retentive | Yes; Back-up duration typically 6 weeks |
| ● synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 1; Up to 16 GB |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| ● Industrial Ethernet status LED | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| ● TCP/IP | Yes |
| ● DHCP | Yes |
| ● SNMP | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| ● HTTP | No |
| ● HTML | No |
| — MRP | No |
| ● CAN | No |
| ● MODBUS | Yes; Modicon (MODBUS TCP/IP) |
| ● Diagnostic information readable | No |
| ● Limit class A, for use in industrial areas | Yes |
| ● Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | – |
| ● Enclosure Type 4 at the front | Yes |
| ● Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ● ATEX Zone 2 | No |
| ● ATEX Zone 22 | No |
| ● IECEx Zone 2 | No |
| ● IECEx Zone 22 | No |
| ● cULus Class I Zone 1 | No |
| ● cULus Class I Zone 2, Division 2 | No |
| ● FM Class I Division 2 | No |
| ● Germanischer Lloyd (GL) | Yes |
| ● American Bureau of Shipping (ABS) | Yes |
| ● Bureau Veritas (BV) | Yes |
| ● Det Norske Veritas (DNV) | Yes |
| ● Lloyds Register of Shipping (LRS) | Yes |
| ● Nippon Kaiji Kyokai (Class NK) | Yes |
| ● Polski Rejestr Statkow (PRS) | No |
| ● Chinese Classification Society (CCS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 40 °C |
| — At maximum tilt angle, min. | 35 °C |
| ● min. | -20 °C |
| ● max. | 60 °C |
| ● Operation, max. | 90 %; no condensation |
| proprietary | Yes |
| ● Windows CE | No |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| ● STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| ● STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| ● WinCC flexible Compact | No |
| ● WinCC flexible Standard | No |
| ● WinCC flexible Advanced | No |
| ● WinCC Basic (TIA Portal) | Yes |
| ● WinCC Comfort (TIA Portal) | Yes |
| ● WinCC Advanced (TIA Portal) | Yes |
| ● WinCC Professional (TIA Portal) | Yes |
| ● Number of online/runtime languages | 10 |
| ● Languages per project | 32 |
| Libraries | Yes |
| Applications/options | – |
| ● Web browser | Yes |
| ● SIMATIC WinCC Sm@rtServer | Yes; Available with WinCC (TIA Portal) V14 or higher |
| Number of Visual Basic Scripts | No |
| Task planner | Yes |
| ● time-controlled | No |
| ● task-controlled | Yes |
| Help system | Yes |
| ● Number of characters per info text | 500 |
| ● Number of alarm classes | 32 |
| ● S7 alarm number procedure | No |
| ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| ● Acknowledgment groups | Yes |
| — Number of entries | 256 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| ● Number of recipes | 50 |
| ● Data records per recipe | 100 |
| ● Entries per data record | 100 |
| ● Size of internal recipe memory | 256 kbyte |
| ● Recipe memory expandable | No |
| ● Number of variables per device | 800 |
| ● Number of variables per screen | 100 |
| ● Limit values | Yes |
| ● Multiplexing | Yes |
| ● Structures | No |
| ● Arrays | Yes |
| ● Number of configurable images | 250 |
| ● Permanent window/default | Yes |
| ● Global image | Yes |
| ● Pop-up images | No |
| ● Slide-in images | No |
| ● Image selection by PLC | Yes |
| ● Image number in the PLC | Yes |
| ● Number of objects per image | 100 |
| ● Text fields | Yes |
| ● I/O fields | Yes |
| ● Graphic I/O fields (graphics list) | Yes |
| ● Symbolic I/O fields (text list) | Yes |
| ● Switches | Yes |
| ● Buttons | Yes |
| ● Graphic display | Yes |
| ● Icons | Yes |
| ● Geometric objects | Yes |
| ● Number of complex objects per screen | 10 |
| ● Alarm view | Yes |
| ● Trend view | Yes |
| ● User view | Yes |
| ● Status/control | No |
| ● Sm@rtClient view | No |
| ● Recipe view | Yes |
| ● f(x) trend view | No |
| ● System diagnostics view | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| ● Media Player | No |
| ● HTML browser | Yes |
| ● PDF display | No |
| ● IP camera display | No |
| ● Bar graphs | Yes |
| ● Sliders | No |
| ● Pointer instruments | No |
| ● Analog/digital clock | No |
| ● Number of text lists per project | 300 |
| ● Number of entries per text list | 100 |
| ● Number of graphics lists per project | 100 |
| ● Number of entries per graphics list | 100 |
| ● Number of archives per device | 2; One message and one process value archive |
| ● Number of entries per archive | 10 000 |
| ● Process value archive | Yes |
| ● Archiving methods | – |
| — Sequential archive | Yes |
| — Short-term archive | Yes |
| ● Memory location | – |
| — Memory card | No |
| — USB memory | Yes |
| — Ethernet | No |
| ● Data storage format | – |
| — CSV | No |
| — TXT | Yes |
| — RDB | No |
