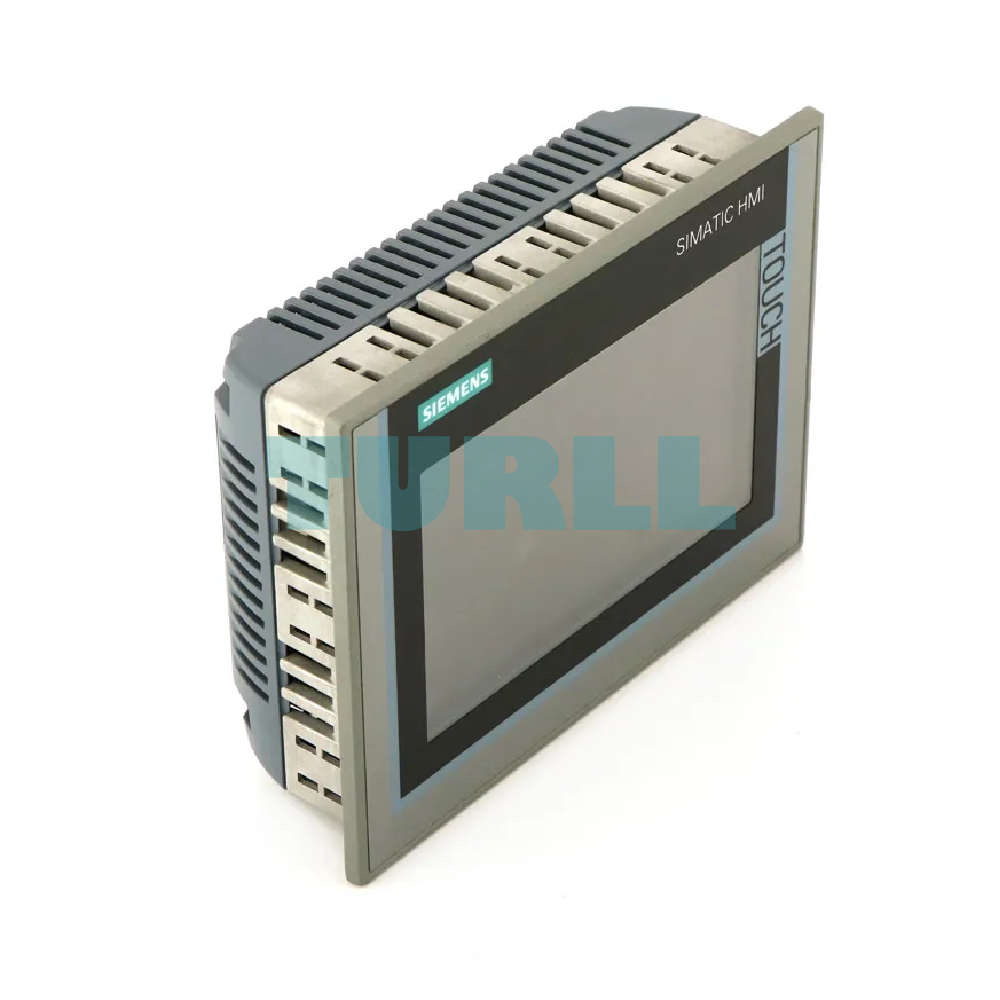

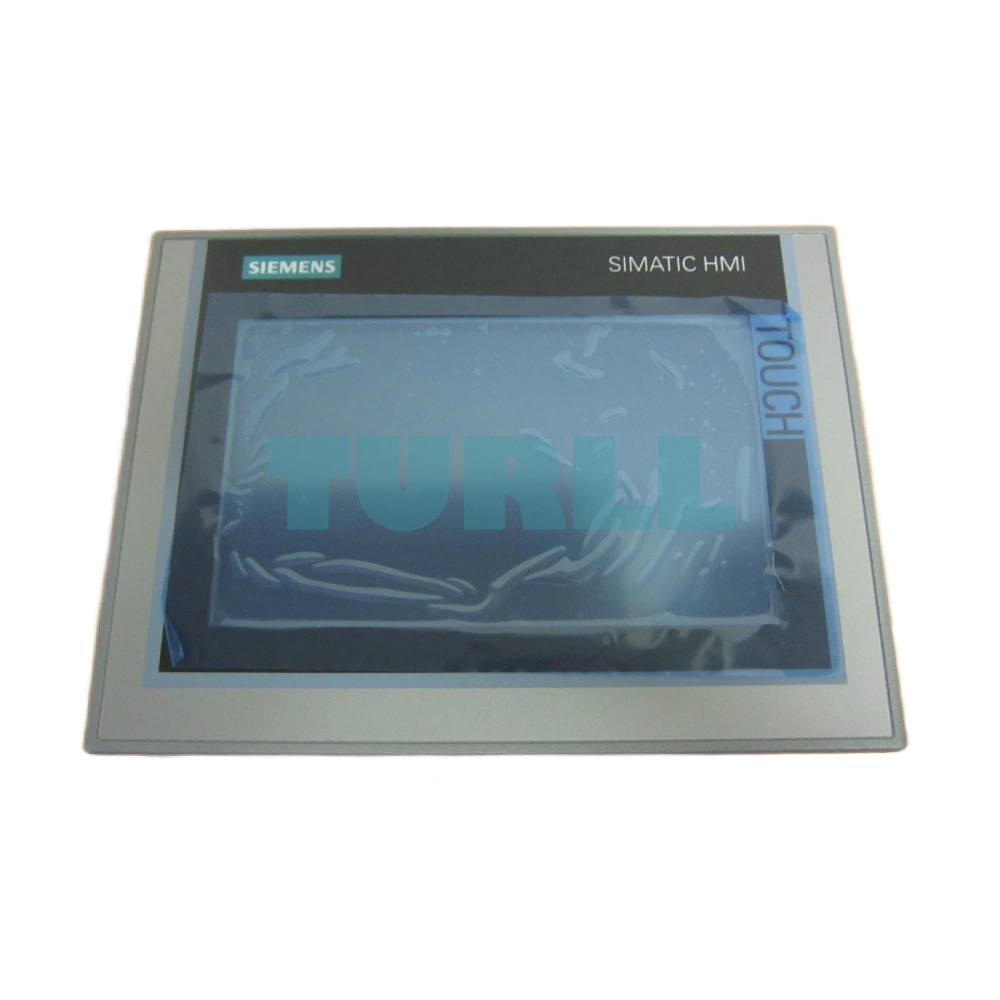

Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700, Comfort Panel, 7″ Touchscreen, PROFINET Original Brand New
$743.06
SIMATIC HMI TP700 Comfort Panel with 7″ widescreen TFT display, touch operation, PROFINET & MPI/PROFIBUS interfaces, 16 million colors, 12 MB memory, Windows CE 6.0, configurable via WinCC Comfort V11.
Availability: In stock
Overview
The Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel is a high-performance human-machine interface designed for industrial automation applications. With a 7-inch widescreen TFT display offering 16 million colors, intuitive touch operation, and robust connectivity via PROFINET and MPI/PROFIBUS DP, this HMI panel ensures seamless operation in complex industrial environments. The device runs on Windows CE 6.0 and can be easily configured using WinCC Comfort V11.
Key Features & Function
-
High-Resolution Touch Display: 7” widescreen TFT with 16 million colors for clear visualization.
-
Flexible Connectivity: Supports PROFINET, MPI, and PROFIBUS DP interfaces for versatile communication.
-
Robust Performance: 12 MB configuration memory ensures smooth operation of complex automation projects.
-
Advanced Operating System: Windows CE 6.0 provides stable and reliable performance.
-
Easy Configuration: Fully configurable via WinCC Comfort V11 software.
-
Industrial Reliability: Designed to operate in demanding industrial environments.
Benefit
-
Superior Visualization: The 7-inch widescreen display offers 40% more viewing area than conventional panels, providing more space for detailed graphical interfaces, trend curves, and plant documentation.
-
Maximum Connectivity: Integrated PROFINET/MPI/PROFIBUS DP interfaces ensure flexible integration into all SIMATIC automation systems (S7-1200, S7-1500, S7-300, etc.) and comprehensive network options.
-
High Performance: Powered by a robust X86 processor and equipped with 12 MB of user memory, the panel delivers fast screen changes and efficient processing of archives and complex applications.
-
Energy Efficiency (PROFIenergy): Can be centrally shut down via PROFIenergy, significantly reducing power consumption during non-production times.
-
Enhanced Security: Features high-level user administration and maximum data security through innovative backup and restore functions.
Application
The SIMATIC HMI TP700 Comfort is the ideal solution for high-end visualization tasks across various industries:
-
Manufacturing Automation
-
Process Control and Monitoring
-
Machine Building (OEM)
-
Water/Wastewater Treatment Plants
-
Building Automation Systems
Visit 6AV2124-0GC01-0AX0 for more detail info
For more our products visit turll
Download
| Weight | 1.463 kg |
|---|---|
| Dimensions | 17.20 × 27.30 × 8.60 mm |
| Brand | SIEMENS |
| Product type designation | TP700 Comfort |
| Design of display | TFT |
| Screen diagonal | 7 in |
| Display width | 152.4 mm |
| Display height | 91.4 mm |
| Number of colors | 16 777 216 |
| ● Horizontal image resolution | 800 pixel |
| ● Vertical image resolution | 480 pixel |
| ● MTBF backlighting (at 25 °C) | 80 000 h |
| ● Backlight dimmable | Yes; 0-100 % |
| ● Function keys | – |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| ● Keys with LED | No |
| ● System keys | No |
| ● Numeric keyboard | Yes; Onscreen keyboard |
| ● alphanumeric keyboard | Yes; Onscreen keyboard |
| ● Design as touch screen | Yes; Analog-resistive |
| ● DP direct LEDs (LEDs as S7 output I/O) | – |
| ● Direct keys (keys as S7 input I/O) | – |
| — F1...Fx | 0 |
| ● Direct keys (touch buttons as S7 input I/O) | 32 |
| Mounting position | vertical |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.5 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 12 W |
| Processor type | X86 |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 12 Mbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Acoustics | – |
| ● Buzzer | No |
| ● Speaker | Yes |
| ● Hardware clock (real-time) | Yes |
| ● Software clock | Yes |
| ● retentive | Yes; Back-up duration typically 6 weeks |
| ● synchronizable | Yes |

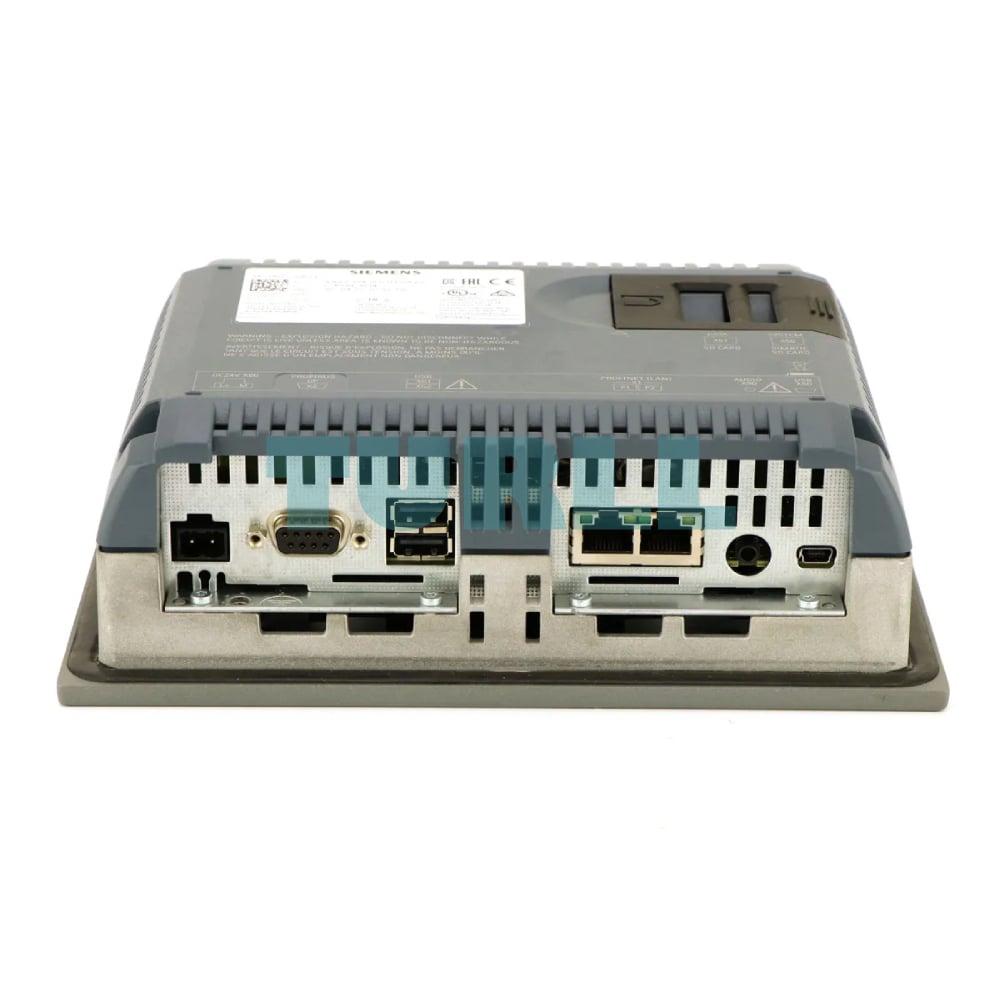

| Number of industrial Ethernet interfaces | 1; 2 ports (switch) |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| ● USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| ● Industrial Ethernet status LED | 2 |
| ● Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; As of WinCC V12 |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| ● TCP/IP | Yes |
| ● DHCP | Yes |
| ● SNMP | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| ● HTTP | Yes |
| ● HTTPS | Yes |
| ● HTML | Yes |
| ● XML | Yes |
| ● CSS | Yes |
| ● Active X | Yes |
| ● JavaScript | Yes |
| ● Java VM | No |
| — MRP | Yes; As of WinCC V12 |
| ● CAN | No |
| ● MODBUS | Yes |
| ● Diagnostic information readable | Yes; S7 controller |
| ● Limit class A, for use in industrial areas | Yes |
| ● Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | – |
| ● Enclosure Type 4 at the front | Yes |
| ● Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ● ATEX Zone 2 | Yes |
| ● ATEX Zone 22 | Yes |
| ● IECEx Zone 2 | Yes |
| ● IECEx Zone 22 | Yes |
| ● cULus Class I Zone 1 | No |
| ● cULus Class I Zone 2, Division 2 | Yes |
| ● FM Class I Division 2 | Yes |
| ● Germanischer Lloyd (GL) | Yes |
| ● American Bureau of Shipping (ABS) | Yes |
| ● Bureau Veritas (BV) | Yes |
| ● Det Norske Veritas (DNV) | Yes |
| ● Lloyds Register of Shipping (LRS) | Yes |
| ● Nippon Kaiji Kyokai (Class NK) | Yes |
| ● Polski Rejestr Statkow (PRS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 40 °C |
| — At maximum tilt angle, min. | 35 °C |
| ● min. | -20 °C |
| ● max. | 60 °C |
| ● Operation, max. | 90 %; no condensation |
| proprietary | No |
| ● Windows CE | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| ● STEP 7 Basic (TIA Portal) | No |
| ● STEP 7 Professional (TIA Portal) | No |
| ● WinCC flexible Compact | No |
| ● WinCC flexible Standard | No |
| ● WinCC flexible Advanced | No |
| ● WinCC Basic (TIA Portal) | No |
| ● WinCC Comfort (TIA Portal) | Yes; from V11 |
| ● WinCC Advanced (TIA Portal) | Yes; from V11 |
| ● WinCC Professional (TIA Portal) | Yes; from V11 |
| ● Number of online/runtime languages | 32 |
| ● Languages per project | 32 |
| Libraries | Yes |
| Applications/options | – |
| ● Web browser | Yes |
| ● Pocket Word | Yes |
| ● Pocket Excel | Yes |
| ● PDF Viewer | Yes |
| ● SIMATIC WinCC Sm@rtServer | Yes |
| ● SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| Task planner | – |
| ● time-controlled | Yes |
| ● task-controlled | Yes |
| Help system | – |
| ● Number of characters per info text | 70 |
| ● Number of alarm classes | 32 |
| ● S7 alarm number procedure | Yes |
| ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| ● Acknowledgment groups | Yes |
| — Number of entries | 1 024 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| ● Number of recipes | 300 |
| ● Data records per recipe | 500 |
| ● Entries per data record | 1 000 |
| ● Size of internal recipe memory | 2 Mbyte |
| ● Recipe memory expandable | Yes |
| ● Number of variables per device | 2 048 |
| ● Number of variables per screen | 400 |
| ● Limit values | Yes |
| ● Multiplexing | Yes |
| ● Structures | Yes |
| ● Arrays | Yes |
| ● Number of configurable images | 500 |
| ● Permanent window/default | Yes |
| ● Global image | Yes |
| ● Pop-up images | Yes |
| ● Slide-in images | Yes |
| ● Image selection by PLC | Yes |
| ● Image number in the PLC | Yes |
| ● Number of objects per image | 400 |
| ● Text fields | Yes |
| ● I/O fields | Yes |
| ● Graphic I/O fields (graphics list) | Yes |
| ● Symbolic I/O fields (text list) | Yes |
| ● Switches | Yes |
| ● Buttons | Yes |
| ● Graphic display | Yes |
| ● Icons | Yes |
| ● Geometric objects | Yes |
| ● Number of complex objects per screen | 20 |
| ● Alarm view | Yes |
| ● Trend view | Yes |
| ● User view | Yes |
| ● Status/control | Yes |
| ● Sm@rtClient view | Yes |
| ● Recipe view | Yes |
| ● f(x) trend view | Yes |
| ● System diagnostics view | Yes |
| ● Media Player | Yes |
| ● HTML browser | Yes |
| ● PDF display | Yes |
| ● IP camera display | Yes |
| ● Bar graphs | Yes |
| ● Sliders | Yes |
| ● Pointer instruments | Yes |
| ● Analog/digital clock | Yes |
