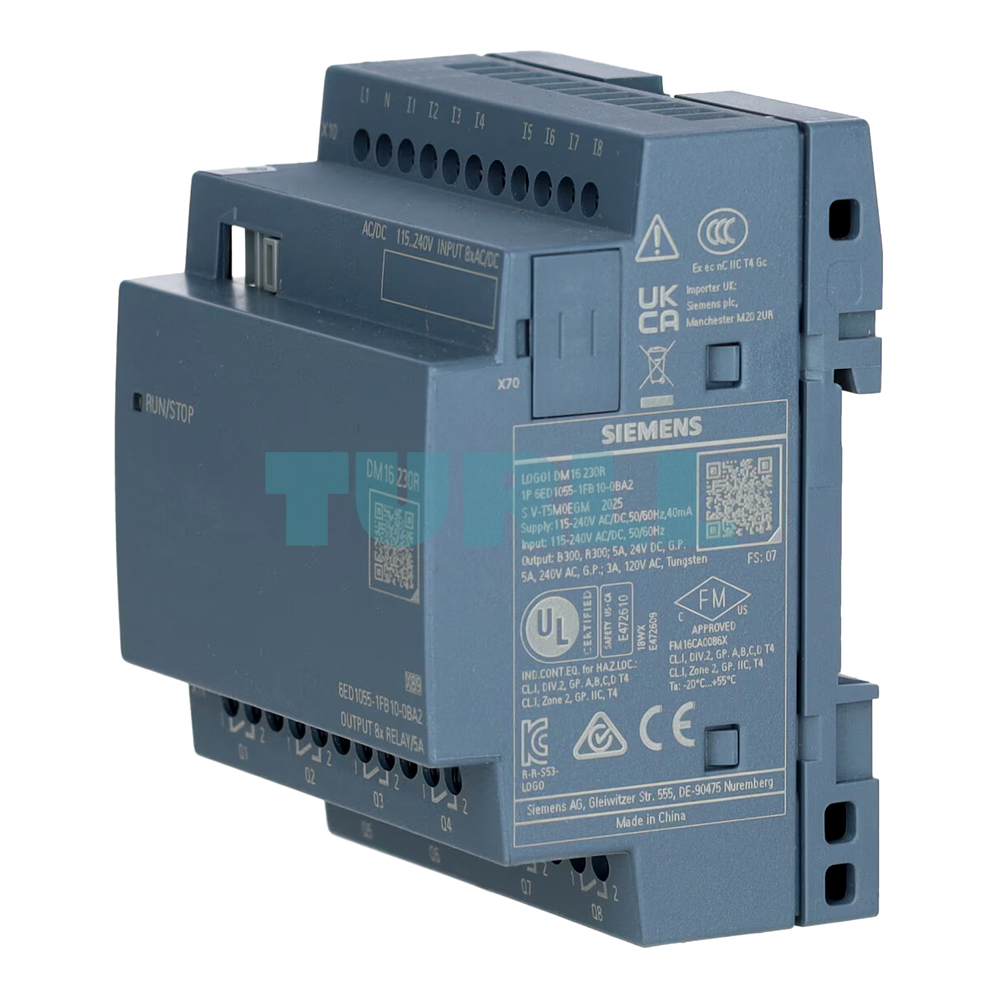

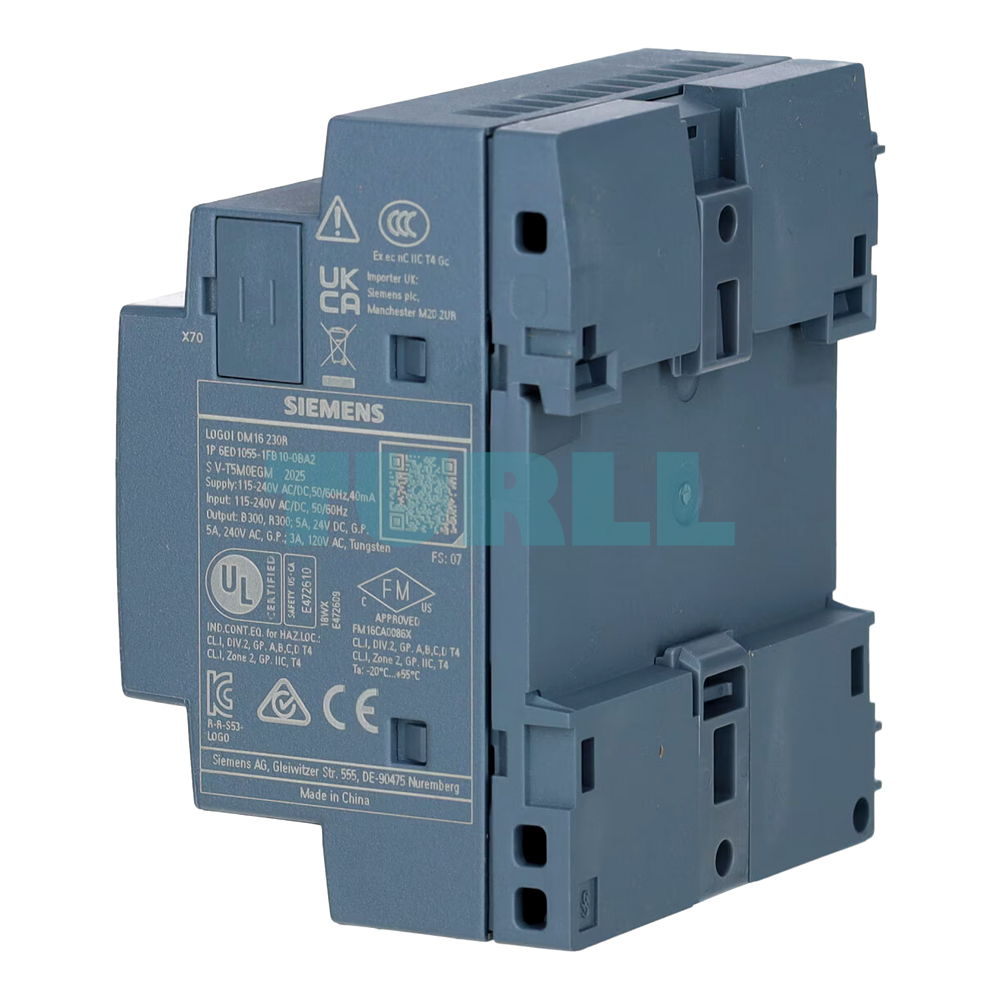

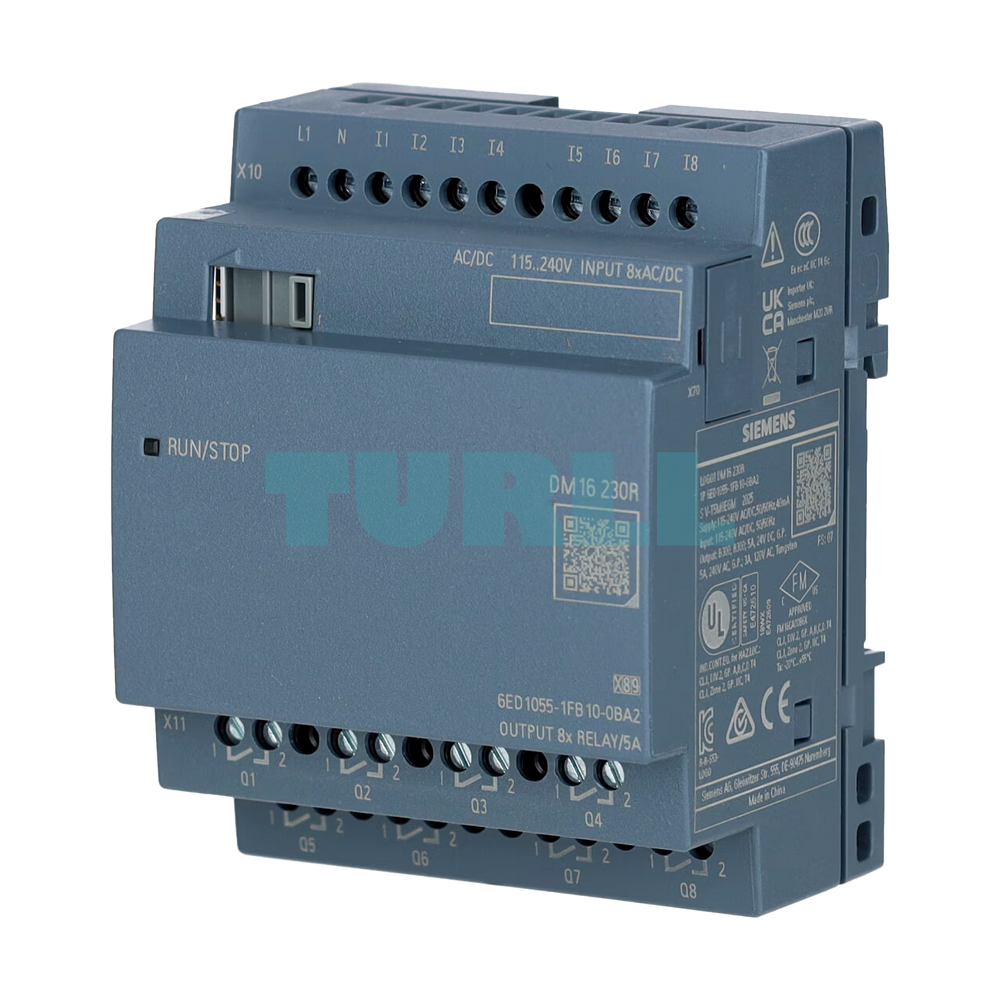

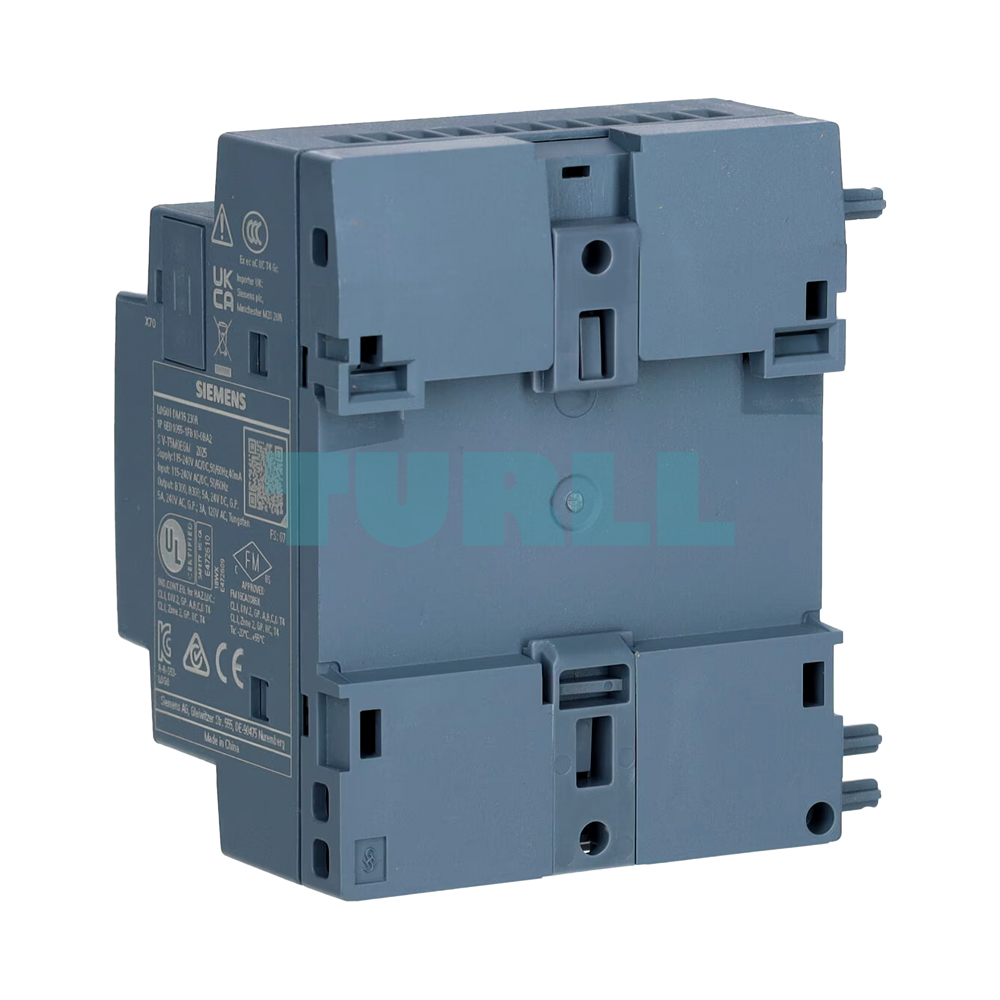

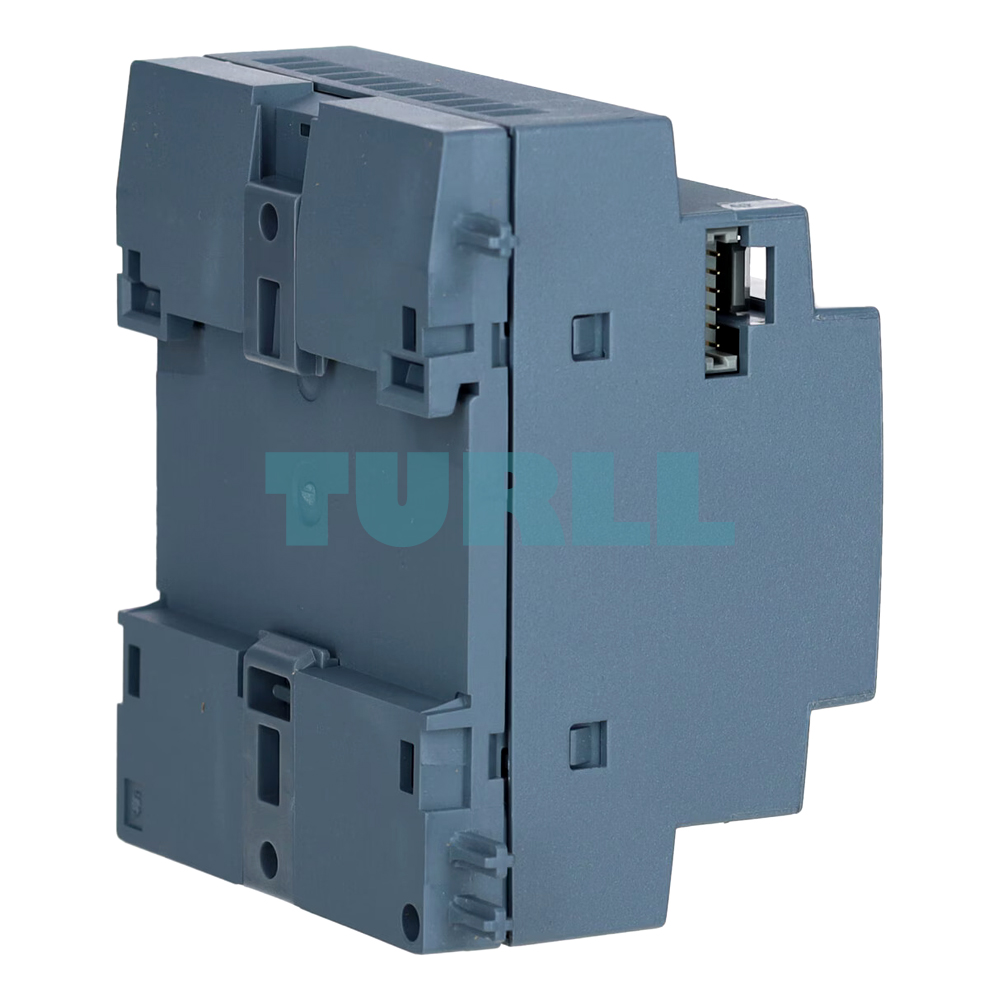

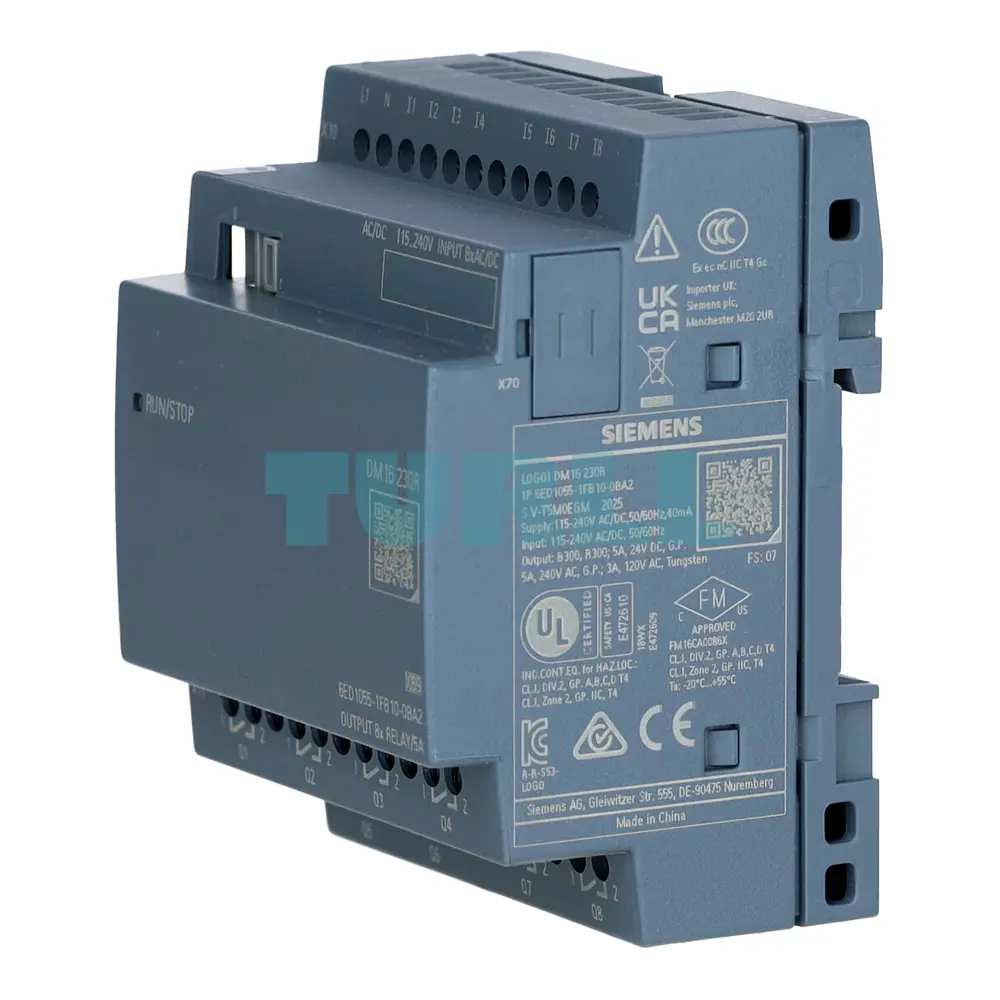

Siemens 6ED1055-1FB10-0BA2 LOGO! DM16 230R Expansion Module, 8 DI/8 DO, 230V Original Brand New
$90.61
Siemens LOGO! DM16 230R expansion module with 8 digital inputs and 8 digital outputs, PS/I/O 230V/230V/relay, designed for LOGO! 8 systems. Ideal for extending your automation capabilities efficiently.
Availability: In stock
Overview
The Siemens LOGO! DM16 230R Expansion Module (6ED1055-1FB10-0BA2) is a versatile digital expansion unit tailored for LOGO! 8 programmable logic controllers. With 8 digital inputs and 8 digital outputs, this module allows seamless system expansion to meet complex automation requirements. Its PS/I/O configuration of 230V/230V/relay ensures compatibility and reliable operation in industrial and commercial automation setups.
Key Features & Benefit
-
Easy System Expansion: Add up to 16 I/O points to your LOGO! 8 system without complex wiring.
-
Flexible Configuration: Supports PS/I/O 230V/230V/relay setups for diverse automation needs.
-
Reliable Performance: Durable Siemens construction ensures long-term stability in industrial environments.
-
Compact Design: Space-saving design fits neatly into standard automation panels.
-
Enhanced Automation: Ideal for controlling lights, motors, pumps, and other industrial devices.
Function
-
8 digital inputs (DI) for receiving signals from sensors or switches.
-
8 digital outputs (DO) with relay operation for controlling external devices.
-
Compatible with LOGO! 8 systems for modular expansion.
-
Simplifies the addition of I/O points without redesigning the core control system.
Technical Specification
-
Product Number: 6ED1055-1FB10-0BA2
-
Module Type: LOGO! DM16 230R Expansion Module
-
Inputs: 8 Digital Inputs (DI)
-
Outputs: 8 Digital Outputs (DO), Relay
-
PS/I/O: 230V/230V/Relay
-
Compatible With: LOGO! 8 PLC systems
-
Mounting: DIN rail
Download
Visit 6ED1055-1FB10-0BA2 for more detail info
For more our products visit turll
| Weight | 0.301 kg |
|---|---|
| Dimensions | 9.40 × 10.40 × 7.40 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| Rated value (DC) | – |
| ● 115 V DC | Yes |
| ● 230 V DC | Yes |
| permissible range, lower limit (DC) | 100 V |
| permissible range, upper limit (DC) | 253 V |
| Rated value (AC) | – |
| ● 115 V AC | Yes |
| ● 230 V AC | Yes |
| ● permissible range, lower limit | 47 Hz |
| ● permissible range, upper limit | 63 Hz |
| Number of digital inputs | 8 |
| ● Type of input voltage | AC/DC |
| ● for signal "0" | < 40 V AC, < 30 V DC |
| ● for signal "1" | > 79 V AC, > 79 V DC |
| ● for signal "0", max. (permissible quiescent current) | 0.06 mA; 0.05 mA with AC, 0.06 mA with DC |
| ● for signal "1", typ. | 0.13 mA |
| — at "0" to "1", max. | 40 ms |
| — at "1" to "0", max. | 75 ms |
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| ● on lamp load, max. | 1 000 W; 500 W at 115V AC |
| ● for signal "1" rated value | 5 A |
| ● for signal "1" minimum load current | 100 mA |
| ● for uprating | No |
| ● with resistive load, max. | 2 Hz |
| ● with inductive load, max. | 0.5 Hz |
| ● mechanical, max. | 10 Hz |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 5 A |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
