Match the signal circuit before the channel count
The signal specification here is 24 V DC. Follow the exact channel assignment and potential-group arrangement in the module documentation.
SIEMENS
6ES7132-6GD51-0BA0
Siemens 6ES7132-6GD51-0BA0 ET 200SP RQ CO 4-Channel Standard Module
Original price was: $102.81.$45.04Current price is: $45.04.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
KEY SPECIFICATIONS
- Digital outputs
- 4
- Series
- SIMATIC ET 200SP
Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 6ES7132-6GD51-0BA0 |
|---|---|
| Brand | SIEMENS |
| Manufacturer part number | 6ES7132-6GD51-0BA0 |
| Series | SIMATIC ET 200SP |
| Module class | Standard |
| Signal voltage | 24 V DC |
| BaseUnit type | A0 |
| Color code | CC00 |
| Digital outputs | 4 |
| Rated output current per channel | 2 A; observe load and group limits |
| Signal type | 4 isolated changeover relay contacts |
| Diagnostics | Supply-voltage diagnostics |
| Substitute-value output | Supported; configure for the application |

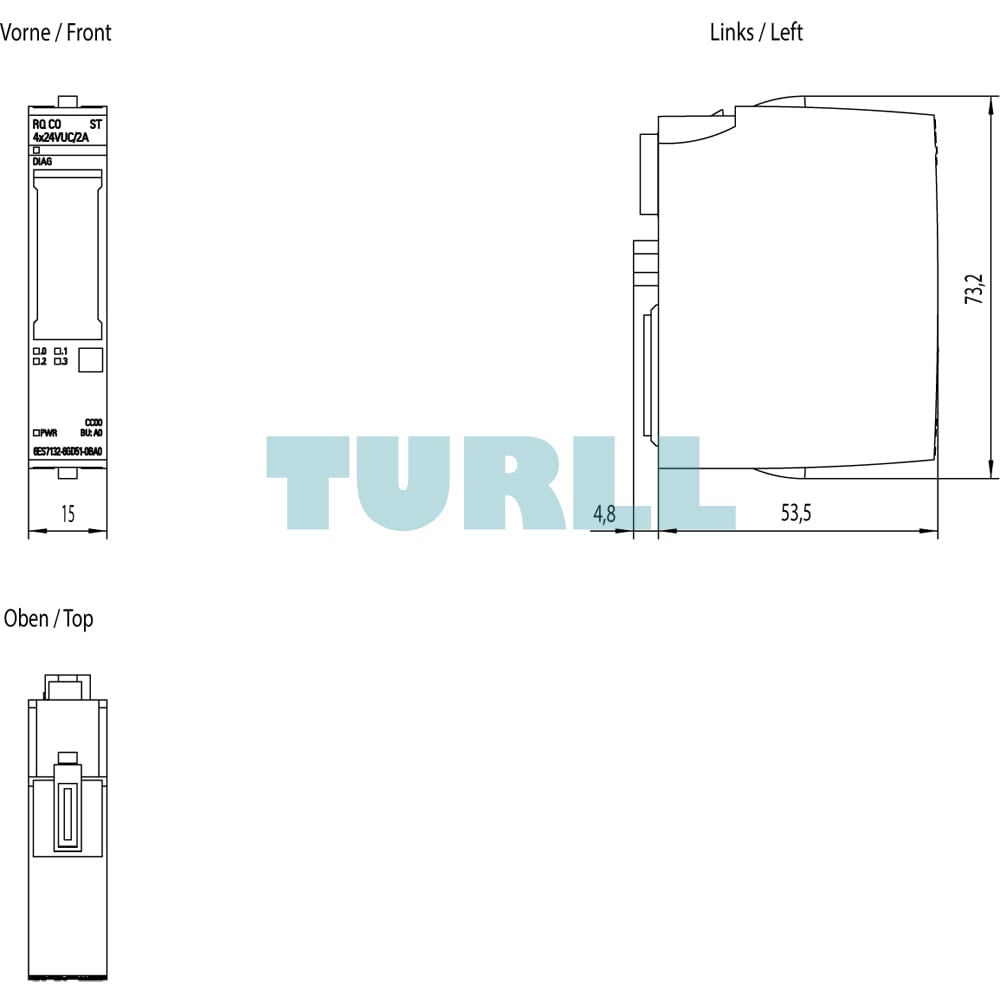

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight for shipping | 0.04 kg |
| Dimensions for shipping | 58 × 15 × 73 mm |
REFERENCE MATERIAL
Documents
Check the document’s model and revision before use.
Description

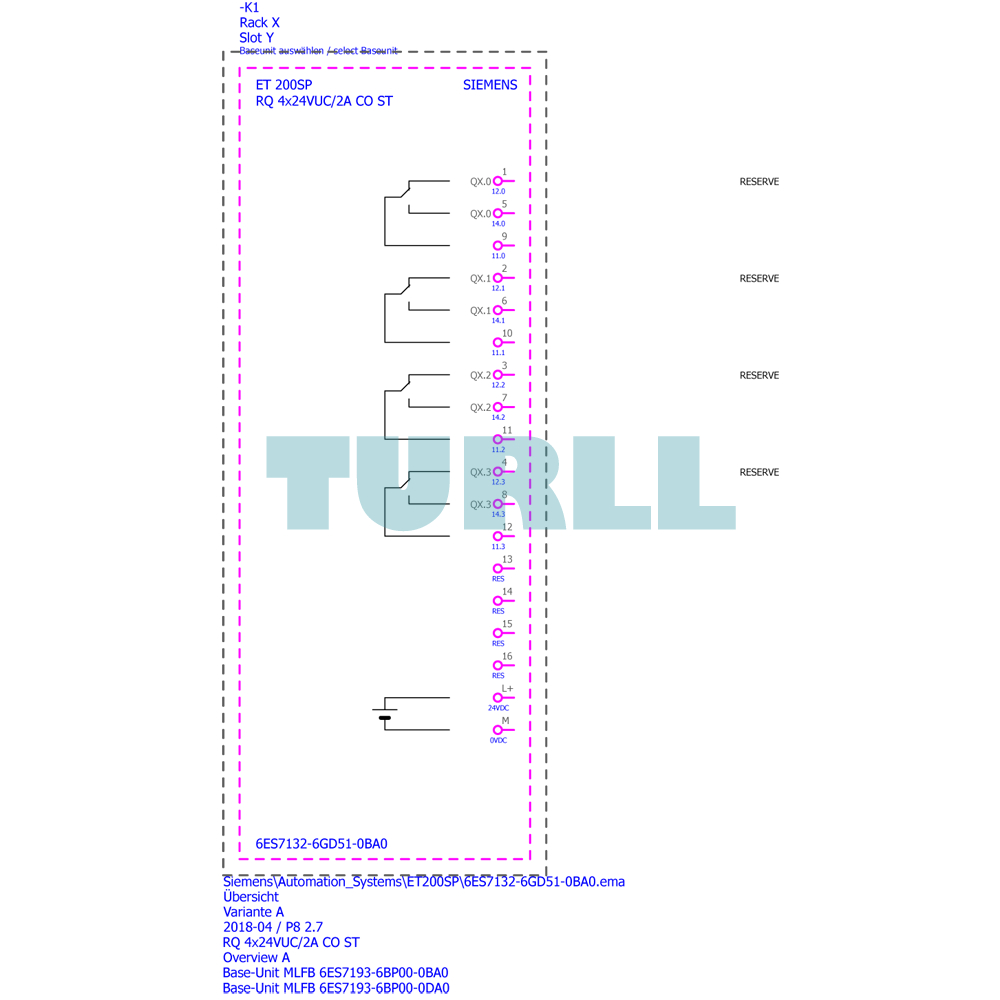

6ES7132-6GD51-0BA0 is a Siemens SIMATIC ET 200SP 4-channel standard RQ CO module for 24 V DC signals. It requires BaseUnit type A0, with module color code CC00. This version uses 4 isolated changeover relay contacts.
Compare output technology and load requirements
The highlighted models address the main selection differences. Each link opens a separate product. Matching one specification does not establish interchangeability; use the complete order number and installation requirements.
This product
6ES7132-6GD51-0BA0
- Digital outputs: 4
- Signal voltage: 24 V DC
- Rated output current per channel: 2 A; observe load and group limits
- Module class: Standard
- BaseUnit type: A0
- Signal type: 4 isolated changeover relay contacts
Compare the complete order number
6ES7132-6BD20-0BA0
- Digital outputs: 4
- Signal voltage: 24 V DC
- Rated output current per channel: 2 A; observe load and group limits
- Module class: Standard
- BaseUnit type: A0
- Different from this product: Signal type: Source output; PNP / P-switching
Different digital outputs, rated output current per channel
6ES7132-6BF01-0BA0
- Different from this product: Digital outputs: 8
- Signal voltage: 24 V DC
- Different from this product: Rated output current per channel: 0.5 A; observe load and group limits
- Module class: Standard
- BaseUnit type: A0
- Different from this product: Signal type: Source output; PNP / P-switching
Different signal voltage, baseunit type
6ES7132-6FD00-0BB1
- Digital outputs: 4
- Different from this product: Signal voltage: 24–230 V AC
- Rated output current per channel: 2 A; observe load and group limits
- Module class: Standard
- Different from this product: BaseUnit type: B1
- Different from this product: Signal type: Triac AC output
More configurations to consider
- 6ES7132-6BH01-0BA0 — 16; 24 V DC; 0.5 A; observe load and group limitsView product →
- 6ES7132-6BH00-0BA0 — 16; 24 V DC; 0.5 A; observe load and group limitsView product →
- 6ES7132-6BF00-0BA0 — 8; 24 V DC; 0.5 A; observe load and group limitsView product →
- 6ES7132-6BH00-0AA0 — 16; 24 V DC; 0.5 A; observe load and group limitsView product →
- 6ES7132-6BF01-0AA0 — 8; 24 V DC; 0.5 A; observe load and group limitsView product →
- 6ES7132-6BF60-0AA0 — 8; 24 V DC; 0.5 A; observe load and group limitsView product →
Selection and installation checks
Check the load technology and current
This model provides four isolated changeover relay contacts. Contact ratings depend on the switched load and utilization conditions. The nominal 2 A designation does not authorize every inductive load at 2 A.
Define the output behaviour on a fault
Where substitute-value output is supported, configure the values and CPU/communication-stop response in the engineering project. Verify the required process state together with the downstream actuator; a product-page setting cannot establish the complete machine response.
Select the BaseUnit and potential group
Use type A0 as specified for this exact module. The light A0 BaseUnit starts a new potential group; the dark continuation type takes the group from the left. Choose AUX terminals or a potential-distribution arrangement to suit the actual sensor/actuator wiring.
Accessories for the actual installation
BU15-P16+A0+2D
6ES7193-6BP00-0DA0 is a type A0 BaseUnit that starts a new potential group. It has no accessible AUX terminals. Match the module wiring and station layout. BaseUnits are separate products, not a bundle implied by this module listing.
View product →BU15-P16+A0+2B
6ES7193-6BP00-0BA0 is a type A0 BaseUnit that continues the potential group from the left. It has no accessible AUX terminals. Match the module wiring and station layout. BaseUnits are separate products, not a bundle implied by this module listing.
View product →Questions about this configuration
Is the BaseUnit included?
The order number identifies the electronic module. Choose the required BaseUnit and any separate connection or marking parts for the station; no BaseUnit package is established by this listing.
Can I replace another module with the same channel count?
Check signal type, voltage, BaseUnit type, diagnostics, address space and engineering support for both complete order numbers. Similar channel counts and physical width do not verify replacement compatibility.
