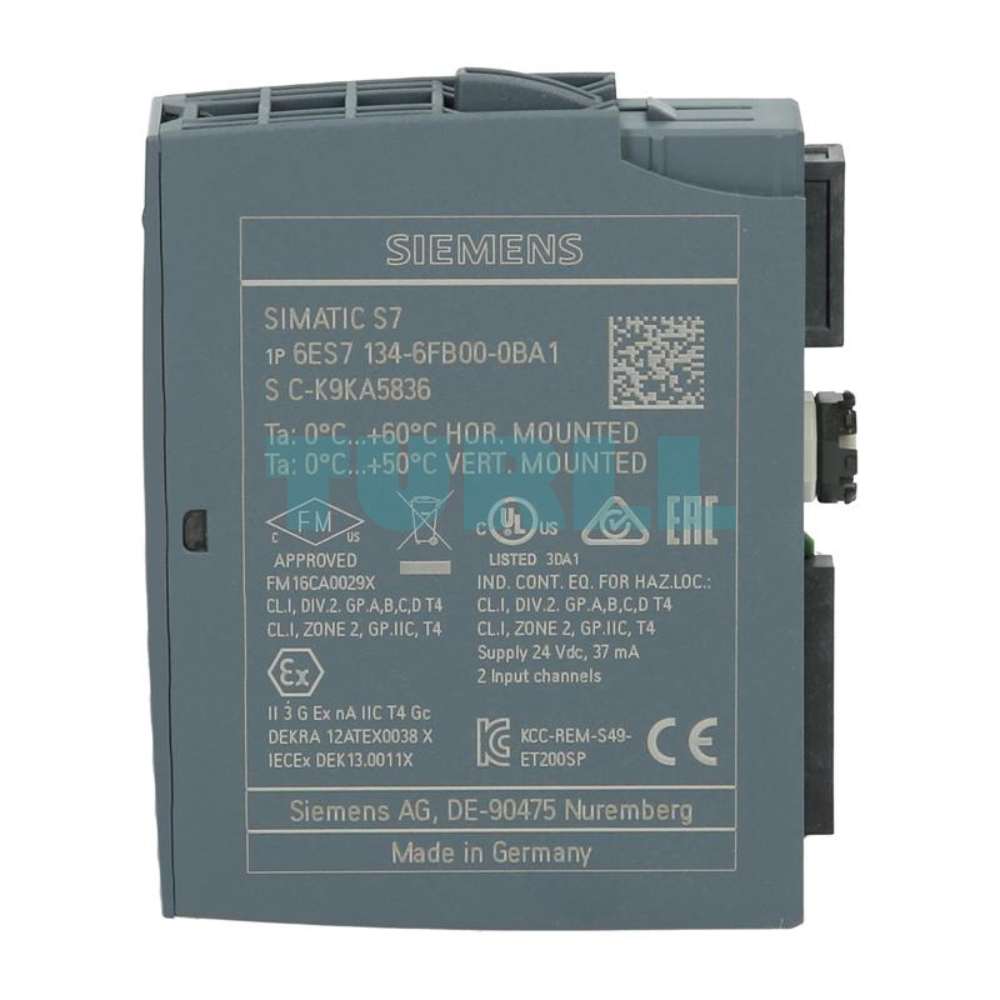

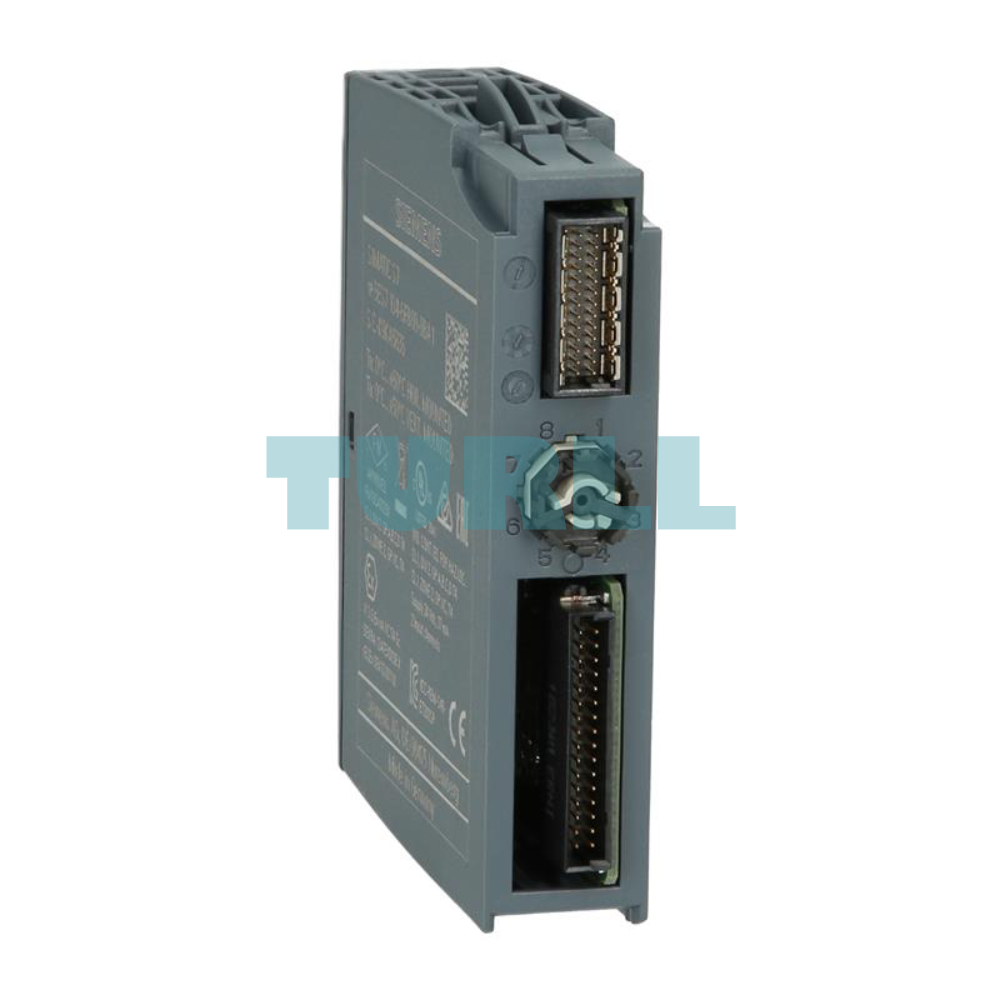

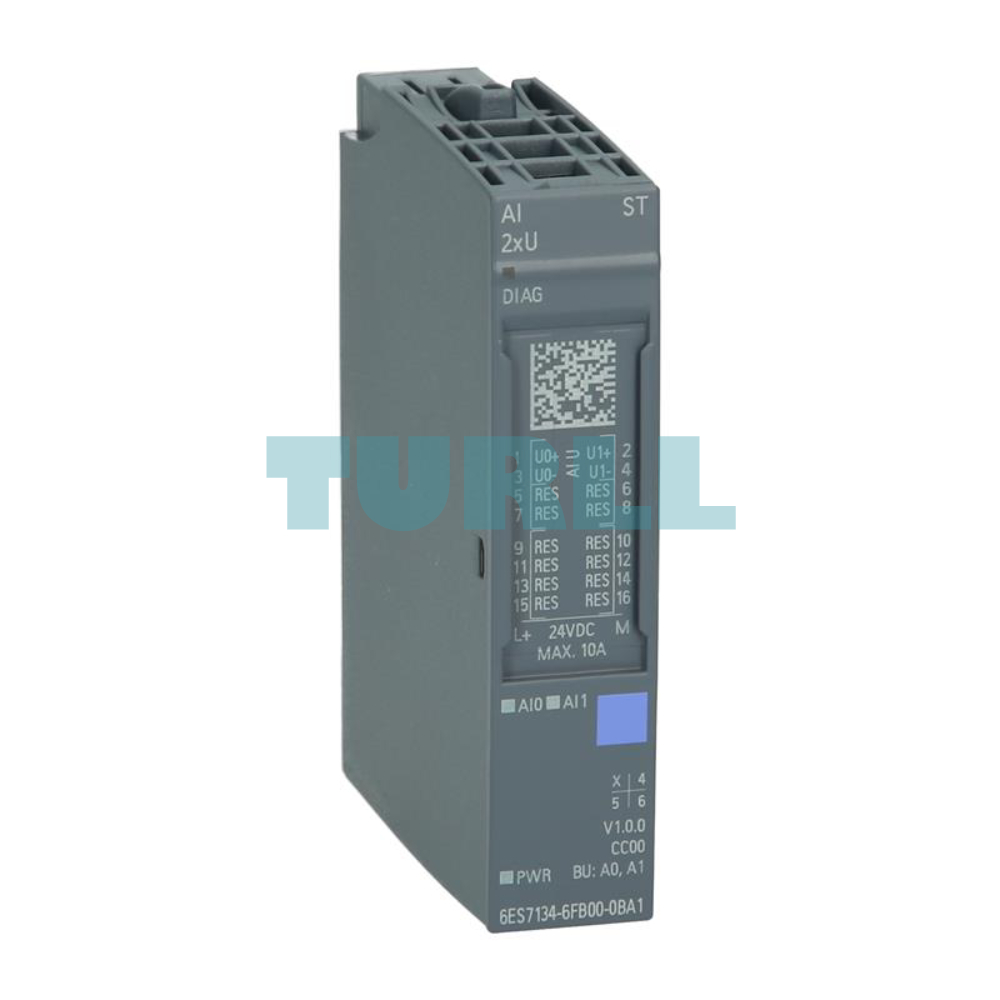

Siemens 6ES7134-6FB00-0BA1 SIMATIC ET 200SP Analog Input Module AI 2xU, 16-Bit Original Brand New

Model / SKU6ES7134-6FB00-0BA1

High-performance SIMATIC ET 200SP Analog Input Module designed for precise voltage measurement. Featuring 2-channel “Standard” (ST) functionality and 16-bit resolution, this module is compatible with BaseUnit (BU) types A0 and A1, offering reliable diagnostics and a compact footprint for industrial automation.

$14,675.74
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens SIMATIC ET 200SP Analog Input Module AI 2xU (6ES7134-6FB00-0BA1) is a high-performance, compact analog input solution designed for precise voltage signal acquisition in industrial automation systems. Engineered for seamless integration with ET 200SP distributed I/O systems, this module ensures reliable data processing, advanced diagnostics, and space-saving installation.

With 16-bit resolution, module diagnostics, and compatibility with BU types A0 and A1, this analog input module is ideal for modern, scalable automation environments requiring accuracy and efficiency.

Benefit

  • High Measurement Accuracy with 16-bit resolution

  • Compact ET 200SP Design for space-efficient control cabinets

  • Advanced Module Diagnostics for reduced downtime

  • Easy Integration with SIMATIC automation systems

  • Reliable Siemens Quality for long-term industrial use

Function & Features

  • Analog input module AI 2xU

  • Supports two voltage input channels

  • Standard Pack, quantity: 1 unit

  • Suitable for Base Units (BU) type A0 and A1

  • Color code: CC00 for quick identification

  • Integrated module diagnostics

  • 16-bit resolution for precise signal conversion

  • Optimized for distributed I/O applications

Technical Highlight

  • Brand: Siemens

  • Series: SIMATIC ET 200SP

  • Module Type: Analog Input

  • Input Type: Voltage (U)

  • Resolution: 16-bit

  • Diagnostics: Yes

  • Mounting: ET 200SP Base Unit

  • Condition: New

Download

Datasheet in PDF

Visit 6ES7134-6FB00-0BA1 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7134-6FB00-0BA1
BrandSIEMENS
Product type designationAI 2xU ST
HW functional statusfrom FS04
Firmware version-
● FW update possibleYes
usable BaseUnitsBU type A0, A1
Color code for module-specific color identification plateCC00
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● Measuring range scalableNo
● STEP 7 TIA Portal configurable/integrated from versionV13 SP1
● STEP 7 configurable/integrated from versionV5.5 SP3 / -
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionGSDML V2.3
● OversamplingNo
● MSINo
Reparameterization possible in RUNYes
Calibration possible in RUNNo
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.37 mA
● 24 VNo
Power loss, typ.0.9 W
● Address space per module, max.4 byte; + 1 byte for QI information
Automatic encodingYes
● Mechanical coding elementYes
● Type of mechanical coding elementType A
● 1-wire connectionBU type A0, A1
● 2-wire connectionBU type A0, A1
Number of analog inputs2
permissible input voltage for voltage input (destruction limit), max.30 V
Cycle time (all channels), min.500 µs
● 0 to +10 VYes; 15 bit
— Input resistance (0 to 10 V)180 kΩ
● 1 V to 5 VYes; 15 bit
— Input resistance (1 V to 5 V)180 kΩ
● -10 V to +10 VYes; 16 bit incl. sign
— Input resistance (-10 V to +10 V)180 kΩ
● -5 V to +5 VYes; 16 bit incl. sign
— Input resistance (-5 V to +5 V)180 kΩ
● shielded, max.200 m
Measurement principleSigma Delta
● Resolution with overrange (bit including sign), max.16 bit
● Integration time, parameterizableYes
● Interference voltage suppression for interference frequency f1 in Hz16.6 / 50 / 60 Hz / off
● Conversion time (per channel)50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 250 µs without filter
● Number of smoothing levels4
● parameterizableYes
● Step: NoneYes; 1x cycle time
● Step: lowYes; 4x cycle time
● Step: MediumYes; 8x cycle time
● Step: HighYes; 16x cycle time
● for voltage measurementYes
Linearity error (relative to input range), (+/-)0.01 %
Temperature error (relative to input range), (+/-)0.005 %/K
Crosstalk between the inputs, min.-50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %
● Voltage, relative to input range, (+/-)0.3 %
● Series mode interference (peak value of interference < rated value of input range), min.70 dB
● Common mode voltage, max.10 V
● Common mode interference, min.90 dB
Diagnostics functionYes
● Diagnostic alarmYes
● Limit value alarmNo
● Monitoring the supply voltageYes
● Wire-breakNo
● Short-circuitYes; at 1 to 5 V
● Group errorYes
● Overflow/underflowYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsYes
between the inputs (UCM)10 Vpp
Isolation tested with707 V DC (type test)
● horizontal installation, min.-30 °C; < 0 °C as of FS04
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C; < 0 °C as of FS04
● vertical installation, max.50 °C
● Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

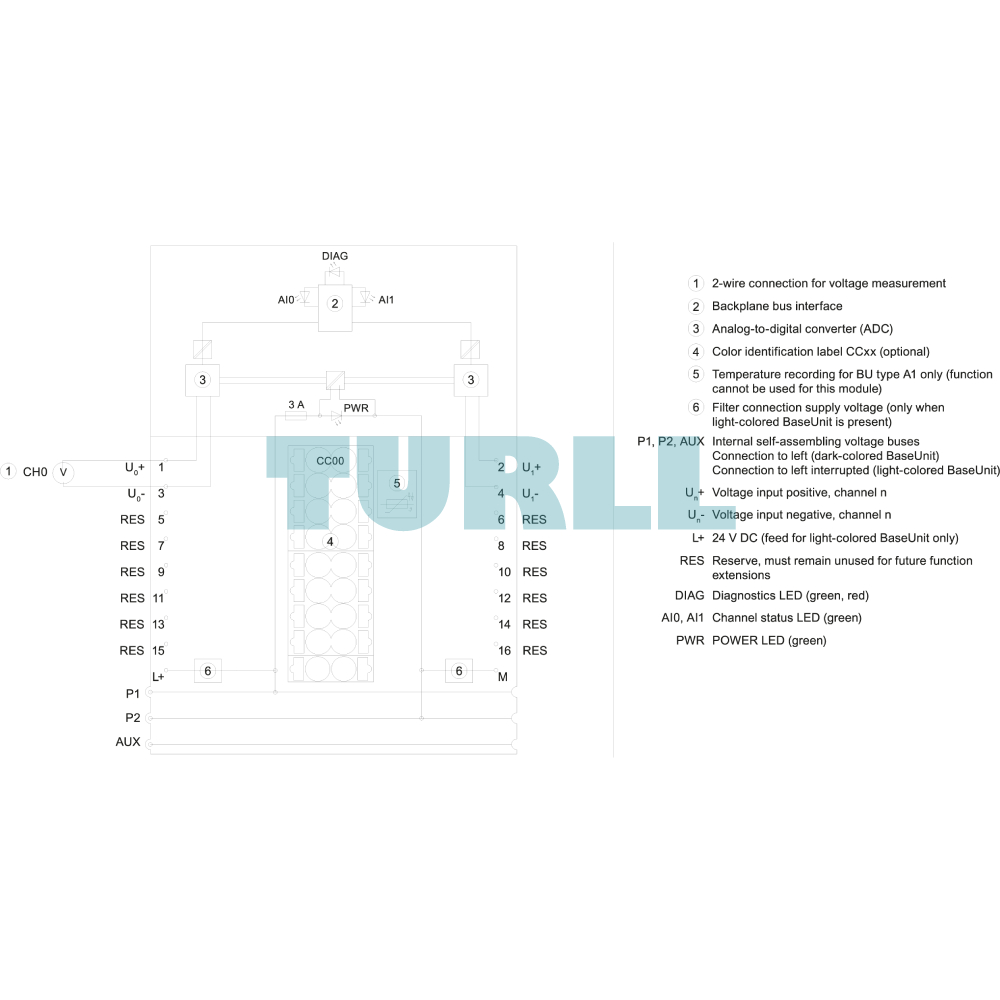

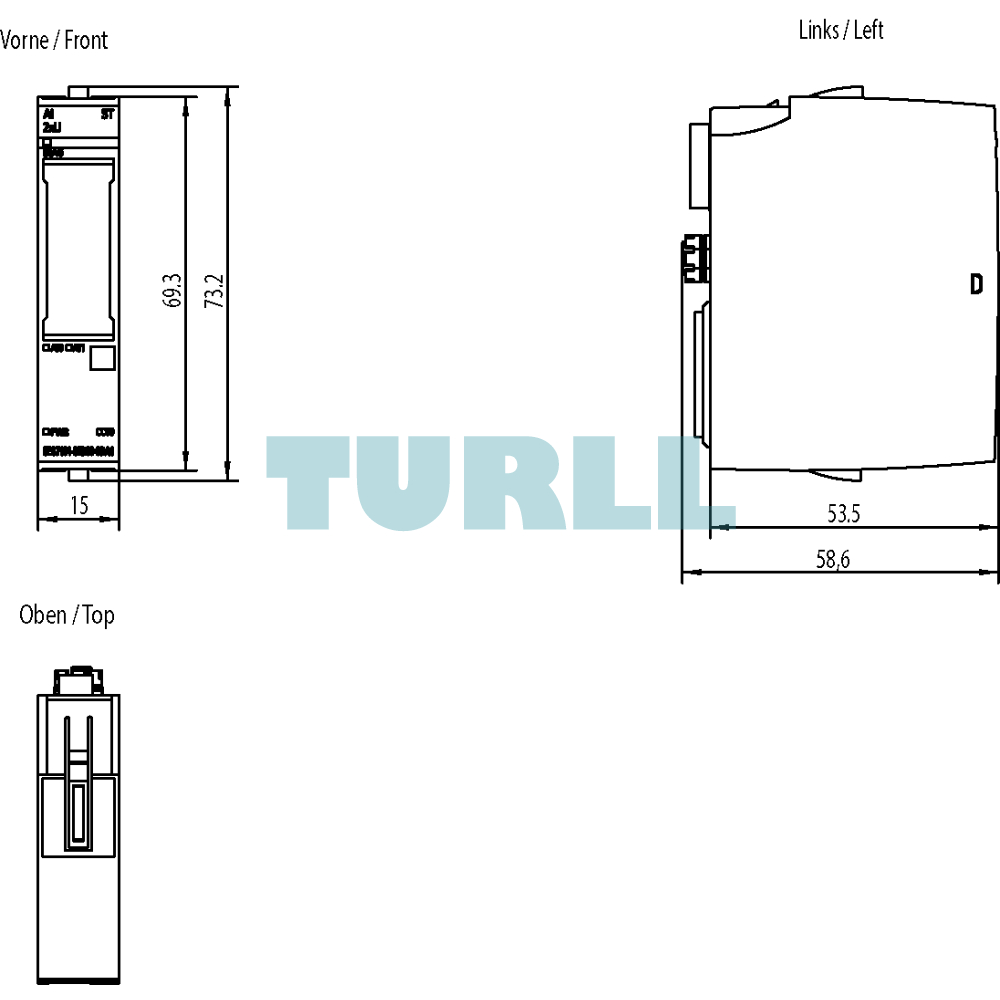

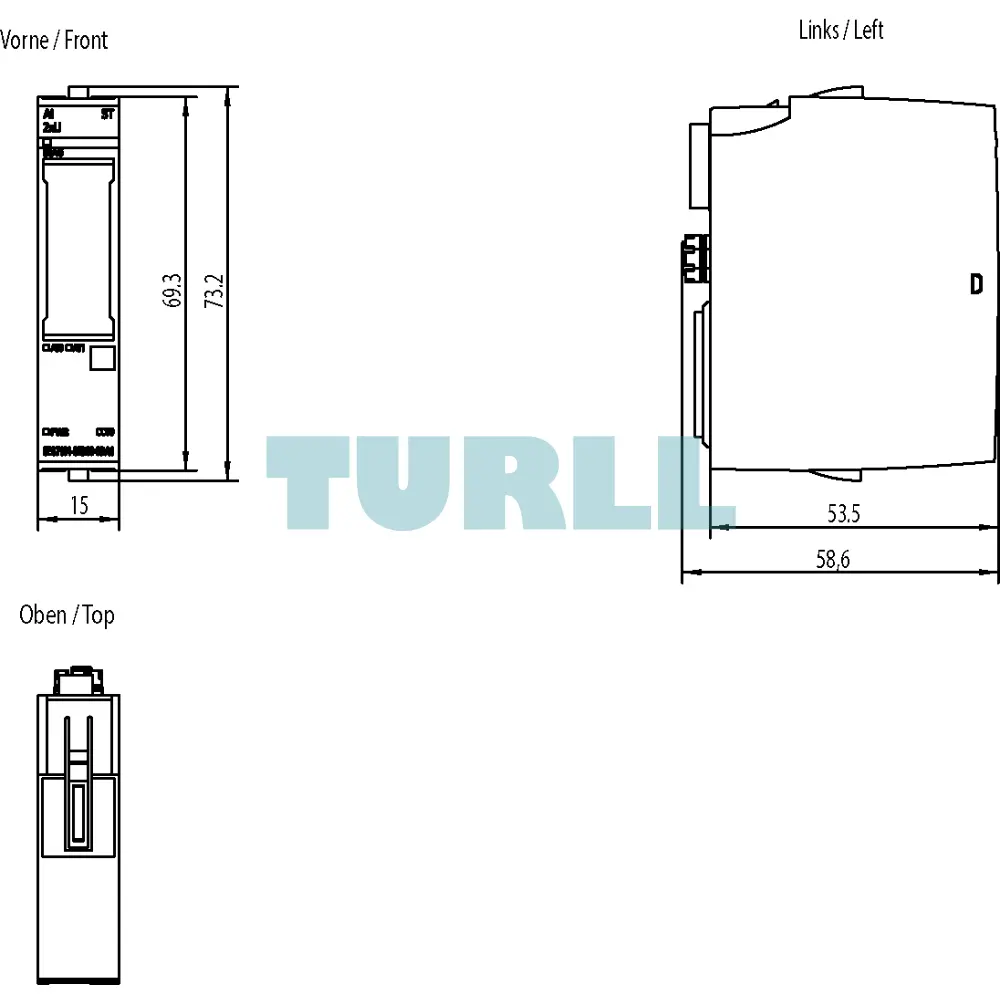

Width15 mm
Height73 mm
Depth58 mm
Weight, approx.31 g
last modified:1/24/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.039 kg
Dimensions7.00 × 7.70 × 2.50 mm
