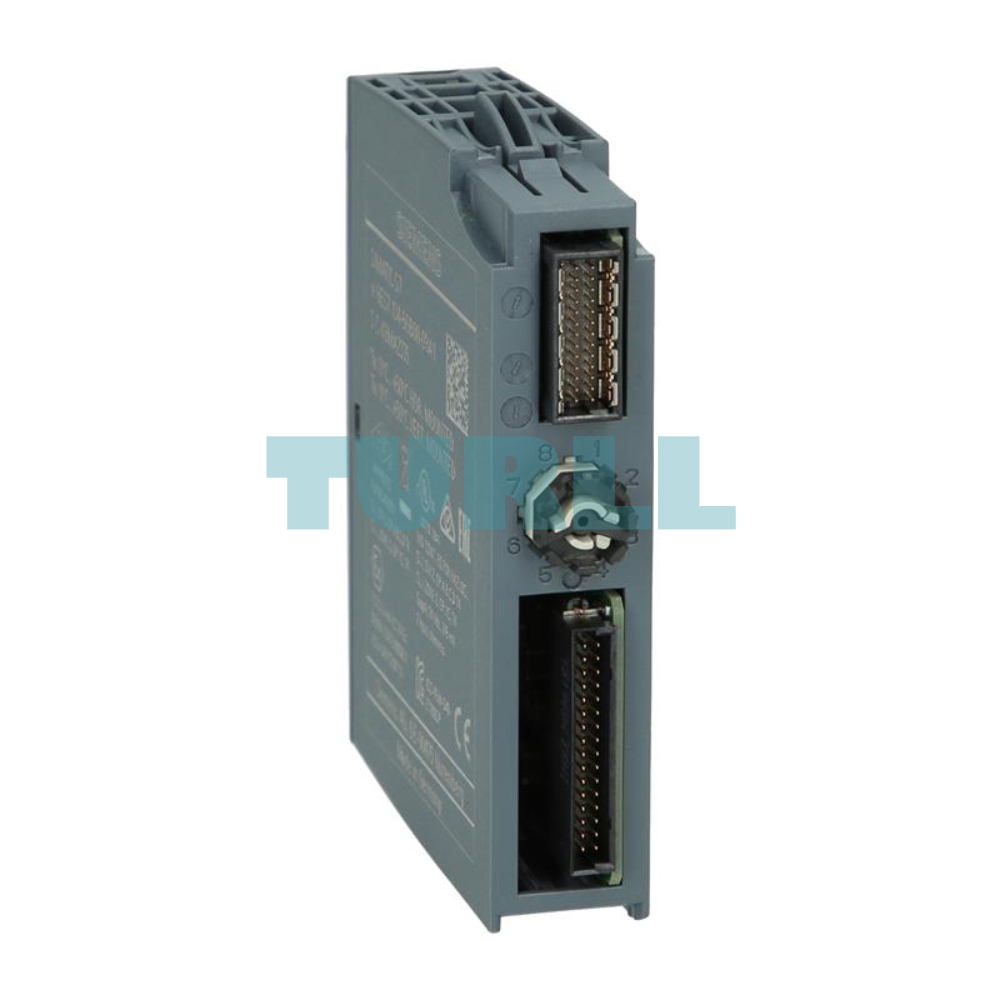

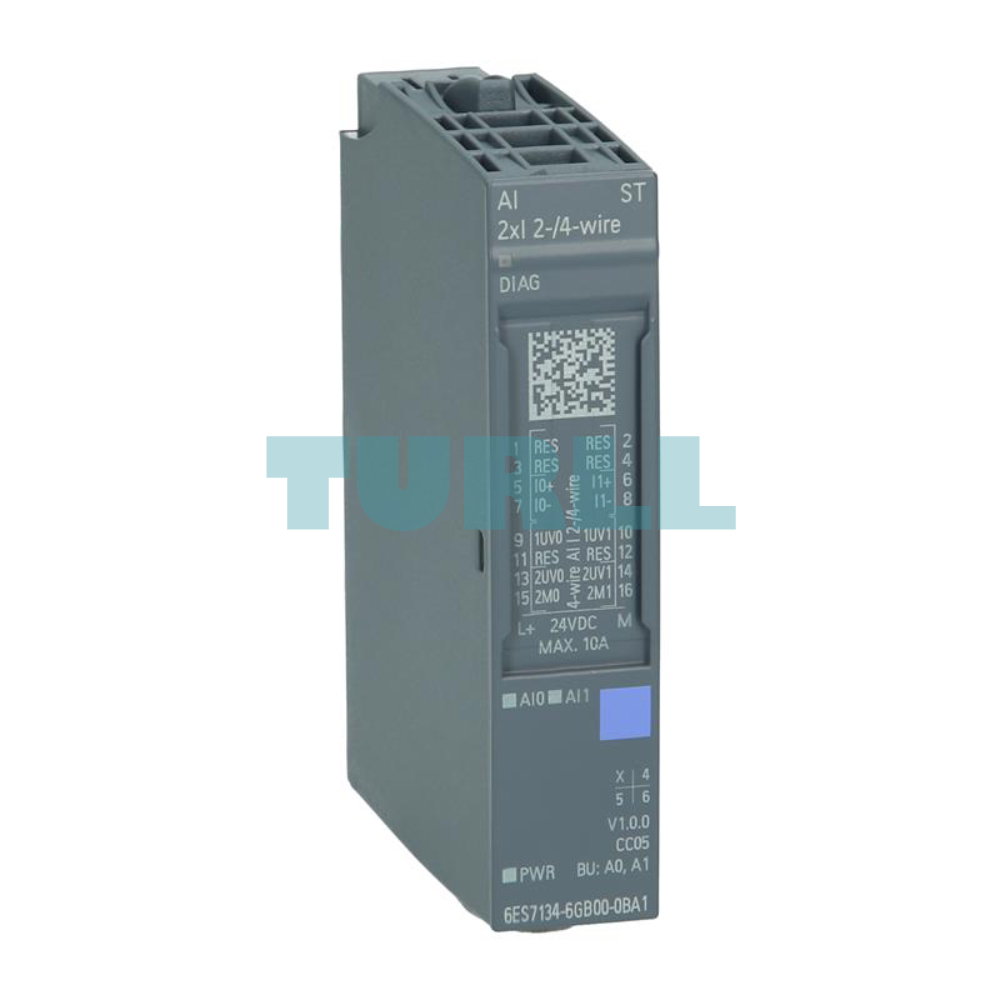

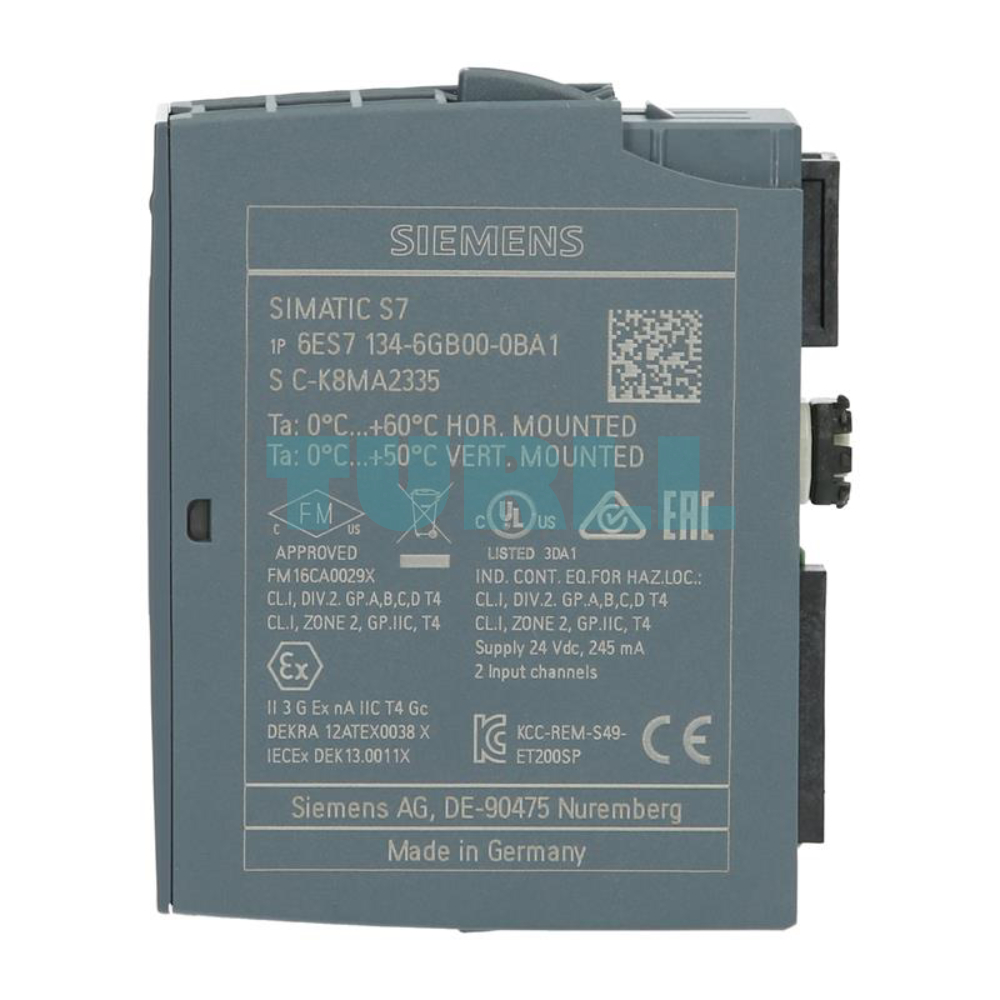

Siemens 6ES7134-6GB00-0BA1 SIMATIC ET 200SP Analog Input Module, AI 2xI 2-/4-Wire Standard Original Brand New

Model / SKU6ES7134-6GB00-0BA1

High-precision SIMATIC ET 200SP analog input module. Featuring 2 channels for 2-wire and 4-wire current measurement, this 16-bit module offers advanced diagnostics and seamless integration for BU types A0 and A1.

$14,675.74
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7134-6GB00-0BA1 is a high-performance SIMATIC ET 200SP Analog Input Module designed for precise measurement and process automation. Supporting 2xI 2-/4-wire standard inputs, it ensures accurate data acquisition and seamless integration into industrial automation systems. The module features 16-bit resolution and advanced diagnostics for reliable operation. Its compact design is ideal for BU type A0 and A1 configurations with color code CC05.

Key Features

  • Analog Inputs: 2xI 2-/4-wire standard

  • Resolution: 16-bit for high precision measurement

  • Module Diagnostics: Enables efficient troubleshooting and monitoring

  • Compatibility: Suitable for BU type A0, A1

  • Design & Build: Compact design with color code CC05 for easy identification

  • Pack Quantity: 1 unit

Benefit

  • High Precision: 16-bit resolution ensures accurate signal processing for critical automation tasks.

  • Flexible Integration: Fully compatible with BaseUnit (BU) types A0 and A1.

  • Enhanced Diagnostics: Integrated module diagnostics allow for rapid troubleshooting and reduced downtime.

  • Space-Saving Design: Part of the ET 200SP series, known for its small footprint in control cabinets.

  • Simplified Wiring: Color-coded CC05 identification reduces wiring errors during setup.

Download

Datasheet in PDF

Visit 6ES7134-6GB00-0BA1 for more detail info

For more our products visit turll



Specifications

SKU / Model6ES7134-6GB00-0BA1
BrandSIEMENS
Product type designationAI 2xI 2-/4-wire ST
HW functional statusfrom FS04
Firmware version-
● FW update possibleYes
usable BaseUnitsBU type A0, A1
Color code for module-specific color identification plateCC05
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● Measuring range scalableNo
● STEP 7 TIA Portal configurable/integrated from versionV13 SP1
● STEP 7 configurable/integrated from versionV5.5 SP3
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionV2.3 / -
● OversamplingNo
● MSINo
Reparameterization possible in RUNYes
Calibration possible in RUNNo
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.45 mA; without sensor supply
● 24 VYes
● Short-circuit protectionYes; Module-wise
● Output current, max.200 mA; Total current for both channels (four-wire)
Power loss, typ.1.1 W
● Address space per module, max.4 byte; + 1 byte for QI information
Automatic encodingYes
● Mechanical coding elementYes
● Type of mechanical coding elementType A

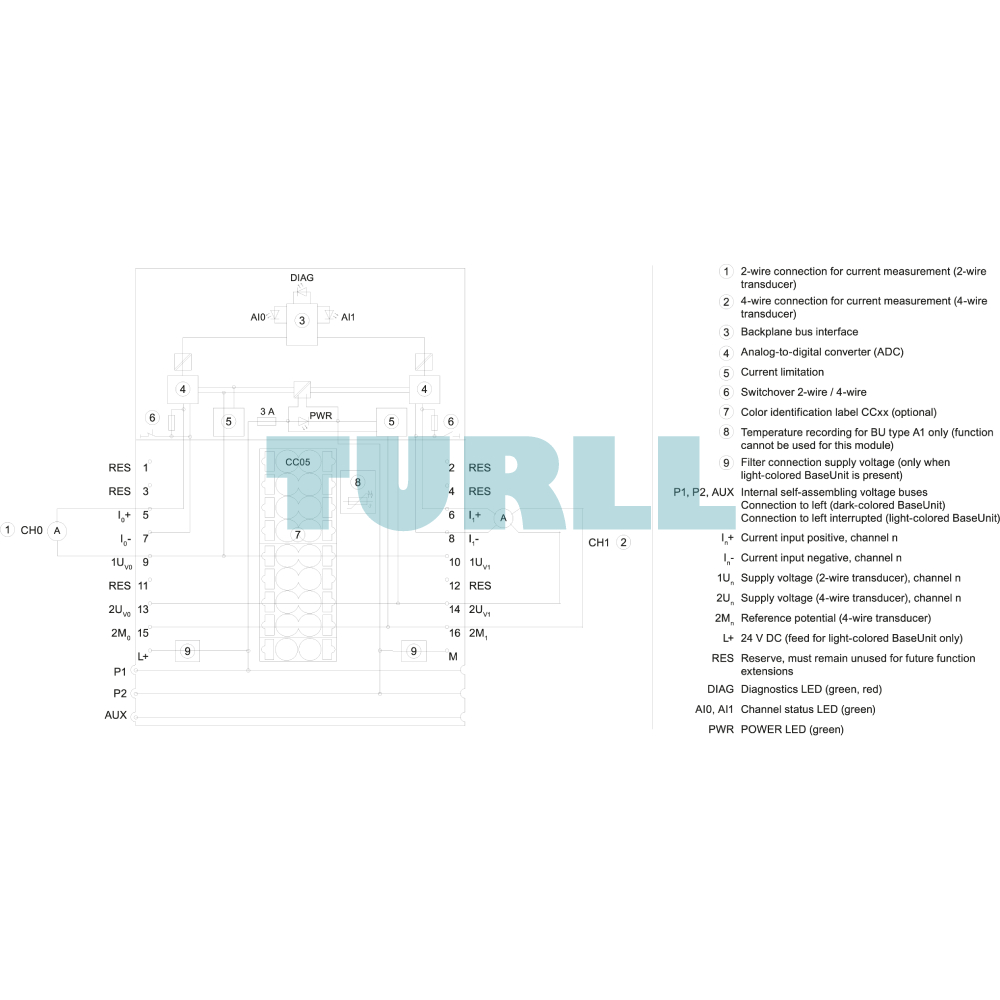

● 1-wire connectionBU type A0, A1
● 2-wire connectionBU type A0, A1
● 4-wire connectionBU type A0, A1
Number of analog inputs2
● For current measurement2
permissible input current for current input (destruction limit), max.50 mA
Cycle time (all channels), min.500 µs
● 0 to 20 mAYes; 15 bit
— Input resistance (0 to 20 mA)130 Ω; 90 ohms with two wires
● -20 mA to +20 mAYes; 16 bit incl. sign
— Input resistance (-20 mA to +20 mA)130 Ω
● 4 mA to 20 mAYes; 15 bit
— Input resistance (4 mA to 20 mA)130 Ω; 90 ohms with two wires
● shielded, max.1 000 m
Measurement principleSigma Delta
● Resolution with overrange (bit including sign), max.16 bit
● Integration time, parameterizableYes
● Interference voltage suppression for interference frequency f1 in Hz16.6 / 50 / 60 Hz / off
● Conversion time (per channel)50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 500 µs without filter
● Number of smoothing levels4
● parameterizableYes
● Step: NoneYes; 1x conversion time
● Step: lowYes; 4x conversion time
● Step: MediumYes; 8x conversion time
● Step: HighYes; 16x conversion time
● for current measurement as 2-wire transducerYes
— Burden of 2-wire transmitter, max.650 Ω
● for current measurement as 4-wire transducerYes
Linearity error (relative to input range), (+/-)0.01 %
Temperature error (relative to input range), (+/-)0.005 %/K
Crosstalk between the inputs, min.-50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %
● Current, relative to input range, (+/-)0.3 %
● Series mode interference (peak value of interference < rated value of input range), min.70 dB
● Common mode voltage, max.10 V
● Common mode interference, min.90 dB
Diagnostics functionYes
● Diagnostic alarmYes
● Limit value alarmNo
● Monitoring the supply voltageYes
● Wire-breakYes; at 4 to 20 mA
● Short-circuitYes; Short-circuit of the encoder supply
● Group errorYes
● Overflow/underflowYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsYes
between the inputs (UCM)10 Vpp
Isolation tested with707 V DC (type test)
● horizontal installation, min.-30 °C; < 0 °C as of FS04
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C; < 0 °C as of FS04
● vertical installation, max.50 °C
● Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Width15 mm

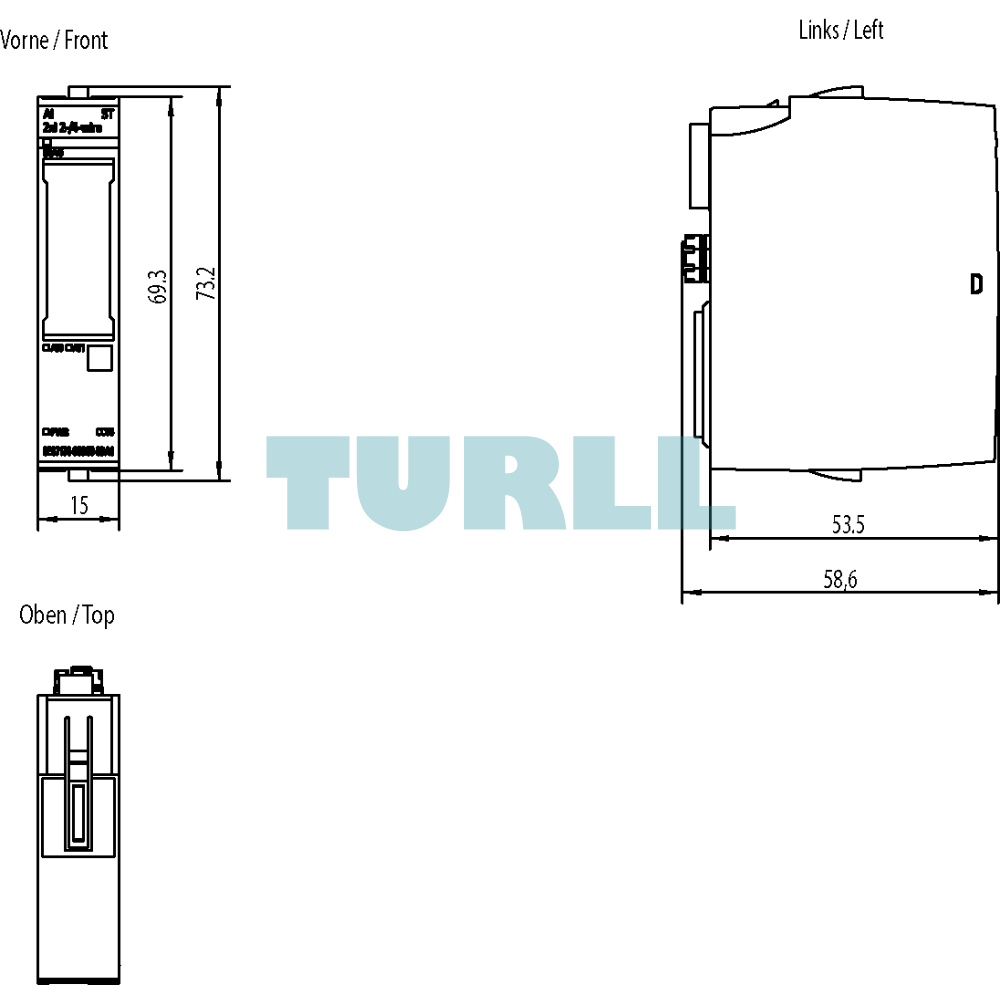

Height73 mm
Depth58 mm
Weight, approx.32 g
last modified:1/24/2021
