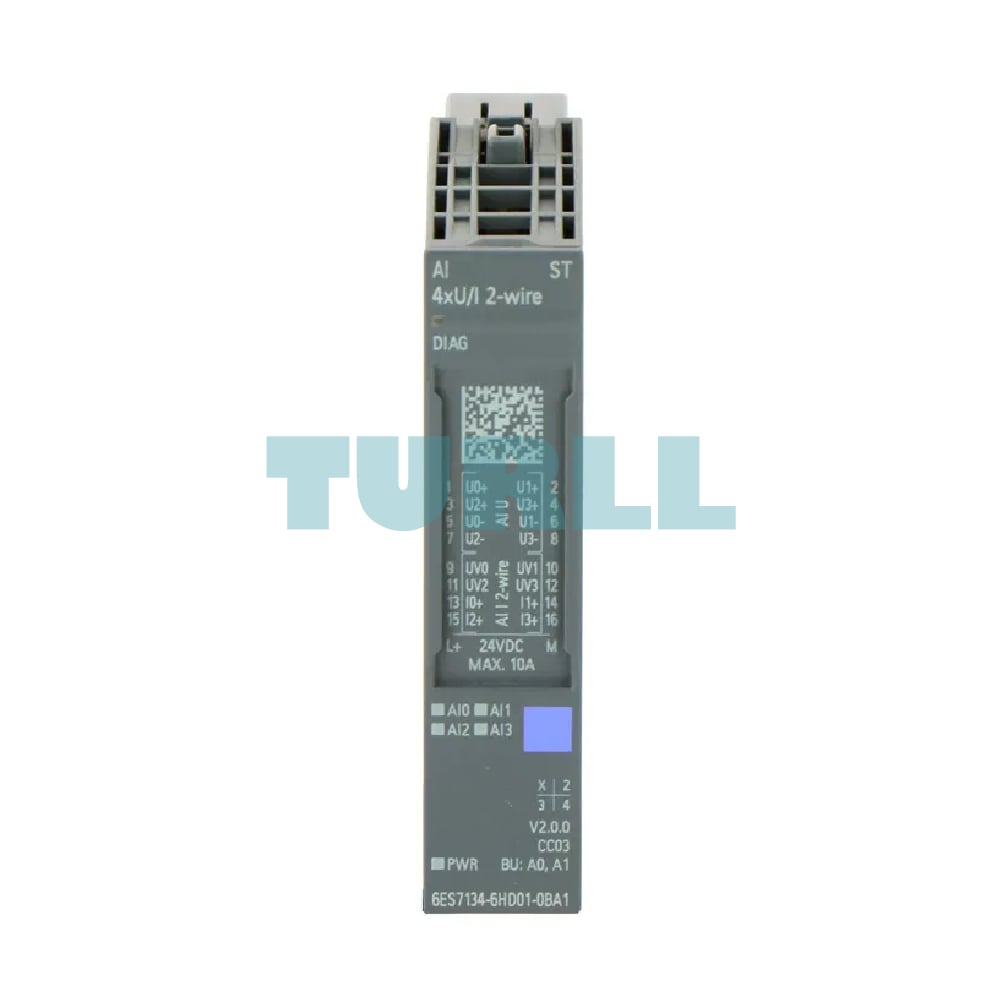

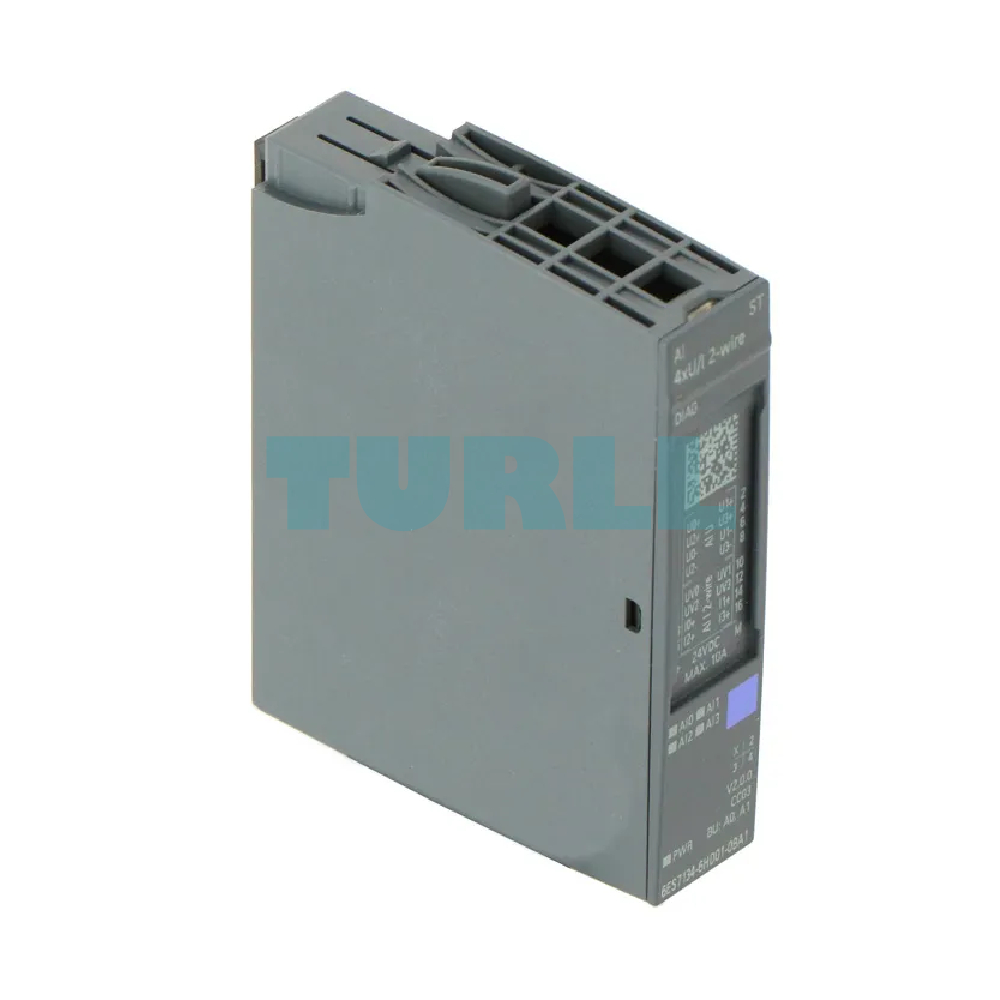

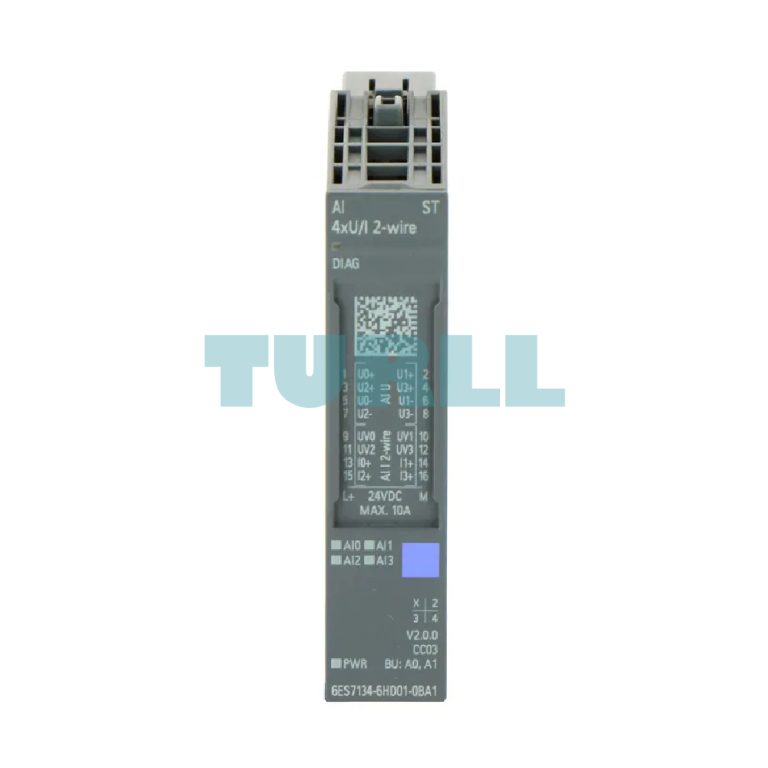

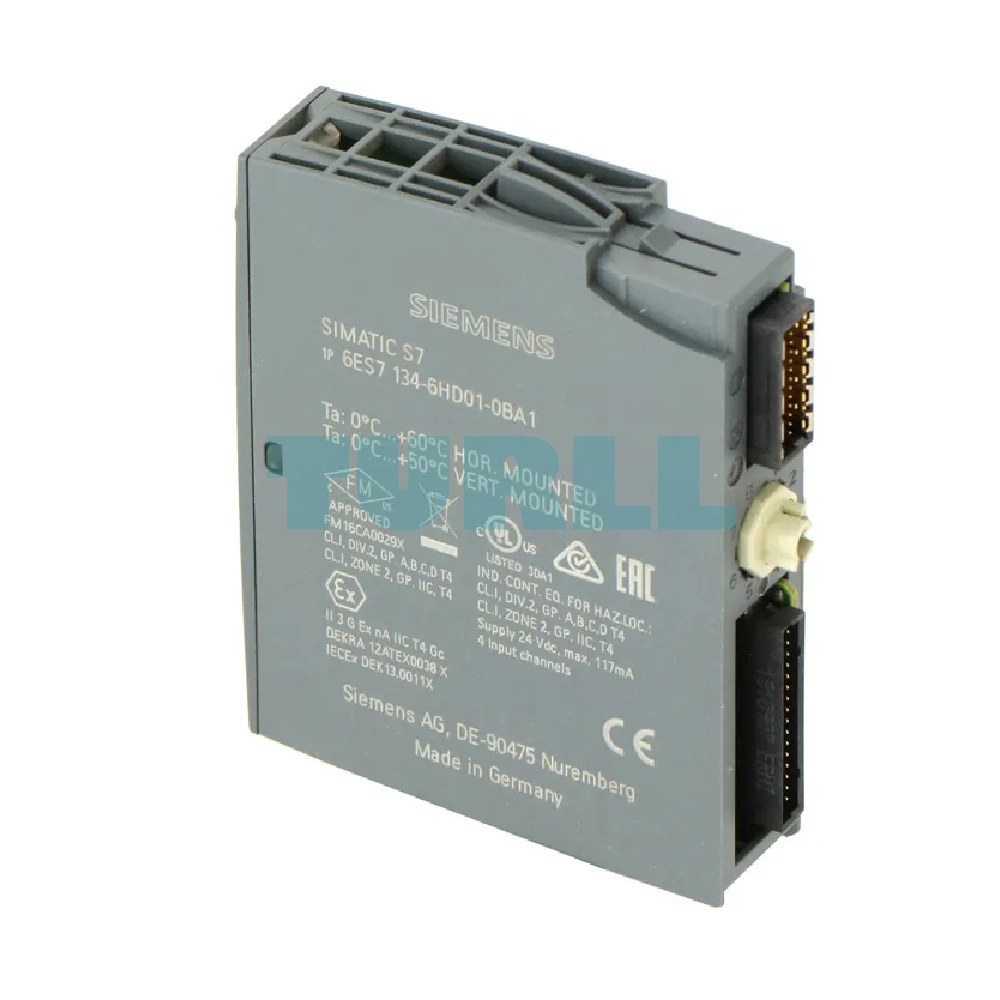

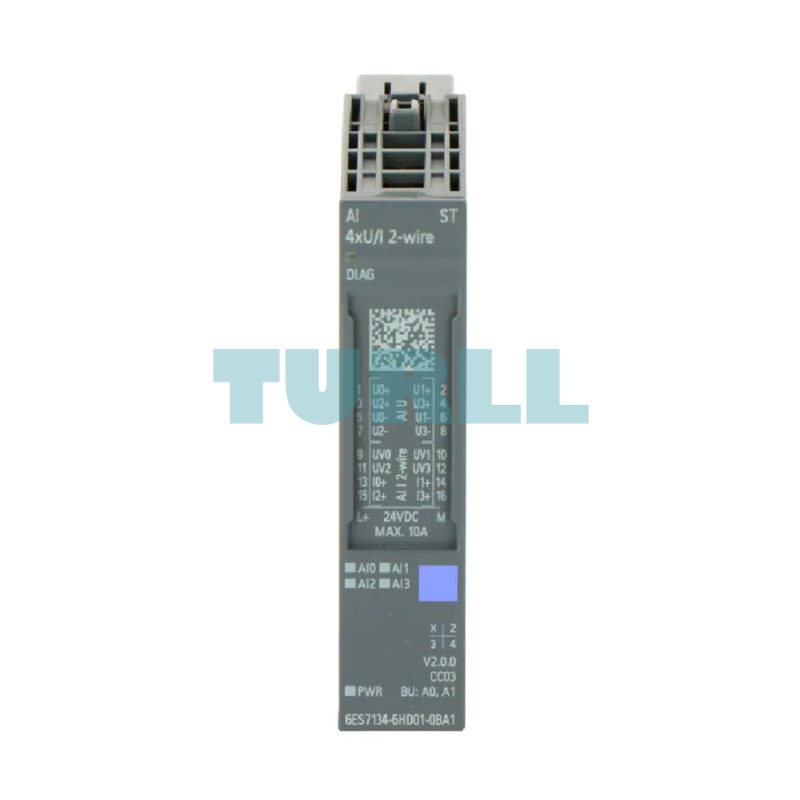

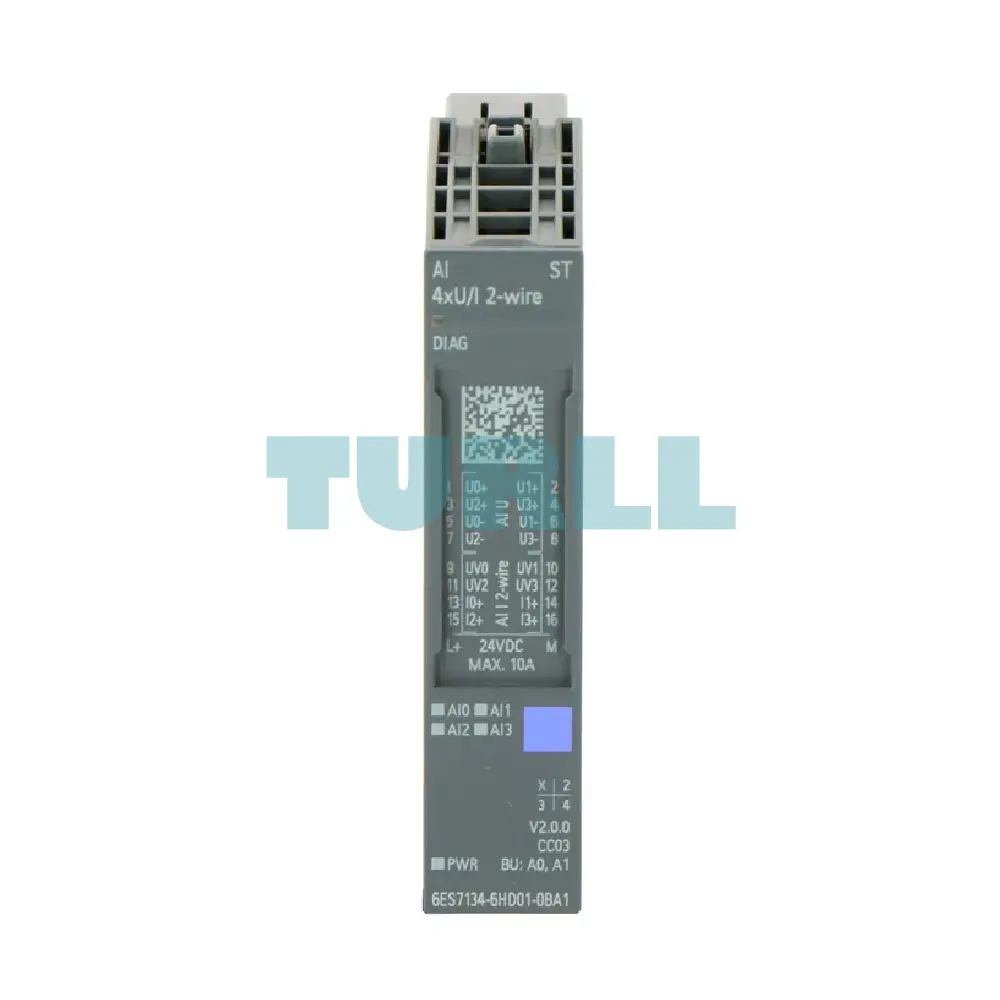

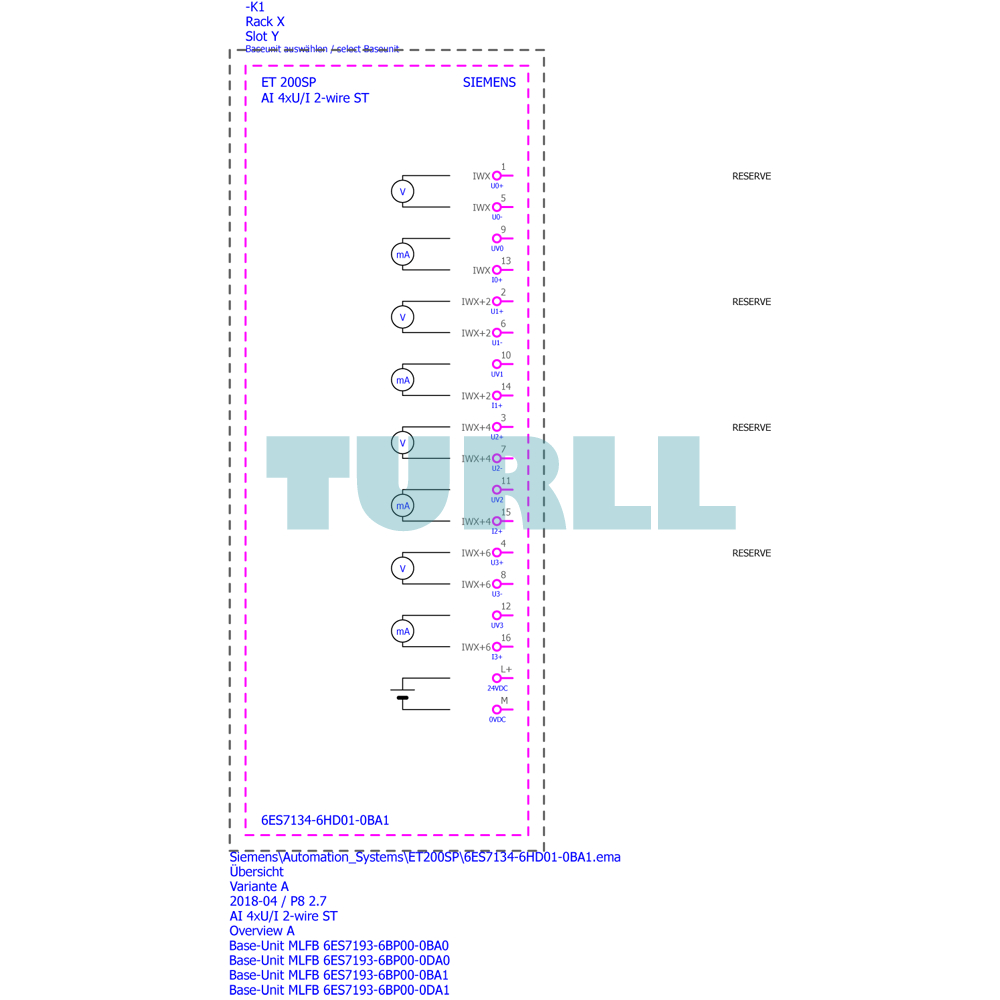

Siemens 6ES7134-6HD01-0BA1 SIMATIC ET 200SP, Analog Input Module, AI 4xU/I 2-Wire Original Best Quality
$126.73
High-performance SIMATIC ET 200SP Analog Input Module. Featuring 4 channels for voltage or current (2-wire) measurement, this 16-bit module offers precision diagnostics and fits BU-type A0 or A1 BaseUnits.
Availability: In stock
Overview
The Siemens 6ES7134-6HD01-0BA1 is a high-performance SIMATIC ET 200SP Analog Input Module, designed for precision signal acquisition in industrial automation systems. With 4 AI channels for voltage or current inputs (2-wire standard) and 16-bit resolution, this module ensures accurate and reliable measurement for critical processes. Its compact design fits BU-Type A0 and A1 units and comes with module diagnostics for simplified maintenance.
Benefit
-
High Precision: Offers 16-bit resolution with an accuracy of +/-0.3%, ensuring stable and reliable data for critical processes.
-
Versatile Connectivity: Supports 4 channels for both voltage (U) and current (I) 2-wire configurations.
-
Simplified Installation: Compatible with BaseUnit types A0 and A1, featuring color code CC03 for easy identification and error-free wiring.
-
Advanced Diagnostics: Includes module-level diagnosis to monitor wire breaks, short circuits, and supply voltage issues.
-
Compact Footprint: Part of the ET 200SP line, known for its space-saving slice-type architecture.
Function & Features:
-
Input Type: Analog voltage/current, 4 channels (2-wire standard)
-
Resolution: 16-bit, high-precision data acquisition
-
Compatibility: Fits BU-Type A0 and A1 backplane units
-
Color Code: CC03 for easy identification
-
Module Diagnostics: Enables monitoring and preventive maintenance
-
Packing Unit: 1 piece
Download
Visit 6ES7134-6HD01-0BA1 for more detail info
For more our products visit turll
| Weight | 0.041 kg |
|---|---|
| Dimensions | 68 × 24 × 76.98 mm |
| Brand | SIEMENS |
| Product type designation | AI 4x U/I 2-wire |
| HW functional status | From FS02 |
| Firmware version | – |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color identification plate | CC03 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| ● Measuring range scalable | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V14 / – |
| ● STEP 7 configurable/integrated from version | V5.6 and higher |
| ● PCS 7 configurable/integrated from version | V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| ● Oversampling | No |
| ● MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 37 mA; without sensor supply |
| ● 24 V | Yes |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s |
| Power loss, typ. | 0.85 W; Without encoder supply voltage |
| ● Address space per module, max. | 8 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| ● 2-wire connection | BU type A0, A1 |
| Number of analog inputs | 4; Differential inputs |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Cycle time (all channels), min. | Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) |
| ● 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 120 kΩ |
| ● 1 V to 5 V | Yes; 15 bit |
| — Input resistance (1 V to 5 V) | 120 kΩ |
| ● -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 120 kΩ |
| ● -5 V to +5 V | Yes; 16 bit incl. sign |
| — Input resistance (-5 V to +5 V) | 120 kΩ |
| ● 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage |
| ● 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage |
| ● shielded, max. | 1 000 m; 200 m for voltage measurement |
| Measurement principle | integrating (Sigma-Delta) |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● Integration time, parameterizable | Yes |
| ● Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz |
| ● Conversion time (per channel) | 180 / 60 / 50 ms |
| ● Number of smoothing levels | 4; None; 4/8/16 times |
| ● parameterizable | Yes |
| ● for voltage measurement | Yes |
| ● for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| ● for current measurement as 4-wire transducer | No |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | 50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| ● Voltage, relative to input range, (+/-) | 0.3 % |
| ● Current, relative to input range, (+/-) | 0.3 % |
| ● Series mode interference (peak value of interference < rated value of input range), min. | 70 dB |
| ● Common mode voltage, max. | 10 V |
| ● Common mode interference, min. | 90 dB |
| Diagnostics function | Yes |
| ● Diagnostic alarm | Yes |
| ● Limit value alarm | No |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes; at 4 to 20 mA |
| ● Short-circuit | Yes; with 1 to 5 V or 2-wire mode: Short-circuit of the encoder supply to ground or of an input to the encoder supply |
| ● Group error | Yes |
| ● Overflow/underflow | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red LED |
| ● between the channels | Yes; channel group-specific between 2-wire current input group and voltage input group |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes; only for voltage inputs |
| between the inputs (UCM) | 10 V DC |
| Isolation tested with | 707 V DC (type test) |
| Suitable for applications according to AMS 2750 | Yes; Declaration of Conformity, see online support entry 109757262 |
| Suitable for applications according to CQI-9 | Yes |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS02 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS02 |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

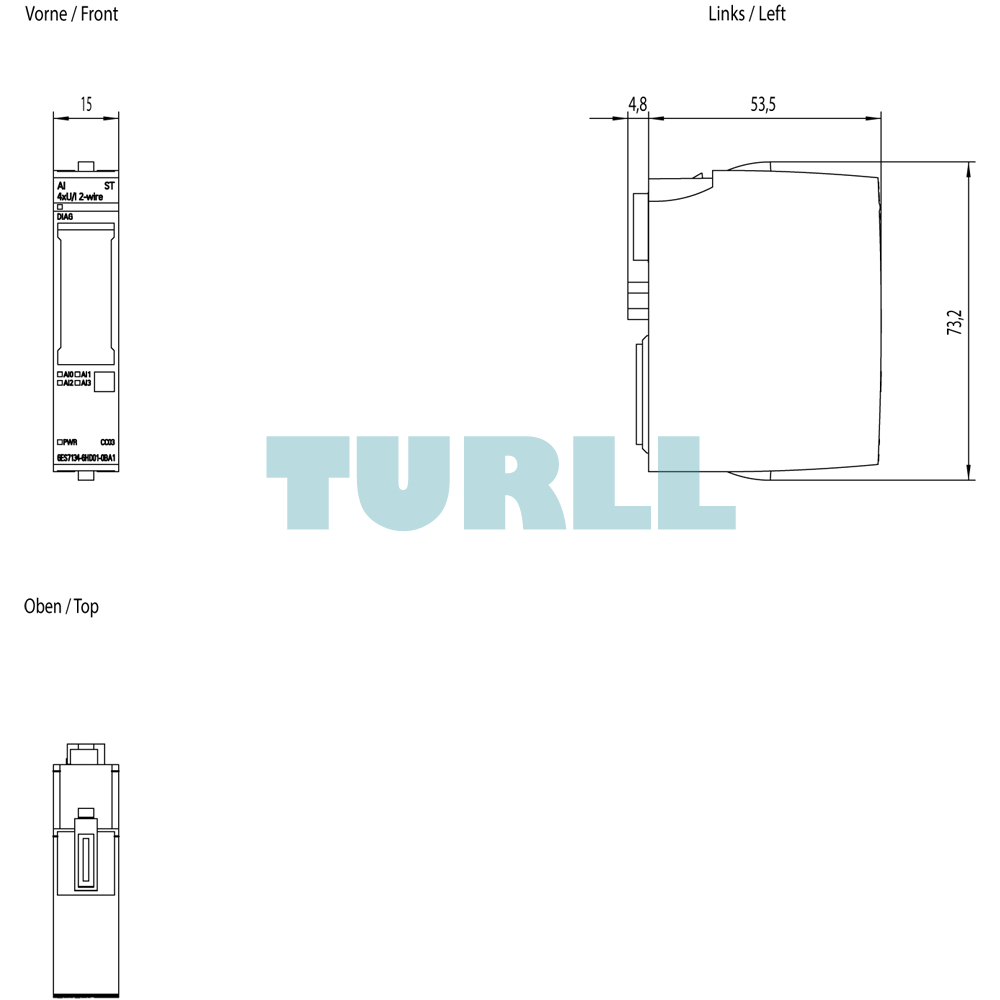

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
| last modified: | 2/6/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
