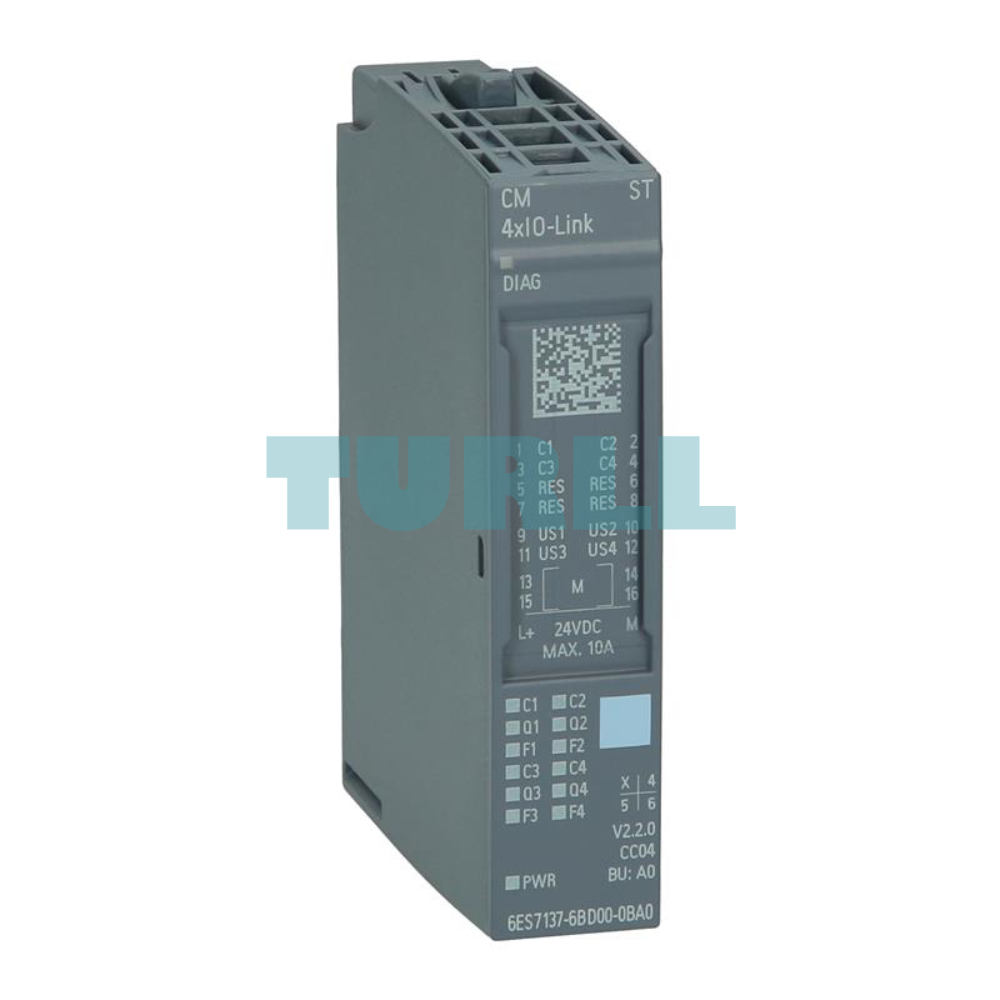

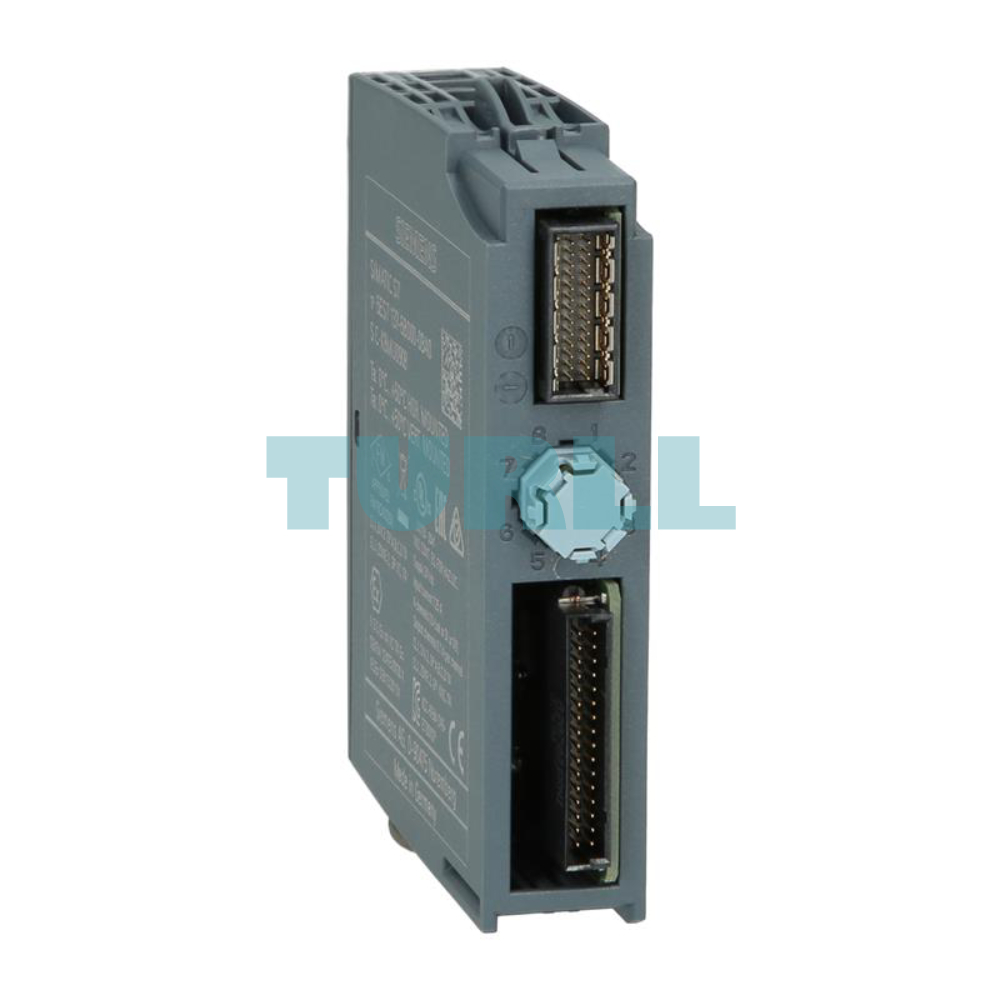

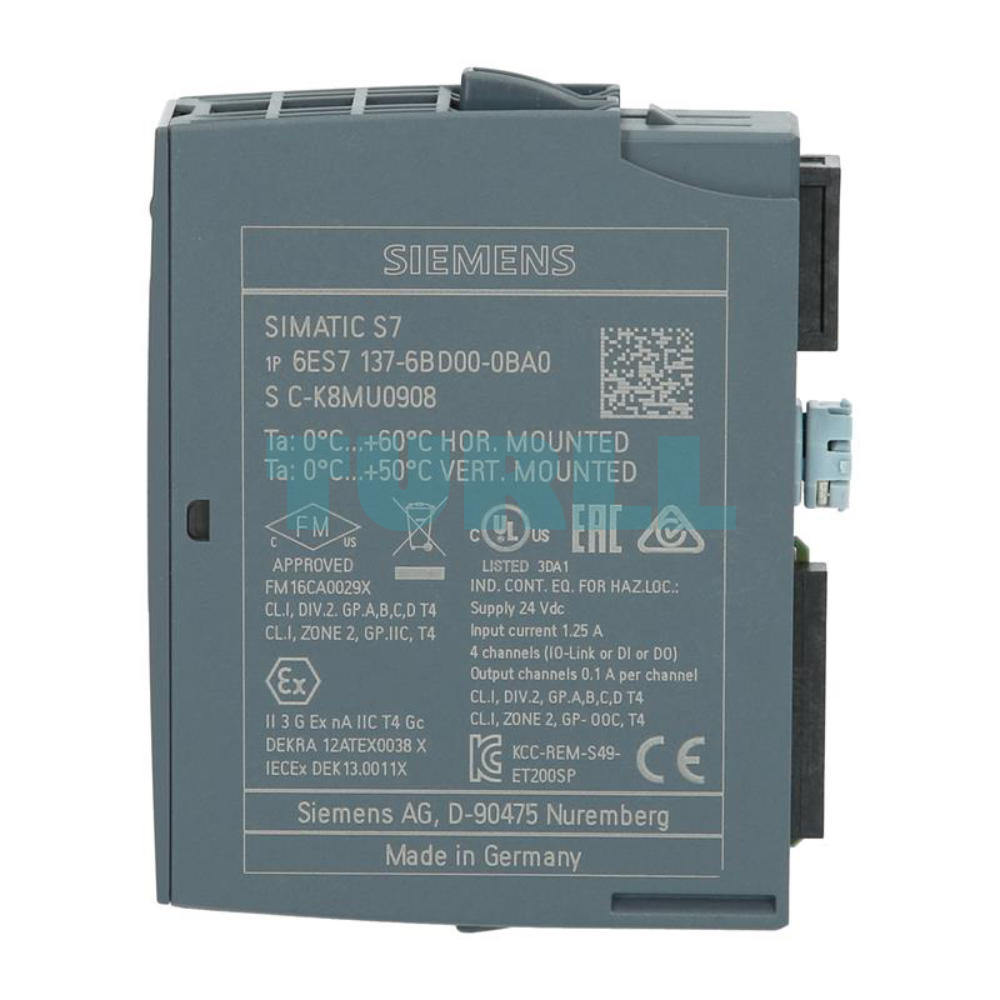

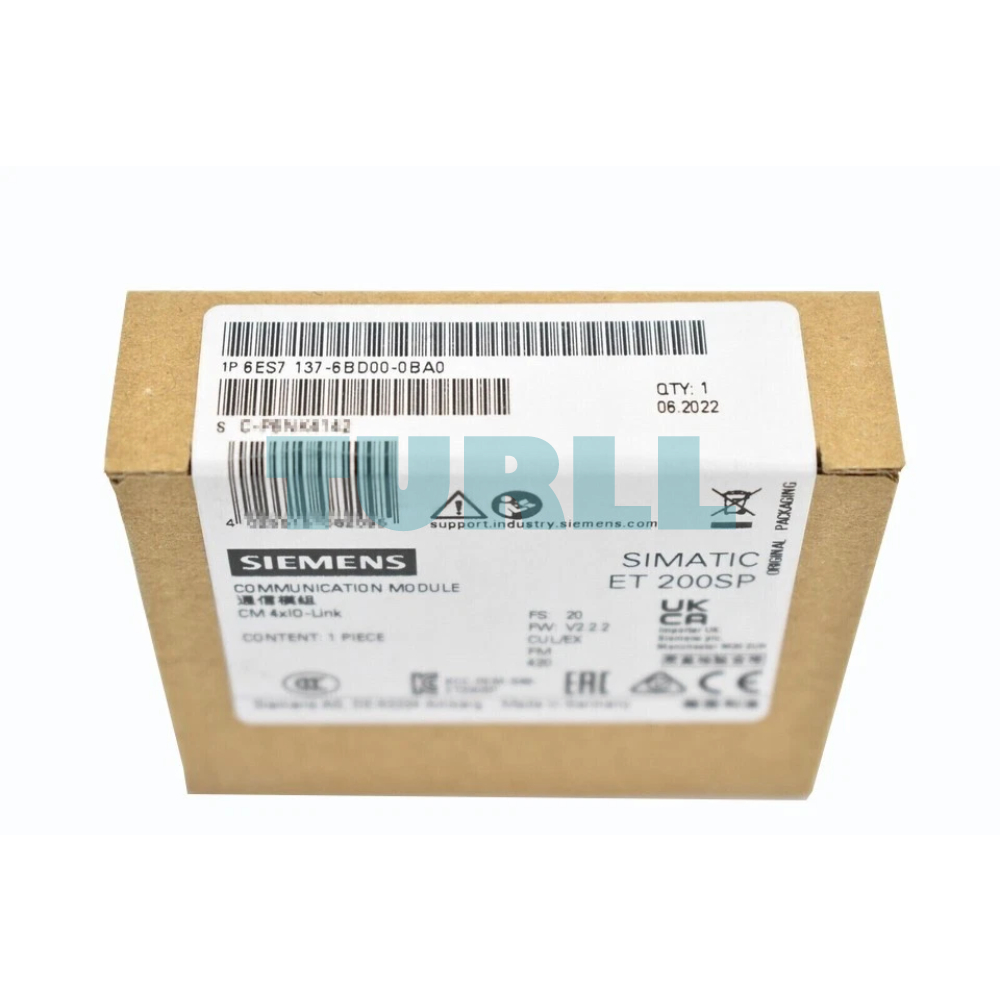

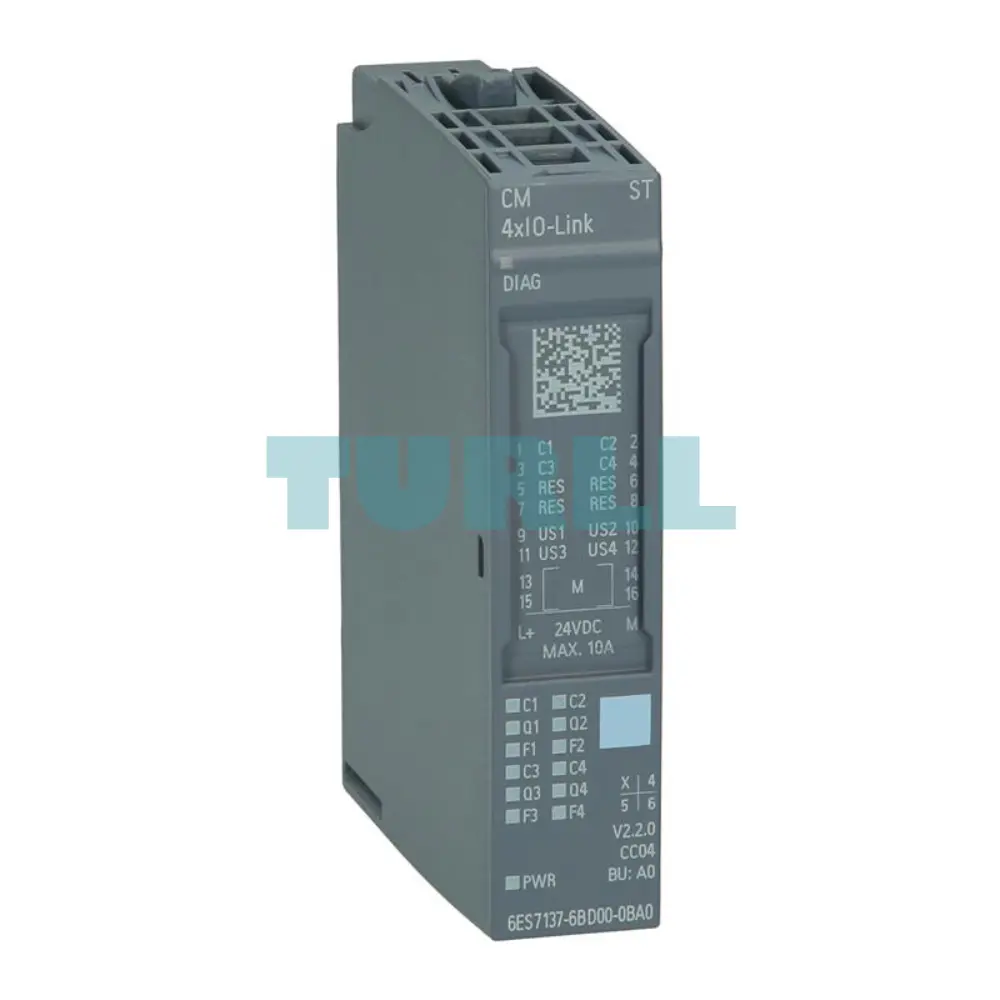

Siemens 6ES7137-6BD00-0BA0 SIMATIC ET 200SP CM 4xIO-Link ST Communication Module Original Brand New
$324.01
SIMATIC ET 200SP CM 4xIO-Link ST communication module, IO-Link Master V1.1, enabling reliable connection and diagnostics for up to four IO-Link devices.
Availability: In stock
Overview
The Siemens 6ES7137-6BD00-0BA0 is a high-performance SIMATIC ET 200SP CM 4xIO-Link ST communication module engineered to provide seamless connection between IO-Link devices and industrial automation systems. Designed as a IO-Link Master V1.1, it ensures efficient data exchange, enhanced diagnostics, and flexible integration across a wide variety of automation environments. Its compact structure within the ET 200SP system reduces panel space while maximizing operational efficiency.
Benefit
-
Enhanced Diagnostics: Provides detailed diagnostic information from connected IO-Link devices, drastically reducing troubleshooting time and improving plant uptime.
-
Simplified Commissioning: Supports automatic parameter assignment and device replacement, eliminating manual configuration and speeding up the commissioning process.
-
Standardized Wiring: Uses unshielded 3-wire or 5-wire standard cables, significantly simplifying wiring and reducing installation costs compared to proprietary solutions.
-
Future-Proof Technology: Implements the IO-Link Master V1.1 standard, ensuring compatibility with the latest generation of intelligent IO-Link devices.
-
Flexible Integration: Seamlessly integrates with the SIMATIC ET 200SP system, allowing for flexible and scalable I/O configurations.

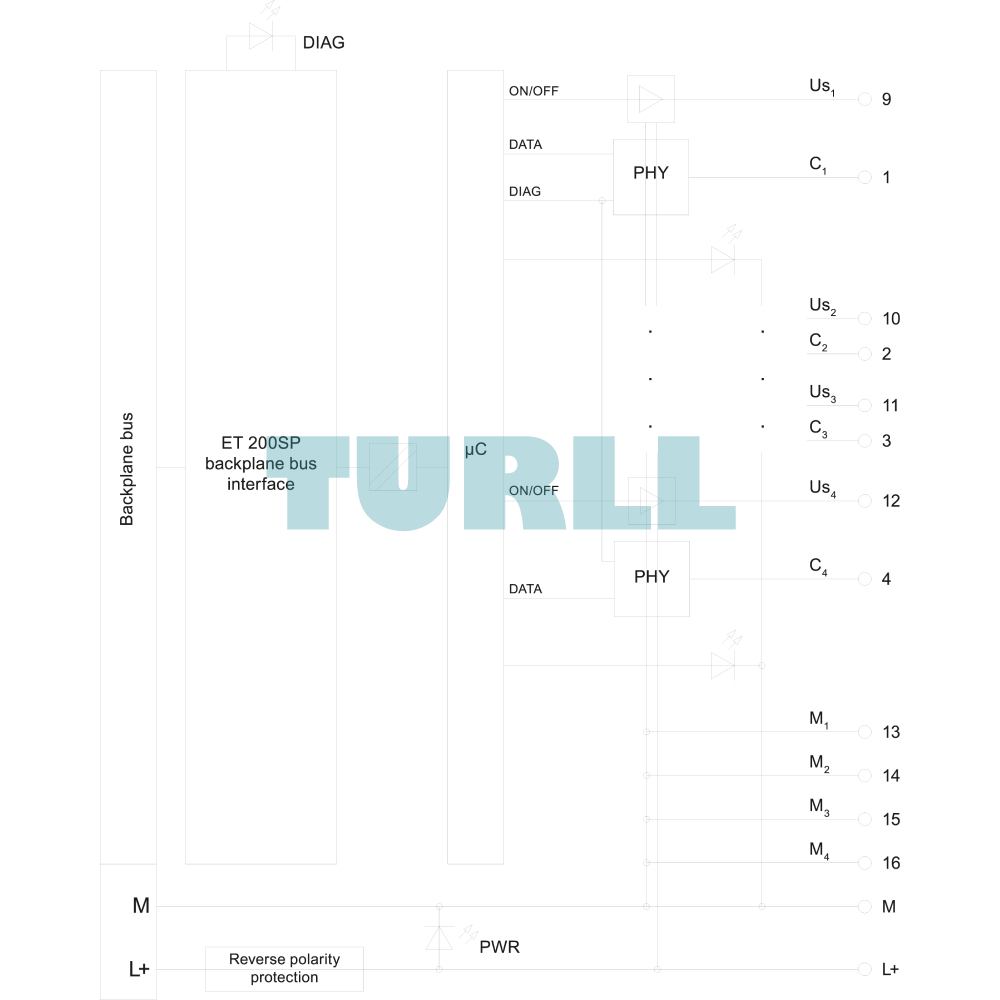

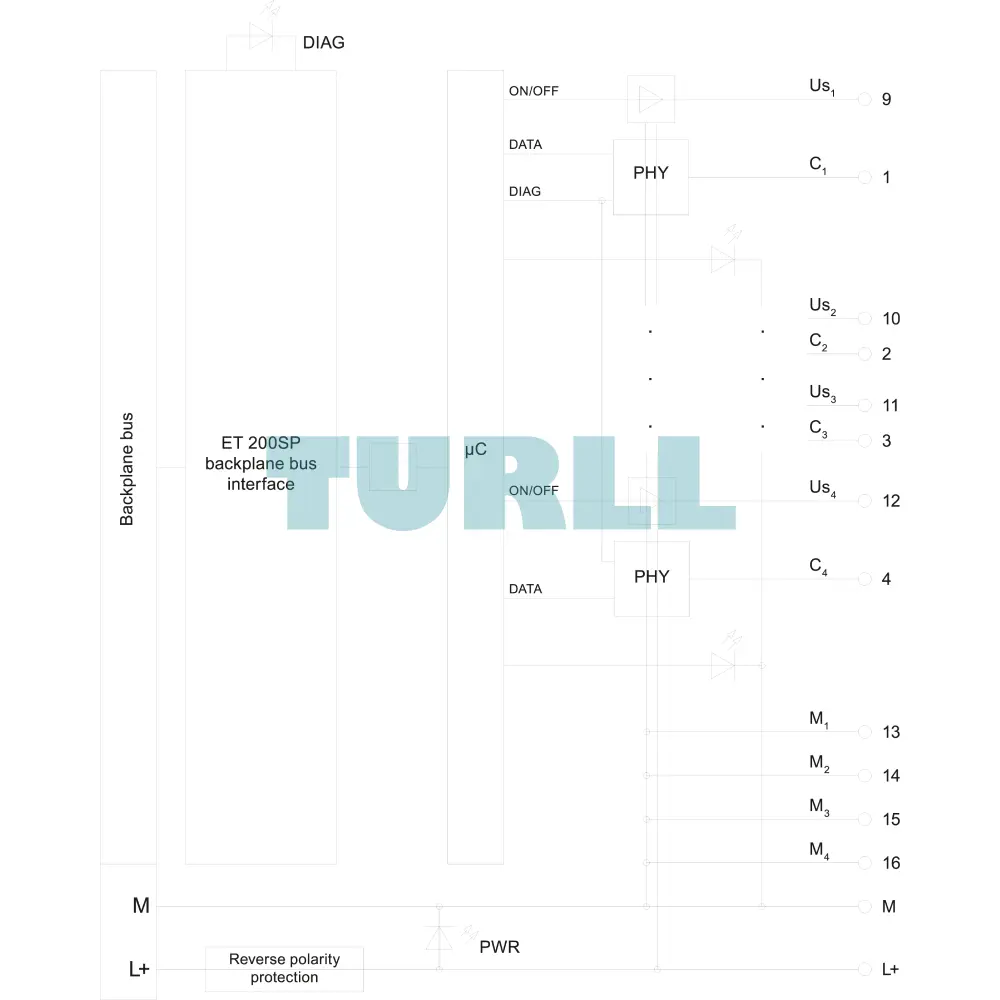

Function
The CM 4xIO-Link ST module acts as the central interface for intelligent IO-Link devices.
-
Data Transmission: It facilitates bidirectional digital data exchange between the IO-Link devices and the higher-level controller (e.g., SIMATIC S7-1500).
-
Process Data Handling: It manages high-speed process data (e.g., switching states, measured values) and acyclic service data (e.g., parameters, identification data).
-
Parameter Storage: It utilizes a data storage function to automatically save the device parameters and download them to a new, replacement device, facilitating hot-swapping without the need for manual software adjustments.
-
Flexible Modes: Each of the four ports can be operated in IO-Link mode, Standard Digital Input (DI) mode, or Standard Digital Output (DO) mode, offering maximum application flexibility.
Download
Visit 6ES7137-6BD00-0BA0 for more detail info
For more our products visit turll
| Weight | 0.040 kg |
|---|---|
| Dimensions | 6.50 × 7.70 × 2.30 mm |
| Brand | SIEMENS |
| Product type designation | CM 4 x IO-Link ST |
| HW functional status | from FS04 |
| Firmware version | – |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color identification plate | CC04 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| ● STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher |
| ● STEP 7 configurable/integrated from version | STEP 7 V5.5 or higher |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V; 20.5 V if IO-Link is used, as the supply voltage for IO-Link devices has to be at least 20 V at the master. |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| Current consumption, max. | 45 mA; without load |
| Number of outputs | 4 |
| ● Rated value | 200 mA; Per channel |
| ● Short-circuit protection | Yes |
| Power loss, typ. | 1 W |
| ● unshielded, max. | 20 m; Also applies for shielded cables |
| Number of ports | 4 |
| ● of which simultaneously controllable | 4 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3) |
| Cycle time, min. | 2 ms; dynamic, depending on user data length |
| Size of process data, input per port | 32 byte; max. |
| Size of process data, input per module | 144 byte; max. |
| Size of process data, output per port | 32 byte; max. |
| Size of process data, output per module | 128 byte; max. |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | Yes |
| Configuration without S7-PCT | Yes |
| Cable length unshielded, max. | 20 m |
| ● IO-Link | Yes |
| ● DI | Yes |
| ● DQ | Yes; max. 100 mA per channel |
| — TIO IO-Link IN | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| — TIO IO-Link OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| — TIO IO-Link IN/OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| ● Port type A | Yes |
| ● Port type B | Yes; 24 V DC via external terminal |
| ● via three-wire connection | Yes |
| ● Diagnostic alarm | Yes; The port diagnosis is available in the IO-Link mode only. |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes |
| ● Short-circuit | Yes |
| ● Group error | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; one green LED for channel status Qn (SIO mode) and port status Cn (IO-Link mode) per channel |
| ● for channel diagnostics | Yes; red Fn LED |
| ● for module diagnostics | Yes; green/red DIAG LED |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| ● horizontal installation, min. | -30 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |

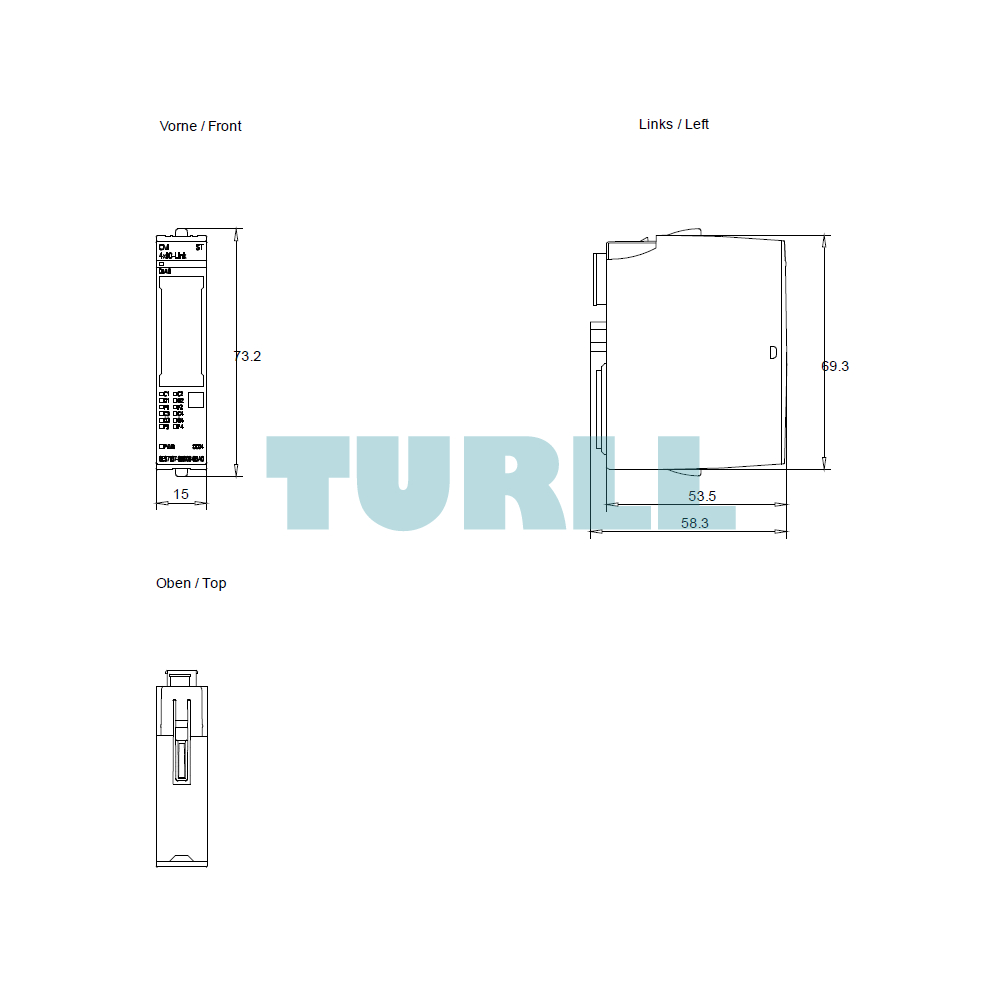

| Width | 13 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
| last modified: | 9/27/2021 |
