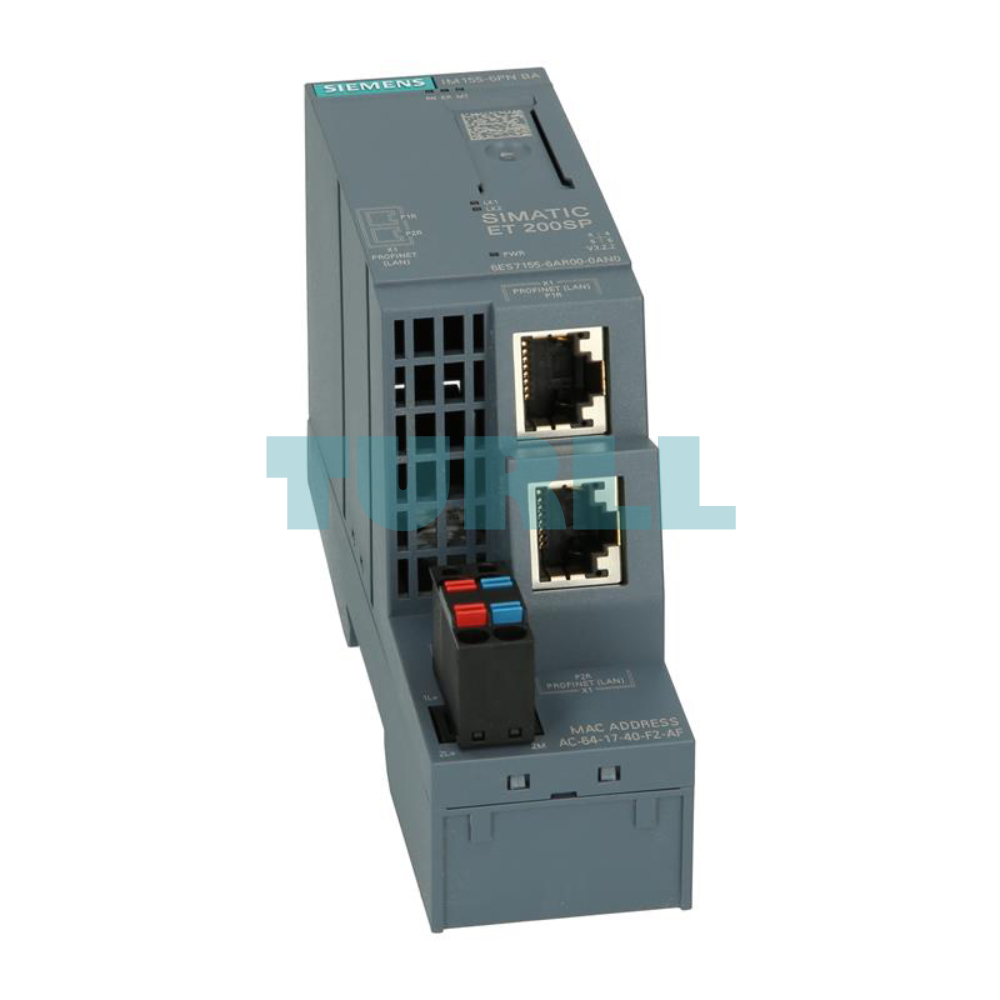

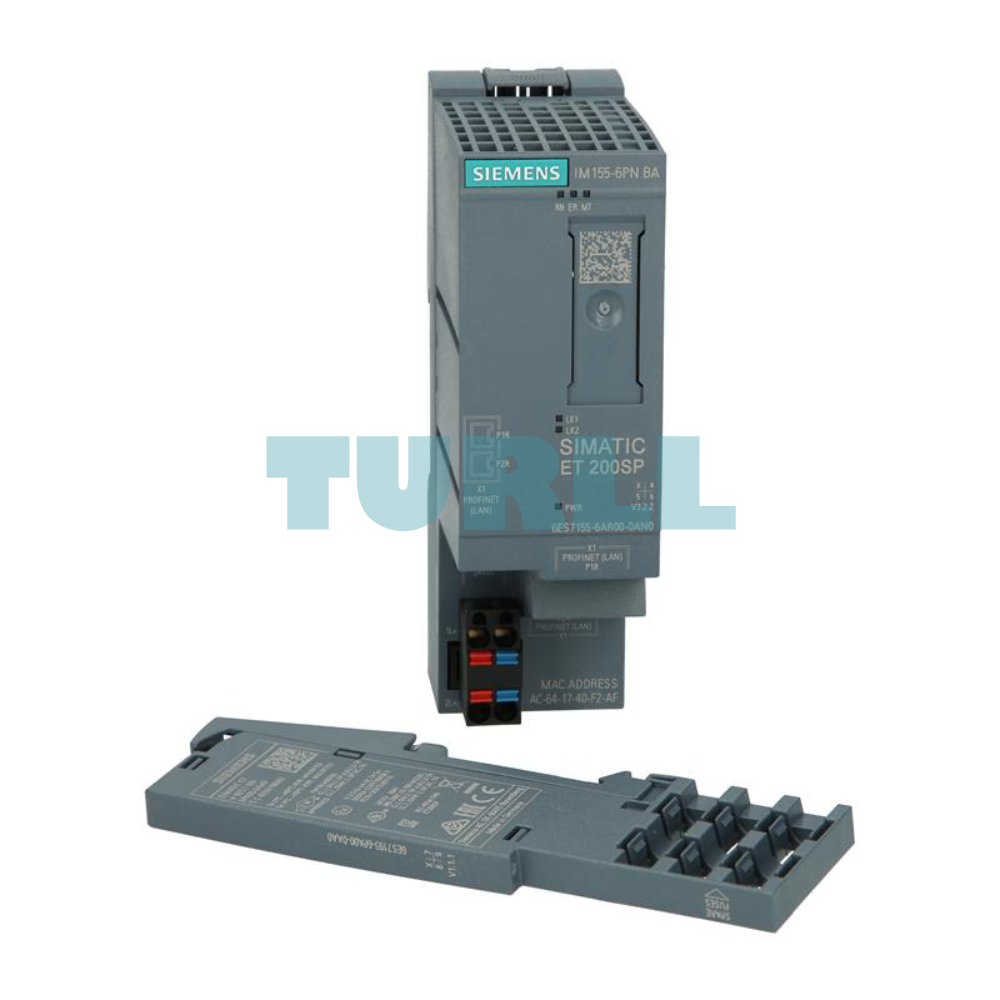

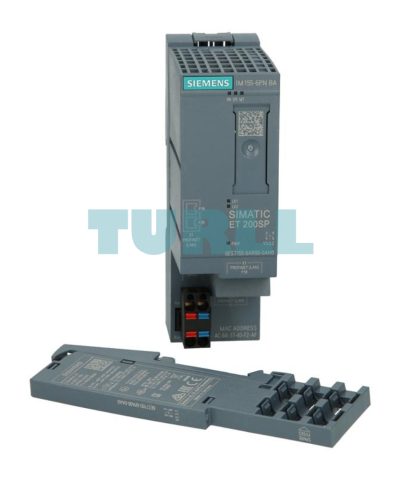

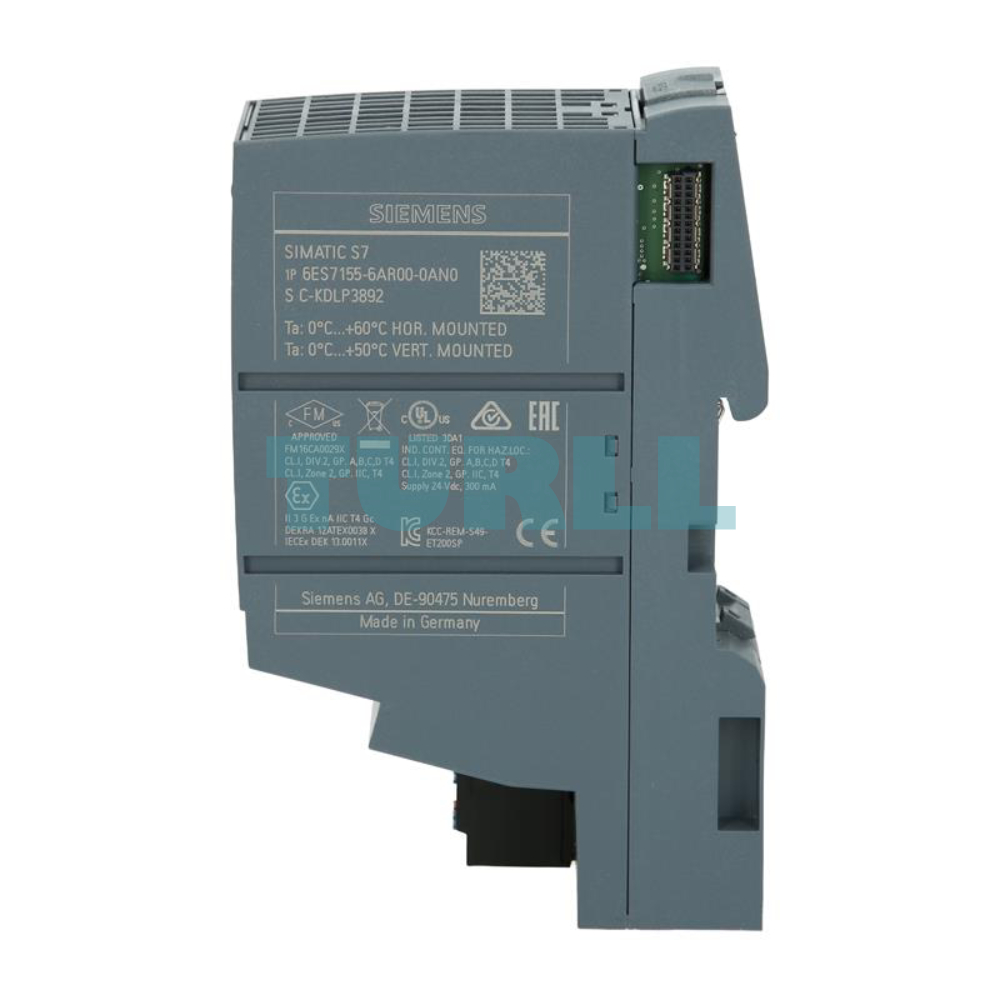

Siemens 6ES7155-6AR00-0AN0 SIMATIC ET 200SP, PROFINET, Interface Module IM 155-6PN Basic Original Brand New
$145.00
This model is a PROFINET Interface Module IM 155-6PN Basic for the SIMATIC ET 200SP decentralized I/O system. It connects the ET 200SP station to the controller, supports up to 12 I/O modules, and features 2x RJ45 ports for simple network integration. Includes the necessary server module.
Availability: In stock
Overview
The Siemens 6ES7155-6AR00-0AN0 is a high-performance SIMATIC ET 200SP PROFINET Interface Module (IM 155-6PN Basic) designed for seamless industrial automation. This module supports up to 12 I/O modules and comes equipped with 2 integrated RJ45 sockets, including a server module, offering robust connectivity and flexibility for modern industrial networks. It ensures reliable data transfer, easy integration, and scalable performance for your automation systems.
Benefit
-
Cost-Effective Decentralization: Allows for distributing I/O points closer to the process, reducing wiring costs and commissioning time.
-
High-Speed Communication: Utilizes PROFINET for deterministic and fast data exchange between the field devices and the PLC.
-
Compact Design: The space-saving ET 200SP form factor allows for higher packing density in the control cabinet compared to older systems.
-
Simplified Maintenance: The included Server Module and hot-swappable module design facilitate easy replacement without powering down the entire station.
-
Flexible Network Topology: The 2x RJ45 ports support line topology and ring structures, simplifying network design and implementation.
Functions / Features
-
PROFINET Interface: Reliable and fast communication for automation networks.
-
Modular Expansion: Up to 12 I/O modules supported.
-
Integrated Server Module: Allows direct server connectivity for enhanced control.
-
Durable Industrial Design: Resistant to harsh industrial environments.
-
Plug-and-Play Setup: Simplifies installation and reduces commissioning time.
Download
Visit 6ES7155-6AR00-0AN0 for more detail info
For more our products visit turll
| Weight | 0.153 kg |
|---|---|
| Dimensions | 8.30 × 12.20 × 6.30 mm |
| Brand | SIEMENS |
| Product type designation | IM 155-6 PN BA |
| HW functional status | from FS04 |
| Firmware version | – |
| ● FW update possible | Yes |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Module swapping during operation (hot swapping) | Yes; Single hot swapping |
| ● Isochronous mode | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| ● STEP 7 configurable/integrated from version | V5.5 SP4 and higher |
| ● PROFINET from GSD version/GSD revision | V2.3 / – |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| ● Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 300 mA |
| I²t | 0.09 A²·s |
| Power loss, typ. | 1.8 W |
| ● Address space per module, max. | 32 byte; per input / output |
| ● Address space per station, max. | 32 byte; per input / output |
| ● Quantity of operable ET 200SP modules, max. | 12 |
| ● Quantity of operable ET 200AL modules, max. | 0 |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| ● RJ 45 (Ethernet) | Yes; 2 integrated RJ45 ports |
| ● Number of ports | 2 |
| ● integrated switch | Yes |
| ● BusAdapter (PROFINET) | No |
| ● PROFINET IO Device | Yes |
| ● Open IE communication | Yes |
| ● Media redundancy | Yes; PROFINET MRP |
| ● Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| ● 10 Mbps | No |
| ● 100 Mbps | Yes; PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| ● Autonegotiation | Yes |
| ● Autocrossing | Yes |
| — IRT | No |
| — PROFIenergy | No |
| — Prioritized startup | No |
| — Shared device | No |
| ● PROFINET system redundancy (S2) | No |
| — MRP | Yes |
| — MRPD | No |
| ● TCP/IP | Yes |
| ● SNMP | Yes |
| ● LLDP | Yes |
| Equidistance | No |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| ● RUN LED | Yes; green LED |
| ● ERROR LED | Yes; red LED |
| ● MAINT LED | Yes; Yellow LED |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes |
| between supply and all other circuits | No |
| Network loading class | 2 |
| ● horizontal installation, min. | -30 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| ● via BU/BA Send | No |

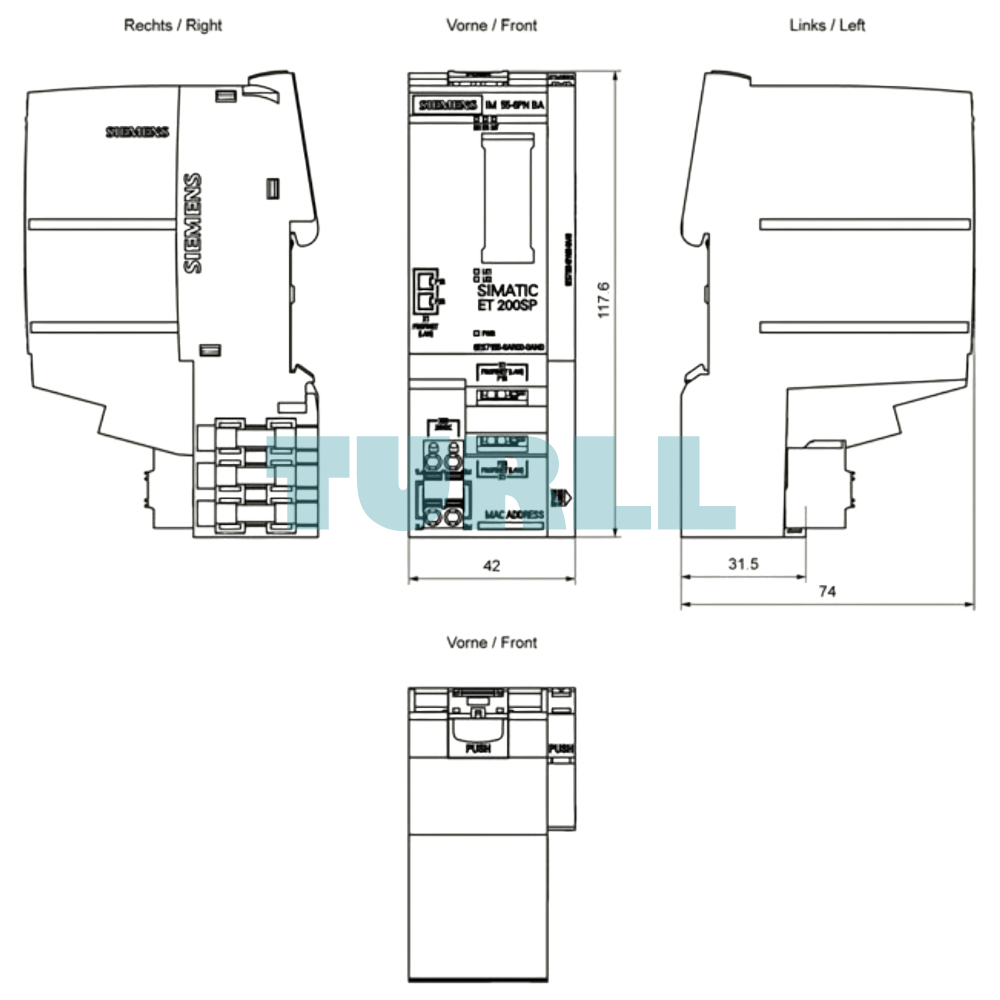

| Width | 35 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 125 g |
| last modified: | 3/2/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
