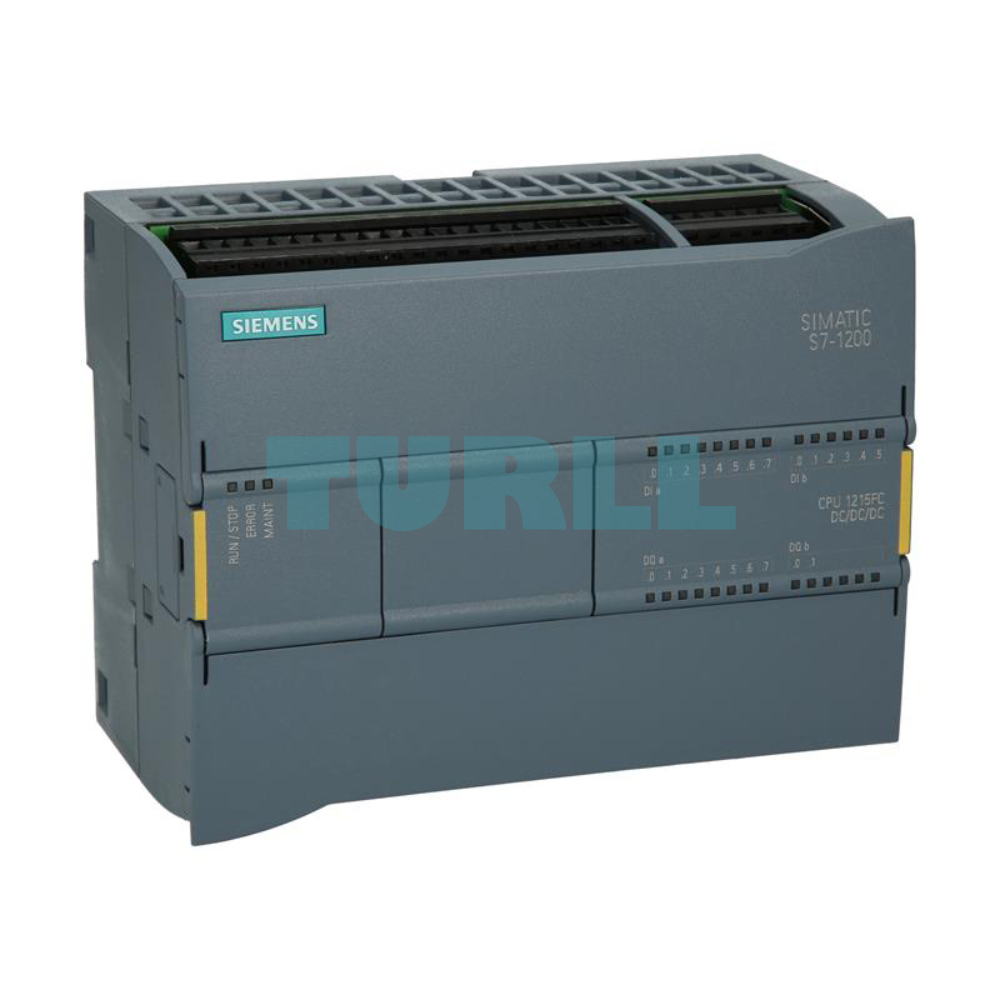

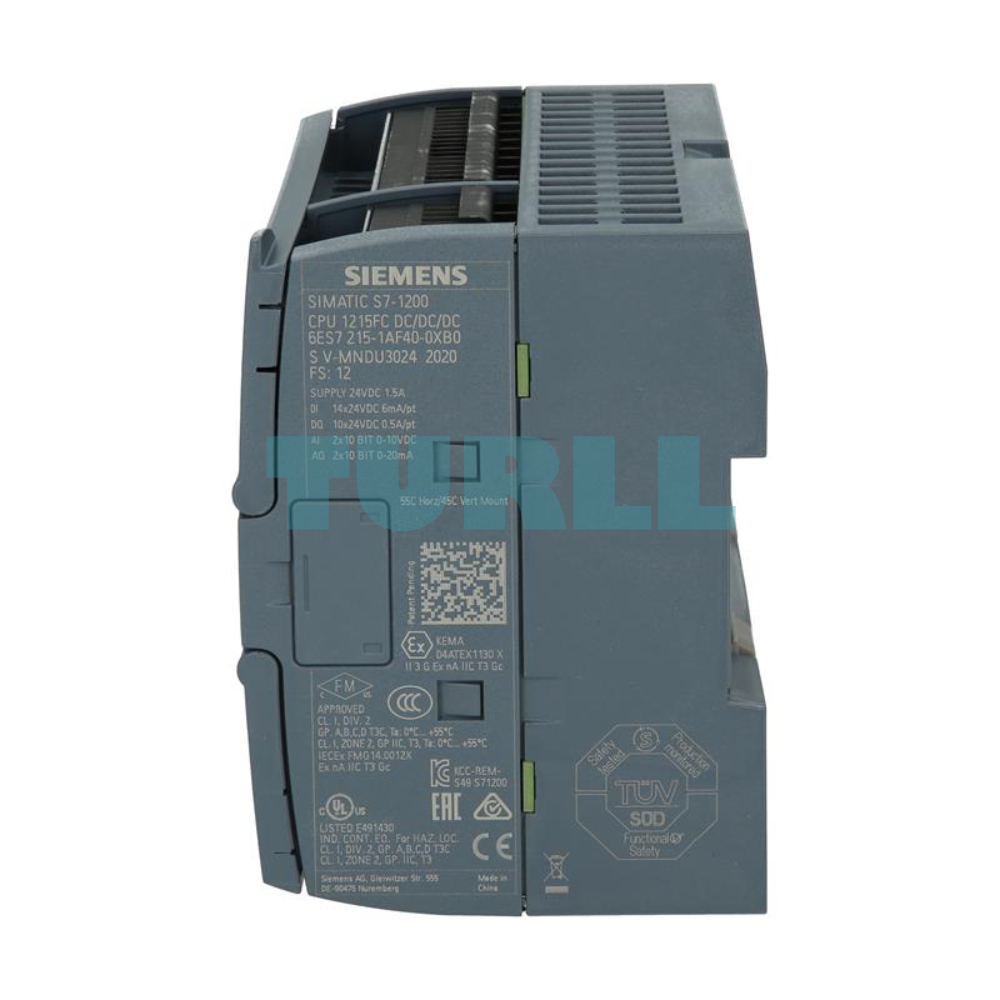

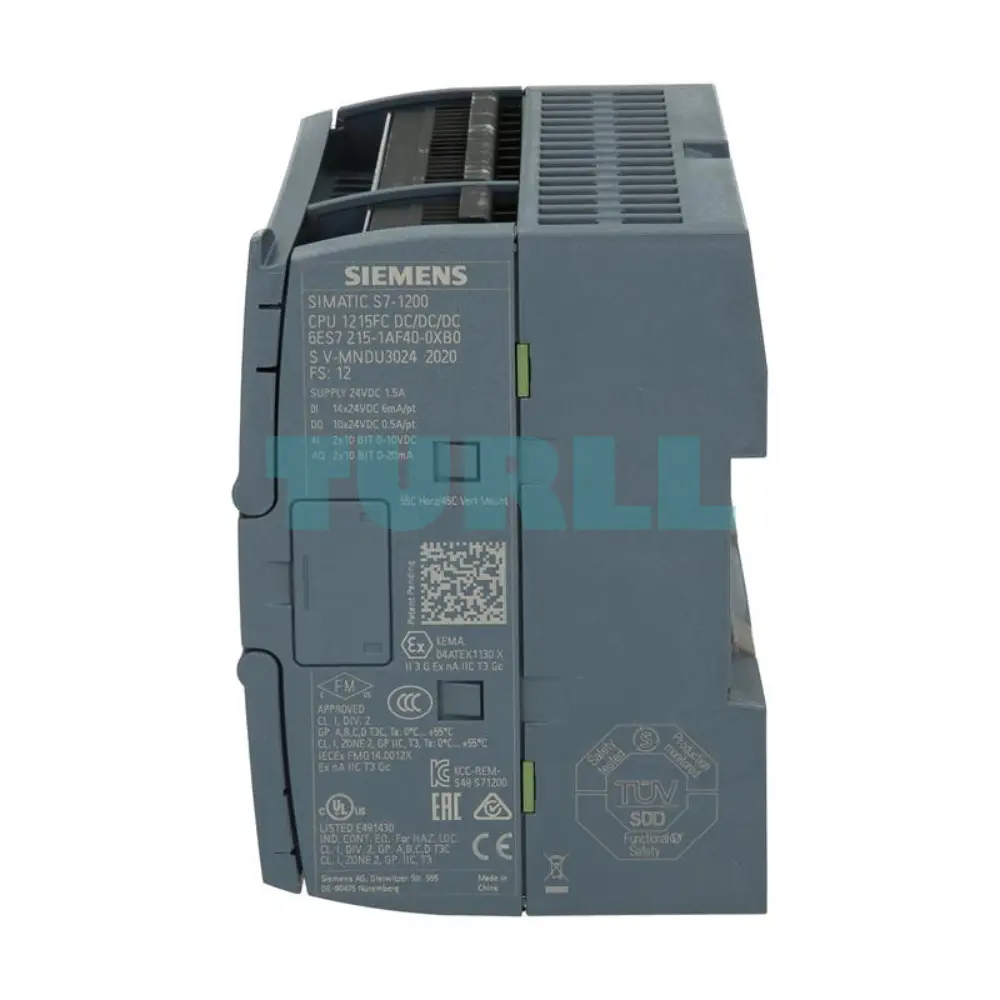

Siemens 6ES7215-1AF40-0XB0 SIMATIC S7-1200F, CPU 1215 FC, 250KB, 2x PROFINET Original Brand New
$1,084.71
SIMATIC S7-1200F CPU 1215 FC, compact automation controller with DC/DC/DC configuration, 2 PROFINET ports, onboard I/O (14 DI, 10 DO, 2 AI, 2 AO), and 250 KB program/data memory for efficient industrial control.
Availability: In stock (can be backordered)
Overview
The Siemens 6ES7215-1AF40-0XB0 is a compact, fail-safe CPU from the SIMATIC S7-1200F family of Basic Controllers. It is engineered for applications requiring both standard control and integrated, reliable safety functionality up to SIL 3 and Performance Level e (PLe).
This DC/DC/DC variant is designed for maximum efficiency, featuring a 24 V DC power supply and transistor outputs (DC), making it ideal for fast, precise switching operations in demanding environments. Its dual PROFINET ports allow for flexible network topologies, including line and ring structures, ensuring seamless integration into the Totally Integrated Automation (TIA) Portal environment. With 250 KB of program/data memory, the CPU 1215 FC provides ample capacity for complex automation and safety tasks.
Key Features & Function
-

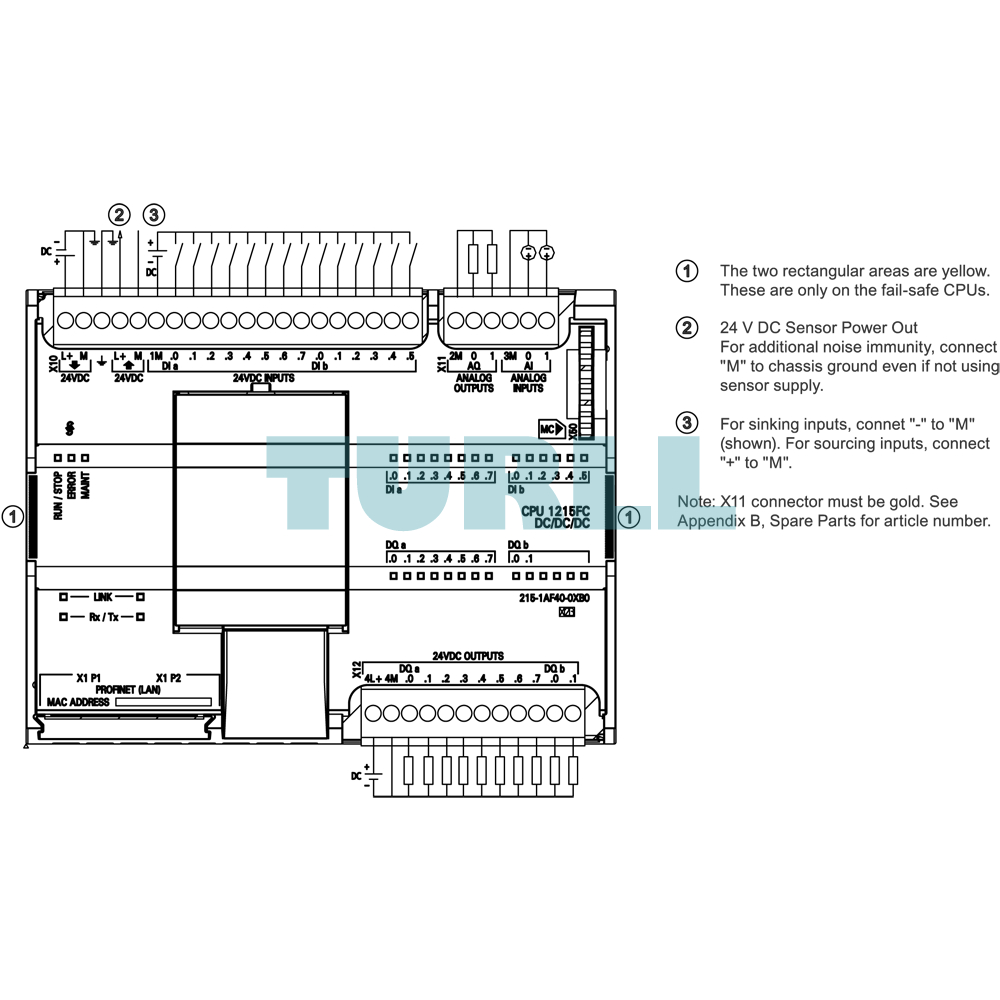

Onboard I/O: 14 digital inputs (DI) 24 V DC, 10 digital outputs (DO) 24 V DC, 2 analog inputs (AI) 0–10 V DC, 2 analog outputs (AO) 0–20 mA DC.
-

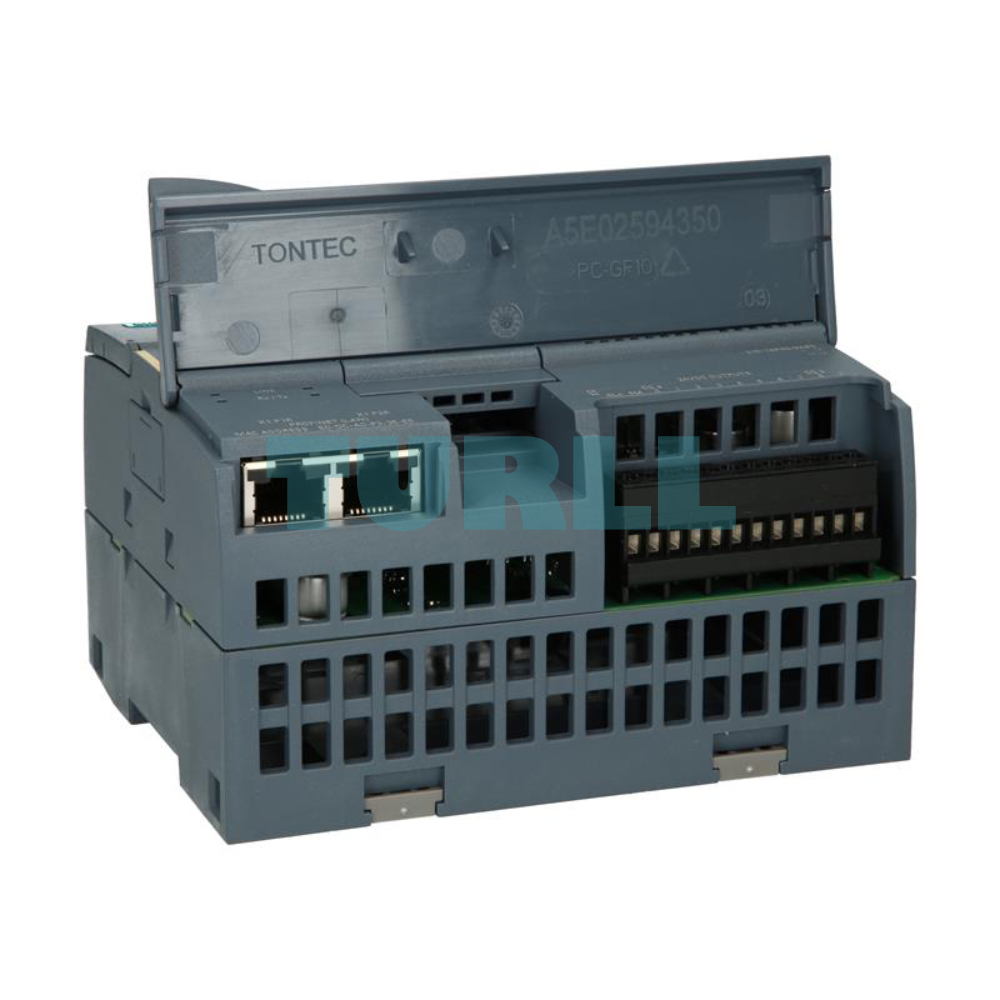

Communication: Dual PROFINET ports for high-speed industrial networking.
-
Power Supply: DC 20.4–28.8 V for robust and stable operations.
-
Memory: 250 KB program/data memory to support complex automation tasks.
-
Compact Design: Ideal for space-saving installations without compromising performance.
-
Reliability & Safety: Designed for fault detection and secure operations in industrial environments.
Benefit
-
Enhances industrial automation efficiency with high-speed CPU processing.
-
Provides flexible I/O configurations for versatile applications.
-
Facilitates seamless integration into PROFINET networks.
-
Reduces downtime with reliable, durable hardware.
-
Compact and energy-efficient design for modern production lines.
Visit 6ES7215-1AF40-0XB0 for more detail info
For more our products visit turll
Download
| Weight | 0.467 kg |
|---|---|
| Dimensions | 11.50 × 13.50 × 8.50 mm |
| Brand | SIEMENS |
| Product type designation | CPU 1215FC DC/DC/DC |
| Firmware version | V4.5 |
| ● Programming package | STEP 7 V17 or higher |
| Rated value (DC) | – |
| ● 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| ● permissible range, lower limit (DC) | 20.4 V |
| ● permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 500 mA; CPU only |
| Current consumption, max. | 1 500 mA; CPU with all expansion modules |
| Inrush current, max. | 12 A; at 28.8 V DC |
| I²t | 0.5 A²·s |
| for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM |
| ● 24 V | L+ minus 4 V DC min. |
| Power loss, typ. | 12 W |
| ● expandable | No |
| ● integrated | 4 Mbyte |
| ● Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card |
| ● maintenance-free | Yes |
| ● without battery | Yes |
| for bit operations, typ. | 0.08 µs; / instruction |
| for word operations, typ. | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.3 µs; / instruction |
| Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| ● Number, max. | Limited only by RAM for code |
| Retentive data area (incl. timers, counters, flags), max. | 14 kbyte |
| ● Size, max. | 8 kbyte; Size of bit memory address area |
| ● per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
| ● Inputs, adjustable | 1 kbyte |
| ● Outputs, adjustable | 1 kbyte |
| Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules |
| ● Hardware clock (real-time) | Yes |
| ● Backup time | 480 h; Typical |
| ● Deviation per day, max. | ±60 s/month at 25 °C |
| Number of digital inputs | 14; Integrated |
| ● of which inputs usable for technological functions | 6; HSC (High Speed Counting) |
| Source/sink input | Yes |
| — up to 40 °C, max. | 14 |
| ● Rated value (DC) | 24 V |
| ● for signal "0" | 5 V DC at 1 mA |
| ● for signal "1" | 15 V DC at 2.5 mA |
| — at "0" to "1", min. | 0.2 ms |
| — at "0" to "1", max. | 12.8 ms |
| — parameterizable | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| Number of digital outputs | 10 |
| ● of which high-speed outputs | 4; 100 kHz Pulse Train Output |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| ● with resistive load, max. | 0.5 A |
| ● on lamp load, max. | 5 W |
| ● for signal "0", max. | 0.1 V; with 10 kOhm load |
| ● for signal "1", min. | 20 V |
| ● for signal "1" rated value | 0.5 A |
| ● for signal "0" residual current, max. | 0.1 mA |
| ● "0" to "1", max. | 1 µs |
| ● "1" to "0", max. | 5 µs |
| ● of the pulse outputs, with resistive load, max. | 100 kHz |
| ● Number of relay outputs | 0 |
| ● unshielded, max. | 150 m |
| Number of analog inputs | 2 |
| ● Voltage | Yes |
| ● 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | ≥100k ohms |
| ● shielded, max. | 100 m; twisted and shielded |
| Number of analog outputs | 2 |
| ● 0 to 20 mA | Yes |
| ● Integration time, parameterizable | Yes |
| ● Conversion time (per channel) | 625 µs |
| ● Resolution with overrange (bit including sign), max. | 10 bit |
| ● 2-wire sensor | Yes |
| Interface type | PROFINET |
| Isolated | Yes |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| ● RJ 45 (Ethernet) | Yes |
| ● Number of ports | 2 |
| ● integrated switch | Yes |
| ● PROFINET IO Controller | Yes |
| ● PROFINET IO Device | Yes |
| ● SIMATIC communication | Yes |
| ● Open IE communication | Yes; Optionally also encrypted |
| ● Web server | Yes |
| ● Media redundancy | Yes; as MRP client |
| ● Transmission rate, max. | 100 Mbit/s |
| — Prioritized startup | Yes |
| — Number of IO devices with prioritized startup, max. | 16 |
| — Number of connectable IO Devices, max. | 16 |
| — Number of connectable IO Devices for RT, max. | 16 |
| — of which in line, max. | 16 |
| — Activation/deactivation of IO Devices | Yes |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — Updating time | The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. |
| — PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| — Isochronous mode | No |
| — IRT | No |
| — PROFIenergy | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 2 |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required |
| OPC UA | Yes; OPC UA Server |
| AS-Interface | Yes; CM 1243-2 required |
| ● DHCP | No |
| ● SNMP | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| — MRP | Yes; as MRP redundancy manager and/or MRP client |
| — MRPD | No |
| ● S7 routing | Yes |
| ● TCP/IP | Yes |
| ● ISO-on-TCP (RFC1006) | Yes |
| ● UDP | Yes |
| — Data length, max. | 1 472 byte |
| ● User-defined websites | Yes |
| ● Runtime license required | Yes; "Basic" license required |
| ● OPC UA Server | Yes; data access (read, write, subscribe), method call, runtime license required |
| — Application authentication | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| — User authentication | "anonymous" or by user name & password |
| — Number of sessions, max. | 10 |
| — Number of subscriptions per session, max. | 50 |
| — Sampling interval, min. | 100 ms |
| — Publishing interval, min. | 200 ms |
| — Number of server methods, max. | 20 |
| — Number of monitored items, max. | 1 000 |
| — Number of server interfaces, max. | 2 |
| — Number of nodes for user-defined server interfaces, max. | 2 000 |
| ● MODBUS | Yes |
| ● supported | Yes |
| ● as server | Yes |
| ● as client | Yes |
| ● User data per job, max. | See online help (S7 communication, user data size) |
| ● overall | PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 64 max |
| ● Status/control variable | Yes |
| ● Variables | inputs/outputs, bit memories, DBs, peripheral I/Os (without fail-safe), times, counters |
| ● Forcing | Yes; peripheral inputs/outputs (without fail-safe) |
| ● present | Yes |
| ● Number of configurable Traces | 2 |
| ● Memory size per trace, max. | 512 kbyte |
| ● RUN/STOP LED | Yes |
| ● ERROR LED | Yes |
| ● MAINT LED | Yes |
| Counter | – |
| ● Number of counters | 6 |
| ● Counting frequency, max. | 100 kHz |
| Frequency measurement | Yes |
| controlled positioning | Yes |
| Number of position-controlled positioning axes, max. | 8 |
| Number of positioning axes via pulse-direction interface | 4; With integrated outputs |
| PID controller | Yes |
| Number of alarm inputs | 4 |
| Number of pulse outputs | 4 |
| Limit frequency (pulse) | 100 kHz |
| ● Potential separation digital inputs | No |
| ● Potential separation digital outputs | Yes |
| ● between the channels | No |
| ● between the channels, in groups of | 1 |
| ● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 6 kV |
| ● Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes |
| ● Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes |
| ● Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes |
| ● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes |
| ● Limit class A, for use in industrial areas | Yes; Group 1 |
| ● Limit class B, for use in residential areas | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
| IP degree of protection | IP20 |
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Performance level according to ISO 13849-1 | PLe |
| ● SIL acc. to IEC 61508 | SIL 3 |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | 0 °C |
| ● horizontal installation, max. | 55 °C |
| ● vertical installation, min. | 0 °C |
| ● vertical installation, max. | 45 °C |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Operation, min. | 795 hPa |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Installation altitude, min. | -1 000 m |
| ● Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| ● Operation, max. | 95 %; no condensation |
| ● Vibration resistance during operation acc. to IEC 60068-2-6 | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
| ● Operation, tested according to IEC 60068-2-6 | Yes |
| ● tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| — LAD | Yes; incl. failsafe |
| — FBD | Yes; incl. failsafe |
| — SCL | Yes |
| ● User program protection/password protection | Yes |
| ● Copy protection | Yes |
| ● Block protection | Yes |
| ● protection of confidential configuration data | Yes |
| ● Protection level: Write protection | Yes |
| ● Protection level: Read/write protection | Yes |
| ● Protection level: Complete protection | Yes |
| ● adjustable | Yes |

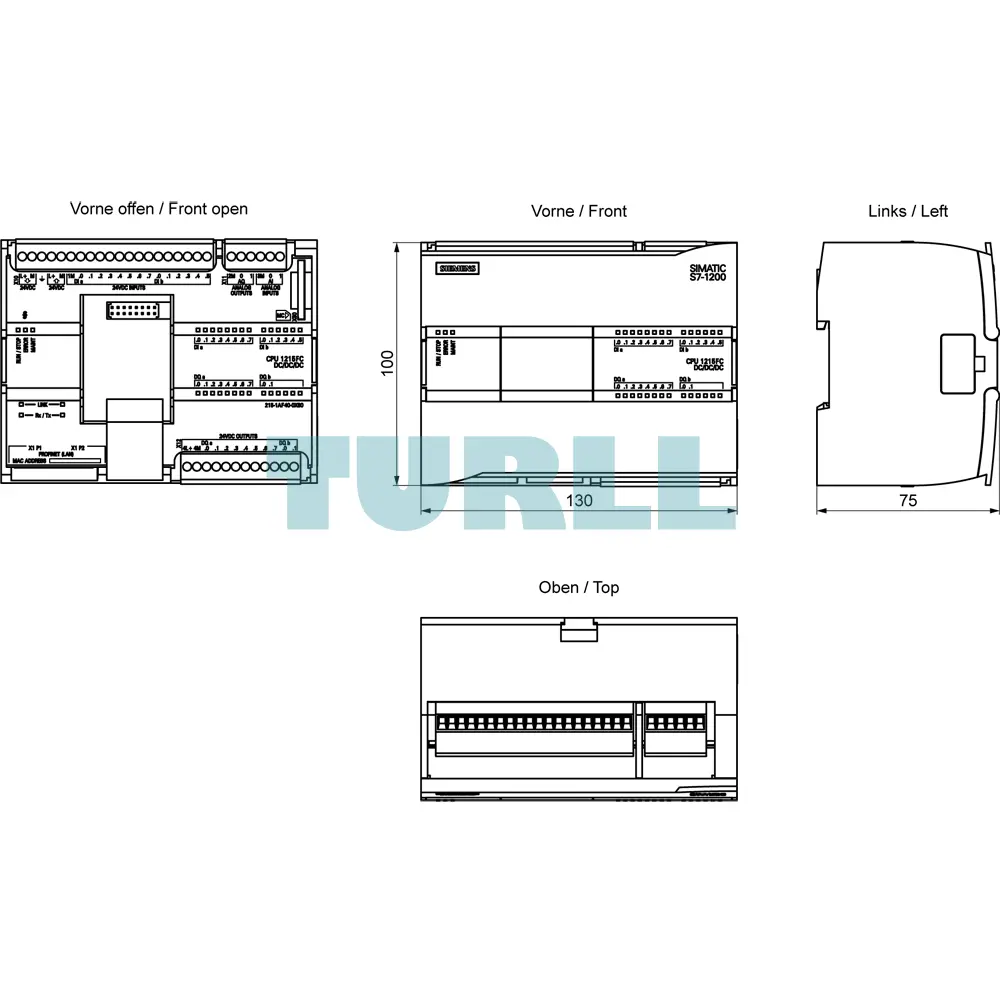

| Width | 130 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 500 g |
| last modified: | 5/17/2021 |
