Overview

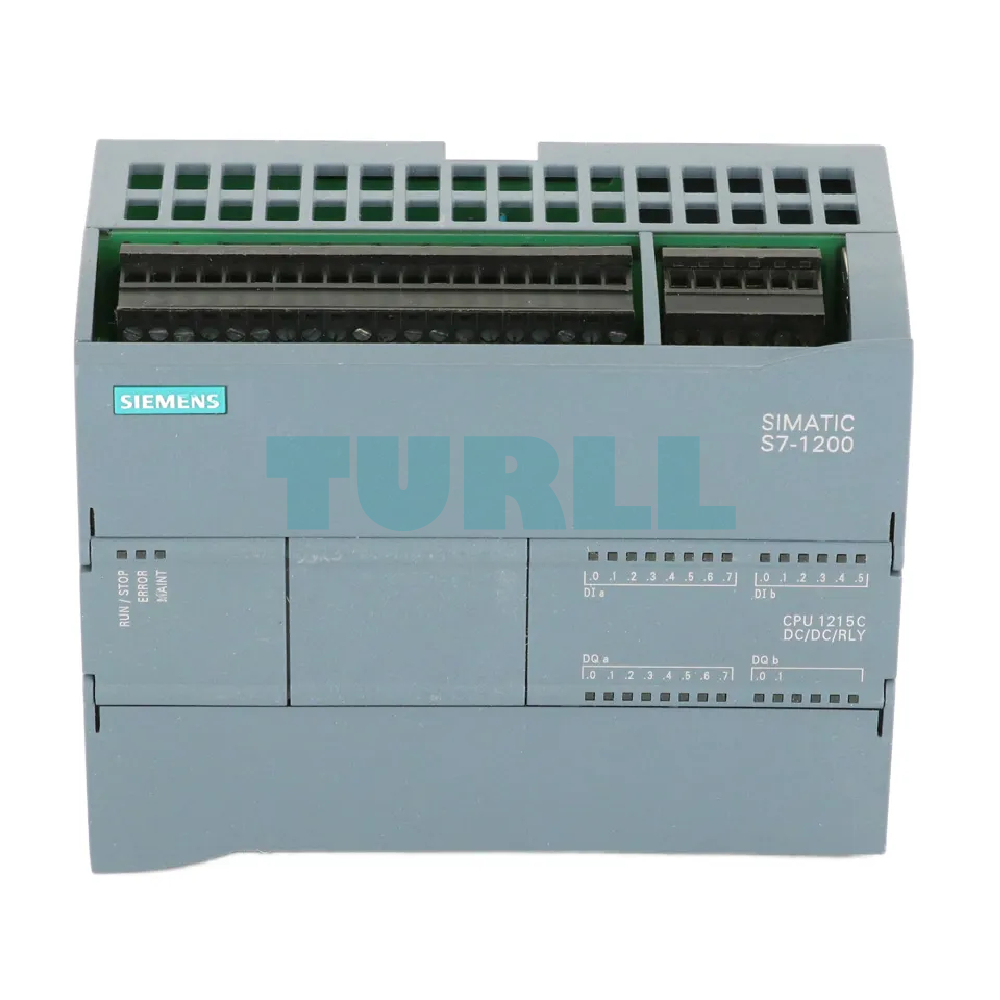

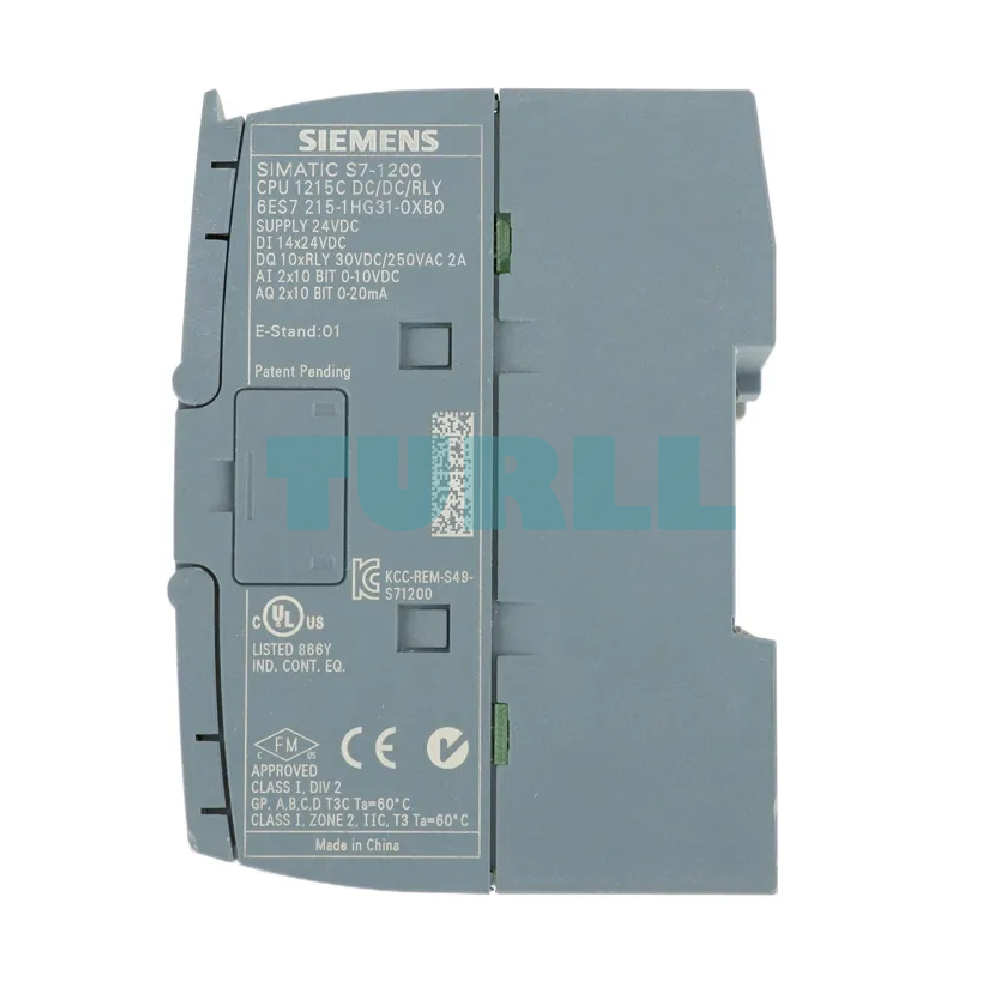

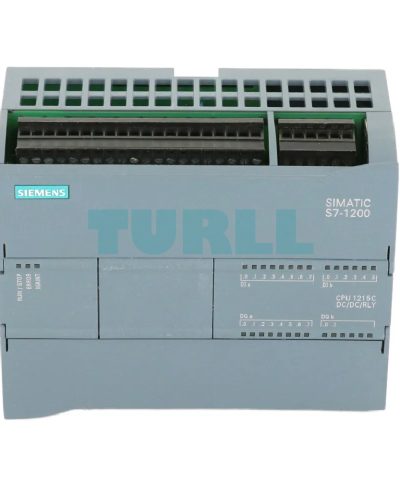

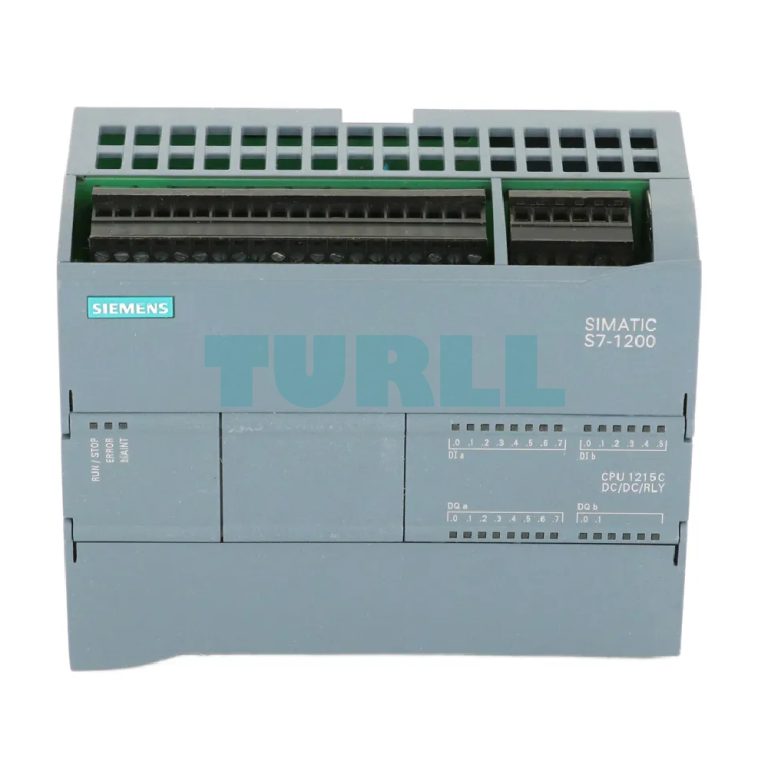

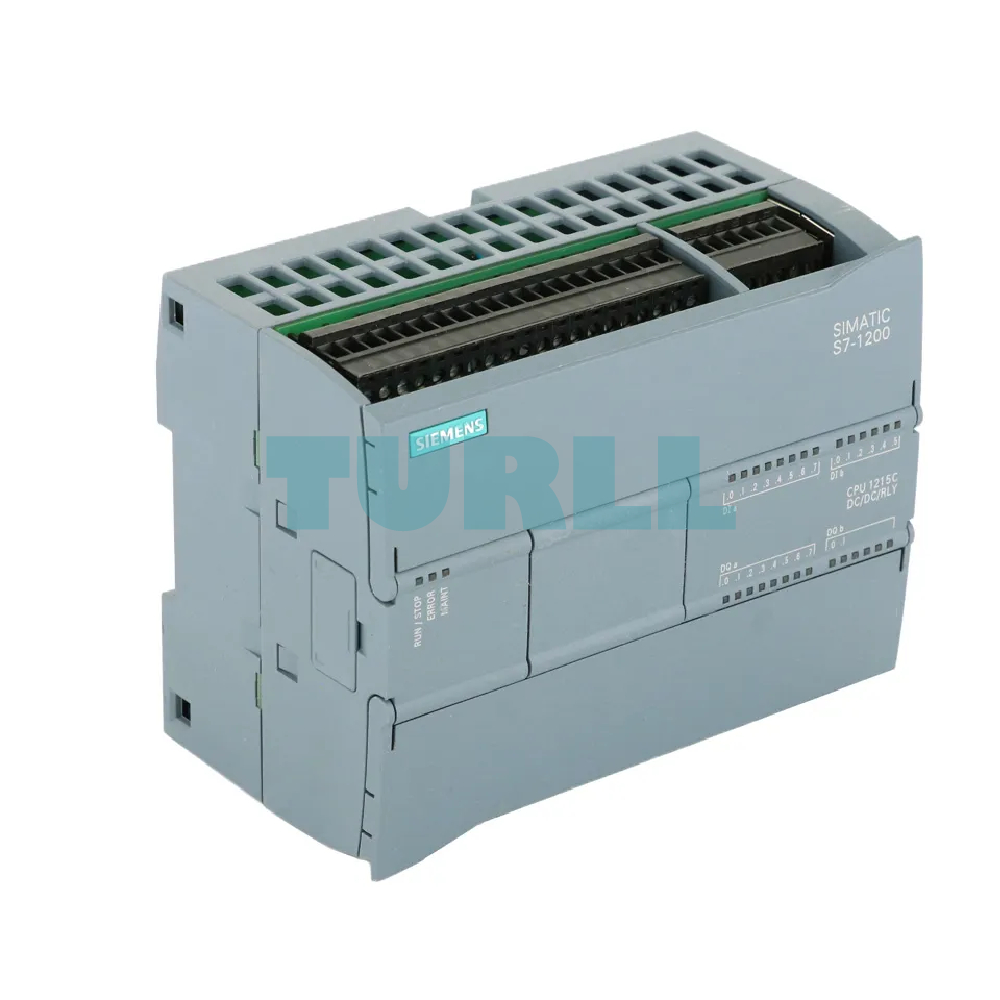

The SIMATIC S7-1200 CPU 1215C (6ES7215-1HG31-0XB0) is the powerhouse of the S7-1200 family, designed to bridge the gap between basic controllers and high-end modular PLCs. This compact CPU is ideal for applications requiring extensive I/O count and sophisticated communication capabilities.
With its DC/DC/Relay configuration, it utilizes a 24V DC power supply and provides robust relay outputs capable of handling up to 2 A, making it versatile for switching various load types without additional interposing relays.
Key Benefit
-
Enhanced Connectivity: Dual PROFINET ports allow for easy daisy-chaining and seamless integration into industrial networks.
-
Integrated Analog I/O: Unlike lower-tier models, the 1215C includes both 2 Analog Inputs (0-10V) and 2 Analog Outputs (0-20mA) out of the box.
-
Space-Saving Design: Combines high-density I/O and processing power in a compact housing to reduce control cabinet footprint.
-
Scalability: Easily expandable using Signal Boards (SB), Communication Boards (CB), and Signal Modules (SM).

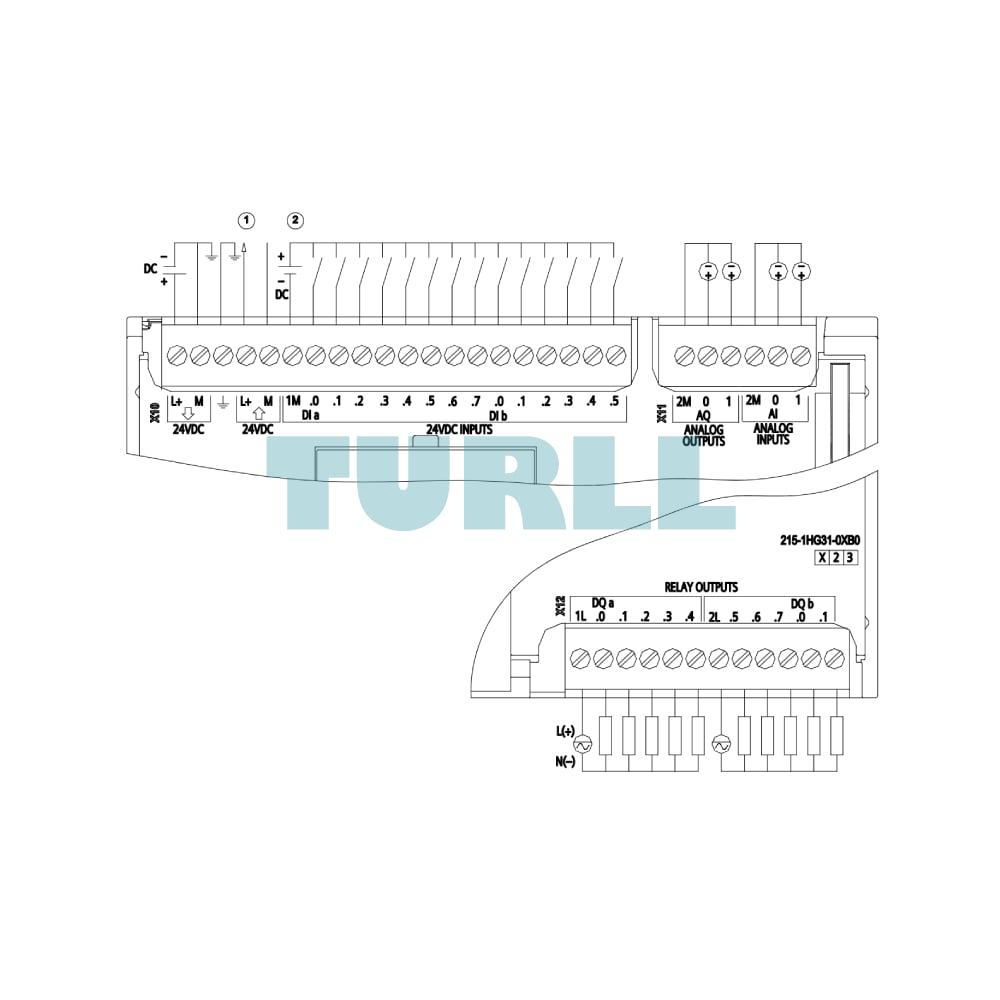

Functional Specification
-
Digital Inputs: 14 DI (24 V DC)
-
Digital Outputs: 10 DO (Relay, 2 A)
-
Analog Inputs: 2 AI (0-10 V DC)
-
Analog Outputs: 2 AO (0-20 mA DC)
-
Memory: 100 KB Work Memory / 4 MB Load Memory
-
Power Supply: 20.4V to 28.8V DC
