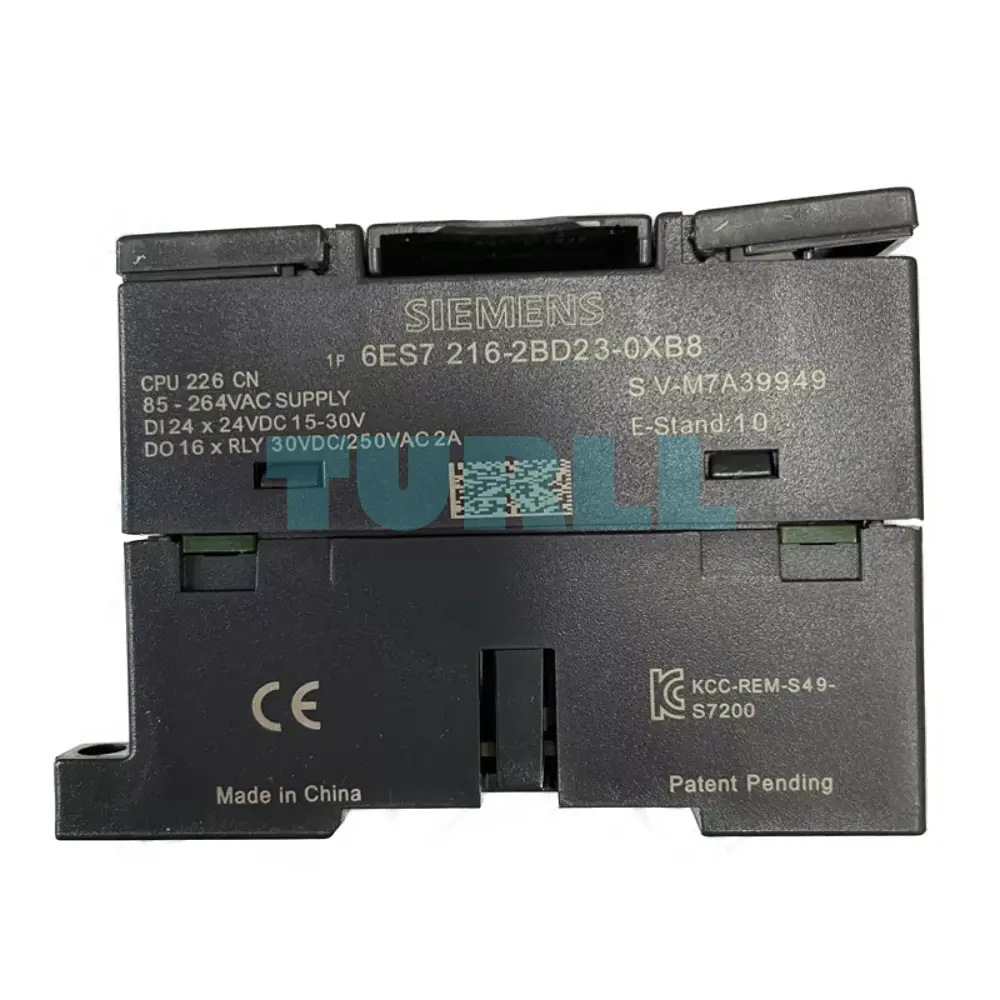

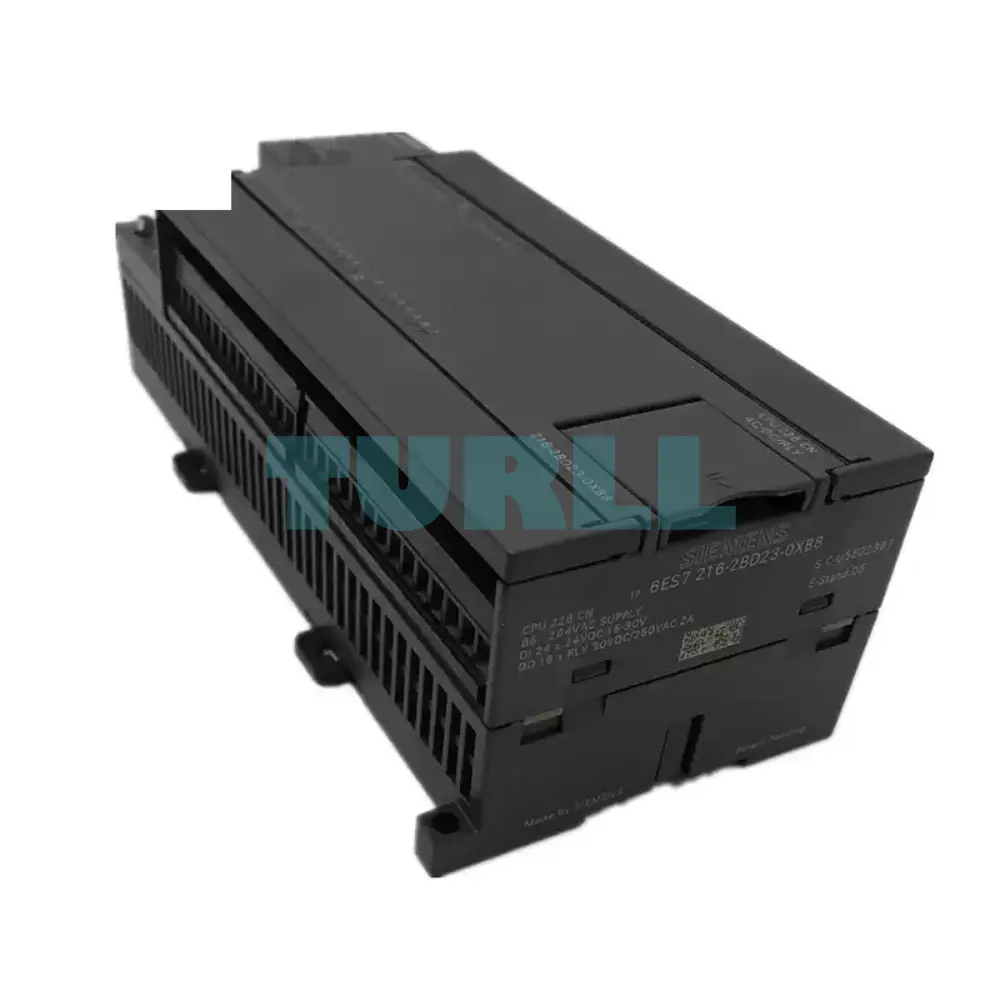

Siemens 6ES7216-2BD23-0XB8 SIMATIC S7-200 CN CPU 226 Compact Controller Original Brand New

Overview

The SIMATIC S7-200 CN CPU 226 is the powerhouse of the S7-200 series, offering expanded I/O capacity and enhanced memory for complex logic tasks. This "CN" version is specifically tailored for efficiency and reliability in demanding environments, providing a robust 16/24 KB program memory and 10 KB data memory.

Whether you are managing standalone machines or integrated systems, the dual communication ports allow for simultaneous connection to HMI panels and programming tools.

Key Benefit

• High I/O Density: Features 40 onboard I/Os (24 In / 16 Out), reducing the need for additional expansion modules.

• Enhanced Connectivity: Dual PPI ports enable seamless multi-device communication and easy programming.

• Reliable Switching: Integrated relay outputs provide the flexibility to switch different voltage levels and higher currents.

• Compact Design: Fits easily into tight control cabinets while delivering large-scale PLC performance.

Function

• Control Logic: Handles complex automation sequences with 24 KB of program memory.

• Communication: Supports PPI protocol and user-programmable interface for custom serial communication.

• Data Handling: 10 KB of data memory ensures sufficient space for recipe storage and operational parameters.

• Global Standard: Fully compliant with CE approval standards for safety and quality.

Technical Specification

• Model: SIMATIC S7-200 CN (CPU 226)

• Part Number: 6ES7216-2BD23-0XB8

• Power Supply: 120/230V AC

• Digital Inputs: 24 DI (24V DC)

• Digital Outputs: 16 DO (Relay)

• Program Memory: 16/24 KB

• Data Memory: 10 KB

• Interfaces: 2 x RS-485 (PPI/User-programmable)

• Certifications: CE Approval
