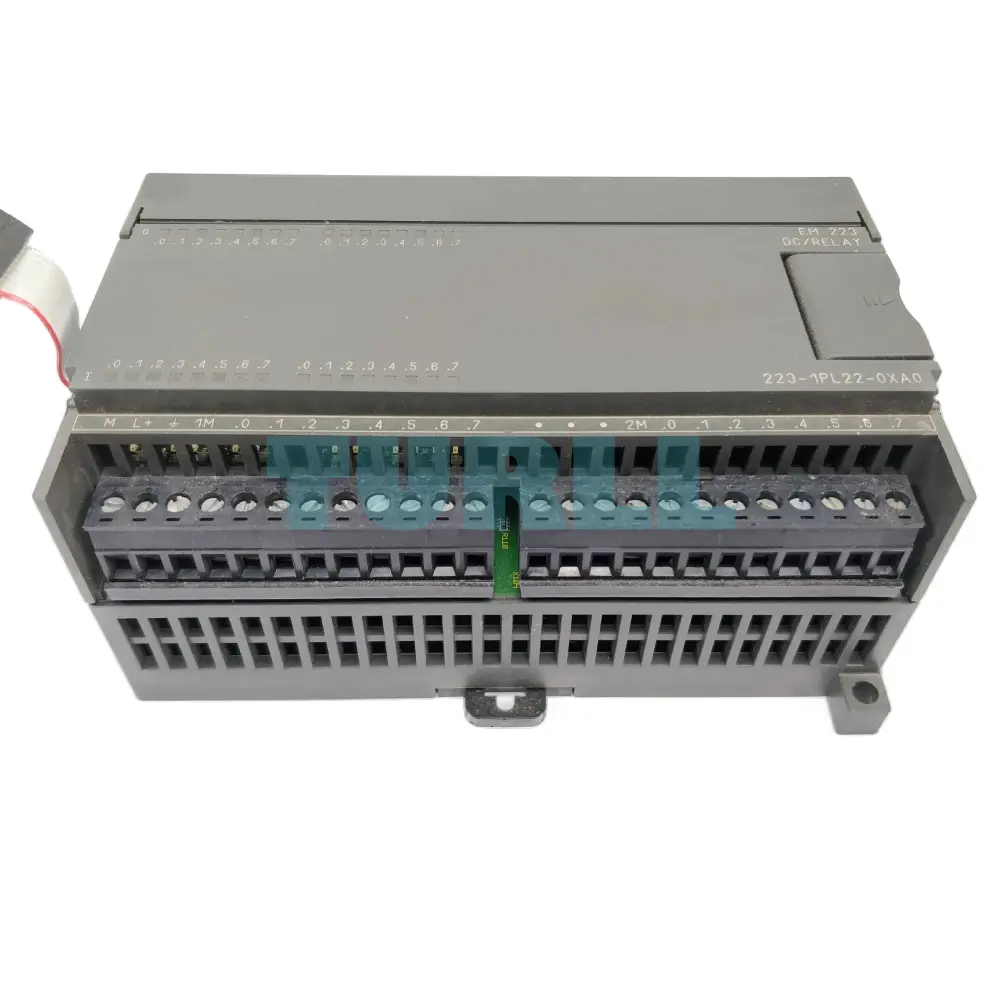

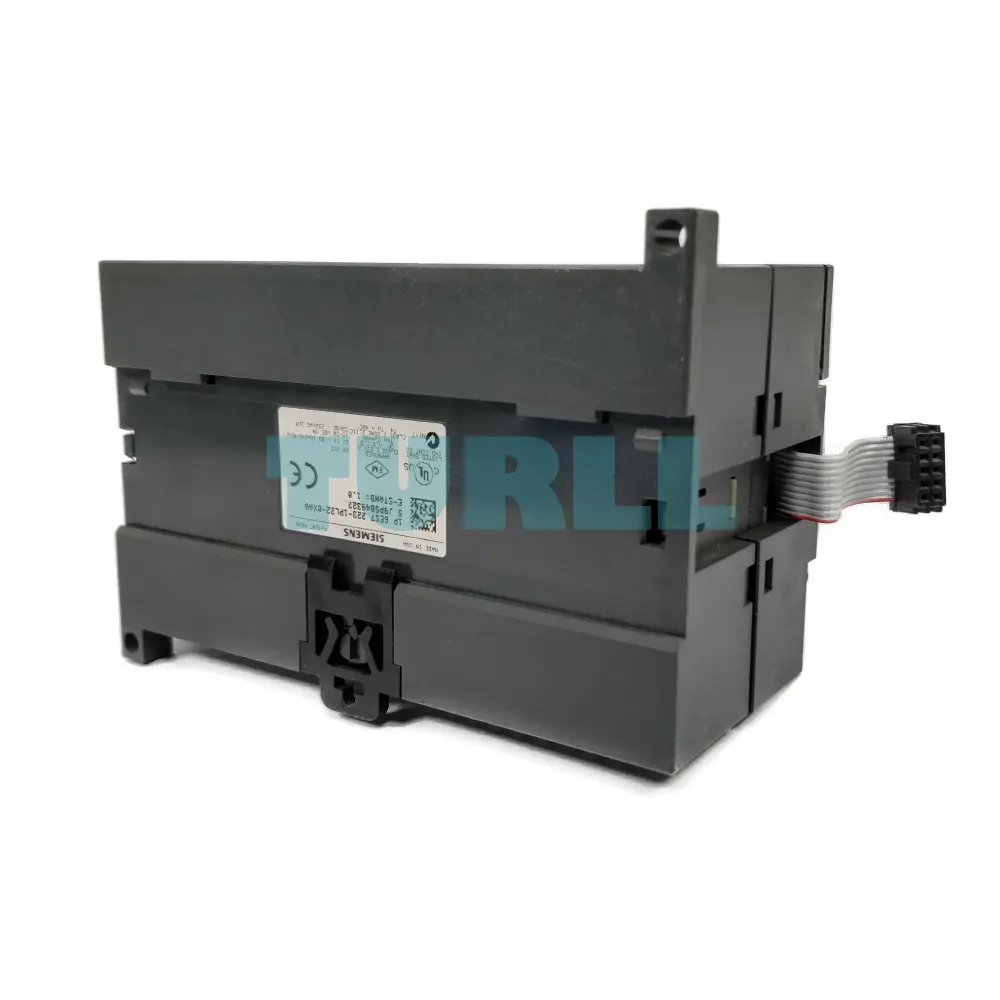

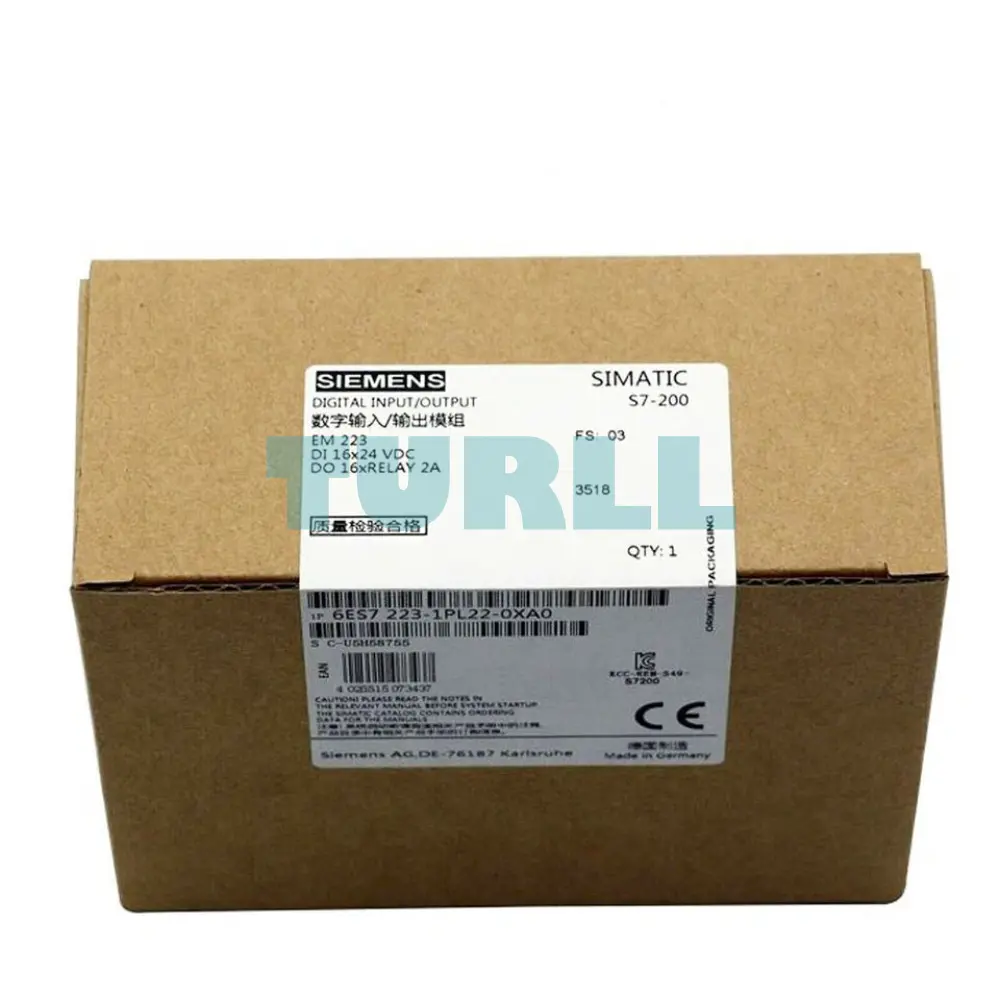

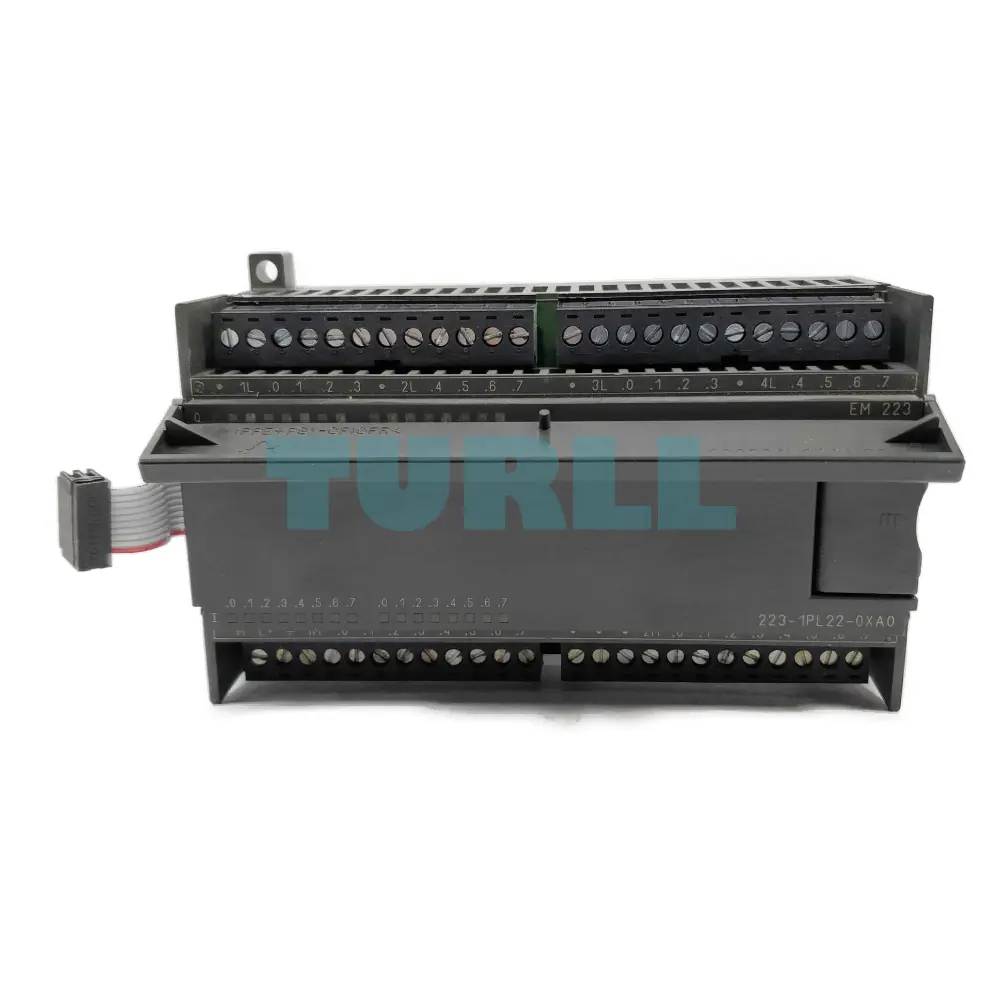

Siemens 6ES7223-1PL22-0XA0 SIMATIC S7-200 Digital I/O EM 223, 16 DI / 16 DO Relay Original Brand New

Overview

Siemens 6ES7223-1PL22-0XA0 is a SIMATIC S7-200 EM 223 Digital Input/Output Expansion Module, specifically designed for S7-22X CPU series. This module expands system capability by providing 16 digital inputs (24 V DC) and 16 relay-based digital outputs, making it ideal for industrial automation applications that require reliable signal processing and control.

Built to Siemens’ high industrial standards, the EM 223 ensures stable performance, long service life, and seamless integration within S7-200 PLC systems.

Key Function

• Versatile Input Logic: Supports both Sink and Source configurations for 24V DC inputs.

• High-Current Relay Outputs: The 16 relay outputs are rated at 2A per channel, suitable for driving solenoids, contactors, and small motors directly.

• Seamless Integration: Specifically engineered for the SIMATIC S7-200 environment, ensuring plug-and-play compatibility with S7-221, S7-222, S7-224, and S7-226 units.

Benefit

• Space Saving: Consolidates 32 total I/O points into a single expansion block.

• Reliability: Built to Siemens’ rigorous industrial standards for long-term durability in harsh environments.

• Ease of Wiring: Removable terminal blocks simplify installation and maintenance.

Specification

• Product Number: 6ES7223-1PL22-0XA0

• Series: SIMATIC S7-200

• Module Type: EM 223 Digital I/O

• Input Voltage: 24 V DC

• Output Type: Relay

• Max Current per Channel: 2 A

Visit 6ES7223-1PL22-0XA0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
