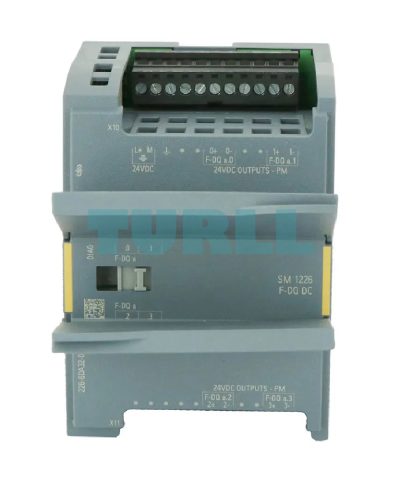

Siemens 6ES7226-6DA32-0XB0 SIMATIC S7-1200, Digital Output, SM 1226, F-DQ 4x24V DC 2A Original Brand New
Model / SKU6ES7226-6DA32-0XB0
SIMATIC S7-1200 SM 1226 F-DQ digital output module designed for safety-critical applications. Featuring 4 failsafe 24 V DC 2A outputs and supporting PROFIsafe communication, it achieves the highest safety ratings: SIL 3 (IEC 61508) and PL e (ISO 13849-1). Ideal for integrating safety functions seamlessly into your S7-1200 system.
Original price was: $395.19.$345.73Current price is: $345.73.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 6ES7226-6DA32-0XB0 is a high-performance SIMATIC S7-1200 Digital Output module (SM 1226) designed for safe and reliable industrial automation. Featuring 4 digital outputs with 24 V DC and 2A current, this module ensures precise control of actuators and other connected devices. The PROFIsafe functionality provides maximum safety, enabling compliance with PL E (ISO 13849-1) and SIL3 (IEC 61508) standards. With a compact 70 mm overall width, it seamlessly integrates into existing S7-1200 setups while ensuring safety and efficiency in automated processes.
Key Benefit
-
Enhanced Safety: Supports PROFIsafe, achieving up to PL E / SIL3 for critical applications.
-
Reliable Performance: 4 digital outputs with 24 V DC, 2A capacity for stable and precise operation.
-
Compact Design: Slim 70 mm width saves space in control cabinets.
-
Seamless Integration: Fully compatible with the SIMATIC S7-1200 series for efficient system expansion.
-
Industrial-Grade Quality: Siemens-certified reliability for long-term operation in harsh environments.
Function / Features
-
Digital output module for SIMATIC S7-1200
-

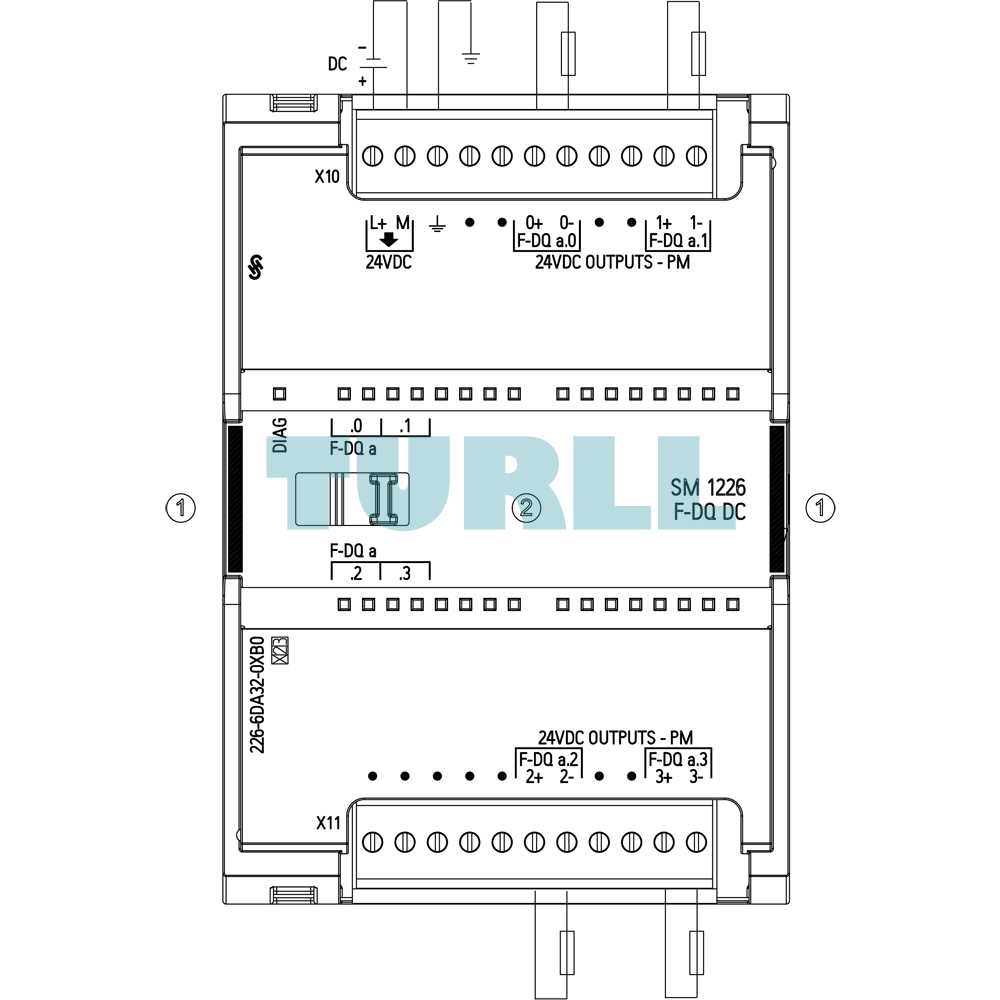

4x 24 V DC outputs, 2A
-
PROFIsafe-enabled for functional safety applications
-
Compact 70 mm width
-
Safety ratings: PL E (ISO 13849-1) / SIL3 (IEC 61508)
-
Supports safe control of actuators and signaling devices
Download
Visit 6ES7226-6DA32-0XB0 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 6ES7226-6DA32-0XB0 |
|---|---|
| Brand | SIEMENS |
| Product type designation | SM 1226 F-DQ 4x 24 VDC |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| from backplane bus 5 V DC, max. | 125 mA |
| ● from load voltage L+, max. | 170 mA |
| Power loss, typ. | 8 W |
| Number of digital outputs | 4 |
| ● in groups of | 1 |
| Short-circuit protection | Yes |
| ● with resistive load, max. | 30 Hz |
| ● on lamp load, max. | 10 Hz |
| ● Rated value (DC) | 24 V |
| ● for signal "1" rated value | 2 A |
| ● for signal "1" permissible range, max. | 10 mA to 2.4 A |
| ● for signal "0" residual current, max. | P-switch: 0.5 mA, maximum; M-switch: 0.5 mA, maximum |
| ● shielded, max. | 200 m |
| ● unshielded, max. | 200 m |
| ● for status of the outputs | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| cULus | Yes |
| FM approval | Yes |
| ● Performance level according to ISO 13849-1 | Category 4, PL e |
| ● SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 4.00E-09 |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| Enclosure material (front) | - |
| ● Plastic | Yes |

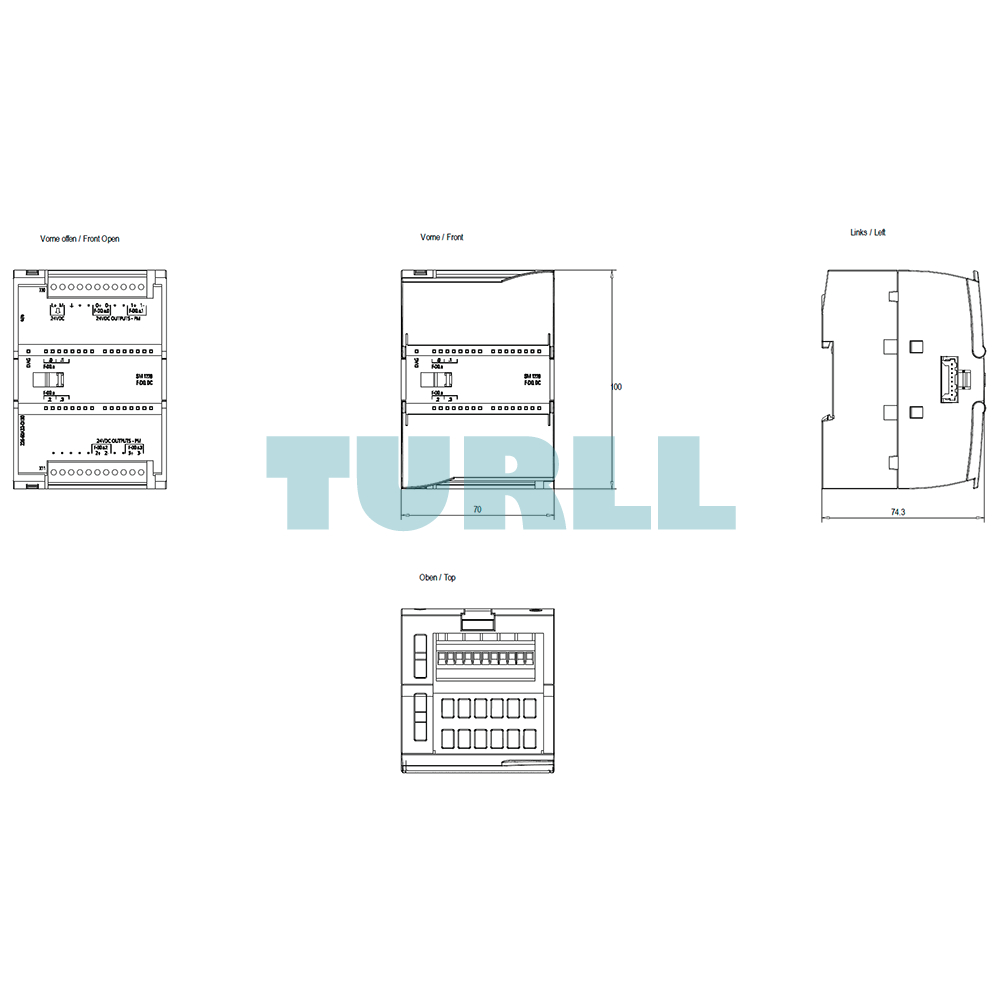

| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 270 g |
| last modified: | 10/7/2021 |
| Weight | 0.090 kg |
| Dimensions | 6.50 × 9.20 × 3.80 mm |
