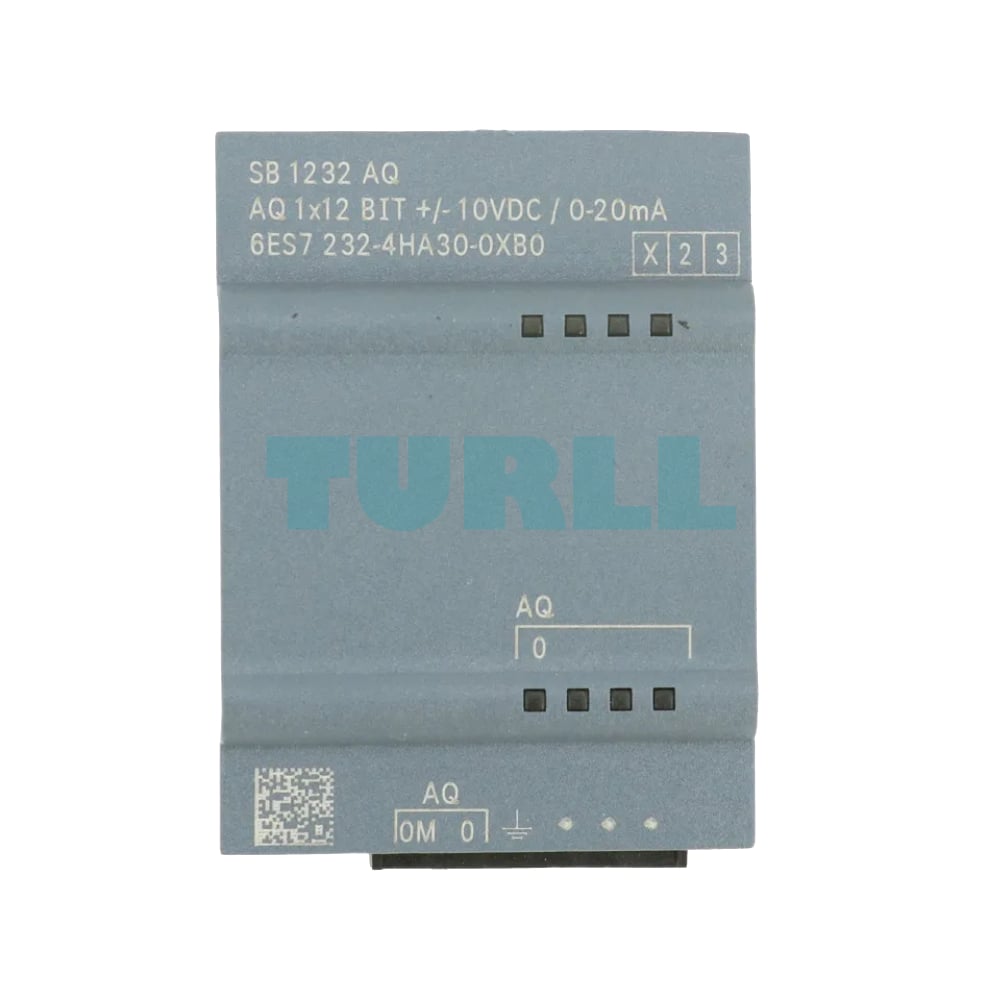

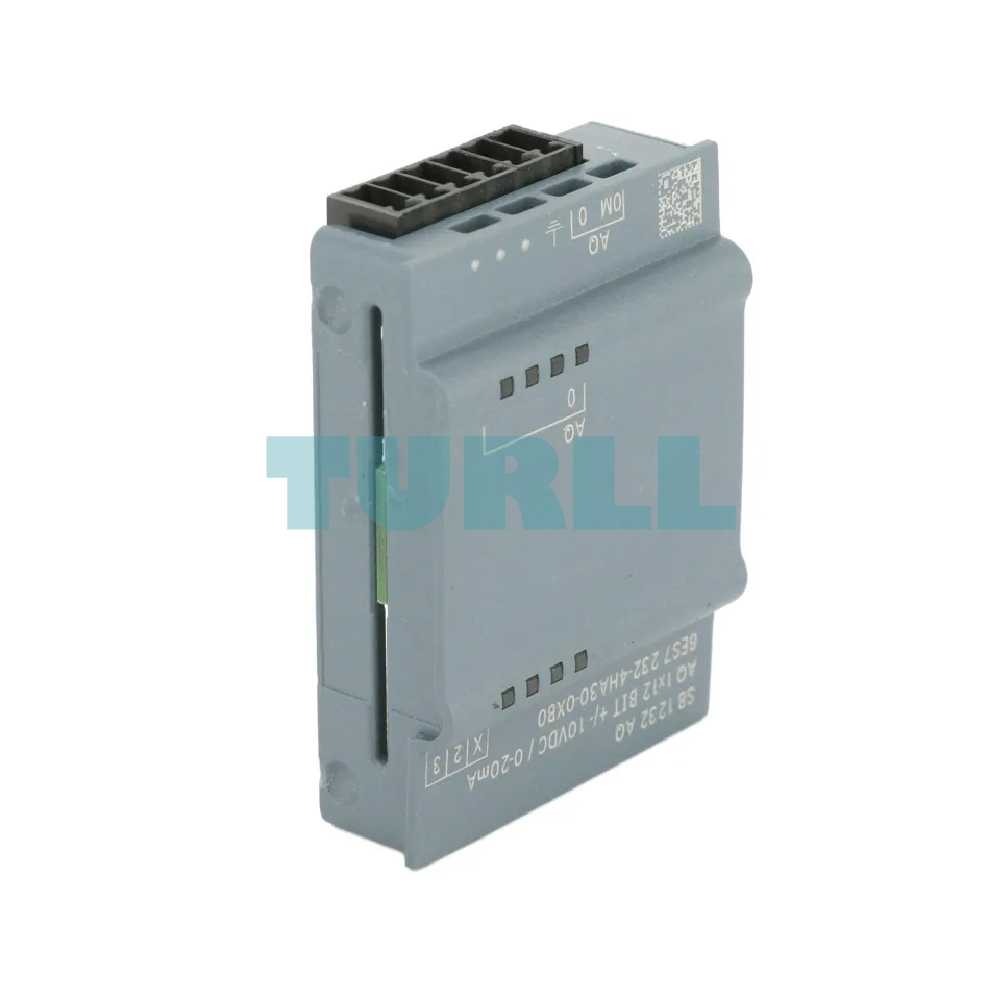

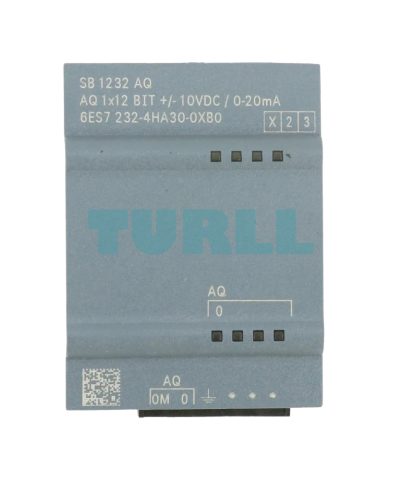

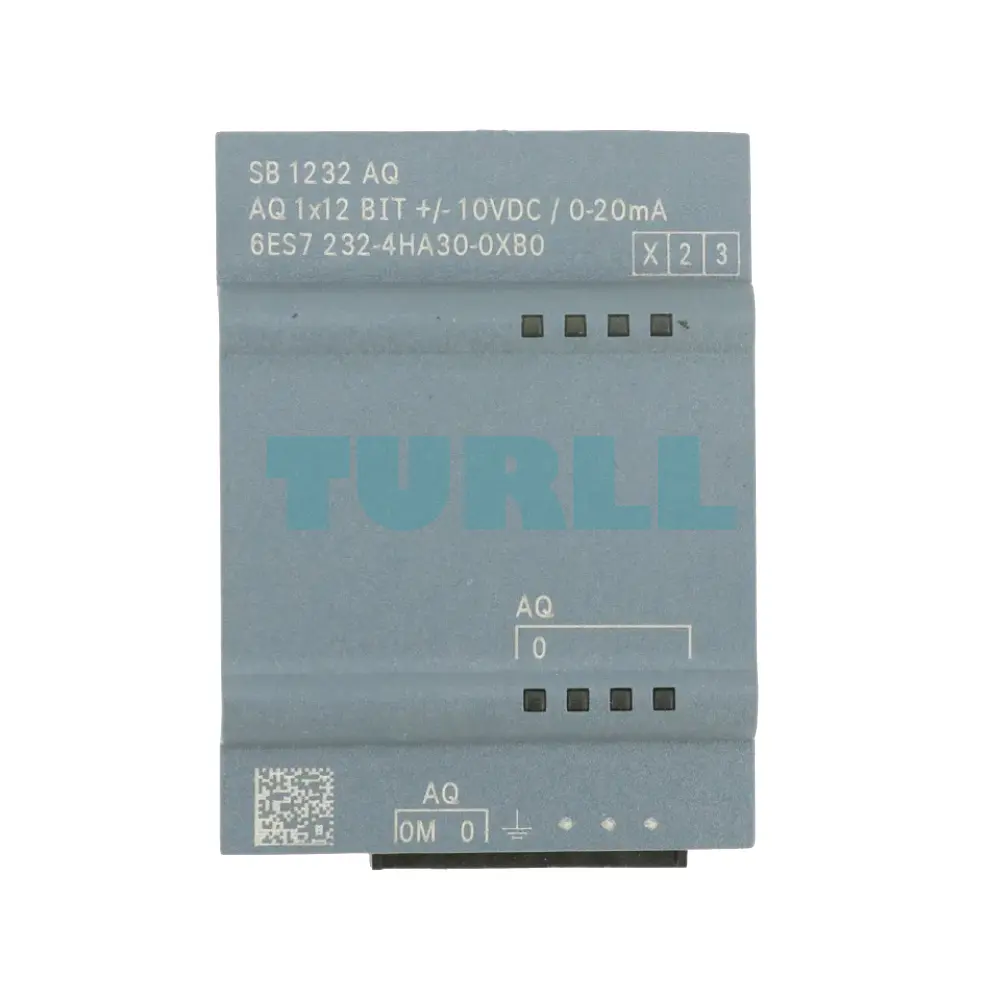

Siemens 6ES7232-4HA30-0XB0 SIMATIC S7-1200, SB 1232, Analog Output Module Original Brand New
$75.00
SIMATIC S7-1200 SB 1232 Analog Output Module with 1 AO channel, supporting ±10 V DC (12-bit resolution) or 0–20 mA (11-bit resolution). Designed for precise, stable analog signal output in industrial automation systems.
Availability: In stock
Overview
The Siemens 6ES7232-4HA30-0XB0 is a compact and reliable SB 1232 Analog Output Module designed for the SIMATIC S7-1200 automation system. This module provides one high-precision analog output channel, enabling seamless integration into industrial applications that require accurate voltage or current output signals.
Engineered with Siemens’ advanced automation technology, this module ensures stability, precision, and long-term performance for a wide range of industries.
Key Features
-
1 Analog Output (AO) for flexible system expansion
-
Supports ±10 V DC (12-bit resolution)
-
Supports 0–20 mA (11-bit resolution)
-
Compact design for S7-1200 signal board slot
-
Ideal for precise analog signal control
-
High-quality Siemens engineering for industrial reliability
Functions & Capabilities
1. Precision Voltage Output
The module outputs ±10 V DC with a 12-bit resolution, enabling finely tuned voltage control for automation tasks such as actuator control, analog drives, and instrumentation output.
2. Current Loop Output Capability
With support for 0–20 mA current loop output (11-bit resolution), the module is suitable for process automation applications requiring current-based analog signals.
3. Space-Saving Signal Board Design
Designed to fit directly into the S7-1200 CPU signal board slot, this module adds functionality without increasing the panel footprint.
4. Seamless Integration
Optimized for compatibility with the SIMATIC S7-1200 PLC, ensuring straightforward configuration through Siemens TIA Portal.
Benefit
-
Enhanced precision for critical analog control applications
-
Reduces system wiring thanks to direct signal board mounting
-
Improves system flexibility with voltage or current output options
-
Reliable performance in industrial environments
-
Easy configuration using TIA Portal engineering software
Visit 6ES7232-4HA30-0XB0 for more detail info
For more our products visit turll
Download
| Weight | 0.028 kg |
|---|---|
| Dimensions | 5.00 × 8.40 × 3.00 mm |
| Brand | SIEMENS |
| Product type designation | SB 1232, AQ 1×12 bit |
| from backplane bus 5 V DC, typ. | 15 mA |
| ● Supply current, max. | 25 mA |
| Power loss, typ. | 1.5 W |
| Number of analog inputs | 0 |
| Number of analog outputs | 1 |
| Cycle time (all channels) max. | Voltage: 300 μS (R), 750 μS (1 uF) Current: 600 ms (1 mH); 2 ms (10 mH) |
| ● -10 V to +10 V | Yes |
| ● 0 to 20 mA | Yes |
| ● with voltage outputs, min. | 1 000 Ω |
| ● with current outputs, max. | 600 Ω |
| ● shielded, max. | 100 m; shielded, twisted pair |
| Conversion principle | Differential |
| ● Resolution with overrange (bit including sign), max. | 12 bit |
| Temperature error (relative to output range), (+/-) | 25 °C ±0.5%, to 55 °C ±1% |
| Alarms | Yes |
| Diagnostics function | Yes |
| ● for status of the outputs | Yes |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| Enclosure material (front) | – |
| ● Plastic | Yes |

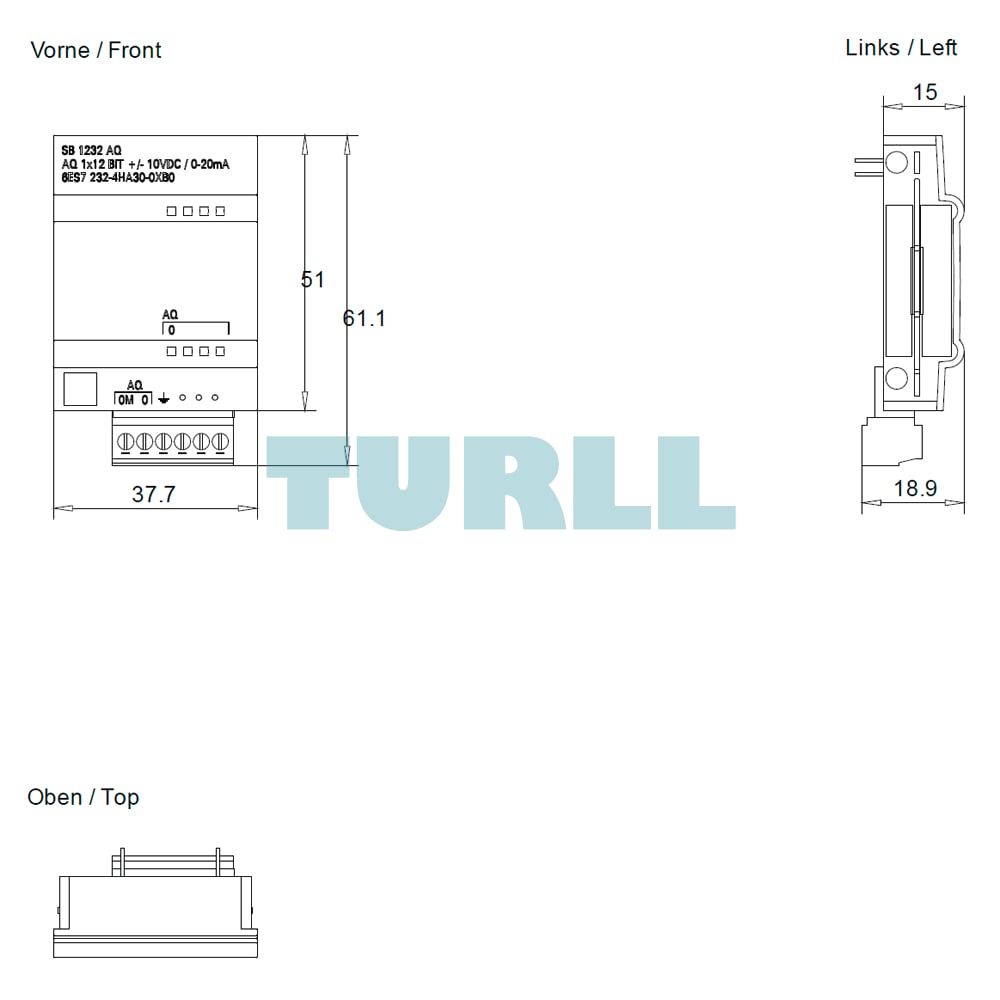

| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
| Weight, approx. | 40 g |
| last modified: | 2/9/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
