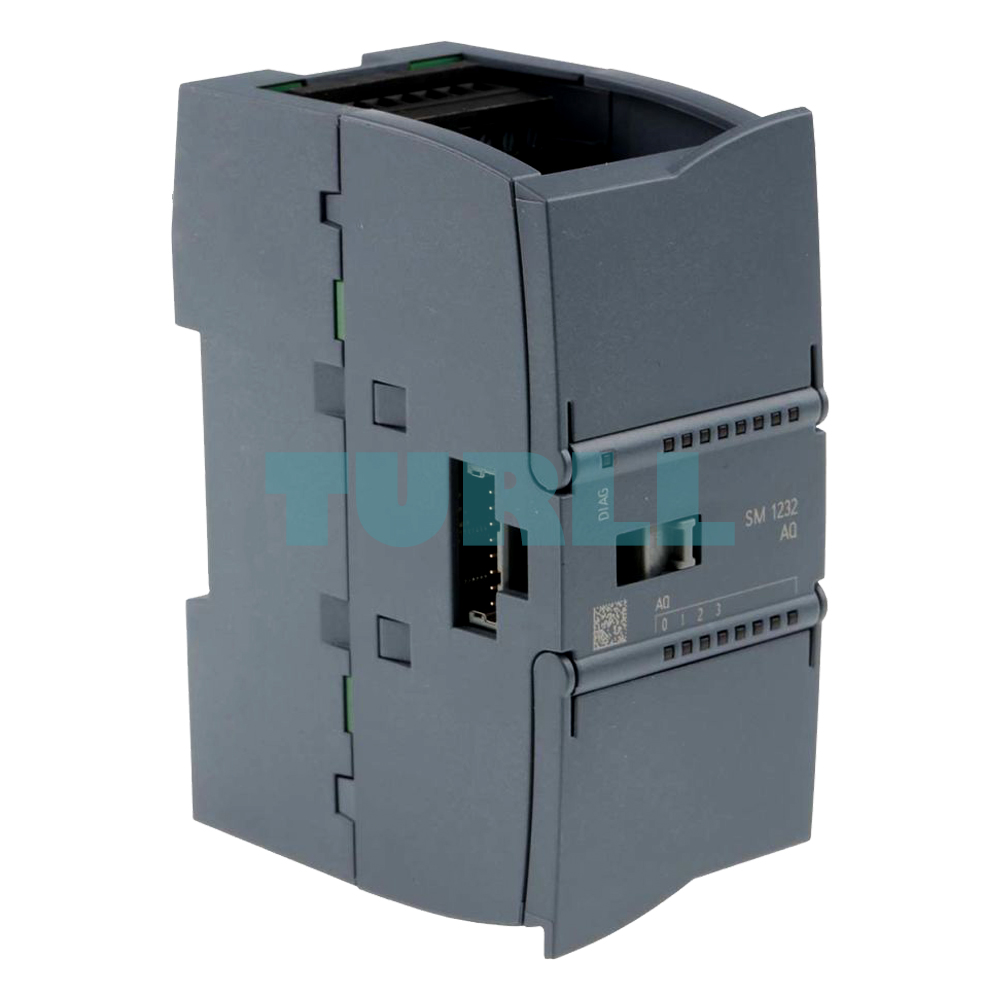

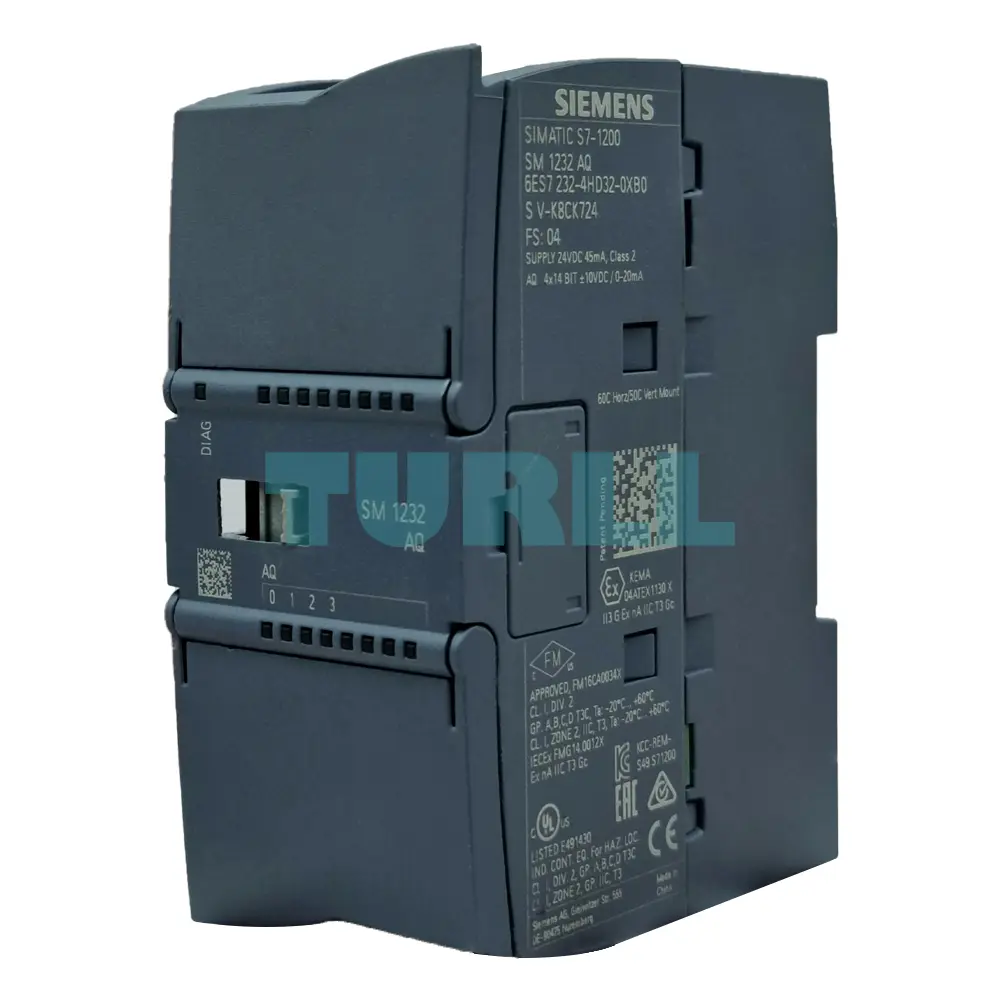

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New

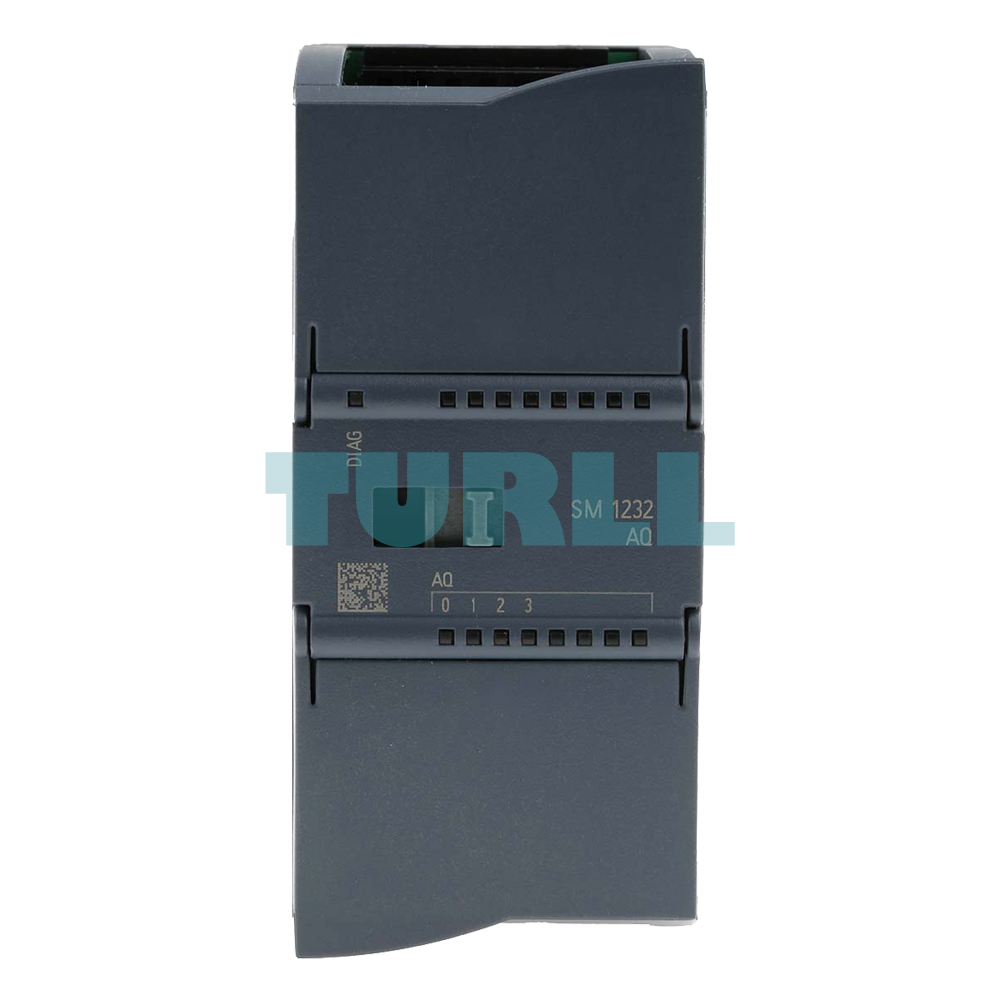

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New - Image 2

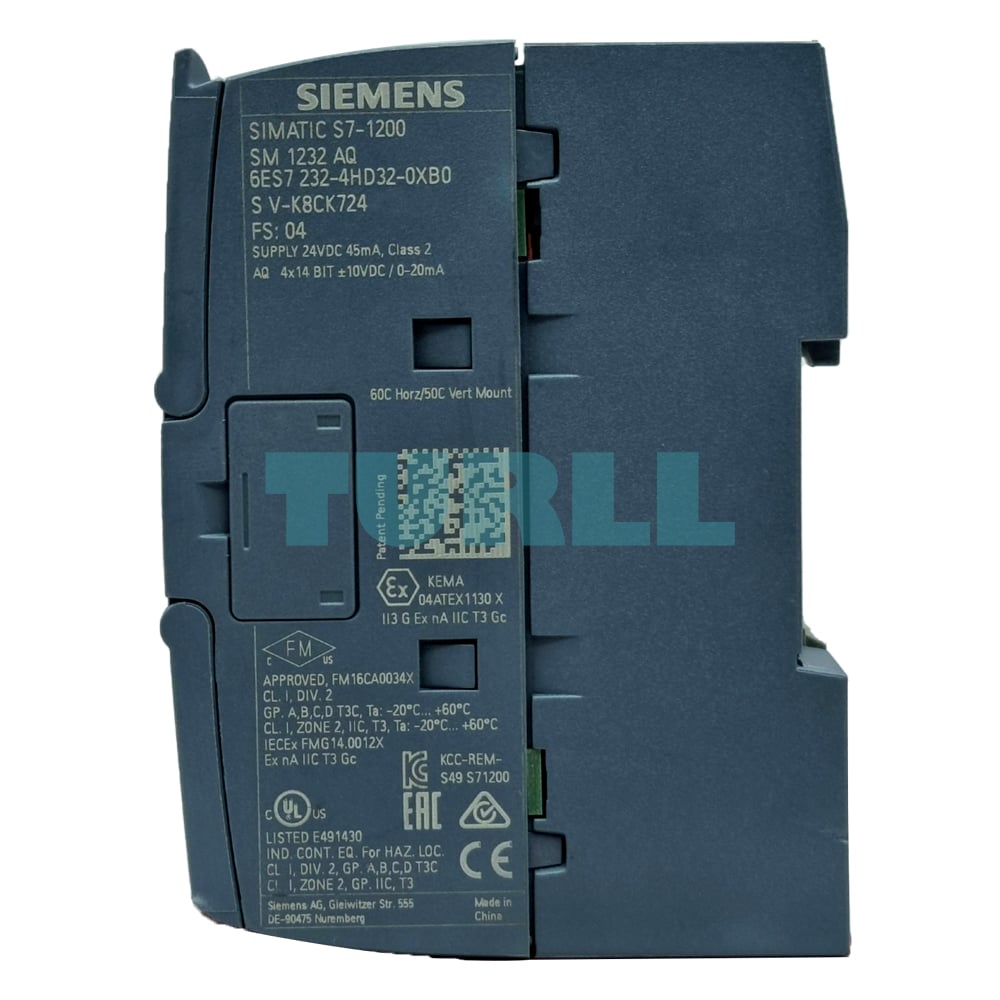

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New - Image 3

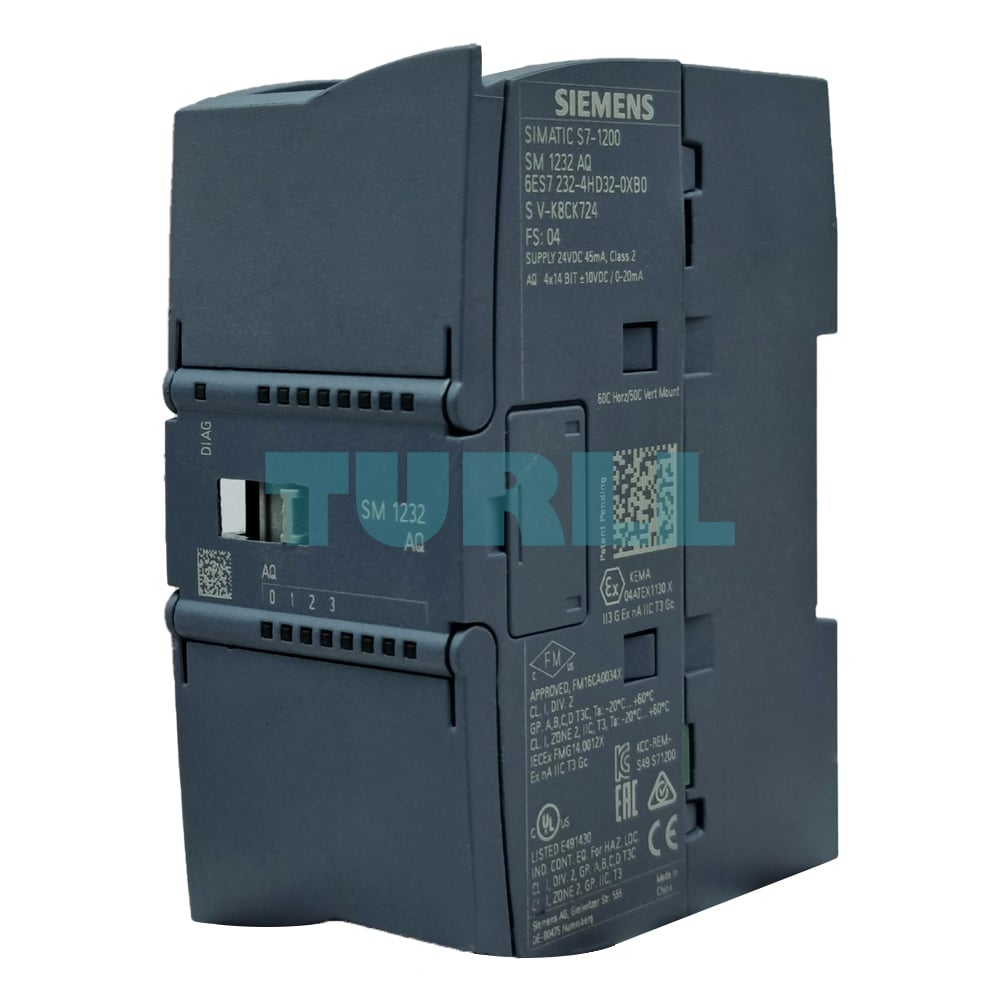

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New - Image 4

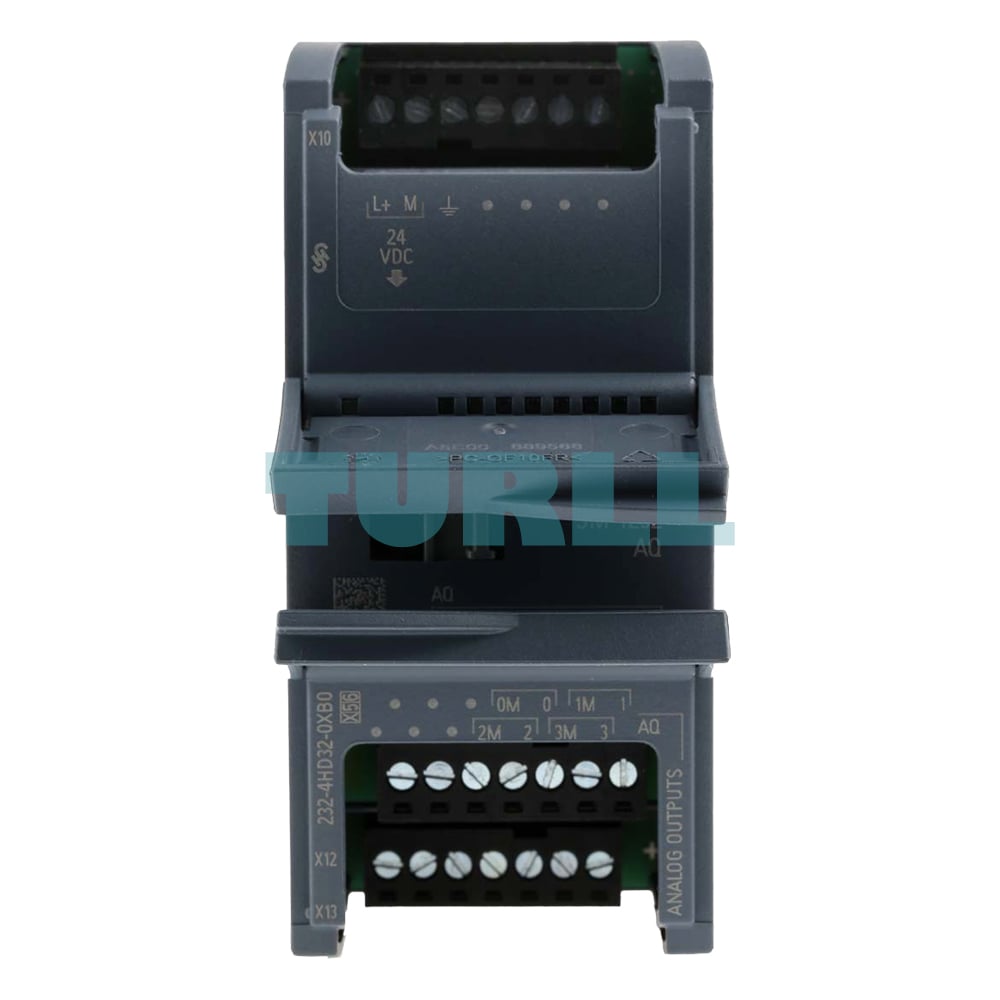

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New - Image 5
Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO
Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO

SIEMENS

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200, SM 1232, Analog Output Module, 4 AO Original Brand New

Model / SKU6ES7232-4HD32-0XB0

SIMATIC S7-1200 SM 1232 analog output module with 4 AO channels supporting ±10 V (14-bit) and 0–20 mA / 4–20 mA (13-bit) resolution for flexible, high-precision industrial automation applications.

Original price was: $608.08.Current price is: $354.76.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7232-4HD32-0XB0 is a high-performance SIMATIC S7-1200 SM 1232 Analog Output Module, designed to deliver precision, reliability, and flexibility for industrial automation applications. Featuring 4 analog output channels, the module supports both ±10 V (14-bit) and 0–20 mA / 4–20 mA (13-bit) signal formats, allowing seamless integration into a wide range of automation, monitoring, and control systems.

Built to meet the demanding needs of modern industries, this module ensures stable signal output, improved process accuracy, and long-term durability, making it an essential component for engineers, OEMs, and automation professionals.

Benefit

  • High Accuracy Output: Achieve precise control with 14-bit (voltage) and 13-bit (current) resolution.

  • Versatile Signal Options: Supports voltage and current-based analog signals for broad compatibility.

  • Compact & Scalable: Ideal for expanding S7-1200 PLC performance without increasing cabinet space.

  • Reliable Industrial Performance: Engineered for demanding automation environments.

  • Easy Integration: Directly compatible with all Siemens S7-1200 CPU models.

Features & Functions

4 Analog Output Channels

Supports a variety of output types for flexible application design.

High-Resolution Output

  • ±10 V at 14-bit resolution

  • 0–20 mA / 4–20 mA at 13-bit resolution

Accurate Process Control

Designed for precise closed-loop control such as:

  • Motor speed control

  • Valve positioning

  • Temperature control

  • Process signal generation

Rugged Industrial Design

Ensures stable performance under harsh operating conditions.

Download

Datasheet in PDF

Visit 6ES7232-4HD32-0XB0 for more detail info

For more our products visit turll



Specifications

SKU / Model6ES7232-4HD32-0XB0
BrandSIEMENS
Product type designationSM 1232, AQ 4x14 bit
Rated value (DC)24 V
Current consumption, typ.45 mA
from backplane bus 5 V DC, typ.80 mA
Power loss, typ.1.5 W
Number of analog outputs4; Current or voltage
● -10 V to +10 VYes
● 0 to 20 mAYes
● with voltage outputs, min.1 000 Ω
● with current outputs, max.600 Ω
● shielded, max.100 m; shielded, twisted pair
● Resolution with overrange (bit including sign), max.14 bit; Voltage: 14 bit; Current : 13 bit
Temperature error (relative to output range), (+/-)25 °C ±0.3%, to 55 °C ±0.6% total measurement range
● Voltage, relative to output range, (+/-)0.3 %
● Current, relative to output range, (+/-)0.3 %
● Common mode voltage, max.12 V
AlarmsYes
Diagnostics functionYes
● Diagnostic alarmYes
● Monitoring the supply voltageYes
● Wire-breakYes
● Short-circuitYes
● for status of the outputsYes
● for maintenanceYes
IP degree of protectionIP20
CE markYes
CSA approvalYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
● Fall height, max.0.3 m; five times, in product package
● horizontal installation, min.-20 °C
● horizontal installation, max.60 °C
● vertical installation, min.-20 °C
● vertical installation, max.50 °C
● min.-40 °C
● max.70 °C
● Operation, min.795 hPa
● Operation, max.1 080 hPa
● Storage/transport, min.660 hPa
● Storage/transport, max.1 080 hPa
● Operation at 25 ℃ without condensation, max.95 %
● SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
required front connectorYes
Enclosure material (front)-
● PlasticYes

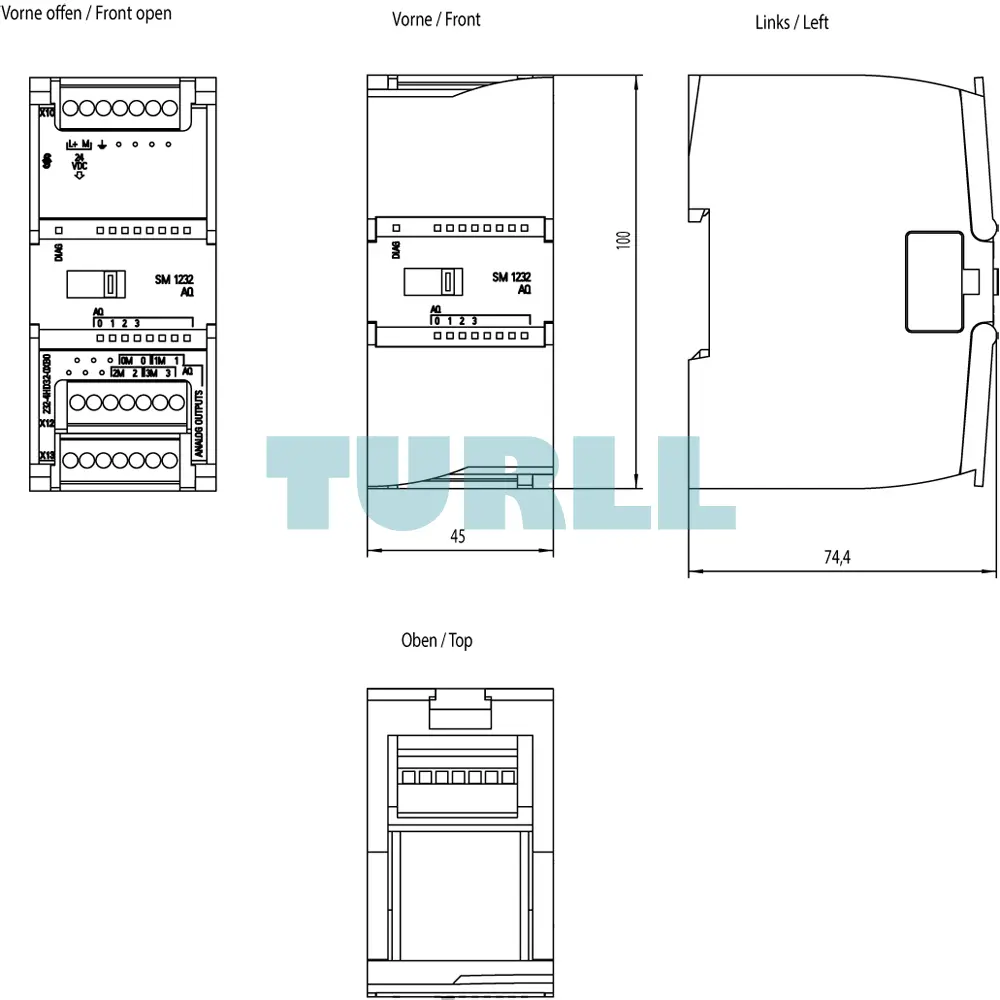

Width45 mm
Height100 mm
Depth75 mm
Weight, approx.180 g
last modified:3/11/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.214 kg
Dimensions9.00 × 10.60 × 5.60 mm
