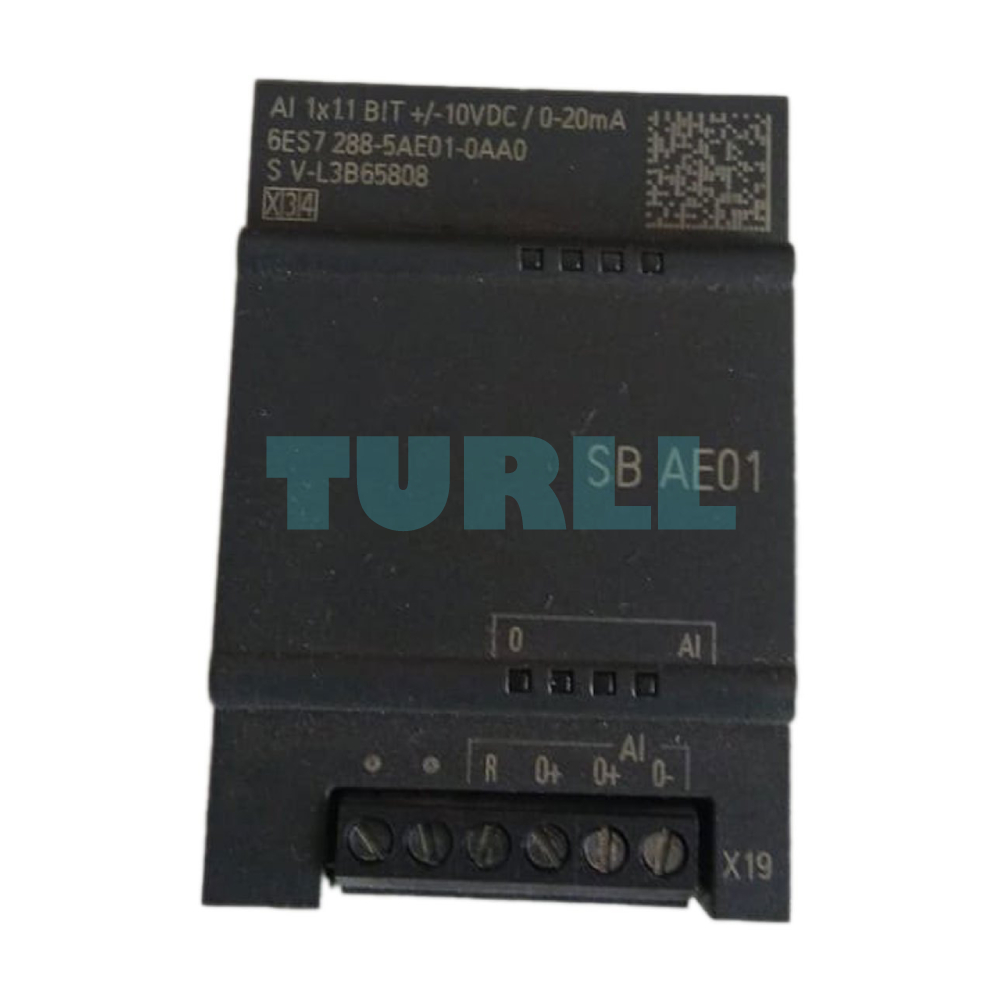

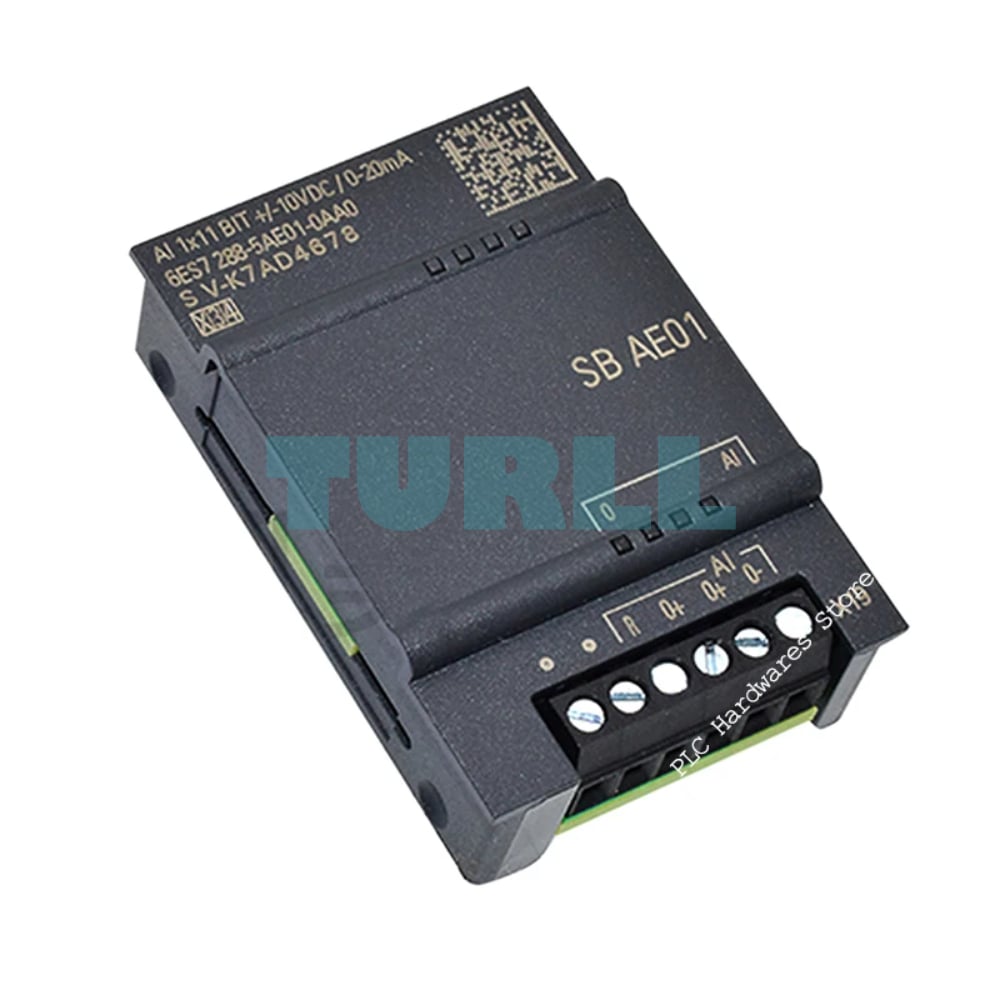

Siemens 6ES7288-5AE01-0AA0 SIMATIC S7-200 SMART Analog Input SB AE1 Expansion Board Original Brand New

Overview

The Siemens 6ES7288-5AE01-0AA0 (SB AE1) is a high-performance analog input expansion board designed specifically for the SIMATIC S7-200 SMART series. This Signal Board (SB) allows for the addition of analog I/O directly to the front of the CPU, saving valuable space on the DIN rail. It is the ideal solution for applications requiring a single, high-resolution analog sensor integration without the need for a larger expansion module.

Key Benefit

• Space-Efficient Design: Plugs directly into the CPU signal board slot, maintaining the compact footprint of your PLC setup.

• Versatile Signal Handling: Seamlessly switch between voltage and current modes to meet diverse sensor requirements.

• Cost-Effective Expansion: Provides a single analog channel (1 AI), preventing the need to purchase larger, more expensive 4-channel modules for simple tasks.

• High Resolution: Features 11-bit plus sign resolution for voltage and 11-bit for current, ensuring accurate data acquisition.

Technical Function

• Channels: 1 Analog Input (AI).

• Voltage Ranges: +/-10 V, +/-5 V, +/-2.5 V.

• Current Range: 0 to 20 mA.

• Resolution: 11 bit + sign (Voltage) / 11 bit (Current).

• Compatibility: Exclusively for SIMATIC S7-200 SMART CPUs.

Download

Datasheet in PDF
