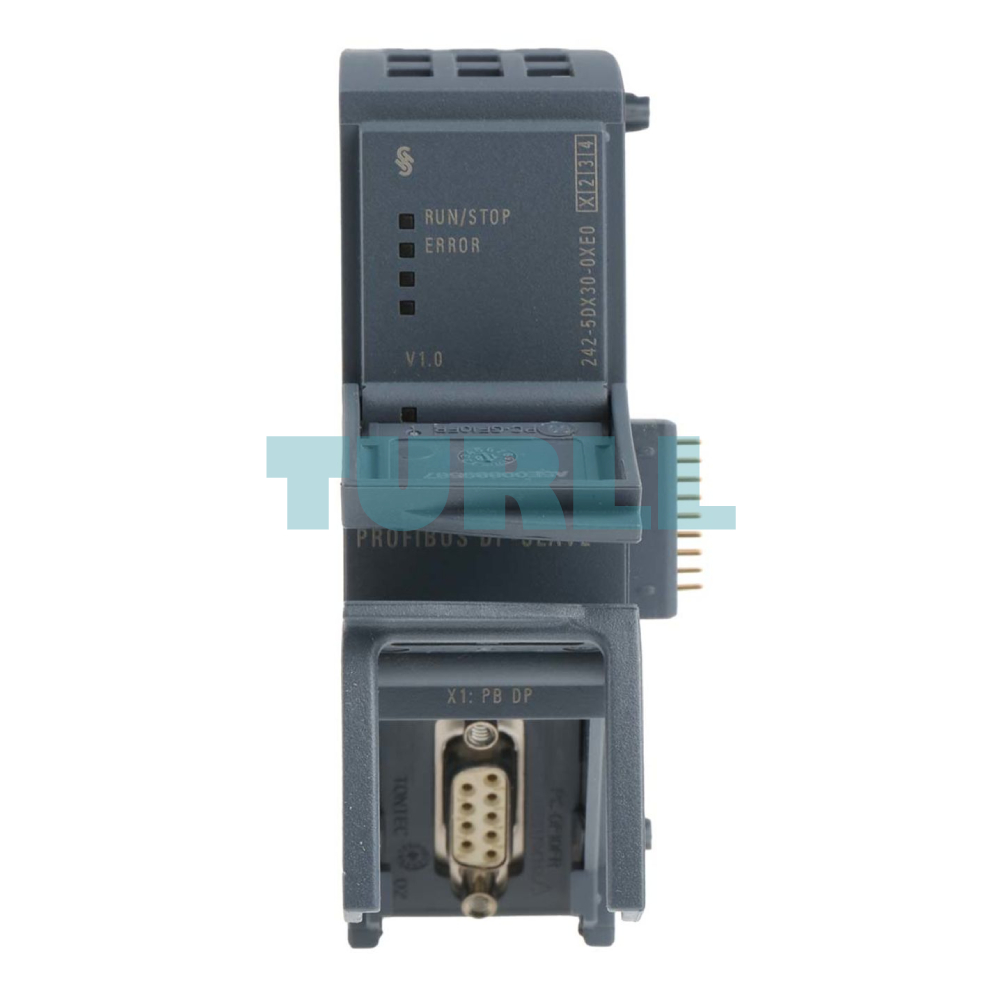

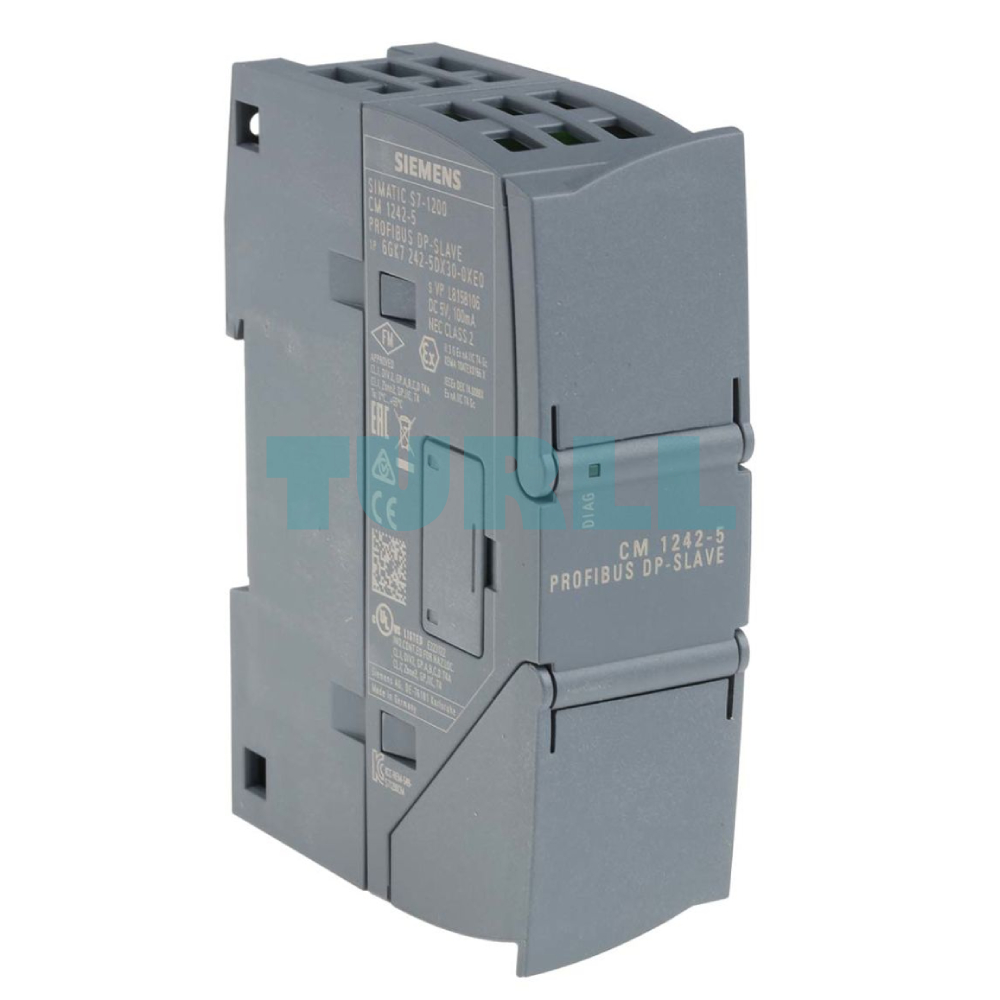

Siemens 6GK7242-5DX30-0XE0 CM 1242-5 Communications Module for SIMATIC S7-1200 Original Brand New

Model / SKU6GK7242-5DX30-0XE0

High-performance Siemens CM 1242-5 communications module for connecting SIMATIC S7-1200 to PROFIBUS as a DP slave module. Reliable industrial communication solution.

$199.07
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6GK7242-5DX30-0XE0 is a highly efficient Communications Module (CM 1242-5) designed specifically to expand the communication capabilities of the SIMATIC S7-1200 series of programmable logic controllers. This module enables the S7-1200 to integrate as a PROFIBUS DP (Decentralized Periphery) slave, allowing it to exchange data with a PROFIBUS DP master controller within an industrial automation network. It is crucial for applications requiring high-speed and deterministic data exchange across factory floors.

Benefit

  • Reliable Communication: Ensures stable connection between SIMATIC S7-1200 and PROFIBUS.

  • Enhanced System Integration: Simplifies integration into existing automation systems.

  • High-Speed Data Transfer: Optimizes real-time data exchange for critical processes.

  • Compact Design: Saves space in control cabinets while maintaining performance.

  • Durable and Industrial-Grade: Built to withstand demanding industrial environments.

Product Features

  • Acts as a PROFIBUS DP slave module for SIMATIC S7-1200 PLCs.

  • Supports fast data transmission for automation applications.

  • Easy configuration via standard Siemens software tools.

  • Seamless integration with industrial automation networks.

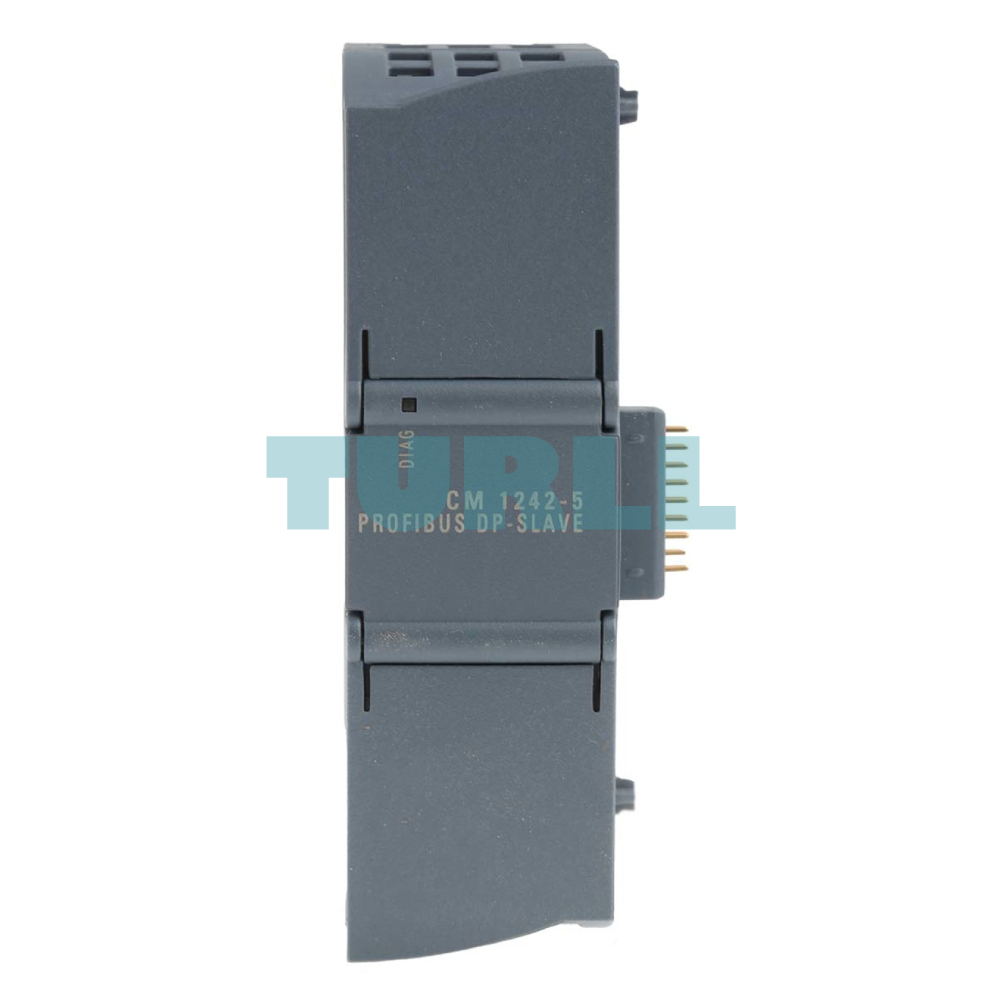

  • LED indicators for monitoring communication status.

Function and Application

The primary function of the CM 1242-5 is to bridge the proprietary internal backplane of the S7-1200 with the standardized PROFIBUS fieldbus.

  • Function: Translates data between the S7-1200's memory and the PROFIBUS DP telegrams.

  • Application Areas:

    • Machine Building: Connecting individual machines (controlled by S7-1200) to a central line controller (PROFIBUS master).

    • Process Automation: Monitoring and control of remote substations or valve islands.

    • Building Management Systems: Integrating heating, ventilation, and air conditioning (HVAC) controllers into a centralized network.

Download

Datasheet in PDF

Visit 6GK7242-5DX30-0XE0 for more detail info

For more our products visit turll



Specifications

SKU / Model6GK7242-5DX30-0XE0
BrandSIEMENS
product type designationCM 1242-5
transfer rate-
number of interfaces / acc. to Industrial Ethernet0
number of electrical connections-
● for power supply0
type of electrical connection-

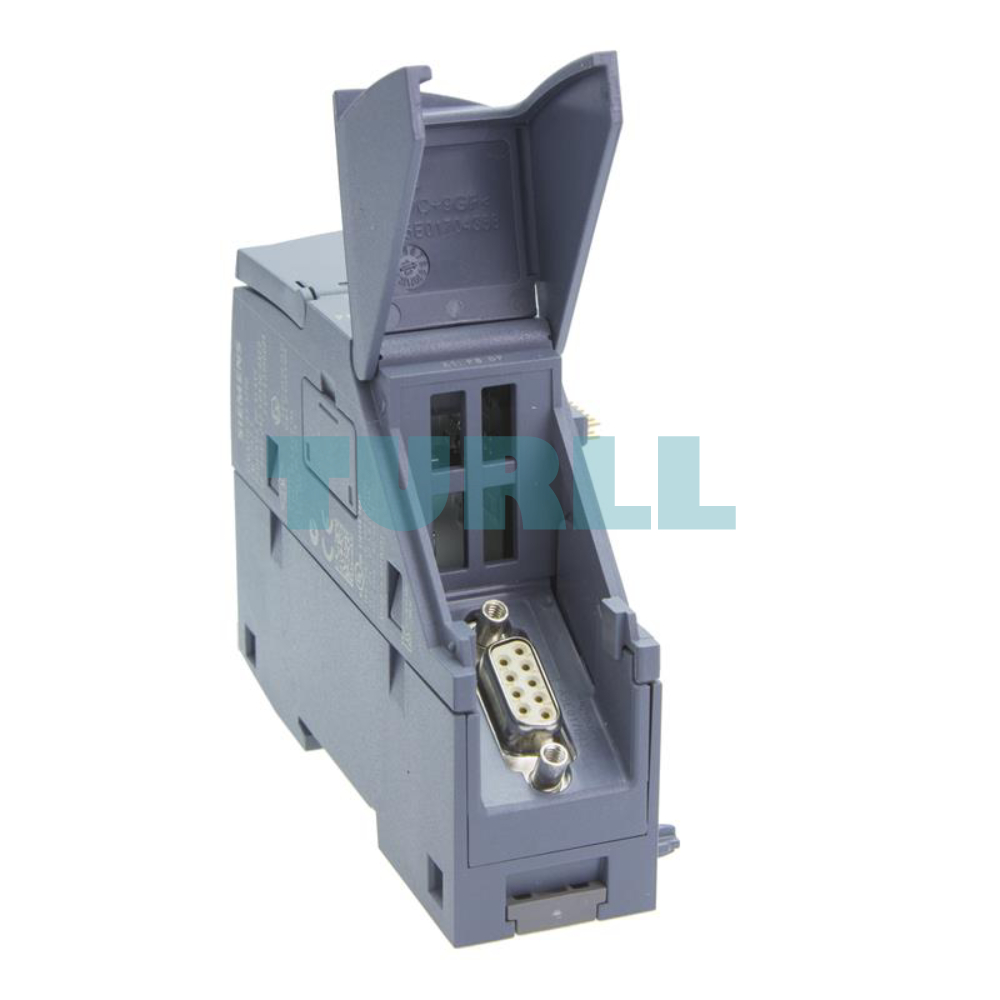

● at the 1st interface / acc. to PROFIBUS9-pin Sub-D socket (RS485)
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
consumed current-
● from backplane bus / at DC / at 5 V / typical0.15 A
power loss [W]0.75 W
ambient temperature-
● for vertical installation / during operation0 ... 45 °C
● for horizontally arranged busbars / during operation0 ... 55 °C
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
relative humidity-
● at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

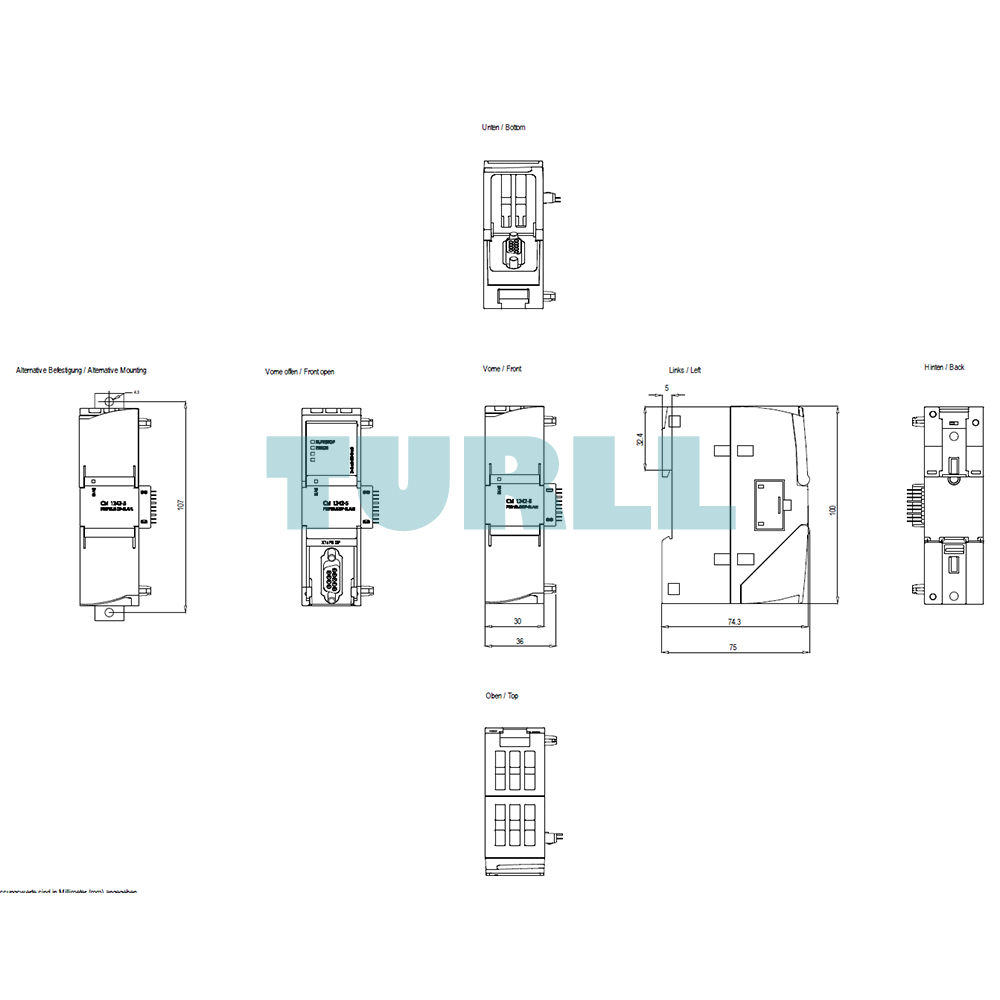

module formatCompact module S7-1200 single width
fastening method-
● 35 mm top hat DIN rail mountingYes
● S7-300 rail mountingNo
● wall mountingYes
number of units-
● per CPU / maximum3
service / as DP slave-
● DPV0Yes
● DPV1Yes
data volume-
● of the address range of the inputs / as DP slave / total240 byte
● of the address range of the outputs / as DP slave / total240 byte
protocol / is supported-
● TCP/IPNo
configuration software-
● requiredSTEP 7 Basic/Professional
certificate of suitability / CCC / for hazardous zone according to GB standardYes
Internet-Link-
● to web page: selection aid TIA Selection Toolhttp://www.siemens.com/tia-selection-tool
● to website: Industrial communicationhttp://www.siemens.com/simatic-net
● to website: Industry Mallhttps://mall.industry.siemens.com
● to website: Information and Download Centerhttp://www.siemens.com/industry/infocenter
● to website: Image databasehttp://automation.siemens.com/bilddb
● to website: CAx-Download-Managerhttp://www.siemens.com/cax
● to website: Industry Online Supporthttps://support.industry.siemens.com
security informationSiemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
last modified:8/3/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.172 kg
Dimensions1.00 × 1.00 × 1.00 mm
