Siemens 6GK7243-7KX30-0XE0 CP 1243-7 LTE EU Communications Processor for SIMATIC S7-1200 Original Brand new
$1,661.00
Communications processor CP 1243-7 LTE EU for secure, high-speed 4G/LTE connection of the SIMATIC S7-1200 PLC to mobile networks in the European frequency range.
Availability: In stock
Overview
The Siemens CP 1243-7 LTE EU (6GK7243-7KX30-0XE0) is a high-performance Communications Processor designed to seamlessly integrate the SIMATIC S7-1200 programmable logic controller (PLC) into European LTE (4G) mobile wireless networks. This compact, single-width module transforms the S7-1200 into a powerful Remote Terminal Unit (RTU), ideal for distributed applications in Telecontrol and Teleservice, such as remote monitoring of pumping stations, energy substations, or remote machinery.
It supports fast, secure, and reliable data communication across GSM (2G), UMTS (3G), and LTE (4G) networks within the European frequency range, enabling efficient remote diagnostics, programming, and data acquisition.
Benefit
-
Fast and Reliable Connectivity: Utilizes LTE (4G) technology, offering data transfer rates up to 42 Mbit/s (Downlink) and 5.76 Mbit/s (Uplink) for quick and efficient data exchange.
-
Industrial Security: Features an integrated Stateful Inspection Firewall and VPN (IPsec) functionality (AES-256, AES-192, AES-128 encryption) to ensure secure, encrypted communication and protection against unauthorized access.
-
Telecontrol & SCADA Integration: Supports standard Telecontrol protocols like DNP3 and IEC 60870-5, allowing for easy connection to central SCADA (Supervisory Control and Data Acquisition) systems.
-
Data Buffering: Prevents data loss during network interruptions by automatically buffering up to 64,000 time-stamped data events. Data is automatically transferred when the connection is restored.
-
Remote Diagnostics & Maintenance: Enables cost-effective remote programming, diagnostics, and firmware updates for the S7-1200 via the mobile network, significantly reducing travel and maintenance costs.
-
Email Notification: Allows configuration of alert emails to promptly notify service personnel of critical events or threshold violations.
-
Easy Configuration: Configuration of data transfer is simplified using “data point configuration” in SIMATIC STEP 7 Basic/Professional, eliminating the need for complex programming.
Functions / Features
-
Connection to LTE network for SIMATIC S7-1200 controllers
-
European frequency range support
-
High-speed data transmission for industrial applications
-
Easy configuration via TIA Portal
-
Secure and stable communication for remote automation
-
Compatible with standard SIMATIC S7-1200 components
Visit 6GK7243-7KX30-0XE0 for more detail info
For more our products visit turll
Download
| Weight | 0.204 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 mm |
| Brand | SIEMENS |
| product type designation | CP 1243-7 LTE EU |
| transfer rate | – |
| ● for LTE transmission | – |
| — with downlink / maximum | 42 Mbit/s |
| — with uplink / maximum | 5.76 Mbit/s |
| number of interfaces / acc. to Industrial Ethernet | 0 |
| number of electrical connections | – |
| number of slots | – |
| ● for SIM cards | 1 |

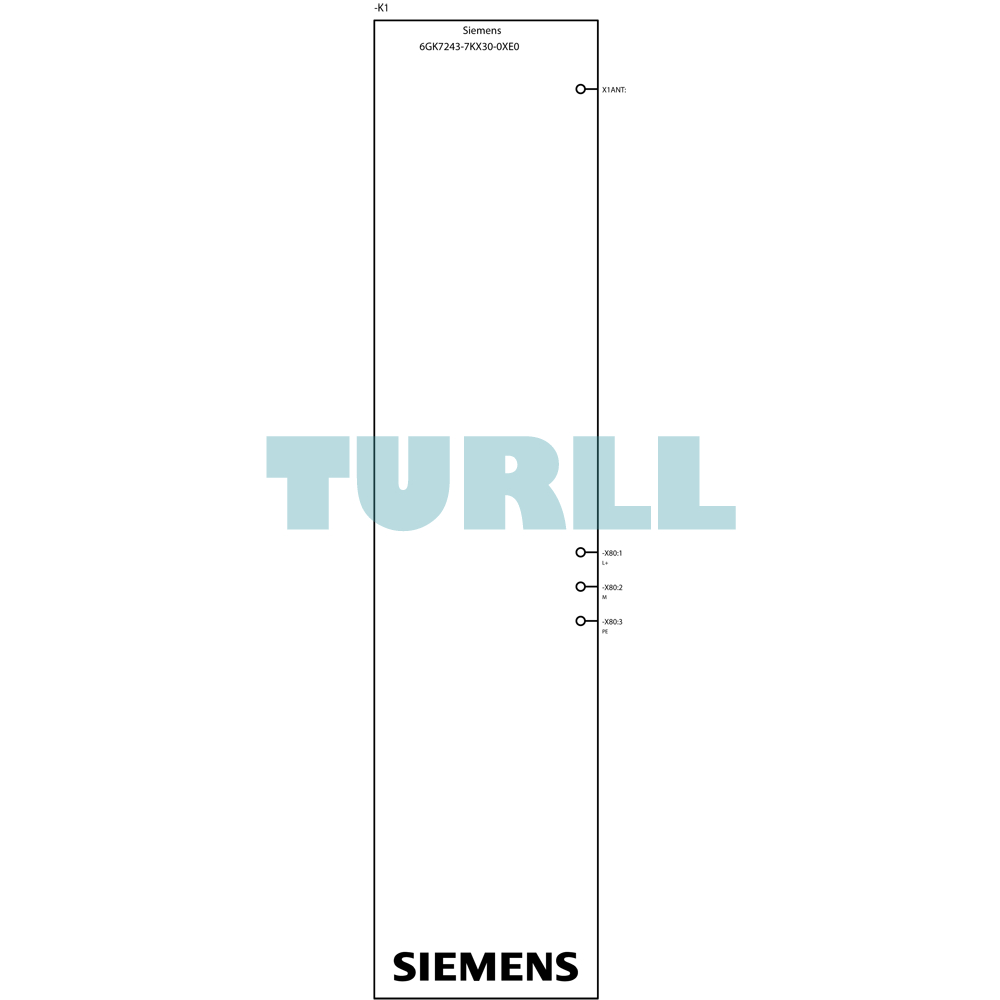

| type of electrical connection | – |

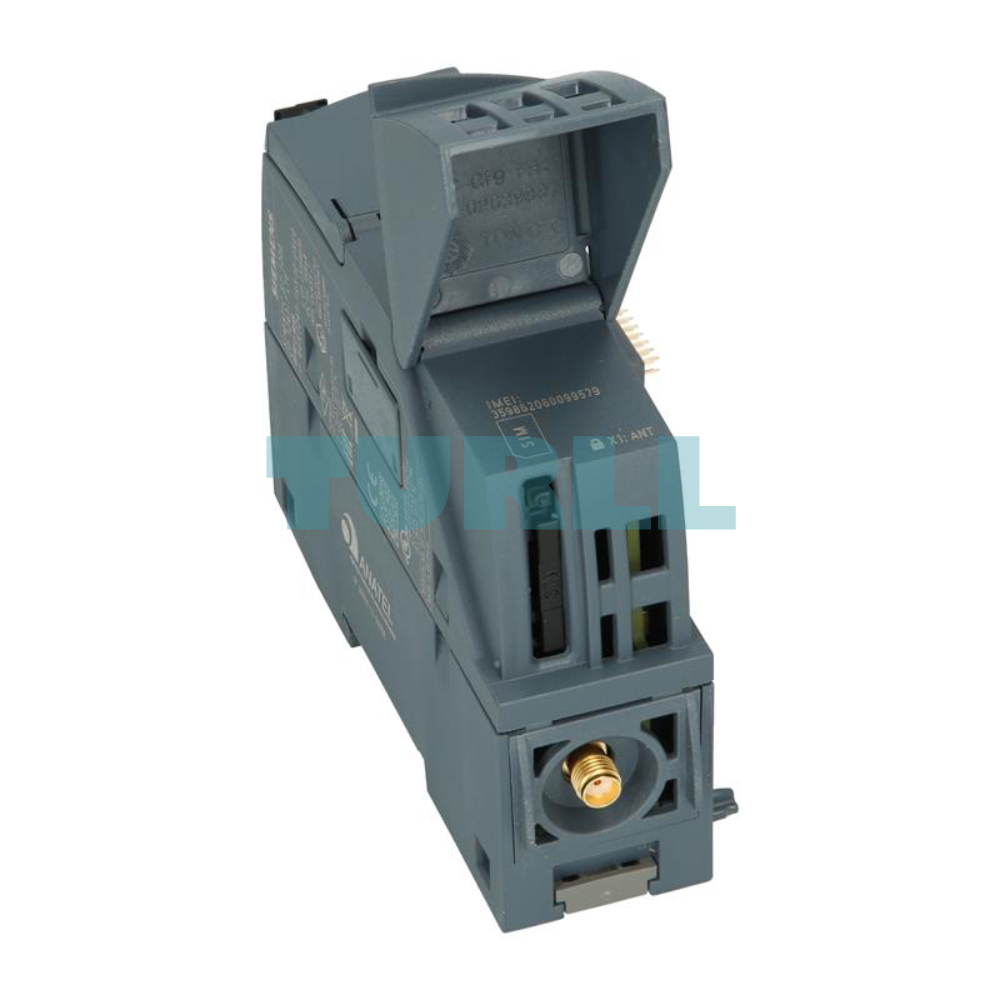

| ● for external antenna(s) | SMA socket (50 ohms) |
| ● for power supply | 3-pole terminal block |
| slot version | – |
| ● for SIM card | Standard |
| type of mobile wireless service | – |
| ● is supported / SMS | Yes |
| ● is supported / GPRS | Yes |
| type of wireless network / is supported | – |
| ● GSM | Yes |
| ● UMTS | Yes |
| ● LTE | Yes |
| operating frequency / for GSM transmission | 900 MHz, 1800 MHz |
| operating frequency / with UMTS transmission | 900 MHz, 2100 MHz |
| operating frequency / for LTE transmission | 800 MHz, 1800 MHz, 2600 MHz |
| type of voltage / of the supply voltage | DC |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 20 % |
| consumed current | – |
| ● from external supply voltage / at DC / at 24 V / typical | 0.1 A |
| ● from external supply voltage / at DC / at 24 V / maximum | 0.22 A |
| ambient temperature | – |
| ● for vertical installation / during operation | -20 … +60 °C |
| ● for horizontally arranged busbars / during operation | -20 … +70 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| relative humidity | – |
| ● at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1200 single width |
| fastening method | – |
| ● 35 mm top hat DIN rail mounting | Yes |
| ● S7-300 rail mounting | No |
| ● wall mounting | Yes |
| number of units | – |
| ● per CPU / maximum | 3 |
| number of users/telephone numbers / definable / maximum | 10 |
| number of possible connections / for open communication | – |
| ● by means of T blocks / maximum | like CPU |
| number of possible connections | – |
| ● as email client / maximum | 1 |
| suitability for use | – |
| ● substation | Yes |
| control center connection | Telecontrol Server Basic |
| ● by means of a permanent connection | supported |
| ● by means of demand-oriented connection | supported |
| ● note | Connection to SCADA system using OPC interface |
| ● DNP3 | Yes |
| ● IEC 60870-5 | Yes |
| product function / data buffering if connection is aborted | Yes; 64,000 events |
| number of stations / for direct communication / with Telecontrol Server Basic | – |
| ● in send direction / maximum | 3 |
| ● in receive direction / maximum | 15 |
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes |
| ● program download with SIMATIC STEP 7 | Yes |
| ● remote firmware update | Yes |
| configuration software | – |
| ● required | STEP 7 Basic/Professional |
| product function / web-based diagnostics | Yes |
| firewall version | stateful inspection |
| product function / with VPN connection | IPsec, SINEMA RC |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168, DES-56 |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection | MD5, SHA-1 |
| number of possible connections / with VPN connection | 1 |
| product function | – |
| ● password protection for teleservice access | Yes |
| ● encrypted data transmission | Yes |
| protocol / is supported | – |
| ● NTP | Yes |
| time synchronization | – |
| ● from control center | Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| Internet-Link | – |
| ● to web page: selection aid TIA Selection Tool | |
| ● to website: Industrial communication | |
| ● to website: Industry Mall | |
| ● to website: Information and Download Center | |
| ● to website: Image database | |
| ● to website: CAx-Download-Manager | |
| ● to website: Industry Online Support | |
| security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4) |
| last modified: | 8/3/2021 |
