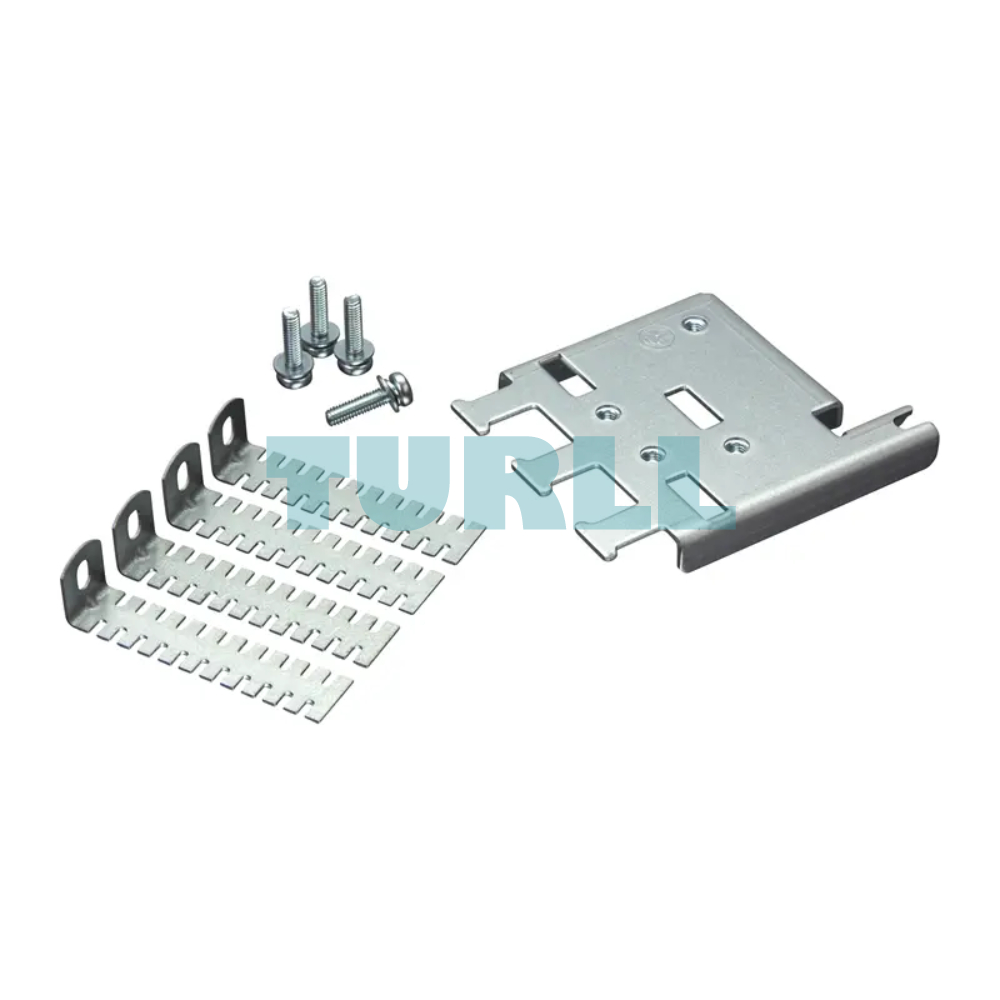

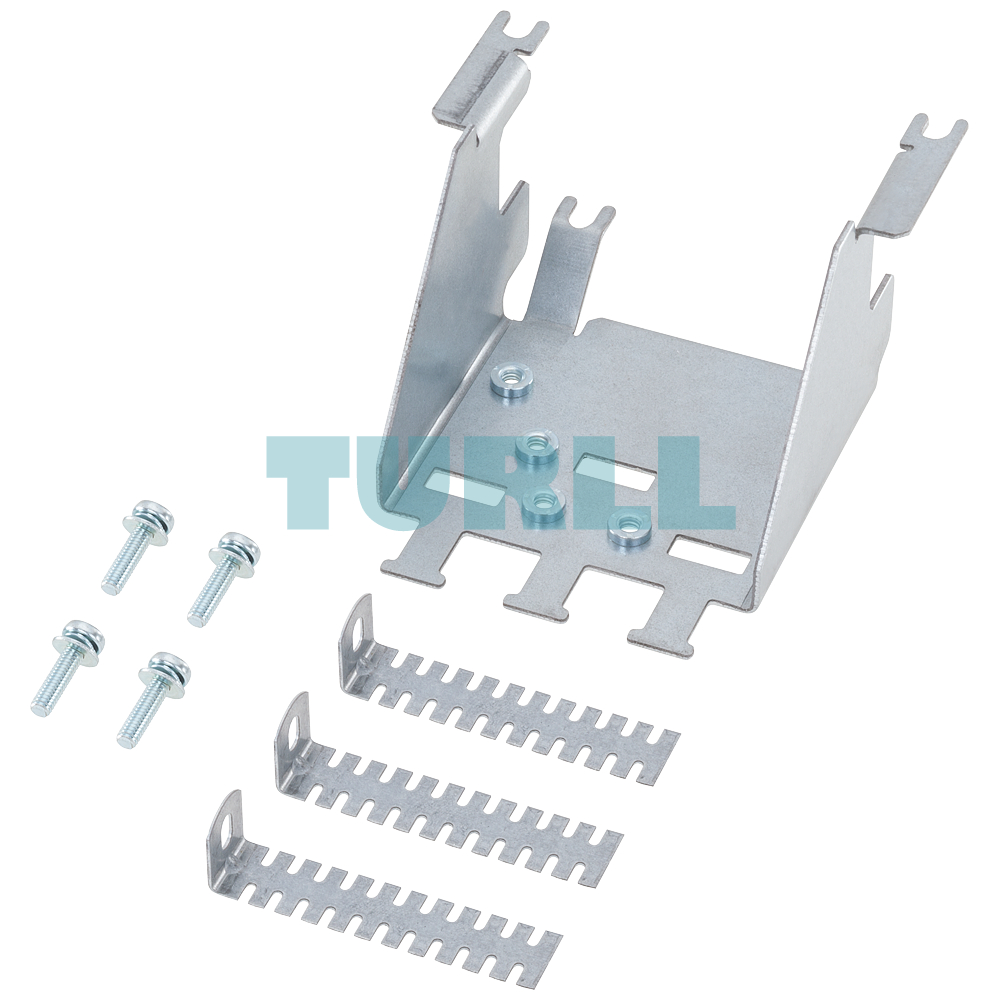

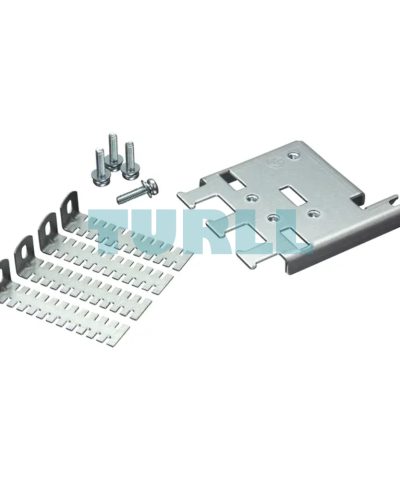

Siemens 6SL3266-1AR00-0VA0 SINAMICS V20 Shield Connection Kit for FSAA/FSAB Inverters Original Brand New

Overview

The Siemens 6SL3266-1AR00-0VA0 is a genuine accessory specifically designed to provide a secure and low-impedance connection for cable shields (screens) on the SINAMICS V20 Basic Inverter drive series. This shield connection kit is compatible with Frame Sizes FSAA and FSAB of the V20 inverter line. It is a critical component for achieving and maintaining electromagnetic compatibility (EMC) within your industrial applications, particularly when using shielded motor or control cables.

Benefit

• Optimized EMC: Ensures effective grounding of the cable shield to the inverter chassis, significantly reducing electromagnetic interference (EMI) and improving system reliability.

• Reduced Noise Emissions: Helps the V20 drive system comply with stringent EMC directives and standards, minimizing conducted and radiated noise.

• Enhanced System Reliability: Proper grounding prevents potential signal corruption and equipment malfunction caused by electrical noise.

• Easy Installation: Designed for straightforward fitting to the base of the compatible SINAMICS V20 inverters (FSAA/FSAB).

Technical Function and Features

The kit’s primary function is to create a secure, surface-to-surface connection between the metal braiding of shielded cables and the inverter’s equipotential grounding point. This connection safely shunts high-frequency noise currents away from sensitive components.

• Compatibility: Exclusively for SINAMICS V20 Basic Inverters, Frame Sizes FSAA and FSAB.

• Mounting Location: Typically mounts at the bottom of the V20 drive for cable entry.

• Dimensions: 67 mm (Width) x 10 mm (Height) x 80 mm (Depth).

• Termination: Allows for the termination of up to three screened cables (as per standard V20 installation procedures).

• Material: Durable materials engineered for industrial environments.

Application

The 6SL3266-1AR00-0VA0 shield connection kit is necessary for any application utilizing the SINAMICS V20 FSAA/FSAB frame size inverters, especially:

• Conveyor systems and material handling.

• Pumps, fans, and compressors.

• Basic automation machines where EMC compliance is a requirement.
