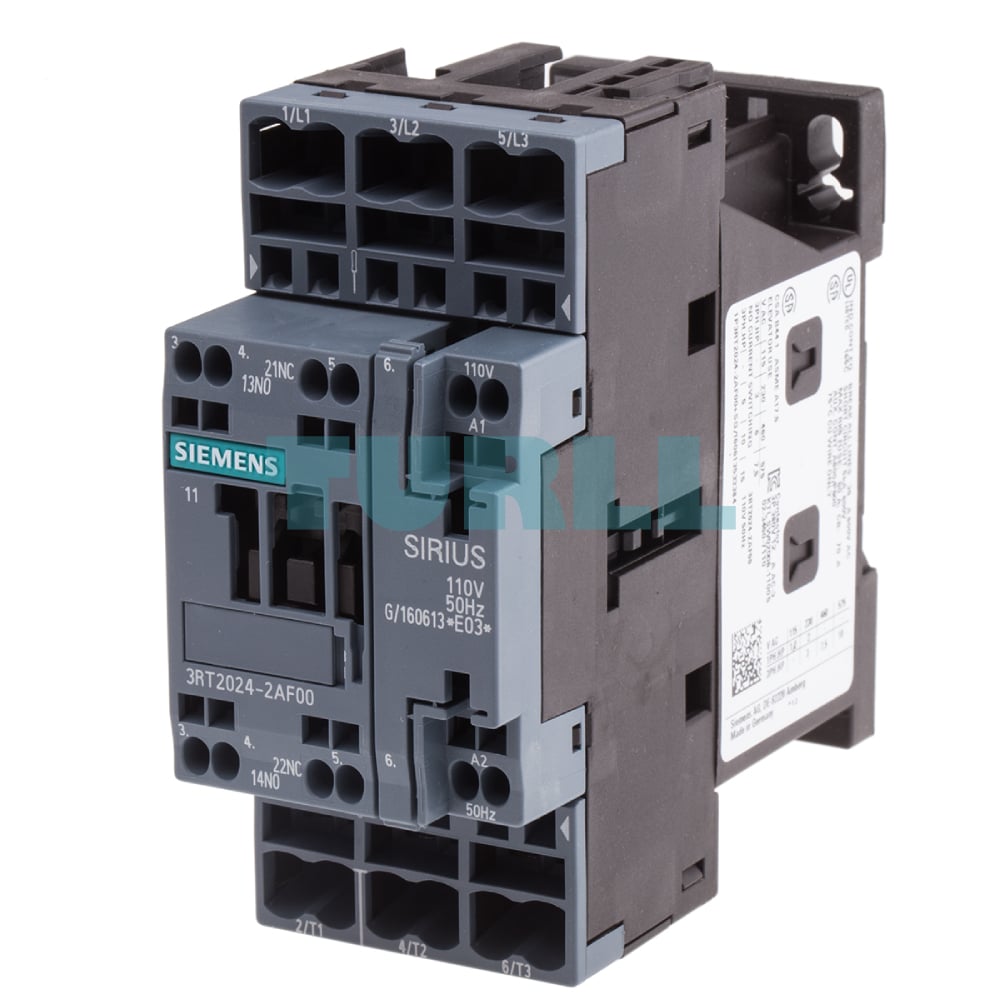

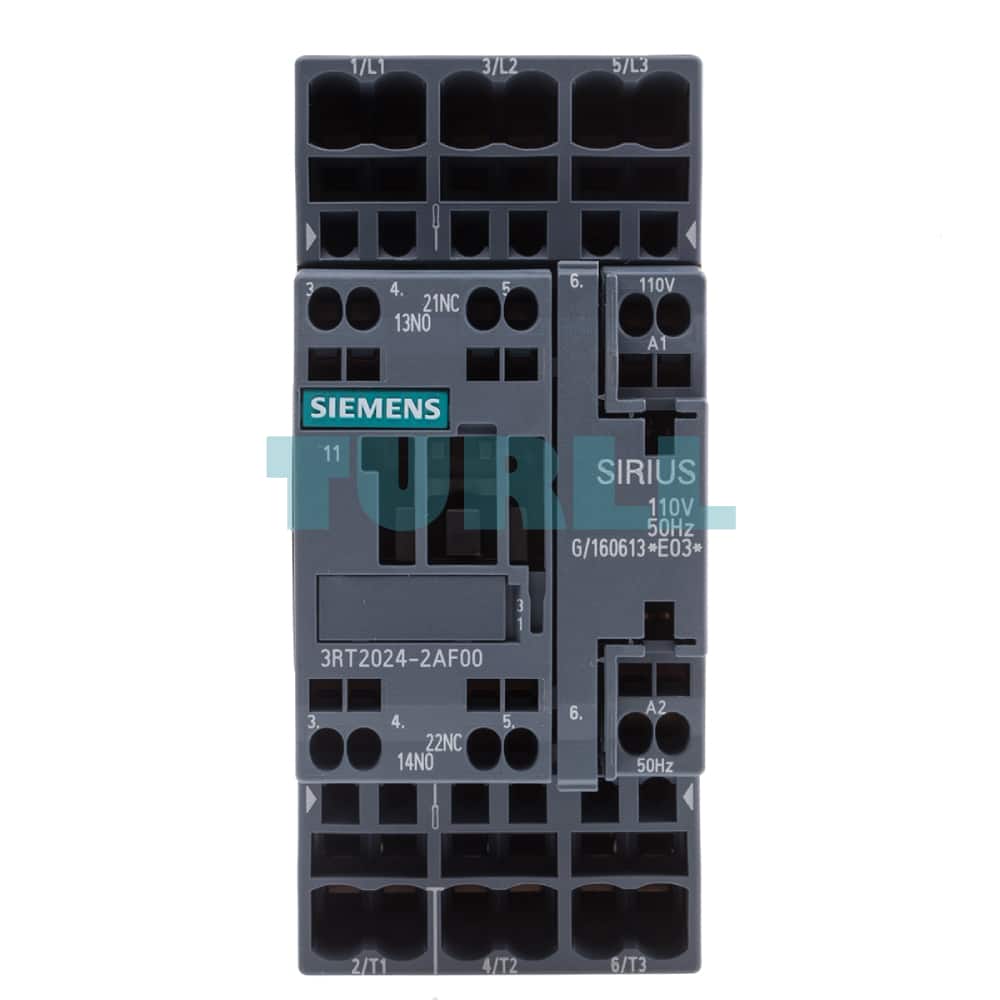

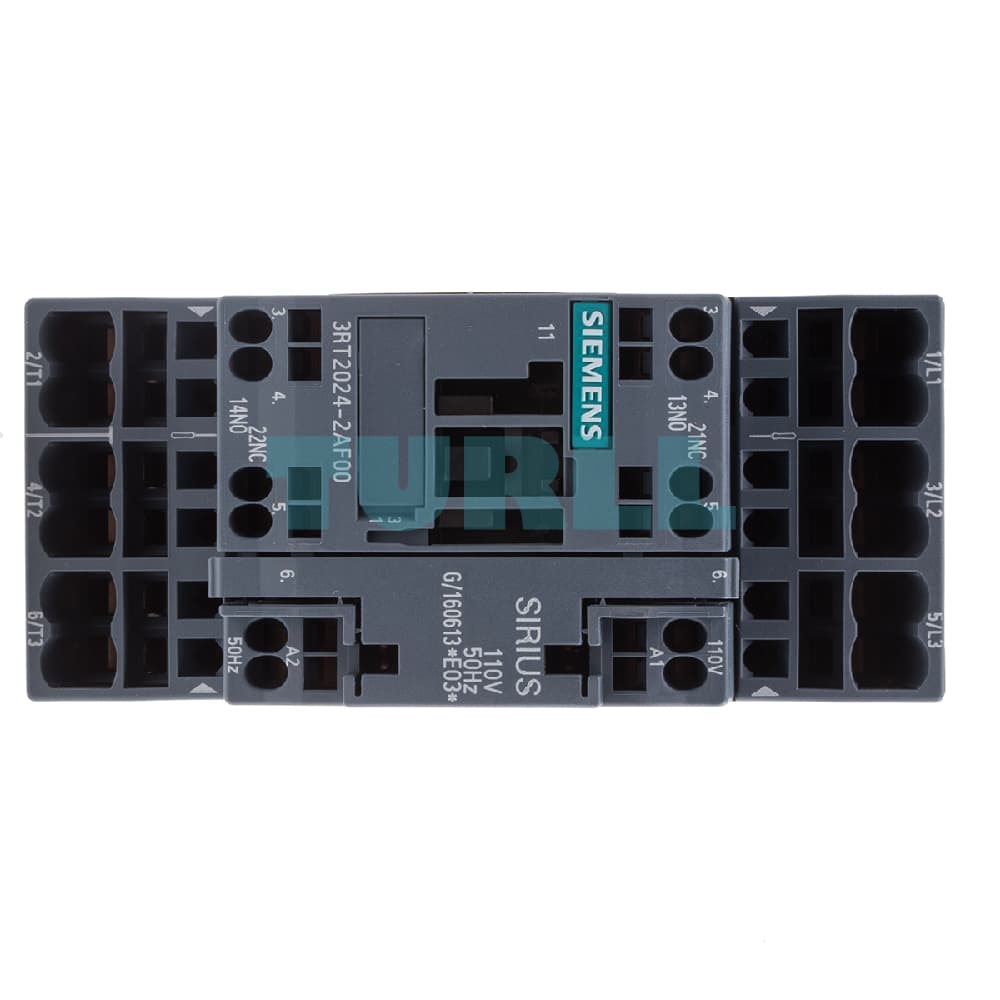

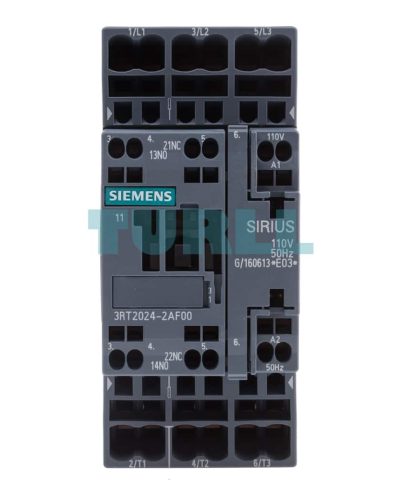

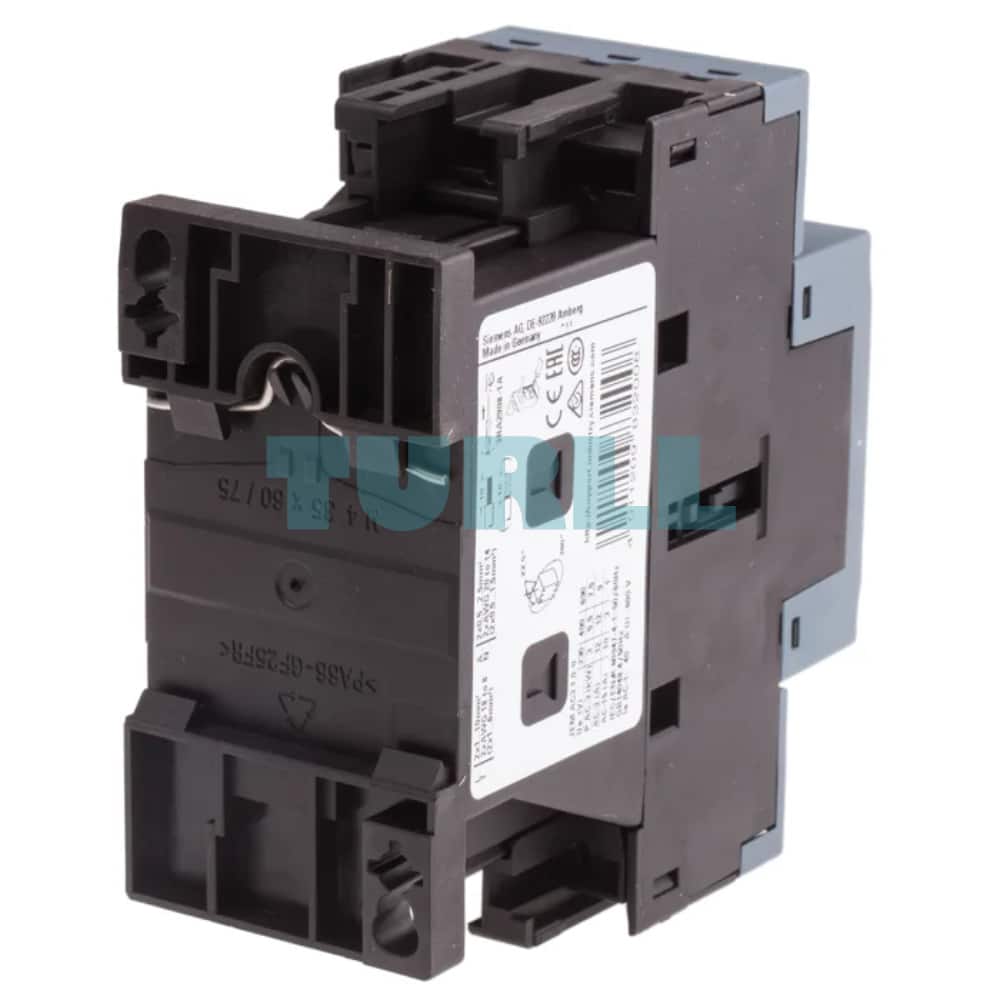

Siemens SIRIUS 3RT2024-2AF00 Power Contactor Size S0, 12A, 5.5kW, 110V AC Coil, Spring-Loaded Terminal Original Brand New

Overview

The Siemens 3RT2024-2AF00 Power Contactor is a high-performance, 3-pole contactor from the modular SIRIUS 3RT2 family. Designed for switching motors and other electrical loads, this reliable and compact device is engineered for low-voltage industrial control applications. It features a robust design and innovative spring-loaded terminal technology for fast, vibration-proof, and maintenance-free wiring.

Benefits & Features

• Fast & Reliable Wiring: Spring-loaded terminal technology ensures a quick, simple, and maintenance-free connection that is vibration-proof, reducing downtime and installation costs.
• Compact Design: The Size S0 form factor offers high performance within a space-saving footprint, ideal for crowded control cabinets.
• High Performance: Rated for up to 12 A and 5.5 kW at 400 V (AC-3e/AC-3), suitable for standard motor switching applications.
• System Integration: Part of the modular SIRIUS system, allowing easy combination with other coordinated components like auxiliary switches and overload relays.
• Future-Proof: IE3/IE4-ready, supporting energy-efficient motor applications.
• Global Standard: Approved for worldwide use, including IEC and UL/CSA standards.

Function

The Siemens 3RT2024-2AF00 is a power contactor used primarily for switching and controlling 3-phase AC motors. When the 110 V AC control coil is energized, the three main NO contacts close, allowing power to flow to the motor. The integrated auxiliary contacts (1 NO / 1 NC) provide feedback or interlock signals for control circuits.
