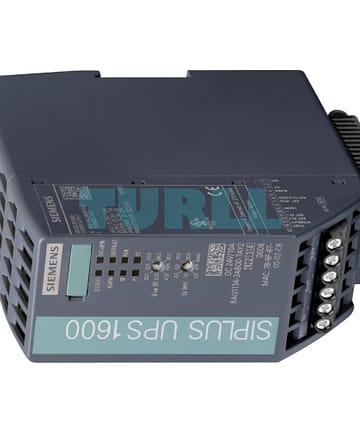

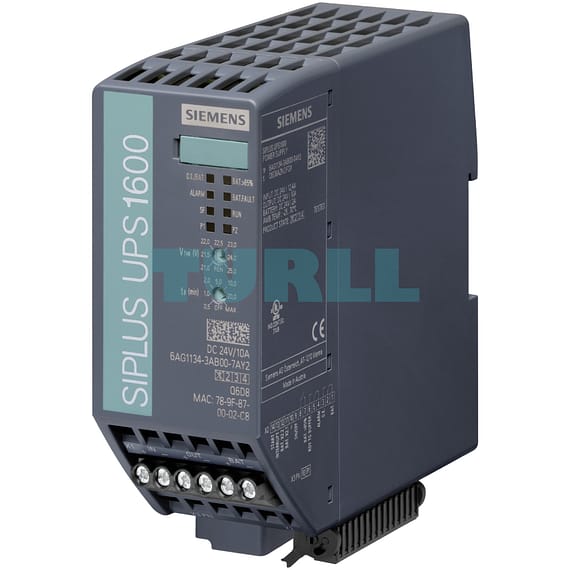

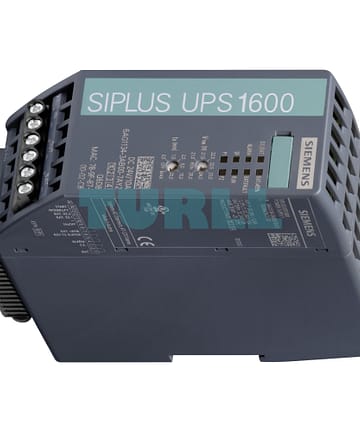

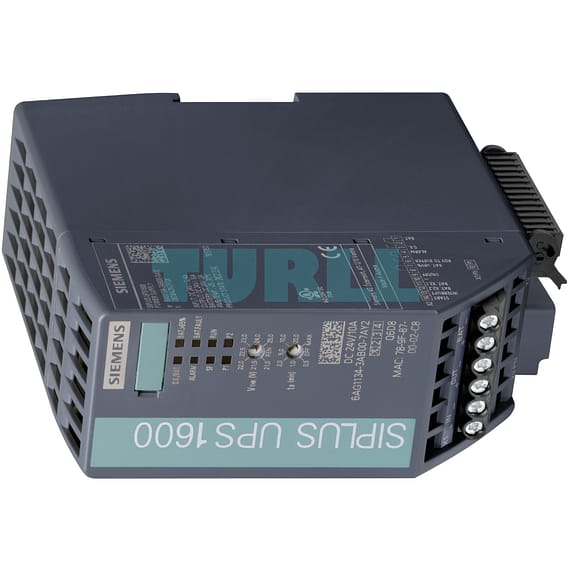

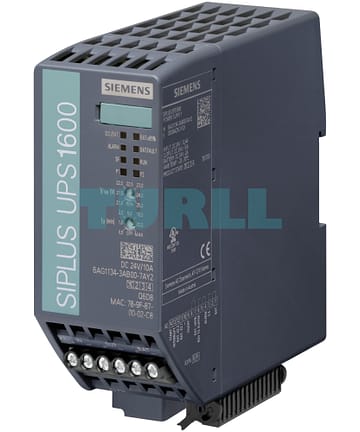

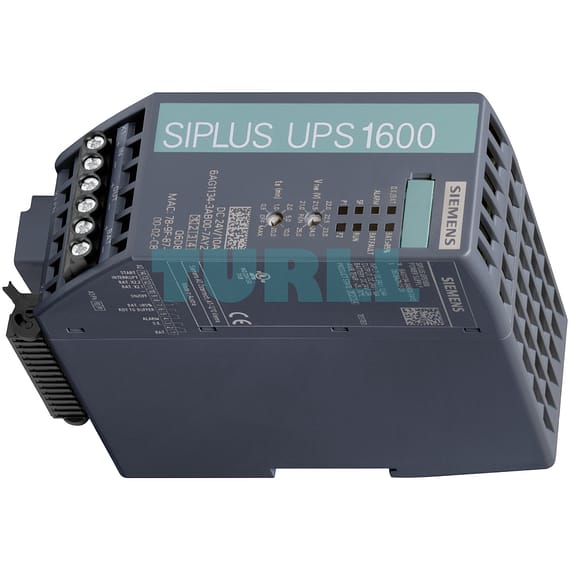

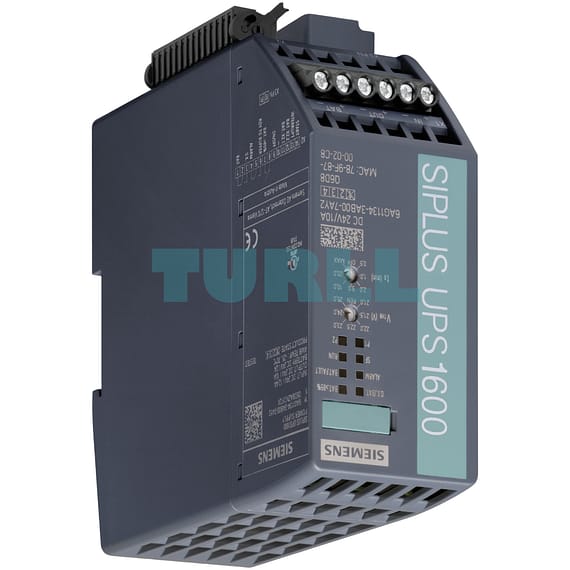

6AG1134-3AB00-7AY2 SIEMENS SIPLUS PS UPS1600 10A Original Brand New
$ 1,827.32
6AG1134-3AB00-7AY2
Siemens SIPLUS PS UPS1600 10A PN based on 6EP4134-3AB00-2AY0 with conformal coating, -25…+70 °C, uninterruptible power supply with Ethernet/ PROFINET interface input: 24 V DC output: 24 V DC/ 10 A
For bulk purchase, please contact us for discounted price.
Delivery
- Logistic partners UPS, FedEx, DPEX and DHL
- International delivery available
- Same day dispatch from group stock
Warranty
All parts new or reconditioned are covered by TURLL LIMITED 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment
Trade Credit
We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.
Payment options
All transactions are handled securely by Stripe. For more information, please visit our dedicated payments page.
We accept Bank transfers and the following methods of payment:
- Description
- Additional information
- Reviews (0)
Description
Overview
By combining one DC UPS module SITOP UPS1600 with at least one UPS1100 battery module and a SITOP power supply unit, longer power failures can be bridged without any interruption. The intelligent battery management automatically detects the UPS1100 energy storage unit, ensures optimized temperature-specific charging and continuous monitoring. The compact DC UPS modules have overload capability, for example, to supply the inrush current of industrial PCs. In stand-alone mode, they support starting from the battery.
The DC UPS communicates openly over a USB or Ethernet/PROFINET port. It is easily integrated into the PC or PLC environment over the two Ethernet/PROFINET ports.
Total integration in TIA provides user-friendly engineering in the TIA Portal and is supported with ready-to-use function blocks for S7 user programs and WinCC faceplates for fast visualization.
The SITOP Manager can also be used for easy monitoring and configuration in PC systems.
The UPS1600 modules with Ethernet/PROFINET ports have an OPC UA server, with which the DC UPS can communicate with both PCs and PLCs, even from different manufacturers, thanks to the open communication standard. Parameter assignment and the diagnostics of the uninterruptible power supply is possible via the open interface.
The integrated web server supports remote monitoring of the DC UPS.
Note:
SIPLUS extreme products are based on Siemens standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Benefits
Security and plant availability
- 24 V buffering for a few hours for the purpose of continuing processes
- High-performance DC UPS modules in space-saving, slim design
- High overload capability for mains and buffering operation
- Starting from the battery module supports stand-alone mode, e.g. for starting generators
- Easy configuration thanks to automatic detection of battery modules
- High reliability and availability due to monitoring of the operational readiness, battery feeder, aging and charging status
- Battery protecting charging due to temperature-specific charging characteristic
- SITOP UPS1600 and BAT1600 modules available for Zone 2 (gas) hazardous environments
Simple integration into the automation system
- Open communication over USB or two Ethernet/PROFINET ports
- Defined shutdown of several PCs or controllers on one UPS (versions with Ethernet/PROFINET)
- Remote monitoring via integrated web server
(versions with Ethernet/PROFINET) - Integrated OPC UA server facilitates flexible, multi-vendor communication with other systems (versions with Ethernet/PROFINET)
- Time-saving engineering in PC-based systems via SITOP Manager (versions with USB or Ethernet/PROFINET)
- Time and cost savings through complete integration in the TIA Portal (versions with Ethernet/PROFINET)
- SIMATIC S7 function blocks for easy integration in STEP 7 user programs
- Fast integration in operator control and monitoring with WinCC faceplates
- Direct integration in SIMATIC PCS 7 via SITOP library
Application
The battery modules that can be connected in parallel bridge power failures for a few hours. This supports the continued operation of processes or parts of them. The function “Starting from the battery” means that the UPS1600 can also be used in stand-alone mode without connection to the supply.
Depending on the communication requirements between the DC UPS and the automation components to be protected against power failure, the version of UPS1600 can be selected accordingly.
Buffering of simple automation applications
In simple applications with mini PLCs (e.g. obstruction lights, stand-alone hydro-electric plants), 24 V buffering is performed by the UPS1600 without a communications interface. The status messages are transferred to the PLC via the digital outputs (isolated).
Buffering of applications with automation computer
The UPS1600 with a USB interface is used to buffer automation solutions that are controlled by an industrial PC. All operating and configuration data is communicated over the PC interface.
Communication over Ethernet/PROFINET offers the most comprehensive possibilities for diagnostics and system integration. The UPS1600 can be directly integrated into the LAN infrastructure over its two ports.
Buffering of applications with networked (Industrial Ethernet) automation computers
UPS1600 with an Industrial Ethernet interface protects complex PC-based applications against power failure. Configuration and monitoring is performed with the SITOP Manager PC software. It also allows for the defined shutdown of multiple PCs.
Buffering of applications with networked (PROFINET) automation components
The UPS1600 with PROFINET is the perfect choice for buffering sensitive system sections (e.g. pumping stations with telecontrol) or complete controller solutions (e.g. machine tools) that are integrated into a networked automation solution. Total integration in TIA offers unique advantages for engineering and operation (e.g. diagnostics or visualization). For example, in buffer mode, several controllers can be brought to a defined independently of each other.
Design
- Compact DC UPS modules UPS1600 24 V/10 A, 20A and 40 A with digital inputs and outputs, optionally with USB interface or two Ethernet/PROFINET ports
- BAT1600 3.2 Ah, BAT1600 12 Ah and BAT1600 38 Ah, UPS1100 1.2 Ah and UPS1100 7 Ah battery modules with lead rechargeable batteries, as well as the UPS1100 2.5 Ah battery module with pure-lead rechargeable batteries for increased temperature conditions, and BAT1600 2.5 Ah and BAT1600 7.5 Ah battery modules with lithium-ion technology for a longer service life
6AG1134-3AB00-7AY2
Siemens SIPLUS PS UPS1600 10A PN based on 6EP4134-3AB00-2AY0 with conformal coating, -25…+70 °C, uninterruptible power supply with Ethernet/ PROFINET interface input: 24 V DC output: 24 V DC/ 10 A
Visit 6AG1134-3AB00-7AY2
For more our products visit turll.com
Additional information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 152 × 150 × 55 mm |
