1FK2104-4AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-4AF01-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

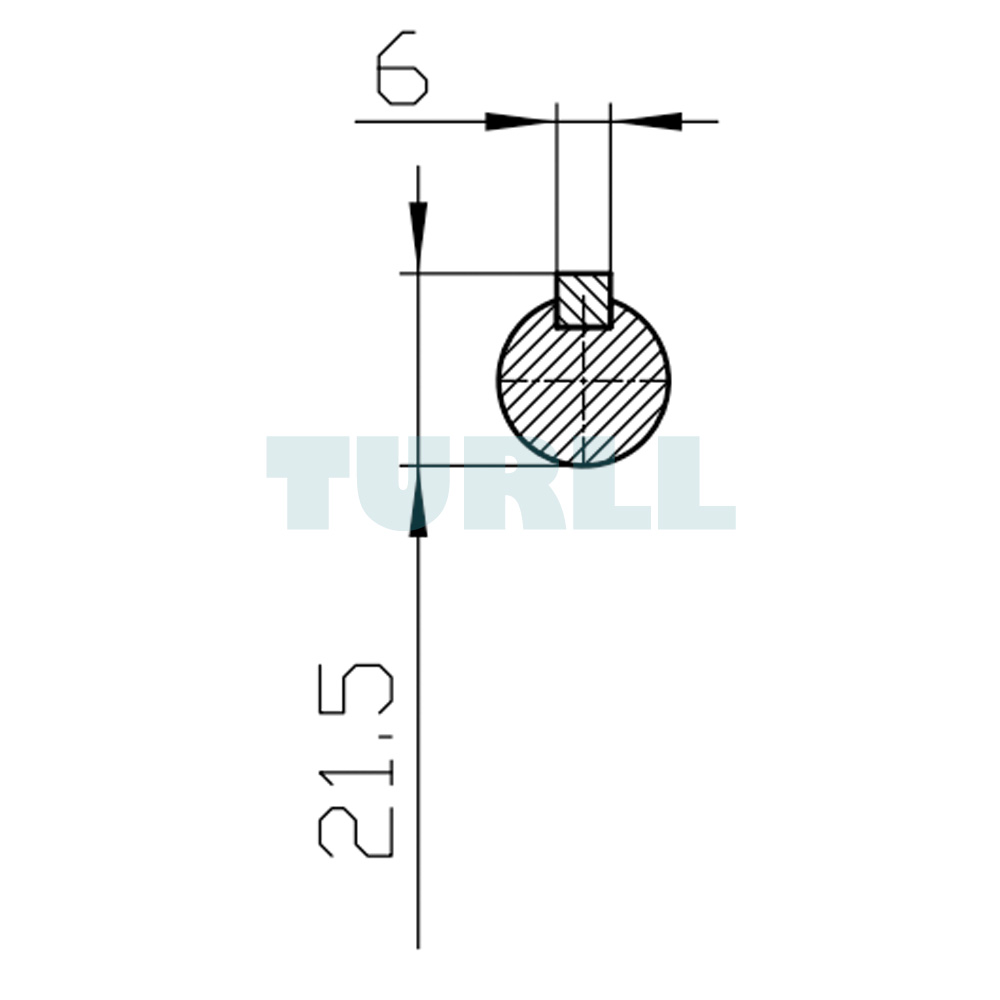

The SIEMENS 1FK2104-4AF01-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is a precision-engineered synchronous motor developed to deliver exceptional efficiency, compact construction, and high torque performance. Designed with advanced technology for use in industrial automation, this servo motor provides maximum productivity in demanding drive applications. It is rated at 0.4 kW at 3000 rpm for 380–480 V operation, and 0.2 kW at 1500 rpm for 200–240 V supply, making it suitable for both medium- and high-performance requirements. With a nominal torque of 1.27 Nm, an IP65 degree of protection, and a robust shaft with feather key, it ensures reliability even under tough industrial conditions.

Engineered with an integrated 22-bit single-turn absolute encoder (AS22DQC) and DRIVE-CLiQ plug M17, this motor provides precise feedback and easy connectivity. The compact dimensions, low inertia, and overload capacity make it ideal for applications requiring dynamic response, such as packaging machinery, robotics, handling systems, and other motion control environments.

Overview

The SIMOTICS S-1FK2 family represents SIEMENS’ commitment to combining compact design with excellent dynamic performance. These motors are optimized for a wide range of industrial tasks, offering flexibility while keeping the portfolio streamlined. They serve as the core motor line for the SINAMICS S210 servo drive system, providing a simple and efficient selection process for engineers.

The product range is extended by the 1FT2 series, which includes more finely graded speeds, expanded torque ranges, and additional variants. Together, the 1FK2 and 1FT2 motors address challenges across diverse industries, from precise positioning tasks to continuous duty cycles in harsh environments.

SIMOTICS S-1FK2 High Dynamic and Compact

High Dynamic versions provide exceptional responsiveness due to low inertia, making them suitable for applications with small moving masses. Compact versions deliver stable and accurate control for medium to large load applications with medium inertia. Both options embody SIEMENS engineering standards: reliability, precision, and long service life.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AF01-1SB0
