1FK2106-3AF00-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2106-3AF00-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

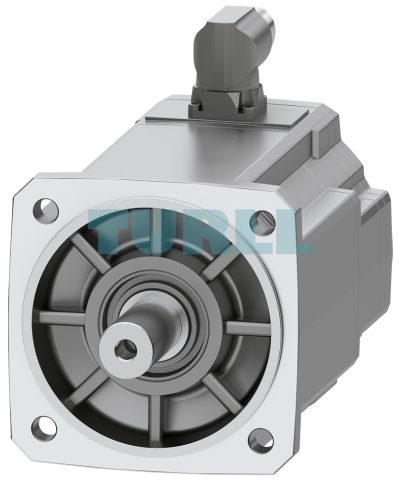

The SIEMENS 1FK2106-3AF00-0SA0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact and powerful synchronous motor designed to deliver outstanding motion performance in industrial environments. With a rated torque of 9 Nm, this motor offers 2.3 kW at 3000 rpm when powered by 380–480 V, and 1.3 kW at 1500 rpm at 200–240 V, ensuring flexible performance across different operating conditions. The cylindrical shaft (24×50 mm) and high-quality construction guarantee robust mechanical stability. Its IP64 protection rating allows reliable operation even in challenging environments, ensuring durability and consistent output over long service life.

Equipped with a single-turn 22-bit absolute encoder (AS22DQC), the motor provides high-resolution feedback for precise positioning. The OCC interface, combined with a rotatable M23 plug connector, enables easy integration with automation systems while ensuring secure and adaptable connectivity. These features make it a suitable choice for machine tools, packaging systems, and robotics where both power and precision are critical.

Overview

The SIMOTICS S-1FK2 series is characterized by high dynamic response, compact design, and strong overload capability. With limited but carefully chosen variants, the motor line simplifies the selection process while covering a wide range of automation needs. Serving as the core motor series for the SINAMICS S210 servo drive system, the 1FK2 family ensures fast commissioning and smooth operation in industrial setups.

For even more advanced requirements, the 1FT2 motors expand the portfolio with additional torque levels, refined speed gradations, and broader options, making it possible to handle even the most complex drive technology challenges with confidence.

Product Code: 1FK2106-3AF00-0SA0
