1FK2204-5AK00-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK00-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AK00-1SA0 is an advanced synchronous motor designed to meet the demanding requirements of modern automation technology. Delivering compact size, high efficiency, and exceptional dynamic response, this servo motor provides a powerful solution for industrial applications that require precision and reliability. Its rated torque of 2.4 Nm, combined with power output of 0.57 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V), ensures stable performance across various operating conditions.

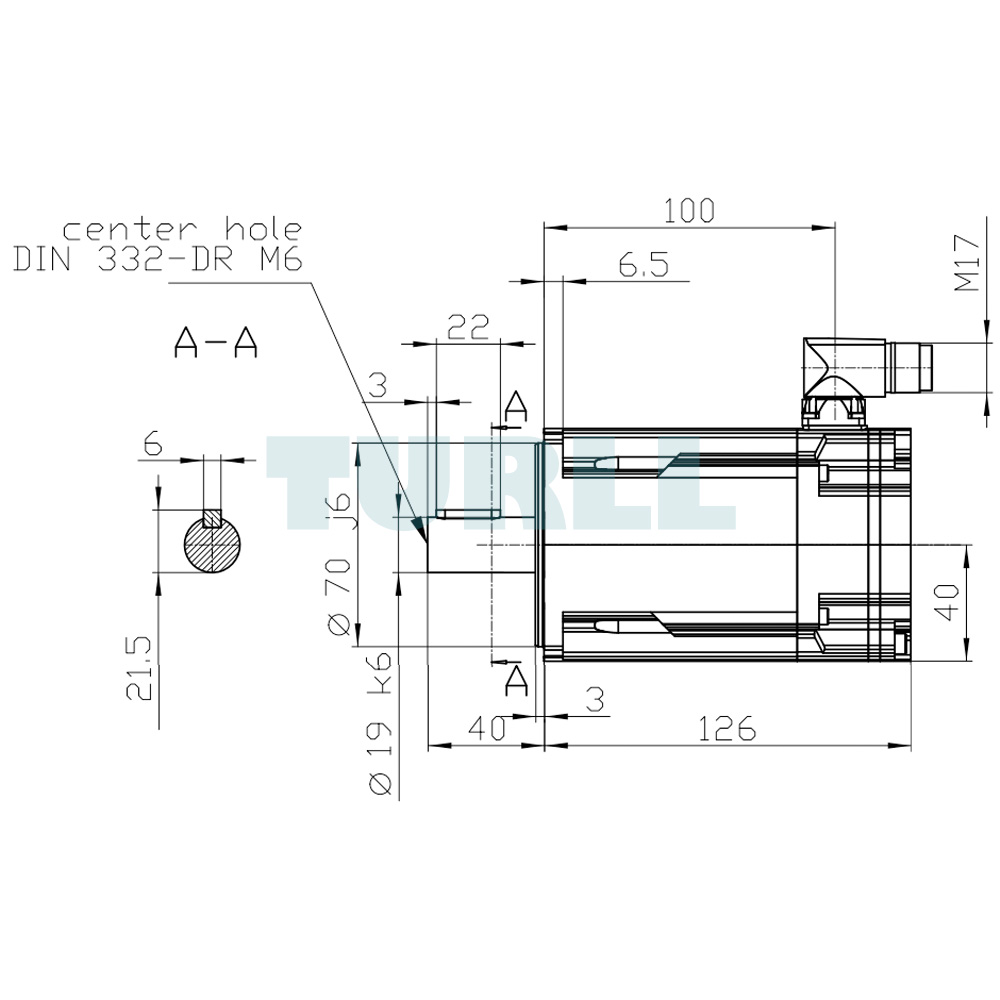

The motor features an IP64 degree of protection, making it suitable for environments where durability and reliability are critical. With a shaft dimension of D19x40 mm and feather key, the servo motor offers secure mechanical connections. The integrated absolute encoder AS22DQC with 22-bit resolution supports high-precision position feedback, while the OCC interface and rotatable M17 plug provide flexible connectivity. Together, these features enable the servo motor to integrate seamlessly into different automation systems while maintaining consistent performance.

Overview

The SIMOTICS S-1FK2 series combines compact construction with powerful performance. Designed as highly dynamic synchronous motors, they are characterized by excellent power density and overload capacity. This makes them suitable for diverse applications, ranging from precise positioning to demanding motion control tasks. The 1FK2 portfolio forms the backbone of the servomotor range for the SINAMICS S210 drive system, ensuring reliable compatibility and straightforward system integration.

Alongside the 1FK2 family, the extended 1FT2 motors add further speed variations, torque levels, and expanded options, addressing even more complex drive technology requirements. This versatility allows industries to deploy the exact motor configuration needed for different operational challenges, from high-speed processes to stable control in demanding environments.

SIMOTICS S-1FK2 Variants

• High Dynamic motors: Designed with low inertia, optimized for applications requiring rapid acceleration and highly dynamic responses with minimal moving masses.
• Compact motors: Provide stable and precise control when moving medium to high inertial loads, ensuring accurate motion control in various industrial settings.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK00-1SA0
