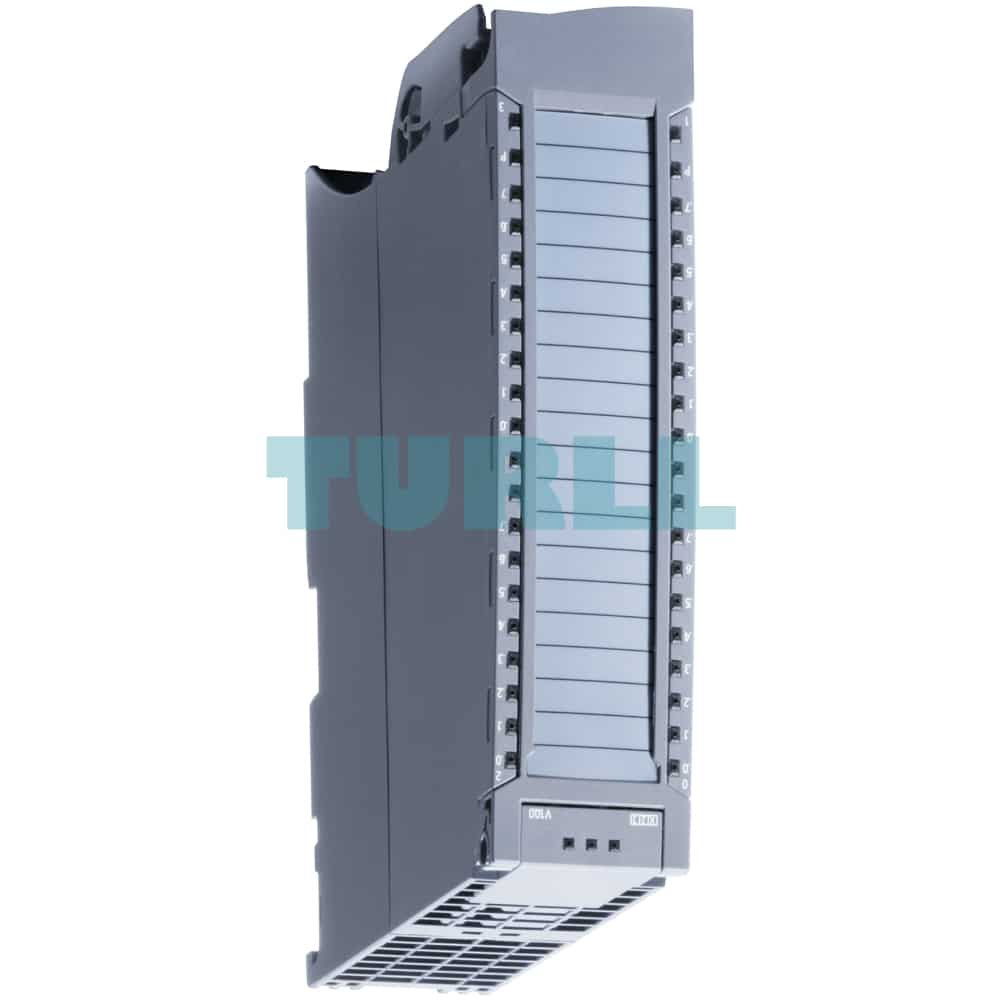

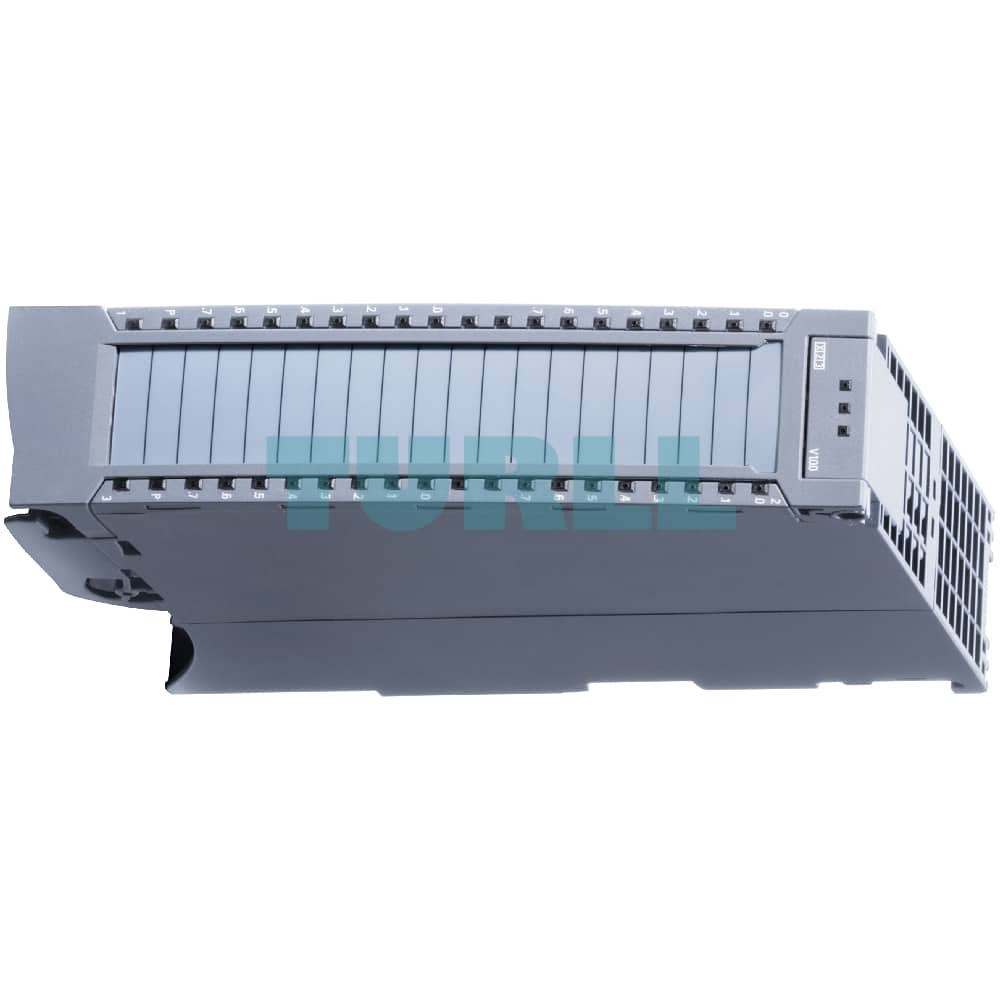

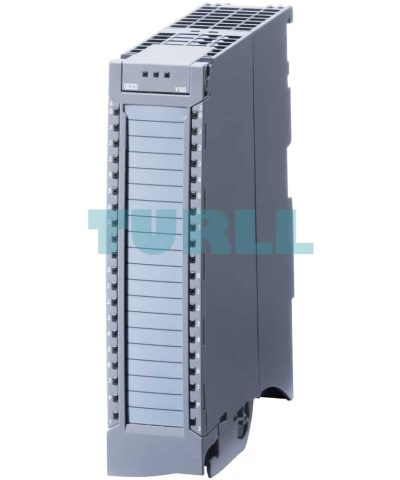

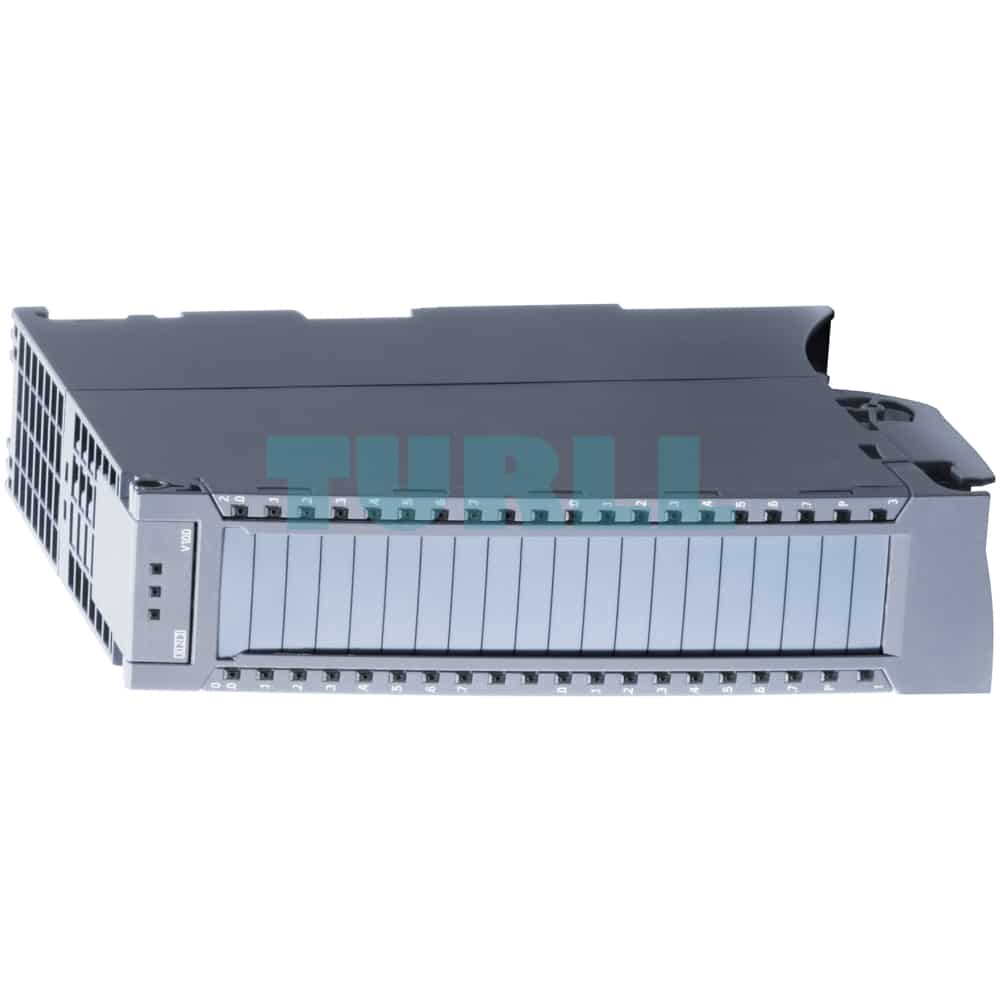

6AG1521-1BH00-7AB0 Siemens SIPLUS S7-1500 DI 16x24VDC HF Original Brand New

Model / SKU6AG1521-1BH00-7AB0

6AG1521-1BH00-7AB0

Siemens SIPLUS S7-1500 DI 16x24VDC HF based on 6ES7521-1BH00-0AB0 with conformal coating, -40…+70 °C, digital input module, 16 channels in groups of 16; input delay 0.05..20 ms input type 3 (IEC 61131); diagnostics; hardware interrupts

$917.99
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • 16 and 32-channel digital input modules
  • For flexible adaptation of the controller to the corresponding task
  • For subsequent expansion of the system with additional inputs
Note:

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.

Application

Digital input modules record 24 V DC or 230 V AC signals in the plant and forward them to the control. Switches and 2, 3 or 4-wire proximity switches can be connected.

The input modules have settable parameters and diagnostic functions and can thus be adapted flexibly to the respective process requirements.

Function

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Channel status display for signal state log. "0" and log. "1" (green LED) or indication of wire break (red LED)
    • 1:1 assignment of the channel status display (LED) to the terminal (except with the 64-channel modules)
    • Display for monitoring the 24 V DC supply voltage (green LED)
  • Supported functions:
    • Identification and maintenance data IM0 to IM3
    • Firmware update
    • Module-granular shared device and MSI (modular shared input);
      in combination with PROFINET these allow assignment to several IO controllers
    • Channel-specific parameter assignment (only HF modules)
    • Hardware interrupts (only HF modules)
    • Channel-granular diagnostics (only HF modules)
    • Isochronous mode (dependent on the module)
    • Integrated counter function (dependent on the module)

6AG1521-1BH00-7AB0

Siemens SIPLUS S7-1500 DI 16x24VDC HF based on 6ES7521-1BH00-0AB0 with conformal coating, -40…+70 °C, digital input module, 16 channels in groups of 16; input delay 0.05..20 ms input type 3 (IEC 61131); diagnostics; hardware interrupts

Visit 6AG1521-1BH00-7AB0

For more our products visit turll.com

Specifications

SKU / Model6AG1521-1BH00-7AB0
Weight0.278 kg
Dimensions150 × 150 × 45 mm
