6AG2532-5HD00-4AB0 Siemens SIPLUS S7-1500 AQ 4xU/I ST TX Rail Original Brand New

Model / SKU6AG2532-5HD00-4AB0

6AG2532-5HD00-4AB0

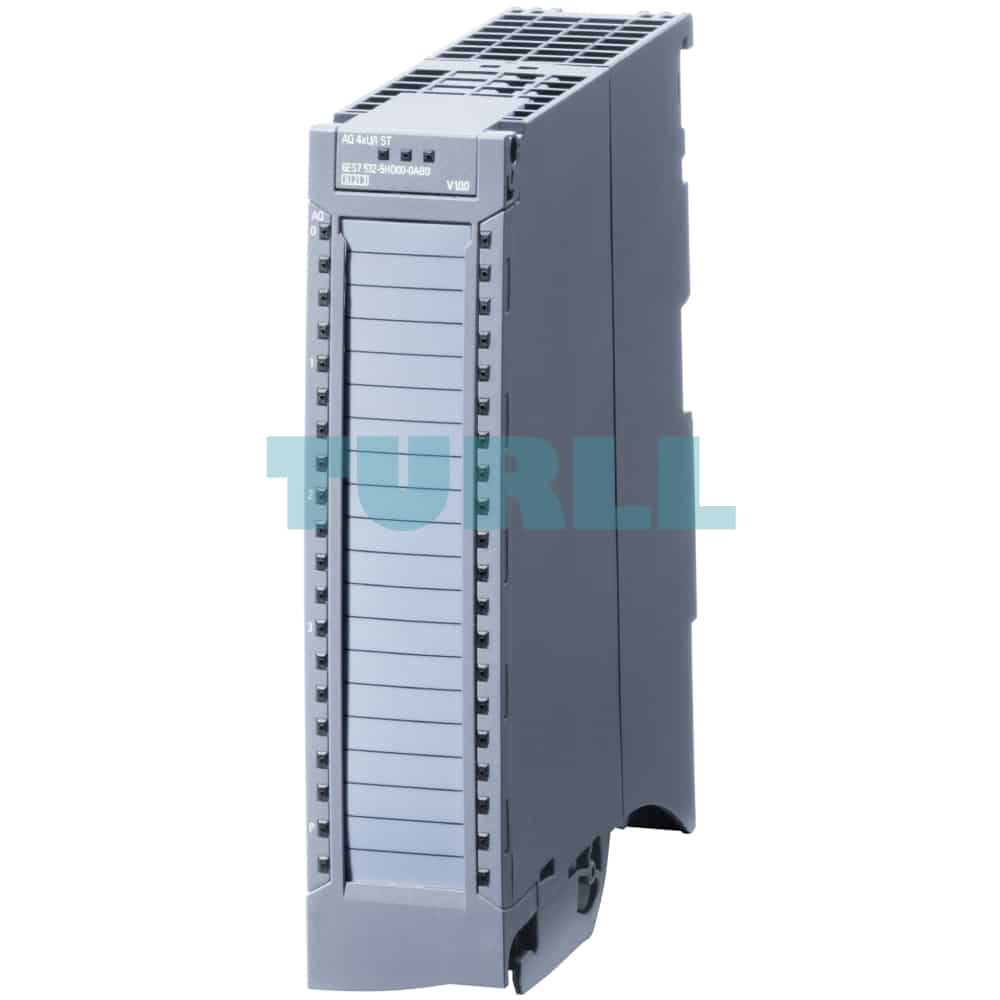

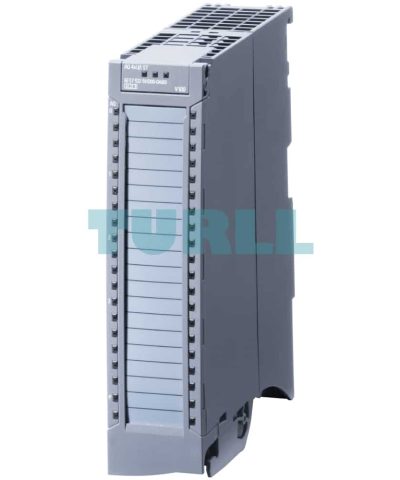

Siemens SIPLUS S7-1500 AQ 4xU/I ST TX rail based on 6ES7532-5HD00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), analog output module 16-bit resolution, accuracy 0.3%. 4 channels in groups of 4, diagnostics; substitute value including infeed element, shielding bracket and shield terminal

$2,798.93
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

Overview

  • 4-channel analog output module
  • Approved in accordance with the railway standards EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 for use in rail traffic
  • Optionally with extremely short conversion times
  • For connecting analog actuators without additional amplifiers
  • Even solves more complex automation tasks

Application

Analog output modules convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.

Design

  • Installation on the S7-1500 mounting rail using one single screw
  • Standardized 40-pin front connector using screw terminal or push-in technology
  • Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16), regardless of the front connector used
  • Front connector can be set to prewiring position
  • Front flap with expandable cable compartment, even if fully wired
  • Integrated shielding concept
  • Unambiguous labeling on front of module:
    • Module type
    • Article No.
    • Hardware and firmware version
    • Channel numbers labeling
    • Cabling diagram

Included in the scope of delivery:

  • Infeed element, shield clamp, and shield terminal
  • One labeling strip for manual labeling
  • One U connector
  • Printed front door

Function

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Channel status display (channel activated or deactivated, green LED) or diagnostics display (red LED)
    • Display for monitoring the 24 V DC supply voltage (green LED)
  • Supported functions:
    • Consistently high resolution of 16 bits
    • Identification and maintenance data IM0 to IM3
    • Firmware update
    • Channel-specific parameter assignment
    • Channel-granular diagnostics (depends on measurement type/measuring range)
    • Substitute values can be parameterized for the outputs
    • Calibration during runtime
    • Isochronous mode (dependent on the module)

6AG2532-5HD00-4AB0

Siemens SIPLUS S7-1500 AQ 4xU/I ST TX rail based on 6ES7532-5HD00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), analog output module 16-bit resolution, accuracy 0.3%. 4 channels in groups of 4, diagnostics; substitute value including infeed element, shielding bracket and shield terminal

Visit 6AG2532-5HD00-4AB0

For more our products visit turll.com

Specifications

SKU / Model6AG2532-5HD00-4AB0
Weight0.404 kg
Dimensions41 × 191 × 164 mm
